2017 CHEVROLET MALIBU Owners Manual

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
280 Vehicle Care
Accessories and
Modifications
Adding non-dealer accessories ormaking modifications to the vehiclecan affect vehicle performance andsafety, including such things asairbags, braking, stability, ride andhandling, emissions systems,aerodynamics, durability, andelectronic systems like antilockbrakes, traction control, and stabilitycontrol. These accessories ormodifications could even causemalfunction or damage not coveredby the vehicle warranty.
Damage to suspension componentscaused by modifying vehicle heightoutside of factory settings will not becovered by the vehicle warranty.
Damage to vehicle componentsresulting from modifications or theinstallation or use of non-GMcertified parts, including controlmodule or software modifications, isnot covered under the terms of thevehicle warranty and may affectremaining warranty coverage foraffected parts.
GM Accessories are designed tocomplement and function with othersystems on the vehicle. See yourdealer to accessorize the vehicleusing genuine GM Accessoriesinstalled by a dealer technician.
Also, seeAdding Equipment to theAirbag-Equipped Vehicle081.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own servicework, use the proper servicemanual. It tells you much moreabout how to service the vehiclethan this manual can. To order theproper service manual, seeServicePublications OrderingInformation0392.
This vehicle has an airbag system.Before attempting to do your ownservice work, seeServicing theAirbag-Equipped Vehicle081.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 281
Keep a record with all parts receiptsand list the mileage and the date ofany service work performed. SeeMaintenance Records0379.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.

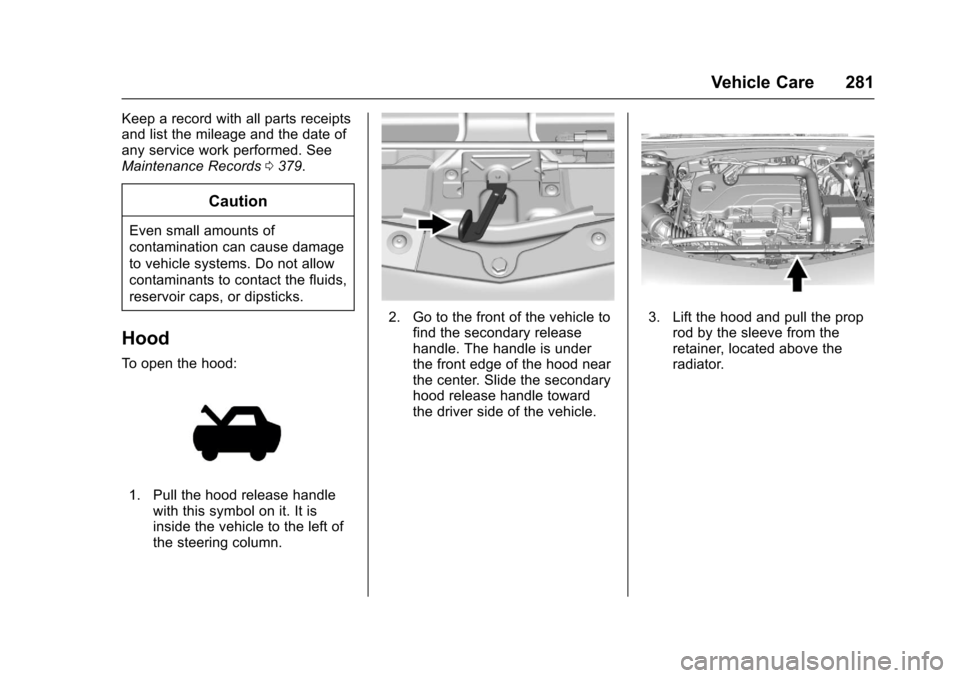

Hood
To o p e n t h e h o o d :
1. Pull the hood release handlewith this symbol on it. It isinside the vehicle to the left ofthe steering column.
2. Go to the front of the vehicle tofind the secondary releasehandle. The handle is underthe front edge of the hood nearthe center. Slide the secondaryhood release handle towardthe driver side of the vehicle.
3. Lift the hood and pull the proprod by the sleeve from theretainer, located above theradiator.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
282 Vehicle Care

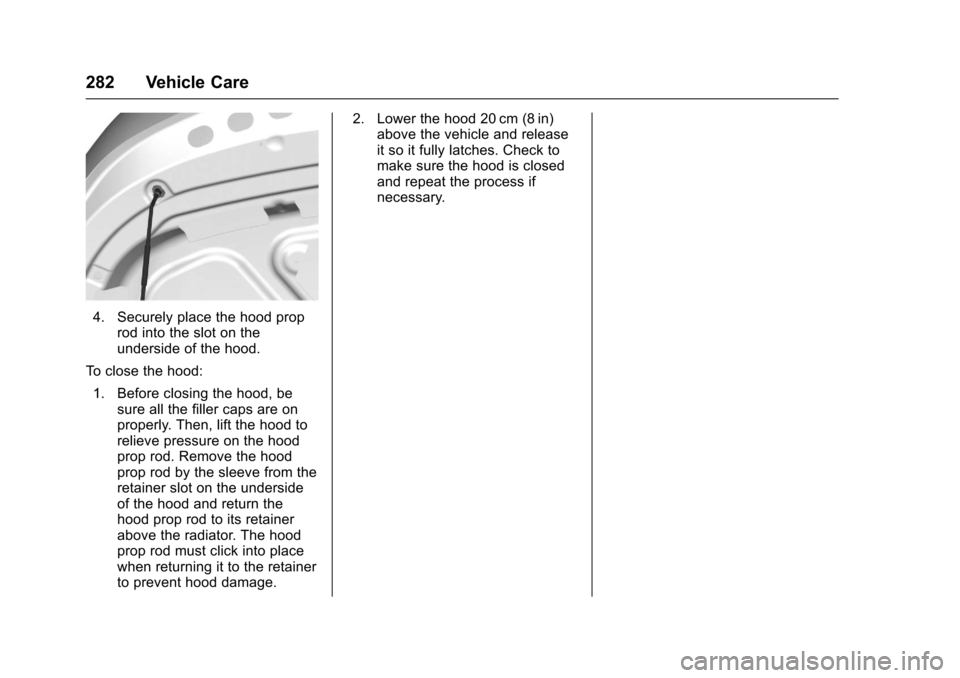

4. Securely place the hood proprod into the slot on theunderside of the hood.
To c l o s e t h e h o o d :
1. Before closing the hood, besure all the filler caps are onproperly. Then, lift the hood torelieve pressure on the hoodprop rod. Remove the hoodprop rod by the sleeve from theretainer slot on the undersideof the hood and return thehood prop rod to its retainerabove the radiator. The hoodprop rod must click into placewhen returning it to the retainerto prevent hood damage.
2. Lower the hood 20 cm (8 in)above the vehicle and releaseit so it fully latches. Check tomake sure the hood is closedand repeat the process ifnecessary.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 283

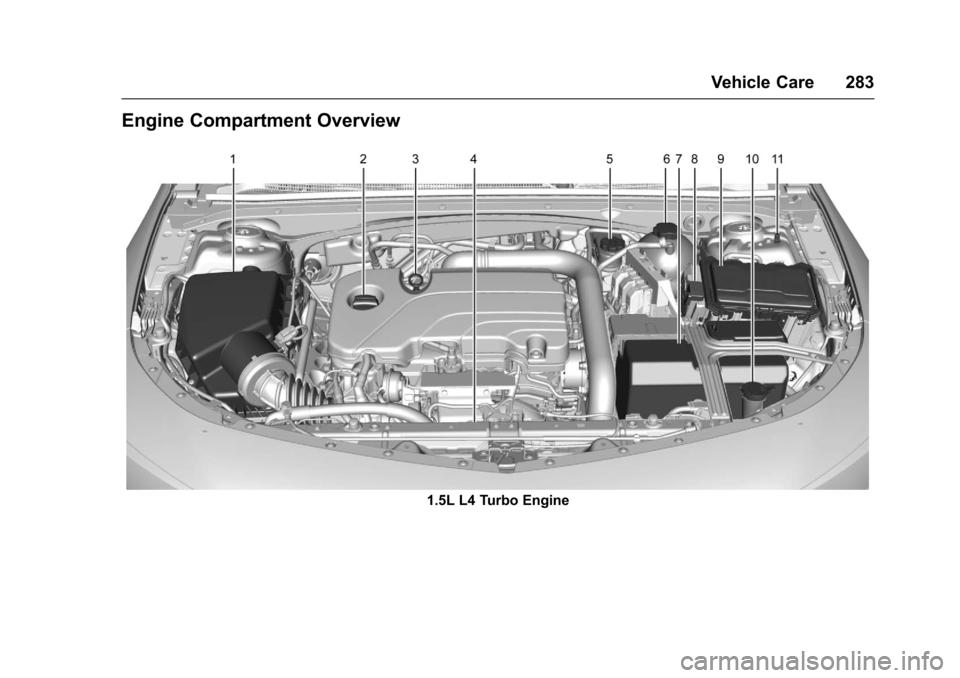

Engine Compartment Overview
1.5L L4 Turbo Engine

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
284 Vehicle Care
1.Engine Air Cleaner/Filter0292.
2. Engine Oil Fill Cap. SeeEngine Oil0288.
3. Engine Oil Dipstick. SeeEngine Oil0288.
4. Engine Cooling Fan (Out ofView). SeeCooling System(Engine)0293orCoolingSystem (PowerElectronics)0294.
5. Brake Fluid Reservoir. SeeBrakes0299.
6. Coolant Surge Tank andPressure Cap. SeeEngineCoolant0295.
7.Battery - North America0301.
8. Remote Positive (+) BatteryTe r m i n a l ( U n d e r C o v e r ) . S e eJump Starting - NorthAmerica0352.
9.Engine Compartment FuseBlock0311.
10. Windshield Washer FluidReservoir. SeeWasherFluid0299.
11 . R e m o t e N e g a t i v e ( - ) B a t t e r yTe r m i n a l . S e eJump Starting -North America0352.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 285

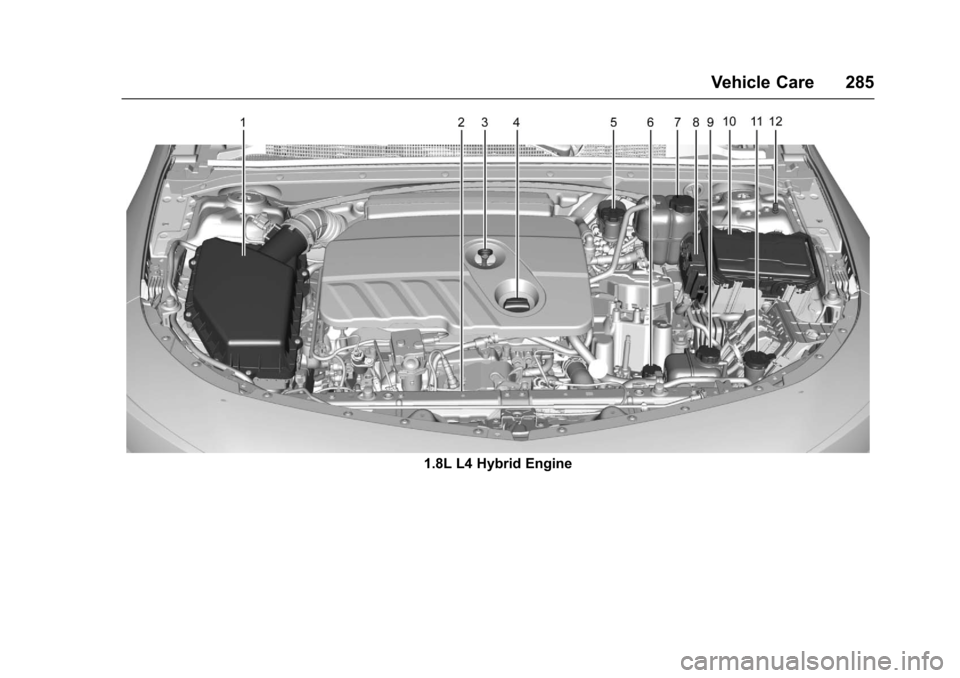

1.8L L4 Hybrid Engine

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
286 Vehicle Care
1.Engine Air Cleaner/Filter0292.
2. Engine Cooling Fan (Out ofView). SeeCooling System(Engine)0293orCoolingSystem (PowerElectronics)0294.
3. Engine Oil Dipstick. SeeEngine Oil0288.
4. Engine Oil Fill Cap. SeeEngine Oil0288.
5. Brake Fluid Reservoir. SeeBrakes0299.
6. Automatic Transmission FluidFill Cap. SeeAutomaticTr a n s m i s s i o n F l u i d0292.
7. Coolant Surge Tank andPressure Cap. SeeEngineCoolant0295.
8. Remote Positive (+) BatteryTe r m i n a l ( U n d e r C o v e r ) . S e eJump Starting - NorthAmerica0352.
9. Power Electronics CoolantReservoir. SeeCooling System(Engine)0293orCoolingSystem (PowerElectronics)0294.
10.Engine Compartment FuseBlock0311.
11 . W i n d s h i e l d Wa s h e r F l u i dReservoir. SeeWasherFluid0299.
12. Remote Negative (-) BatteryTe r m i n a l . S e eJump Starting -North America0352.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 287
2.0L L4 Turbo Engine
