2017 BMW X6 Owners Manual

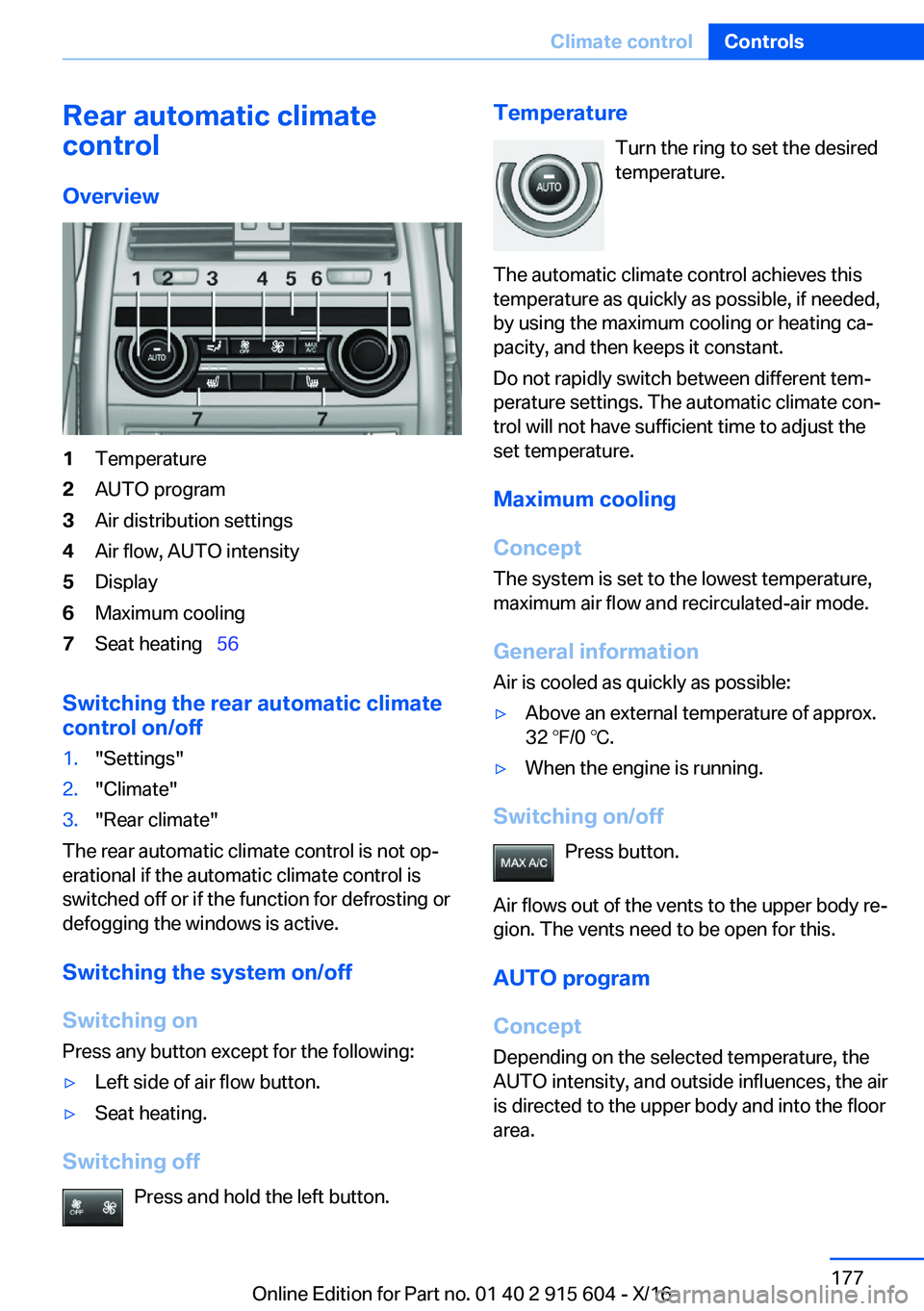

Rear
automatic
climate
control
Overview1Temperature2AUTO program3Air distribution settings4Air flow, AUTO intensity5Display6Maximum cooling7Seat heating\_ 56
Switching
the
rear
automatic
climate
control
on/off
1."Settings"2."Climate"3."Rear climate"
The rear automatic climate control is not opj erational if the automatic climate control is
switched off or if the function for defrosting or
defogging the windows is active.
Switching
the
system
on/off
Switching
on Press any button except for the following:
'yLeft side of air flow button.'ySeat heating.
Switching
off
Press and hold the left button.
Temperature Turn the ring to set the desired
temperature.
The automatic climate control achieves this
temperature as quickly as possible, if needed,
by using the maximum cooling or heating caj
pacity, and then keeps it constant.
Do not rapidly switch between different temj
perature settings. The automatic climate conj
trol will not have sufficient time to adjust the
set temperature.
Maximum
cooling
Concept
The system is set to the lowest temperature,
maximum air flow and recirculated-air mode.
General
information Air is cooled as quickly as possible:'yAbove an external temperature of approx.32

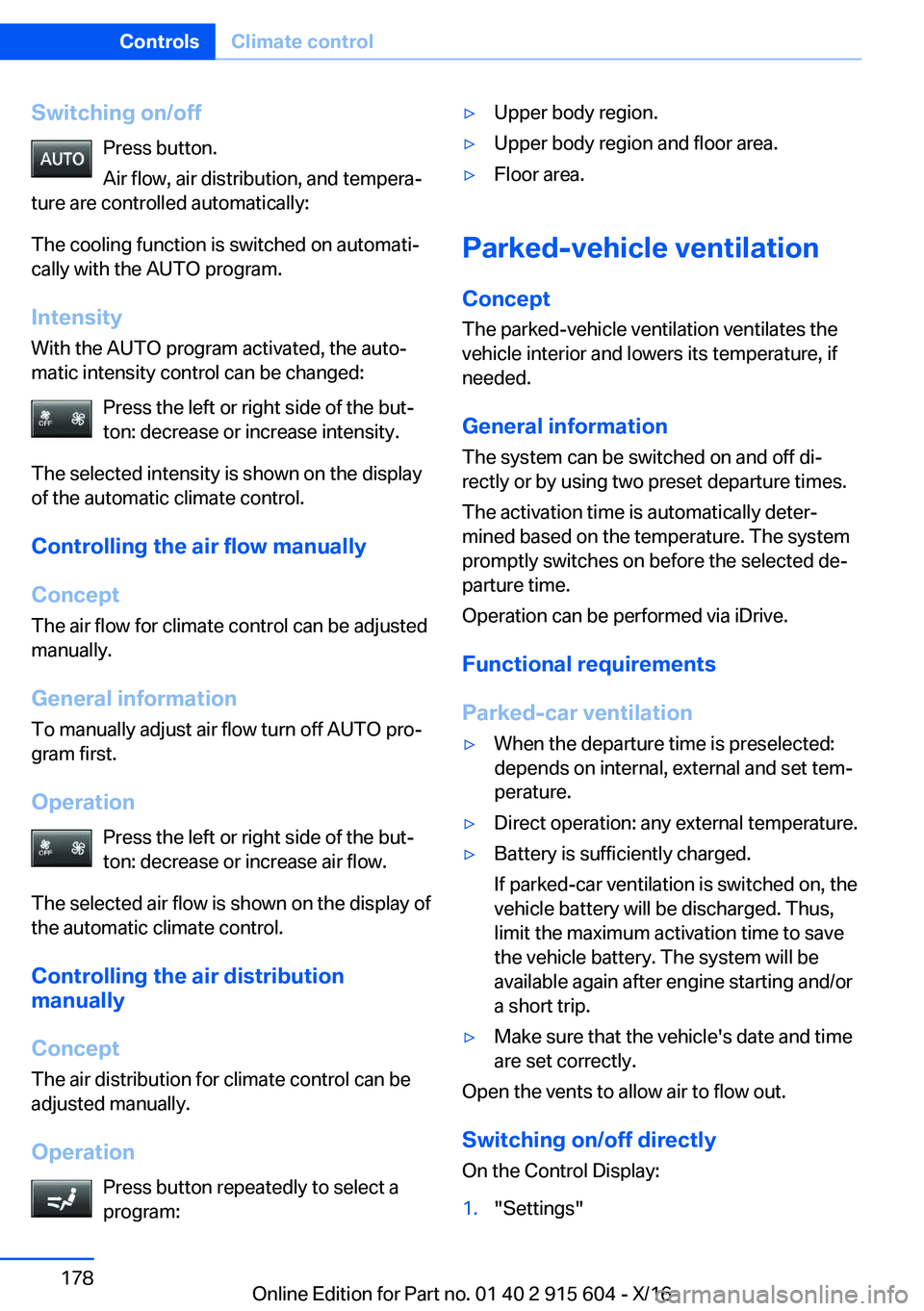

Switching
on/offPress button.
Air flow, air distribution, and temperaj
ture are controlled automatically:
The cooling function is switched on automatij cally with the AUTO program.
Intensity With the AUTO program activated, the autoj
matic intensity control can be changed:
Press the left or right side of the butj
ton: decrease or increase intensity.
The selected intensity is shown on the display
of the automatic climate control.
Controlling
the
air
flow
manually
Concept
The air flow for climate control can be adjusted
manually.
General
information
To manually adjust air flow turn off AUTO proj
gram first.
Operation Press the left or right side of the butj
ton: decrease or increase air flow.
The selected air flow is shown on the display of
the automatic climate control.
Controlling
the
air
distribution
manually
Concept
The air distribution for climate control can be
adjusted manually.
Operation Press button repeatedly to select a
program:'yUpper body region.'yUpper body region and floor area.'yFloor area.
Parked-vehicle
ventilation
Concept
The parked-vehicle ventilation ventilates the
vehicle interior and lowers its temperature, if needed.
General
information The system can be switched on and off dij
rectly or by using two preset departure times.
The activation time is automatically deterjmined based on the temperature. The systempromptly switches on before the selected dej
parture time.
Operation can be performed via iDrive.
Functional
requirements
Parked-car
ventilation
'yWhen the departure time is preselected:
depends on internal, external and set temj
perature.'yDirect operation: any external temperature.'yBattery is sufficiently charged.
If parked-car ventilation is switched on, the vehicle battery will be discharged. Thus,
limit the maximum activation time to save
the vehicle battery. The system will be available again after engine starting and/ora short trip.'yMake sure that the vehicle's date and time
are set correctly.
Open the vents to allow air to flow out.
Switching
on/off
directly
On the Control Display:
1."Settings"Seite 178ControlsClimate
control178
Online Edition for Part no. 01 40 2 915 604 - X/16

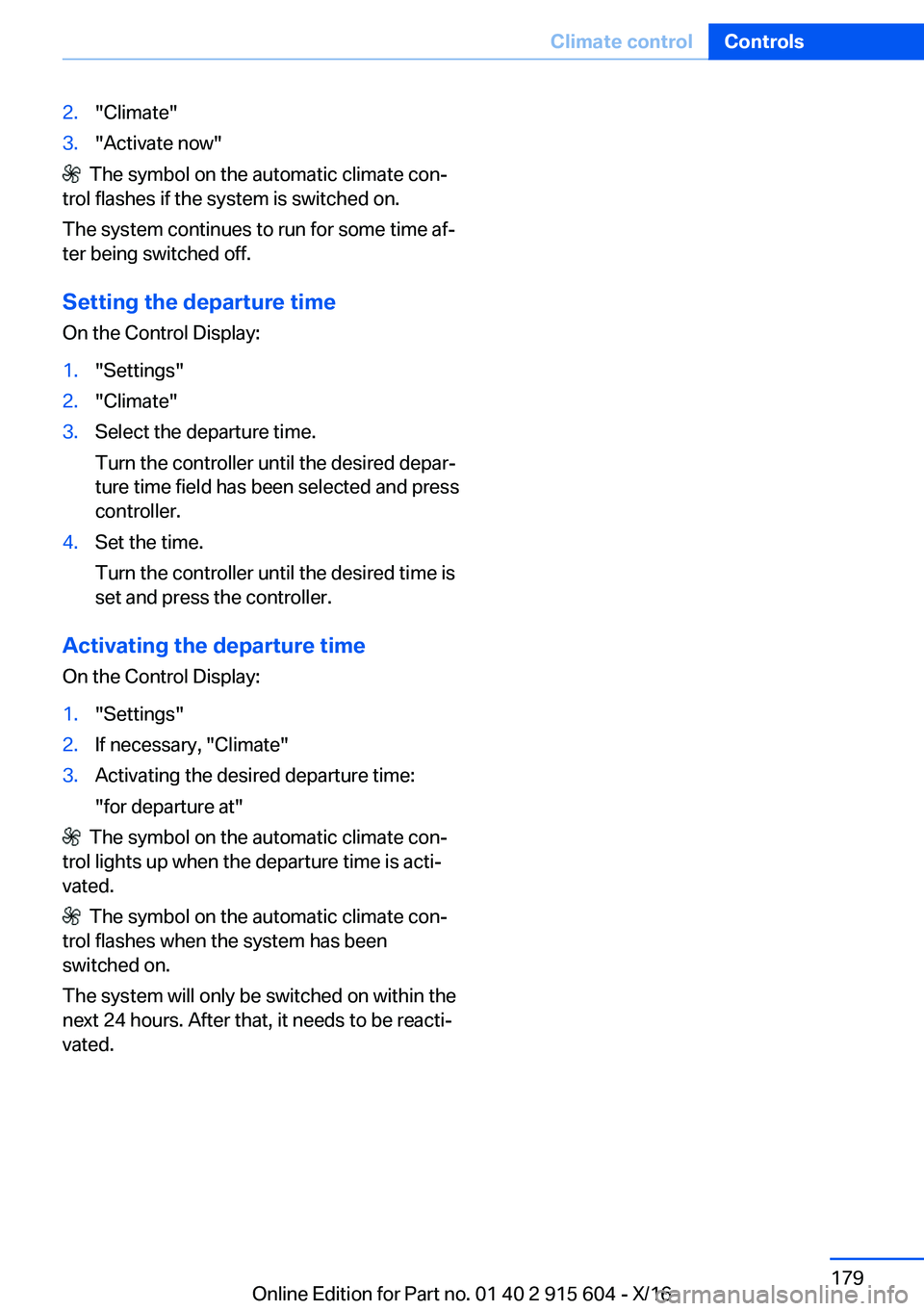

2."Climate"3."Activate now"
The symbol on the automatic climate conj
trol flashes if the system is switched on.
The system continues to run for some time afj
ter being switched off.
Setting
the
departure
time
On the Control Display:
1."Settings"2."Climate"3.Select the departure time.
Turn the controller until the desired deparj
ture time field has been selected and press controller.4.Set the time.
Turn the controller until the desired time is
set and press the controller.
Activating
the
departure
time
On the Control Display:
1."Settings"2.If necessary, "Climate"3.Activating the desired departure time:
"for departure at"
The symbol on the automatic climate conj
trol lights up when the departure time is actij
vated.
The symbol on the automatic climate conj
trol flashes when the system has been switched on.
The system will only be switched on within the
next 24 hours. After that, it needs to be reactij vated.
Seite 179Climate
controlControls179
Online Edition for Part no. 01 40 2 915 604 - X/16

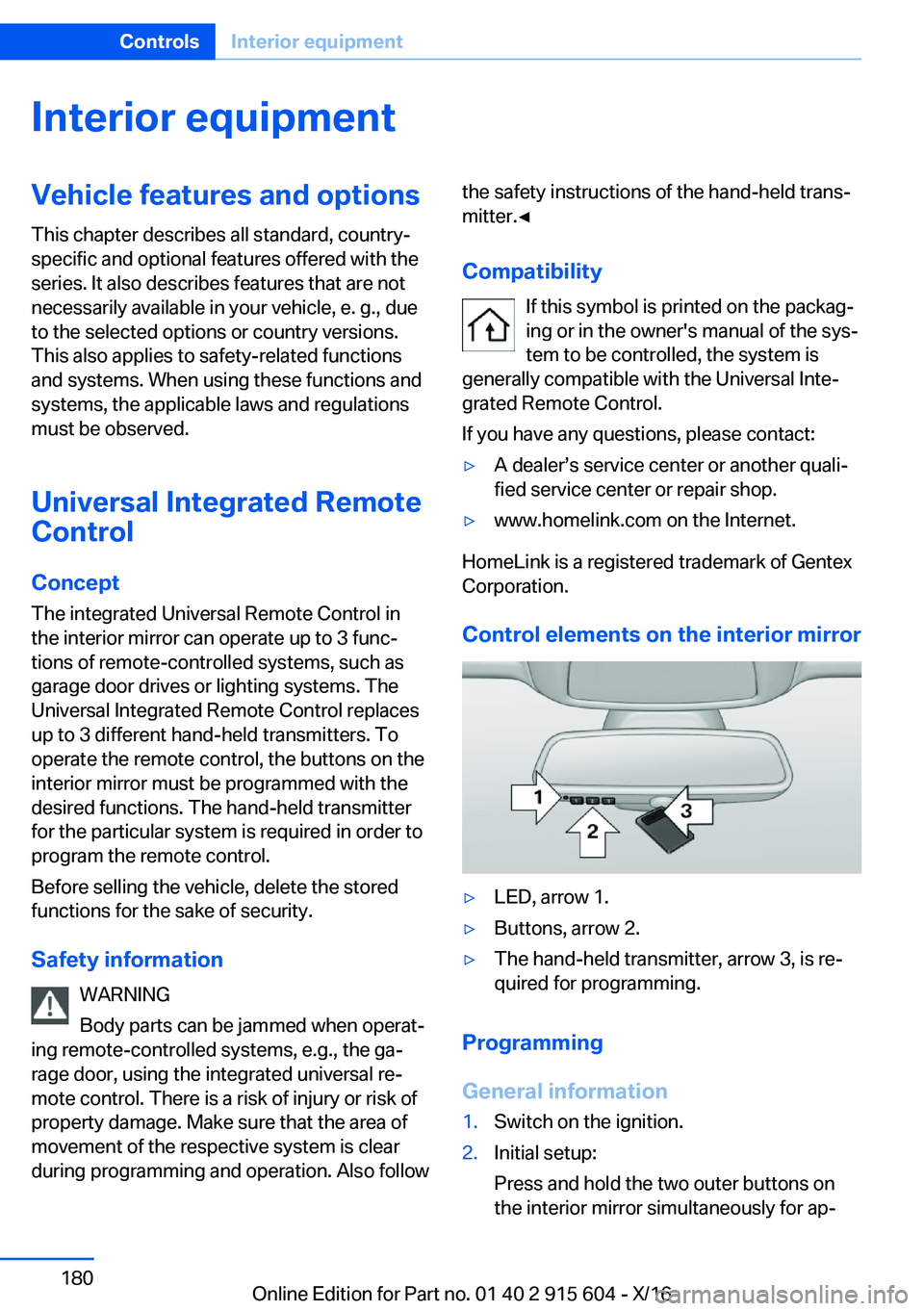

Interior
equipmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Universal
Integrated
Remote
Control
Concept
The integrated Universal Remote Control in
the interior mirror can operate up to 3 funcj
tions of remote-controlled systems, such as
garage door drives or lighting systems. The Universal Integrated Remote Control replaces
up to 3 different hand-held transmitters. To
operate the remote control, the buttons on the
interior mirror must be programmed with the
desired functions. The hand-held transmitter
for the particular system is required in order to
program the remote control.
Before selling the vehicle, delete the stored
functions for the sake of security.
Safety
information WARNING
Body parts can be jammed when operatj
ing remote-controlled systems, e.g., the gaj
rage door, using the integrated universal rej mote control. There is a risk of injury or risk ofproperty damage. Make sure that the area ofmovement of the respective system is clear
during programming and operation. Also followthe safety instructions of the hand-held transj
mitter.'

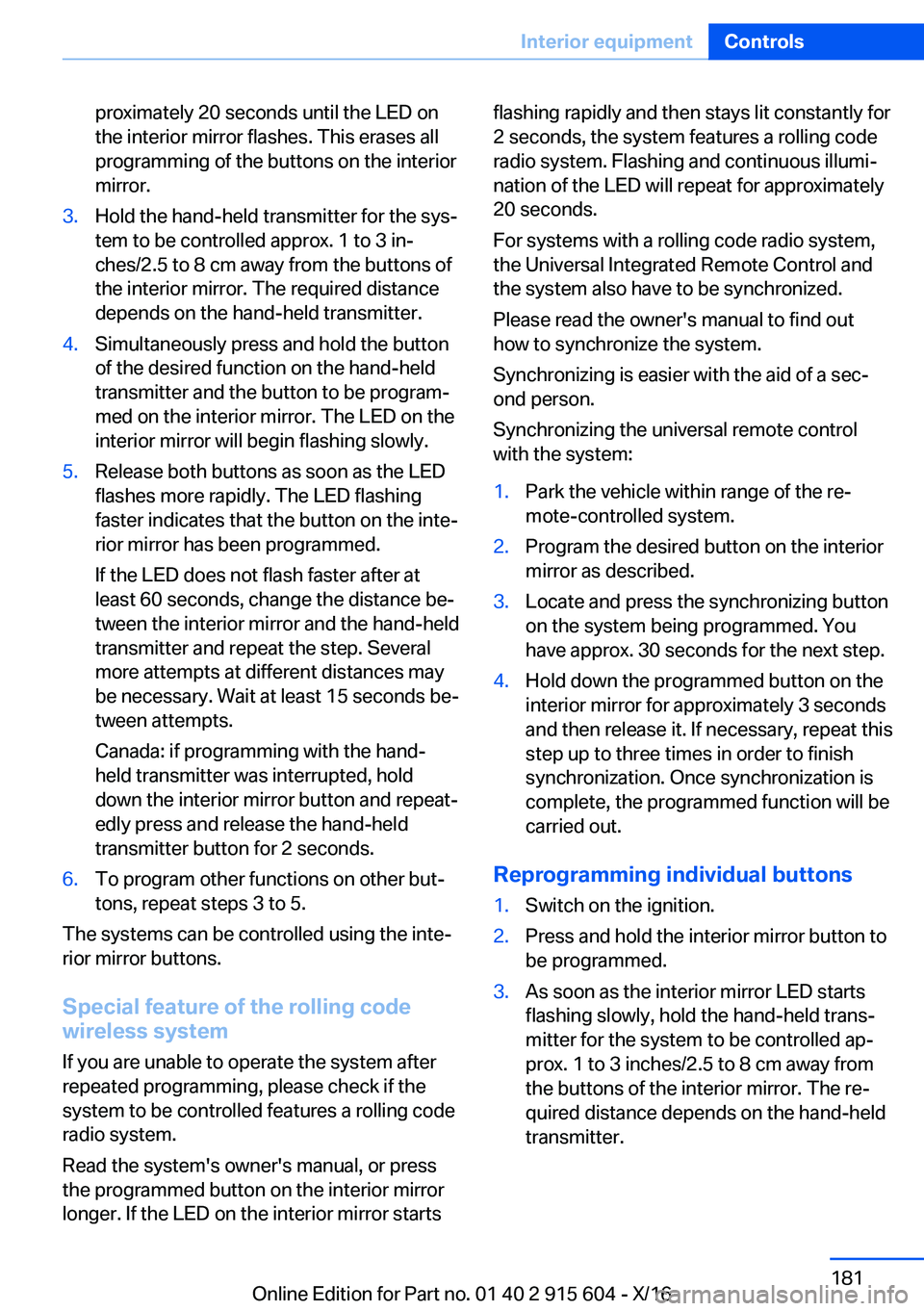

proximately 20 seconds until the LED on
the interior mirror flashes. This erases all
programming of the buttons on the interior mirror.3.Hold the hand-held transmitter for the sysjtem to be controlled approx. 1 to 3 inj
ches/2.5 to 8 cm away from the buttons of
the interior mirror. The required distance
depends on the hand-held transmitter.4.Simultaneously press and hold the button
of the desired function on the hand-held transmitter and the button to be programj
med on the interior mirror. The LED on the
interior mirror will begin flashing slowly.5.Release both buttons as soon as the LED flashes more rapidly. The LED flashing
faster indicates that the button on the intej
rior mirror has been programmed.
If the LED does not flash faster after at
least 60 seconds, change the distance bej
tween the interior mirror and the hand-held transmitter and repeat the step. Several
more attempts at different distances may be necessary. Wait at least 15 seconds bej
tween attempts.
Canada: if programming with the hand- held transmitter was interrupted, hold
down the interior mirror button and repeatj
edly press and release the hand-held
transmitter button for 2 seconds.6.To program other functions on other butj
tons, repeat steps 3 to 5.
The systems can be controlled using the intej
rior mirror buttons.
Special
feature
of
the
rolling
code
wireless
system
If you are unable to operate the system after
repeated programming, please check if the system to be controlled features a rolling coderadio system.
Read the system's owner's manual, or press the programmed button on the interior mirror longer. If the LED on the interior mirror starts
flashing rapidly and then stays lit constantly for
2 seconds, the system features a rolling code
radio system. Flashing and continuous illumij
nation of the LED will repeat for approximately
20 seconds.
For systems with a rolling code radio system,
the Universal Integrated Remote Control and the system also have to be synchronized.
Please read the owner's manual to find out
how to synchronize the system.
Synchronizing is easier with the aid of a secj
ond person.
Synchronizing the universal remote control with the system:1.Park the vehicle within range of the rejmote-controlled system.2.Program the desired button on the interiormirror as described.3.Locate and press the synchronizing button
on the system being programmed. You
have approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior mirror for approximately 3 seconds
and then release it. If necessary, repeat this step up to three times in order to finish
synchronization. Once synchronization is
complete, the programmed function will be carried out.
Reprogramming
individual
buttons
1.Switch on the ignition.2.Press and hold the interior mirror button tobe programmed.3.As soon as the interior mirror LED starts
flashing slowly, hold the hand-held transj
mitter for the system to be controlled apj prox. 1 to 3 inches/2.5 to 8 cm away from
the buttons of the interior mirror. The rej
quired distance depends on the hand-held transmitter.Seite 181Interior
equipmentControls181
Online Edition for Part no. 01 40 2 915 604 - X/16

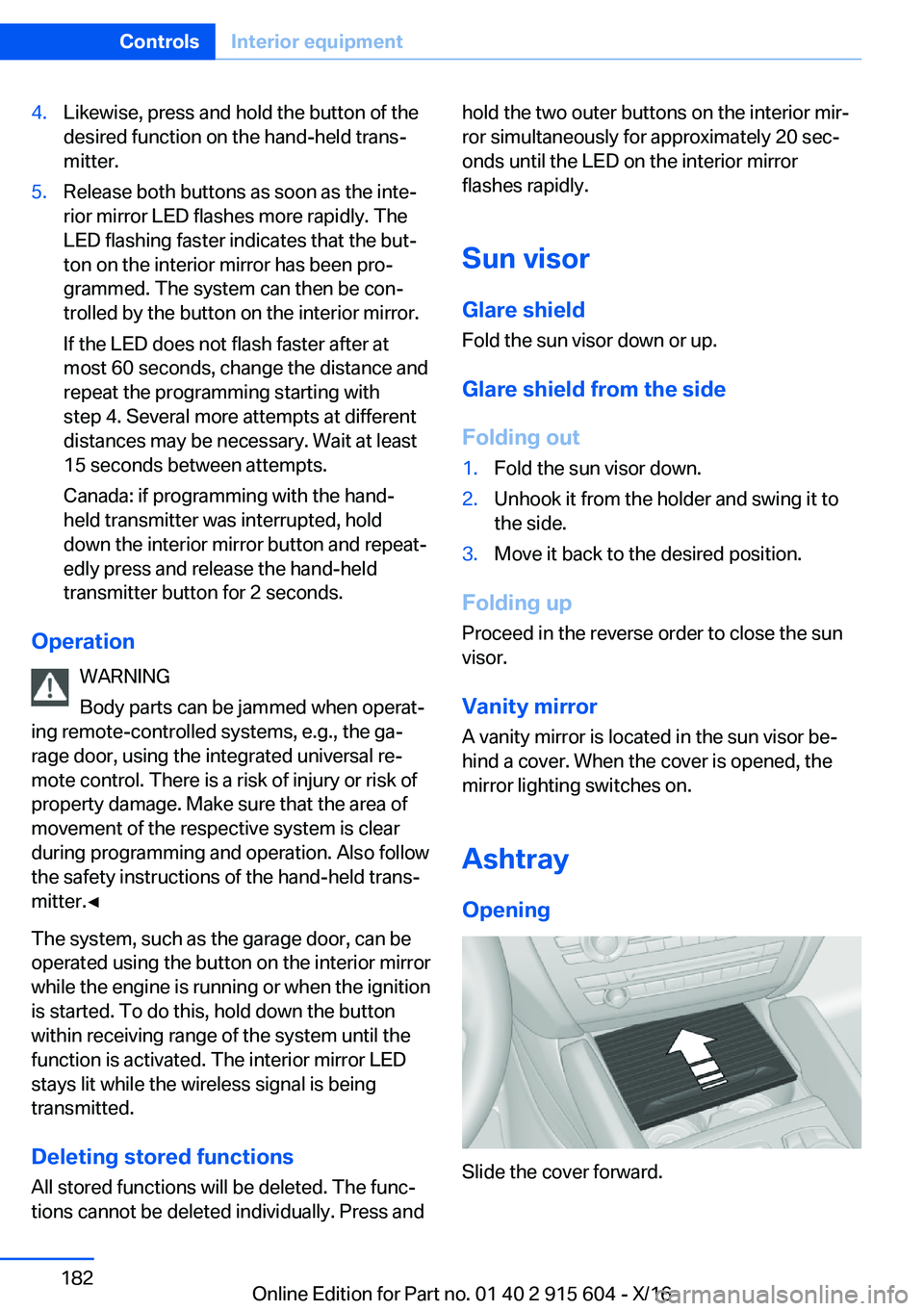

4.Likewise, press and hold the button of the
desired function on the hand-held transj mitter.5.Release both buttons as soon as the intej
rior mirror LED flashes more rapidly. The LED flashing faster indicates that the butj
ton on the interior mirror has been proj
grammed. The system can then be conj
trolled by the button on the interior mirror.
If the LED does not flash faster after at
most 60 seconds, change the distance and
repeat the programming starting with
step 4. Several more attempts at different
distances may be necessary. Wait at least 15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior mirror button and repeatj
edly press and release the hand-held
transmitter button for 2 seconds.
Operation
WARNING
Body parts can be jammed when operatj
ing remote-controlled systems, e.g., the gaj
rage door, using the integrated universal rej
mote control. There is a risk of injury or risk of
property damage. Make sure that the area of movement of the respective system is clear
during programming and operation. Also follow
the safety instructions of the hand-held transj
mitter.'

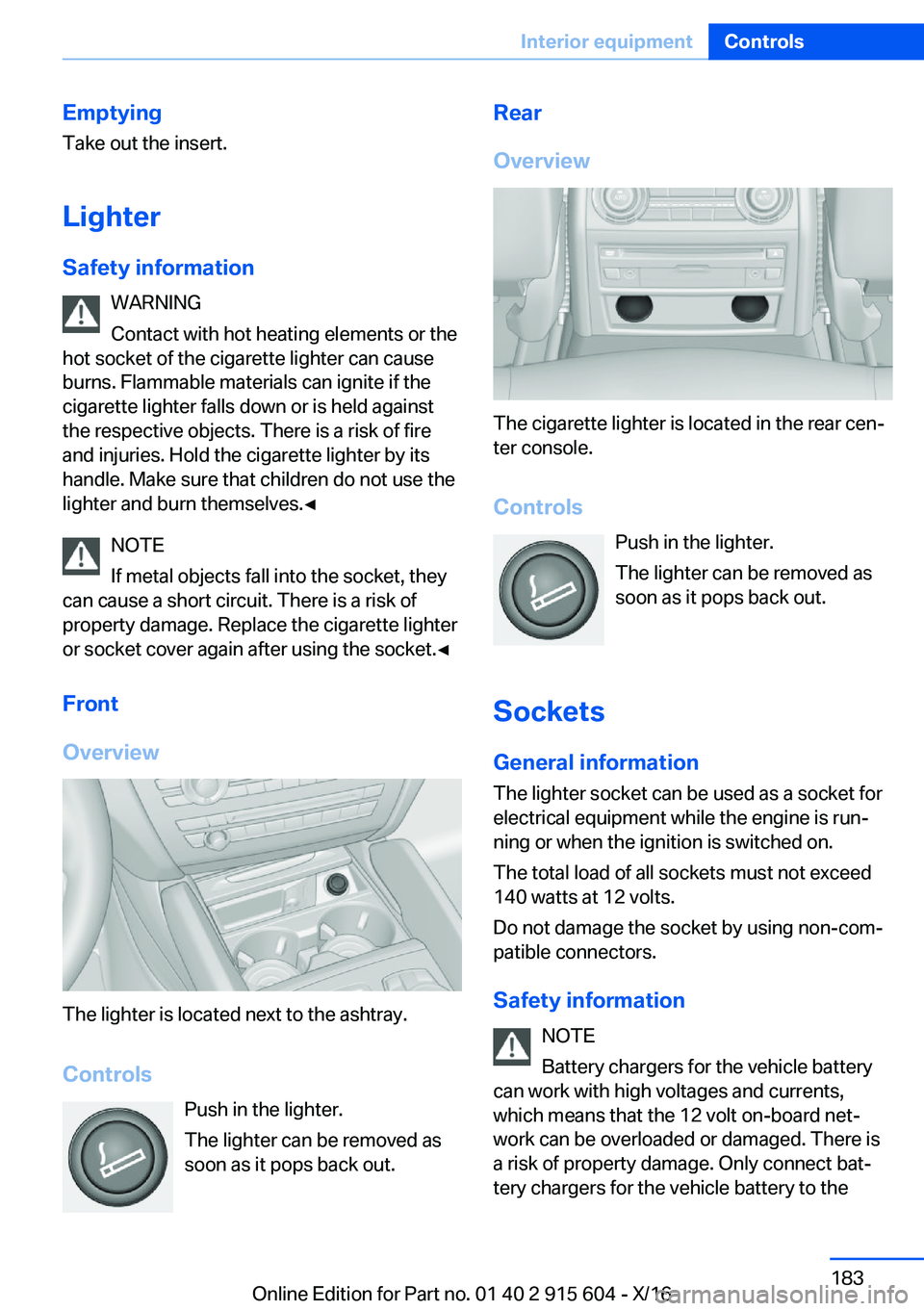

EmptyingTake out the insert.
Lighter Safety
information WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause
burns. Flammable materials can ignite if the cigarette lighter falls down or is held against
the respective objects. There is a risk of fire
and injuries. Hold the cigarette lighter by its
handle. Make sure that children do not use the
lighter and burn themselves.'

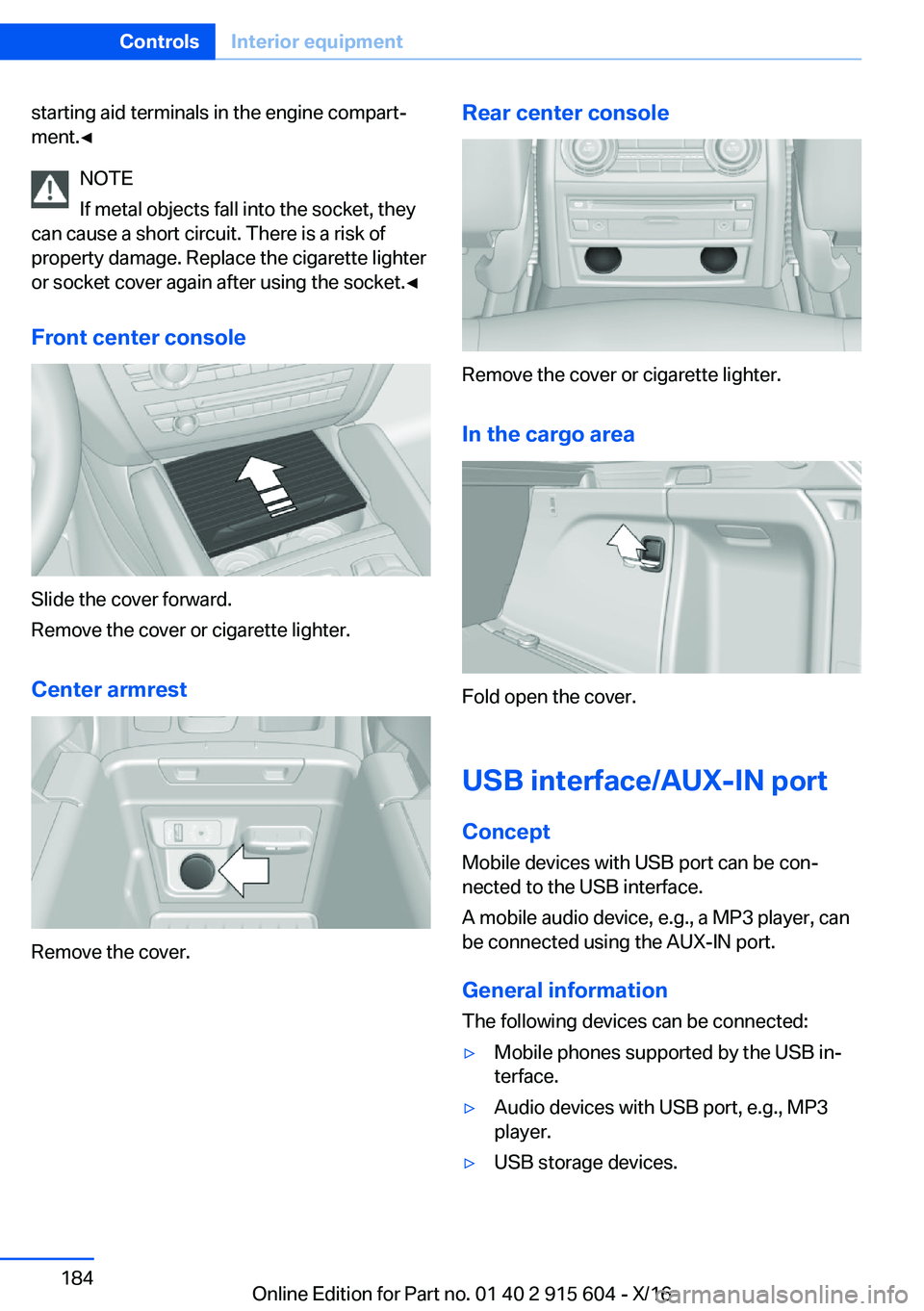

starting aid terminals in the engine compartj
ment.'
