2017 BMW 4 SERIES COUPE Owners Manual

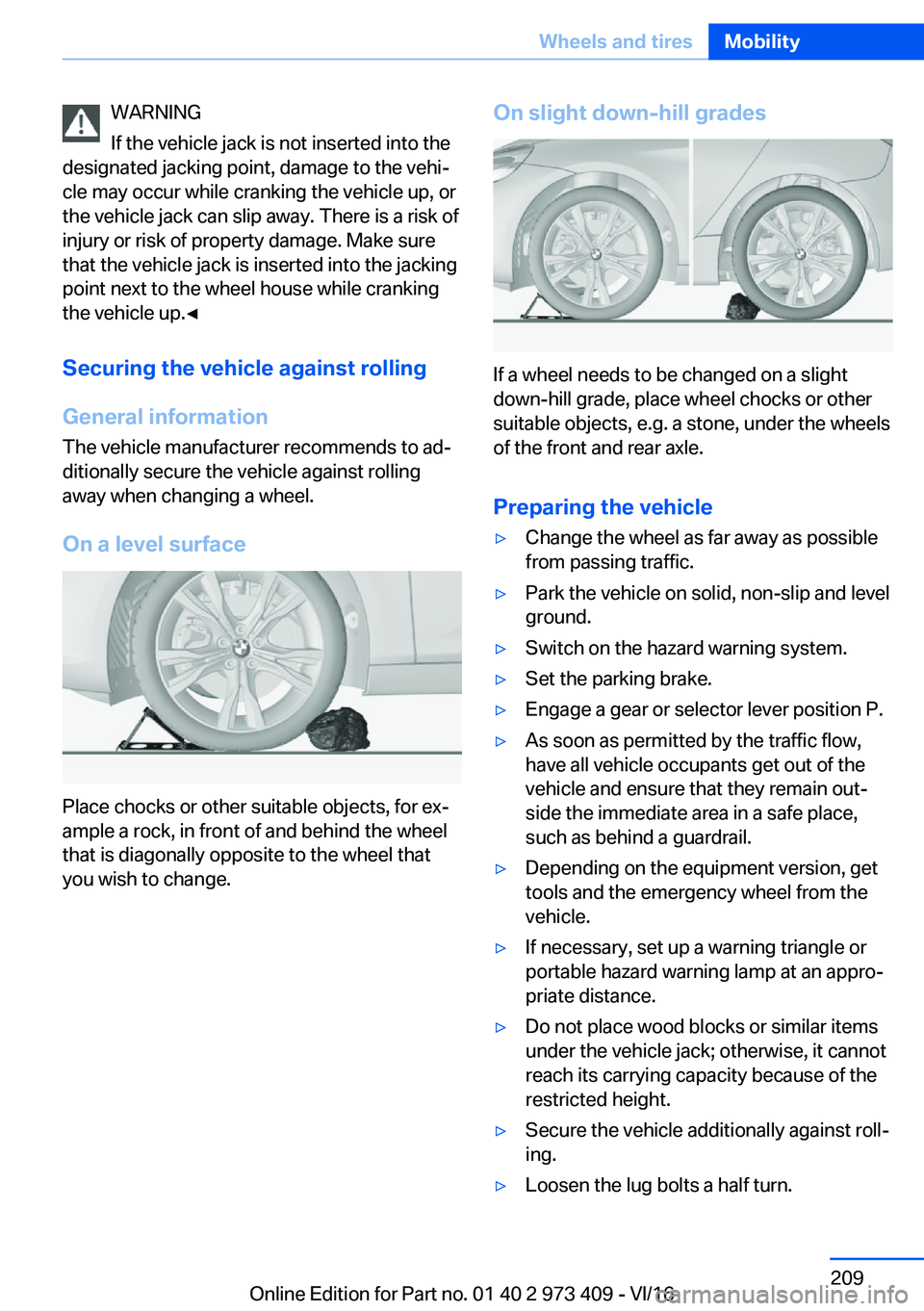

WARNING
If the vehicle jack is not inserted into the
designated jacking point, damage to the vehij
cle may occur while cranking the vehicle up, or
the vehicle jack can slip away. There is a risk of injury or risk of property damage. Make surethat the vehicle jack is inserted into the jackingpoint next to the wheel house while cranking
the vehicle up.'

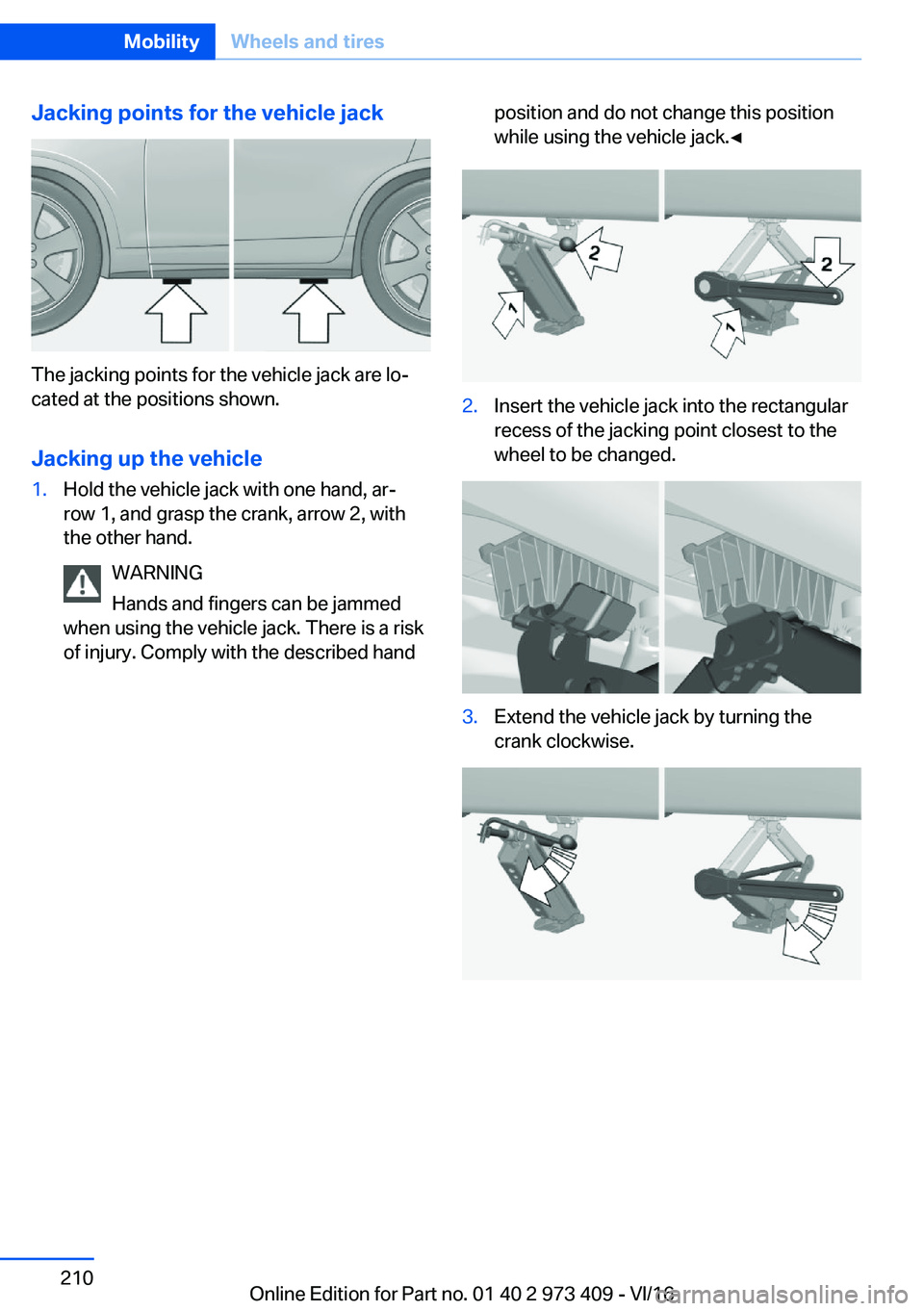

Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are lojcated at the positions shown.
Jacking
up
the
vehicle
1.Hold the vehicle jack with one hand, arj
row 1, and grasp the crank, arrow 2, with
the other hand.
WARNING
Hands and fingers can be jammed
when using the vehicle jack. There is a risk
of injury. Comply with the described handposition and do not change this position
while using the vehicle jack.'

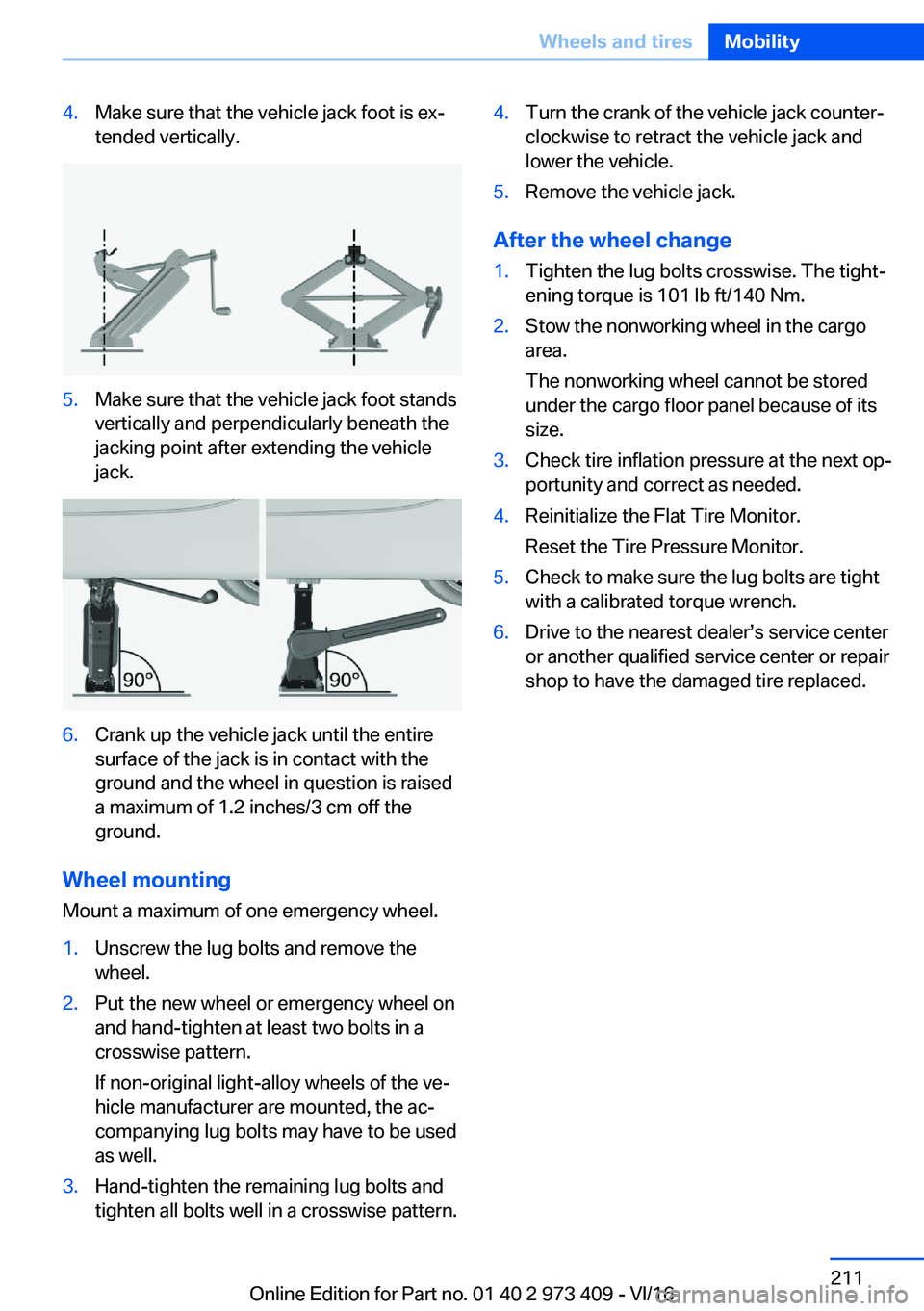

4.Make sure that the vehicle jack foot is exjtended vertically.5.Make sure that the vehicle jack foot stands
vertically and perpendicularly beneath the jacking point after extending the vehicle
jack.6.Crank up the vehicle jack until the entire
surface of the jack is in contact with the
ground and the wheel in question is raised
a maximum of 1.2 inches/3 cm off the ground.
Wheel
mounting
Mount a maximum of one emergency wheel.
1.Unscrew the lug bolts and remove the
wheel.2.Put the new wheel or emergency wheel on and hand-tighten at least two bolts in a
crosswise pattern.
If non-original light-alloy wheels of the vej hicle manufacturer are mounted, the acj
companying lug bolts may have to be used
as well.3.Hand-tighten the remaining lug bolts and tighten all bolts well in a crosswise pattern.4.Turn the crank of the vehicle jack counterj
clockwise to retract the vehicle jack and
lower the vehicle.5.Remove the vehicle jack.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightj ening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the Flat Tire Monitor.
Reset the Tire Pressure Monitor.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Drive to the nearest dealerss service center
or another qualified service center or repair
shop to have the damaged tire replaced.Seite 211Wheels
and
tiresMobility211
Online Edition for Part no. 01 40 2 973 409 - VI/16

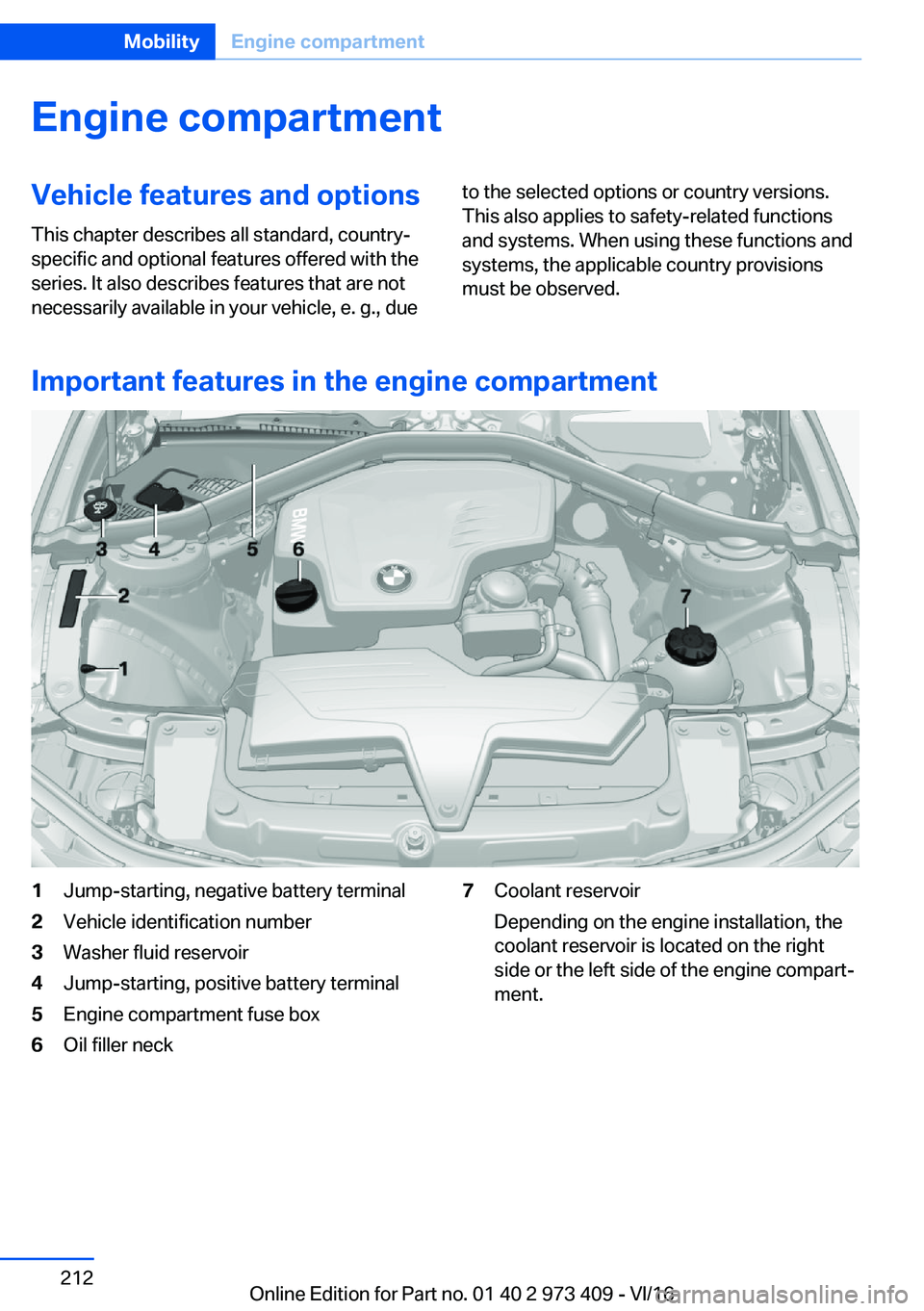

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Important
features
in
the
engine
compartment
1Jump-starting, negative battery terminal2Vehicle identification number3Washer fluid reservoir4Jump-starting, positive battery terminal5Engine compartment fuse box6Oil filler neck7Coolant reservoir
Depending on the engine installation, the
coolant reservoir is located on the right
side or the left side of the engine compartj
ment.Seite 212MobilityEngine
compartment212
Online Edition for Part no. 01 40 2 973 409 - VI/16

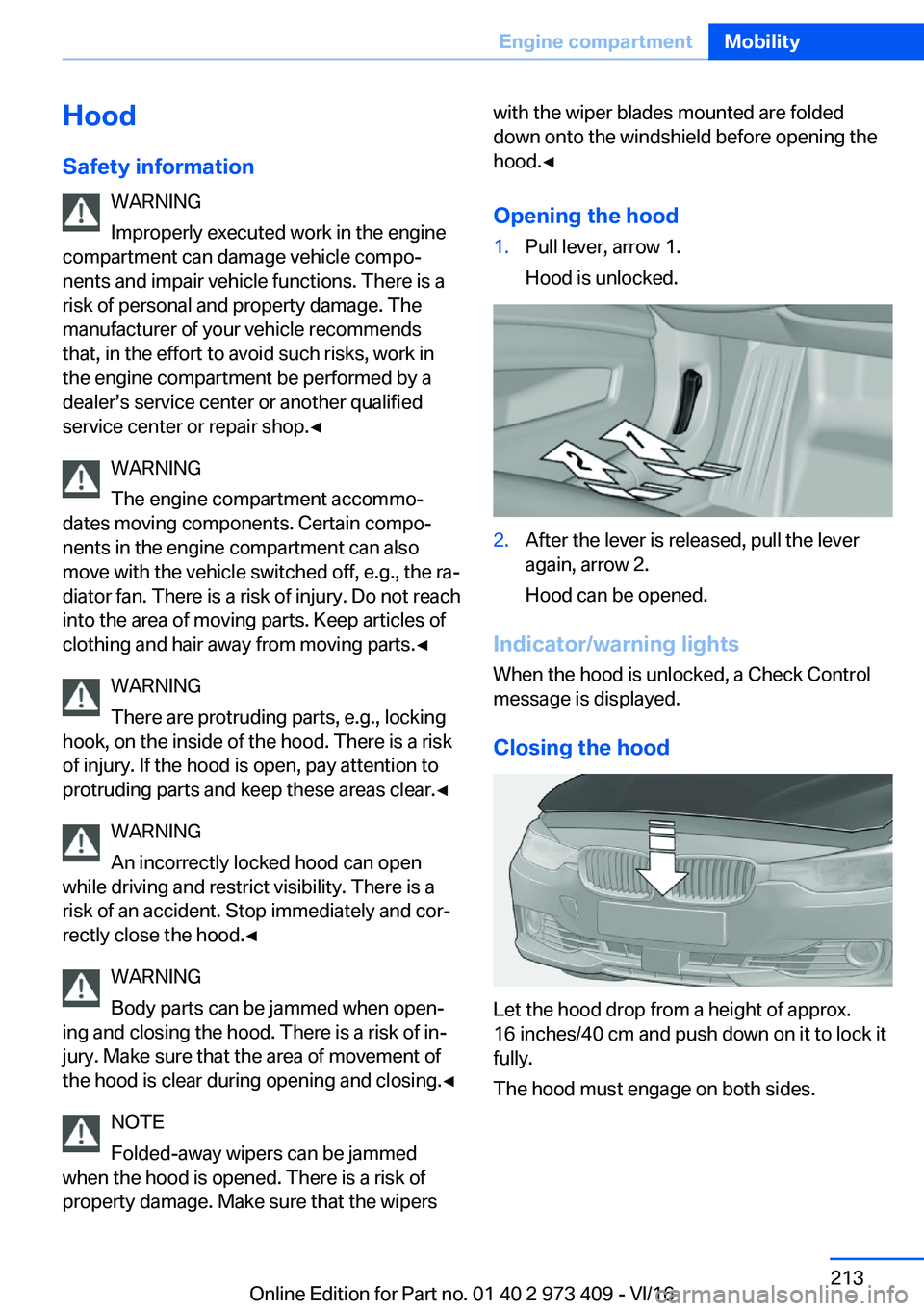

Hood
Safety
information WARNING
Improperly executed work in the engine
compartment can damage vehicle compoj nents and impair vehicle functions. There is a
risk of personal and property damage. The
manufacturer of your vehicle recommends that, in the effort to avoid such risks, work inthe engine compartment be performed by a
dealerss service center or another qualified
service center or repair shop.'

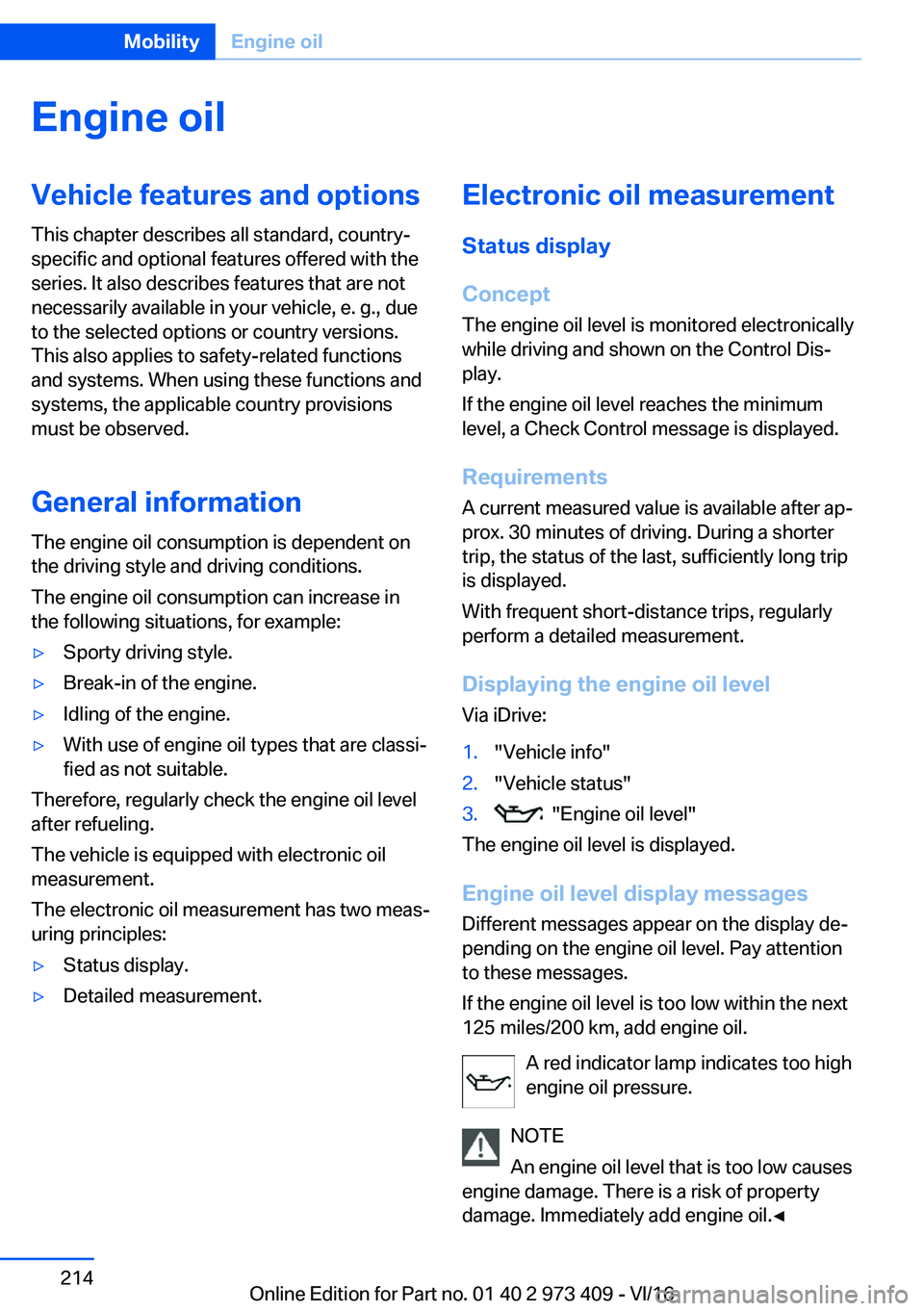

Engine
oilVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
General
information
The engine oil consumption is dependent on
the driving style and driving conditions.
The engine oil consumption can increase in
the following situations, for example:'ySporty driving style.'yBreak-in of the engine.'yIdling of the engine.'yWith use of engine oil types that are classij
fied as not suitable.
Therefore, regularly check the engine oil level
after refueling.
The vehicle is equipped with electronic oil
measurement.
The electronic oil measurement has two measj uring principles:
'yStatus display.'yDetailed measurement.Electronic
oil
measurement
Status
display
Concept
The engine oil level is monitored electronically
while driving and shown on the Control Disj play.
If the engine oil level reaches the minimum
level, a Check Control message is displayed.
Requirements A current measured value is available after apj
prox. 30 minutes of driving. During a shorter
trip, the status of the last, sufficiently long trip
is displayed.
With frequent short-distance trips, regularly perform a detailed measurement.
Displaying
the
engine
oil
level Via iDrive:1."Vehicle info"2."Vehicle status"3. "Engine oil level"
The engine oil level is displayed.
Engine
oil
level
display
messages
Different messages appear on the display dej pending on the engine oil level. Pay attention
to these messages.
If the engine oil level is too low within the next
125 miles/200 km, add engine oil.
A red indicator lamp indicates too high
engine oil pressure.
NOTE
An engine oil level that is too low causes
engine damage. There is a risk of property
damage. Immediately add engine oil.'

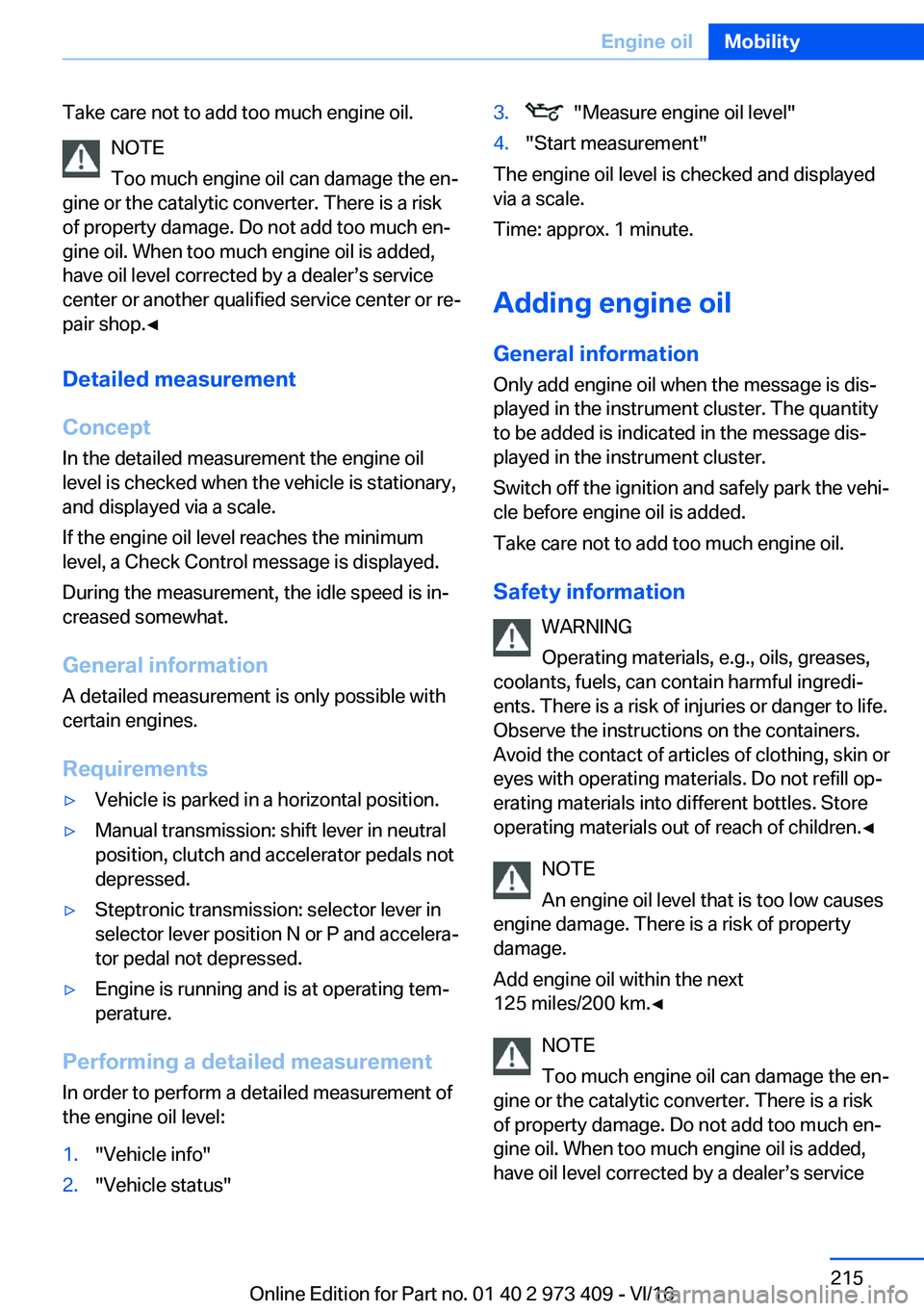

Take care not to add too much engine oil.NOTE
Too much engine oil can damage the enj
gine or the catalytic converter. There is a risk
of property damage. Do not add too much enj
gine oil. When too much engine oil is added,
have oil level corrected by a dealerss service
center or another qualified service center or rej pair shop.'

center or another qualified service center or rejpair shop.'
