2017 BMW 3 SERIES Owners Manual

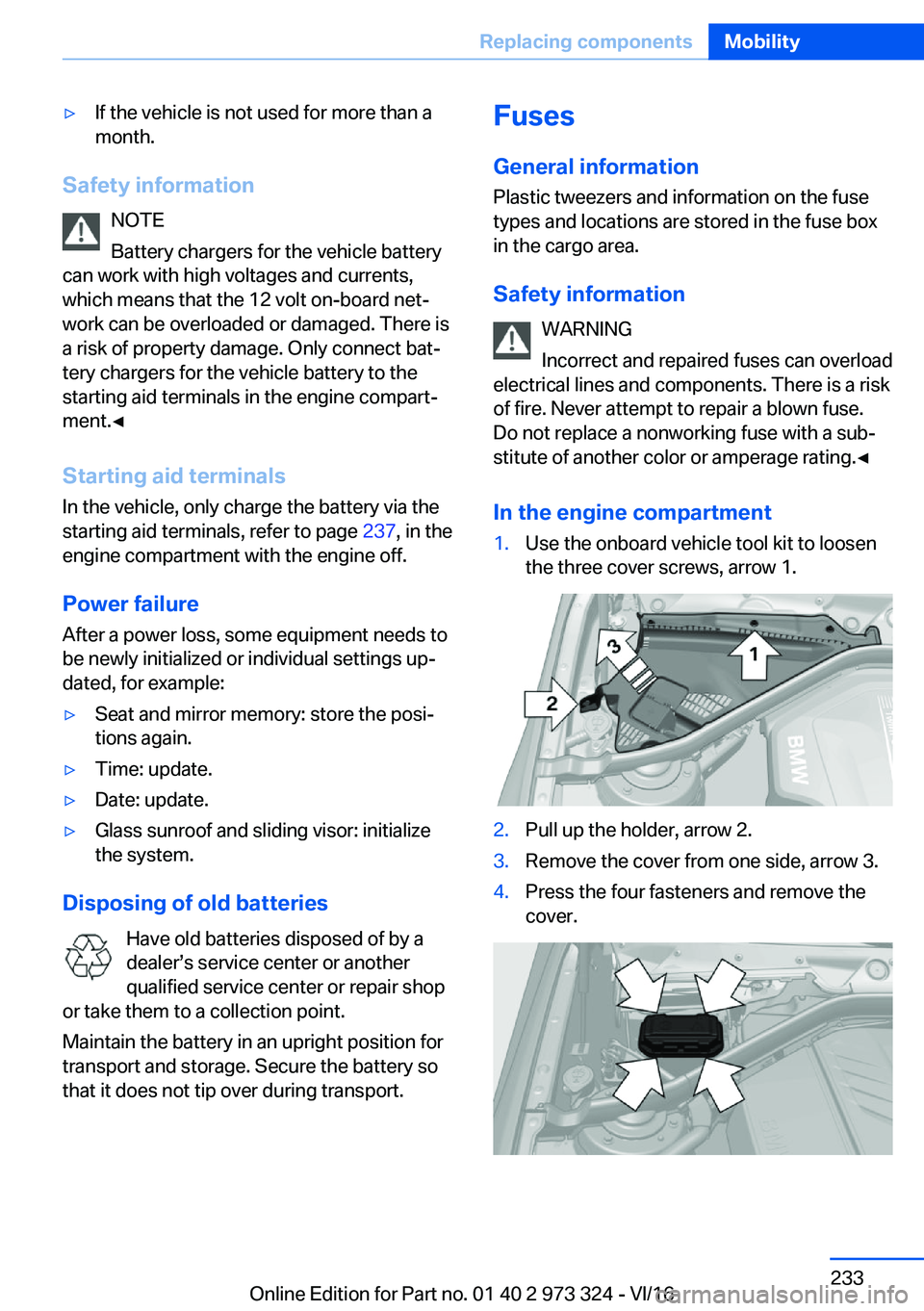

'yIf the vehicle is not used for more than amonth.
Safety
information
NOTE
Battery chargers for the vehicle battery
can work with high voltages and currents,
which means that the 12 volt on-board netj work can be overloaded or damaged. There is
a risk of property damage. Only connect batj tery chargers for the vehicle battery to the
starting aid terminals in the engine compartj
ment.'

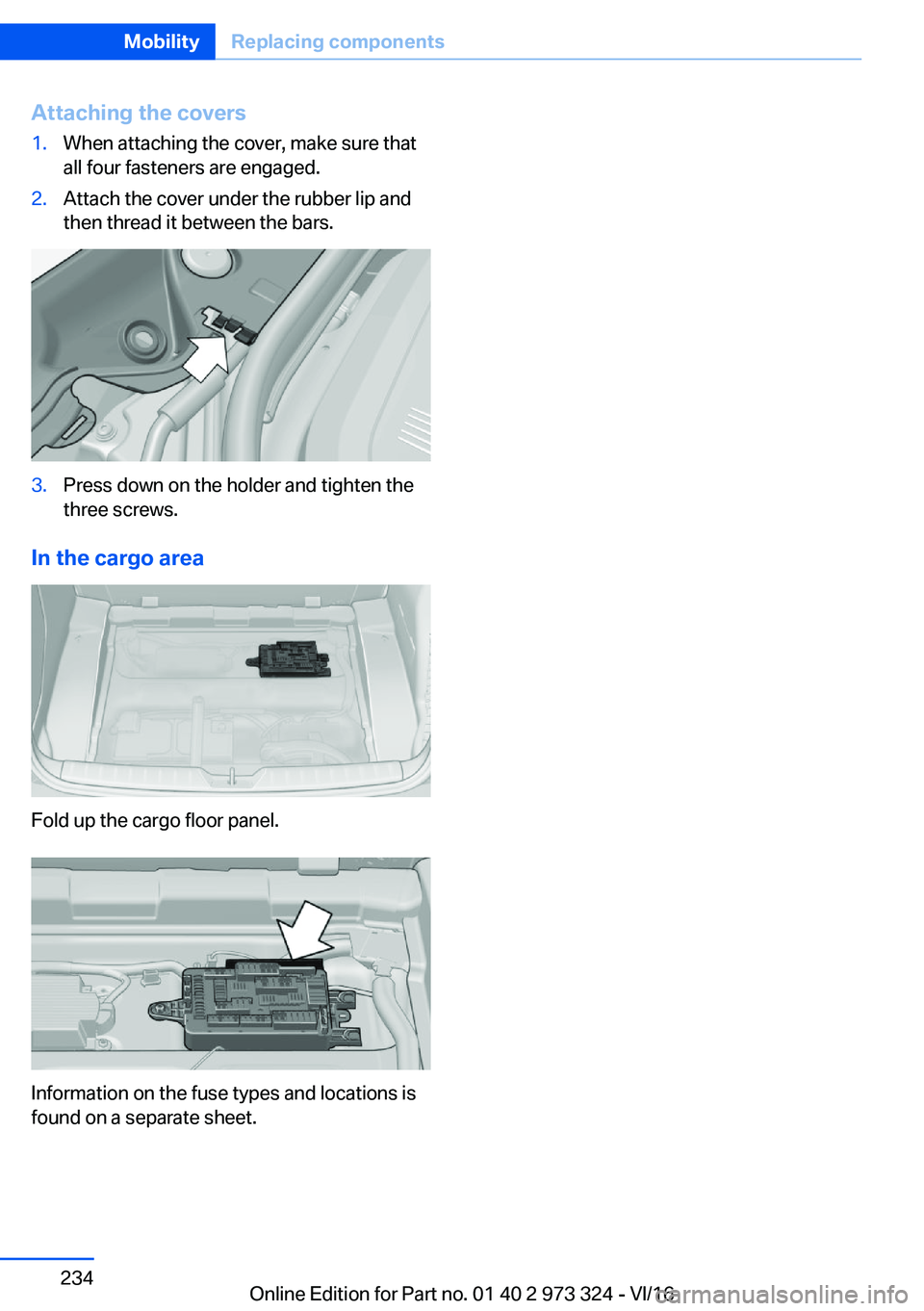

Attaching
the
covers1.When attaching the cover, make sure thatall four fasteners are engaged.2.Attach the cover under the rubber lip and
then thread it between the bars.3.Press down on the holder and tighten the
three screws.
In
the
cargo
area
Fold up the cargo floor panel.
Information on the fuse types and locations is
found on a separate sheet.
Seite 234MobilityReplacing
components234
Online Edition for Part no. 01 40 2 973 324 - VI/16

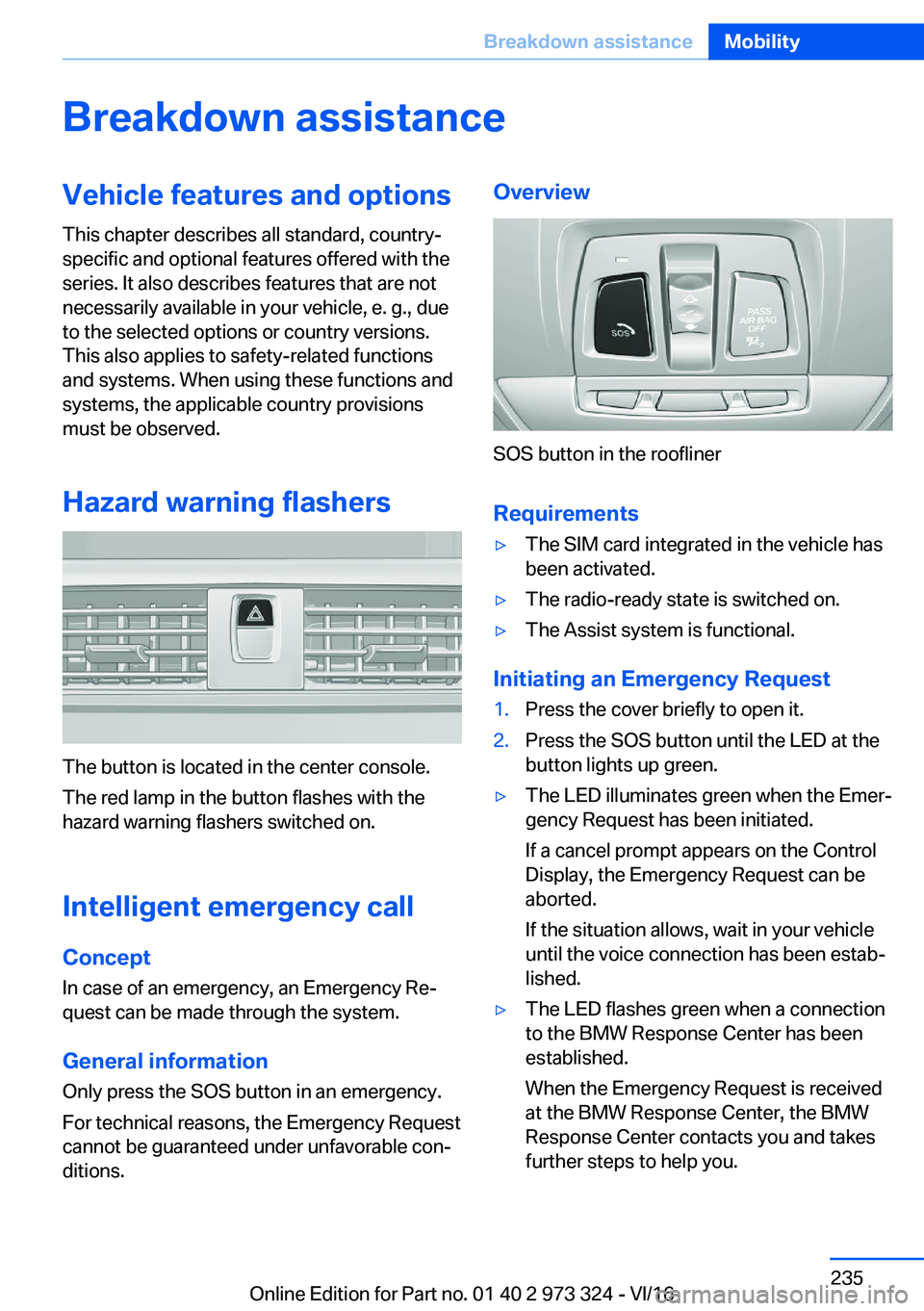

Breakdown
assistanceVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Hazard
warning
flashers
The button is located in the center console.
The red lamp in the button flashes with the
hazard warning flashers switched on.
Intelligent
emergency
call
Concept
In case of an emergency, an Emergency Rej
quest can be made through the system.
General
information Only press the SOS button in an emergency.
For technical reasons, the Emergency Request cannot be guaranteed under unfavorable conj
ditions.
Overview
SOS button in the roofliner
Requirements
'yThe SIM card integrated in the vehicle hasbeen activated.'yThe radio-ready state is switched on.'yThe Assist system is functional.
Initiating
an
Emergency
Request
1.Press the cover briefly to open it.2.Press the SOS button until the LED at thebutton lights up green.'yThe LED illuminates green when the Emerj
gency Request has been initiated.
If a cancel prompt appears on the Control
Display, the Emergency Request can be
aborted.
If the situation allows, wait in your vehicle
until the voice connection has been estabj
lished.'yThe LED flashes green when a connection to the BMW Response Center has been
established.
When the Emergency Request is received
at the BMW Response Center, the BMW
Response Center contacts you and takes
further steps to help you.Seite 235Breakdown
assistanceMobility235
Online Edition for Part no. 01 40 2 973 324 - VI/16

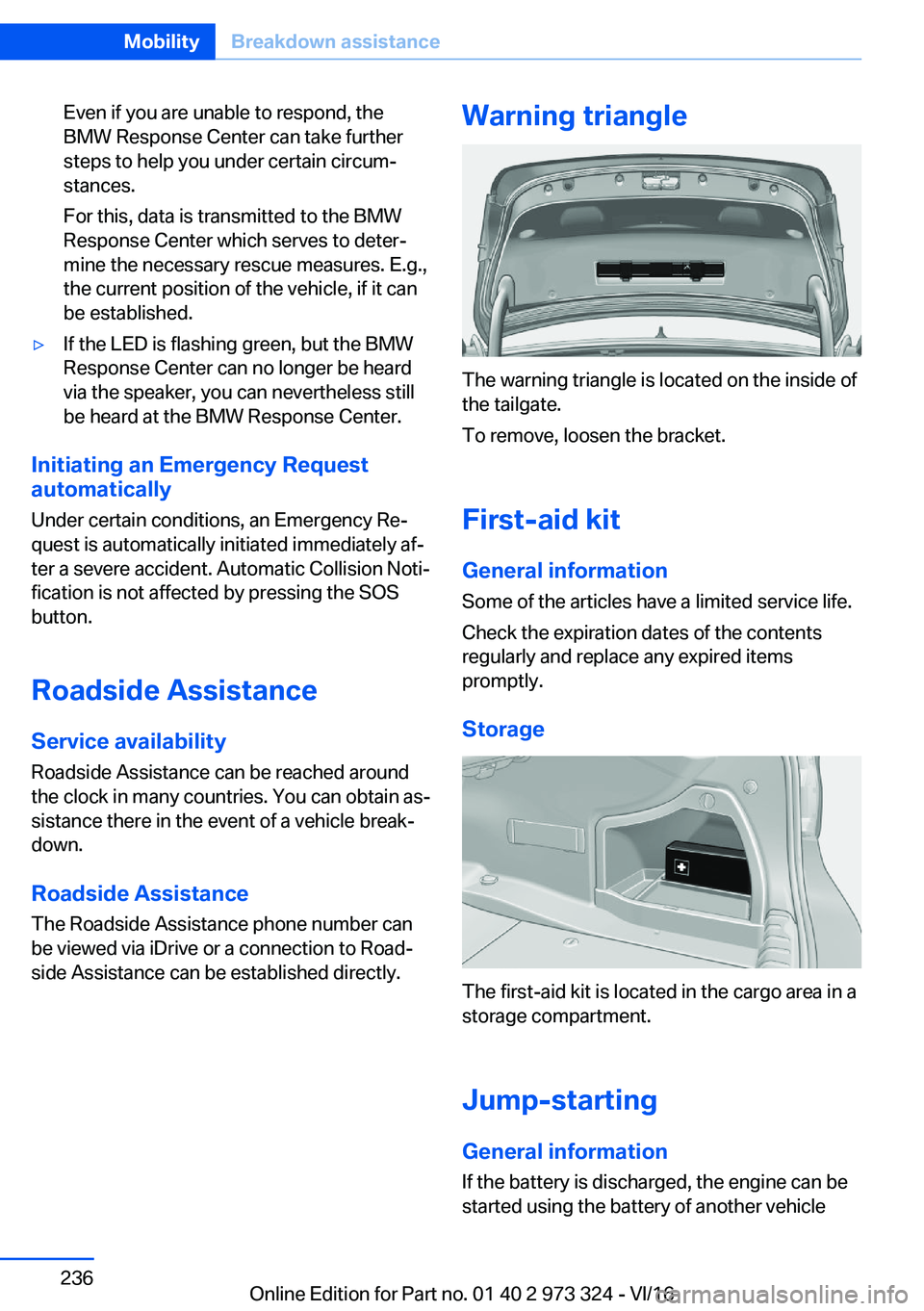

Even if you are unable to respond, the
BMW Response Center can take further steps to help you under certain circumj
stances.
For this, data is transmitted to the BMW
Response Center which serves to deterj
mine the necessary rescue measures. E.g., the current position of the vehicle, if it canbe established.'yIf the LED is flashing green, but the BMWResponse Center can no longer be heardvia the speaker, you can nevertheless still
be heard at the BMW Response Center.
Initiating
an
Emergency
Request
automatically
Under certain conditions, an Emergency Rej
quest is automatically initiated immediately afj ter a severe accident. Automatic Collision Notij
fication is not affected by pressing the SOS
button.
Roadside
Assistance
Service
availability Roadside Assistance can be reached aroundthe clock in many countries. You can obtain asjsistance there in the event of a vehicle breakj
down.
Roadside
Assistance The Roadside Assistance phone number can
be viewed via iDrive or a connection to Roadj
side Assistance can be established directly.
Warning
triangle
The warning triangle is located on the inside of the tailgate.
To remove, loosen the bracket.
First-aid
kit General
information Some of the articles have a limited service life.
Check the expiration dates of the contents regularly and replace any expired items
promptly.
Storage
The first-aid kit is located in the cargo area in a storage compartment.
Jump-starting
General
information
If the battery is discharged, the engine can be
started using the battery of another vehicle
Seite 236MobilityBreakdown
assistance236
Online Edition for Part no. 01 40 2 973 324 - VI/16

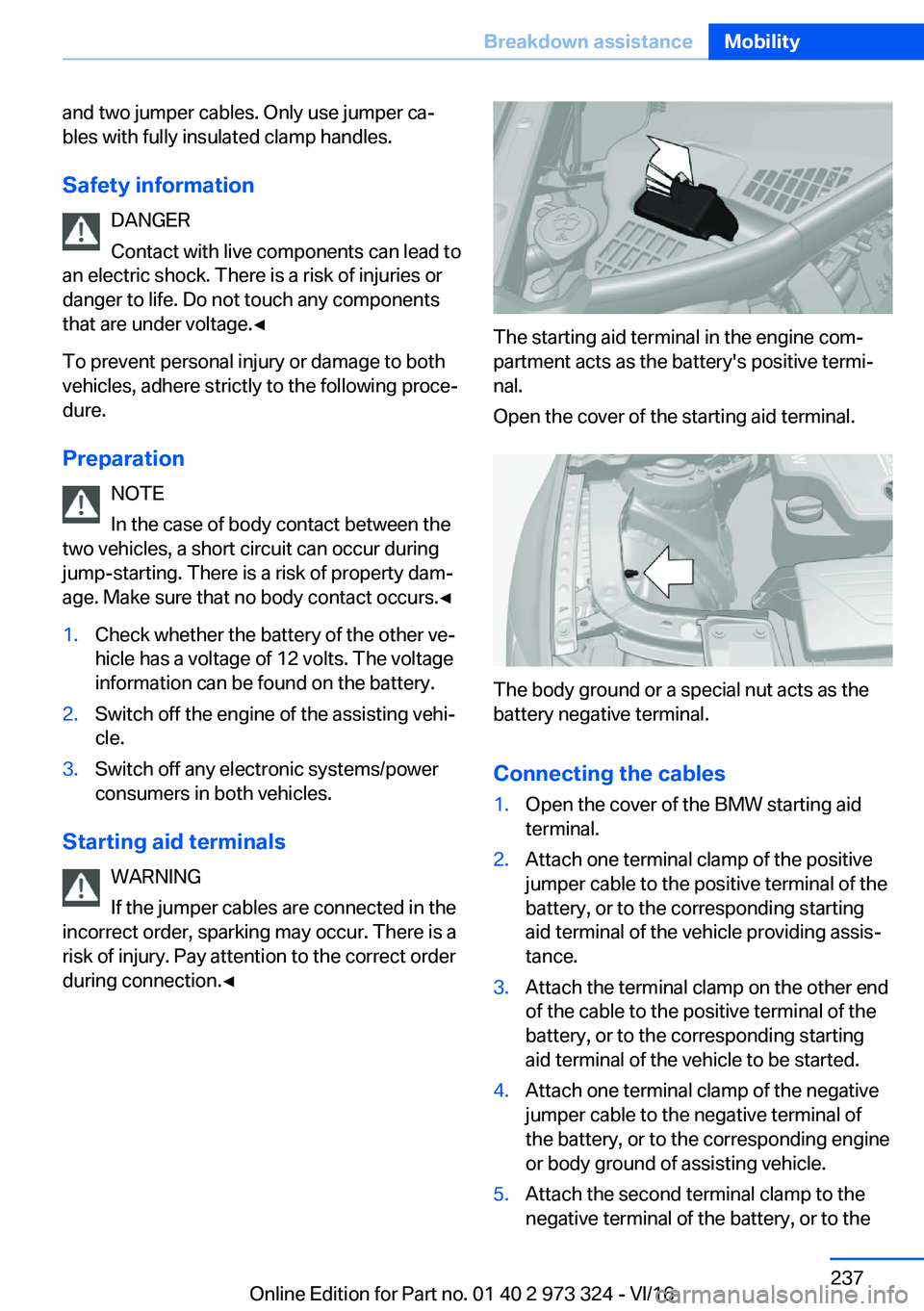

and two jumper cables. Only use jumper caj
bles with fully insulated clamp handles.
Safety
information DANGER
Contact with live components can lead to
an electric shock. There is a risk of injuries or danger to life. Do not touch any componentsthat are under voltage.'

corresponding engine or body ground of
the vehicle to be started.

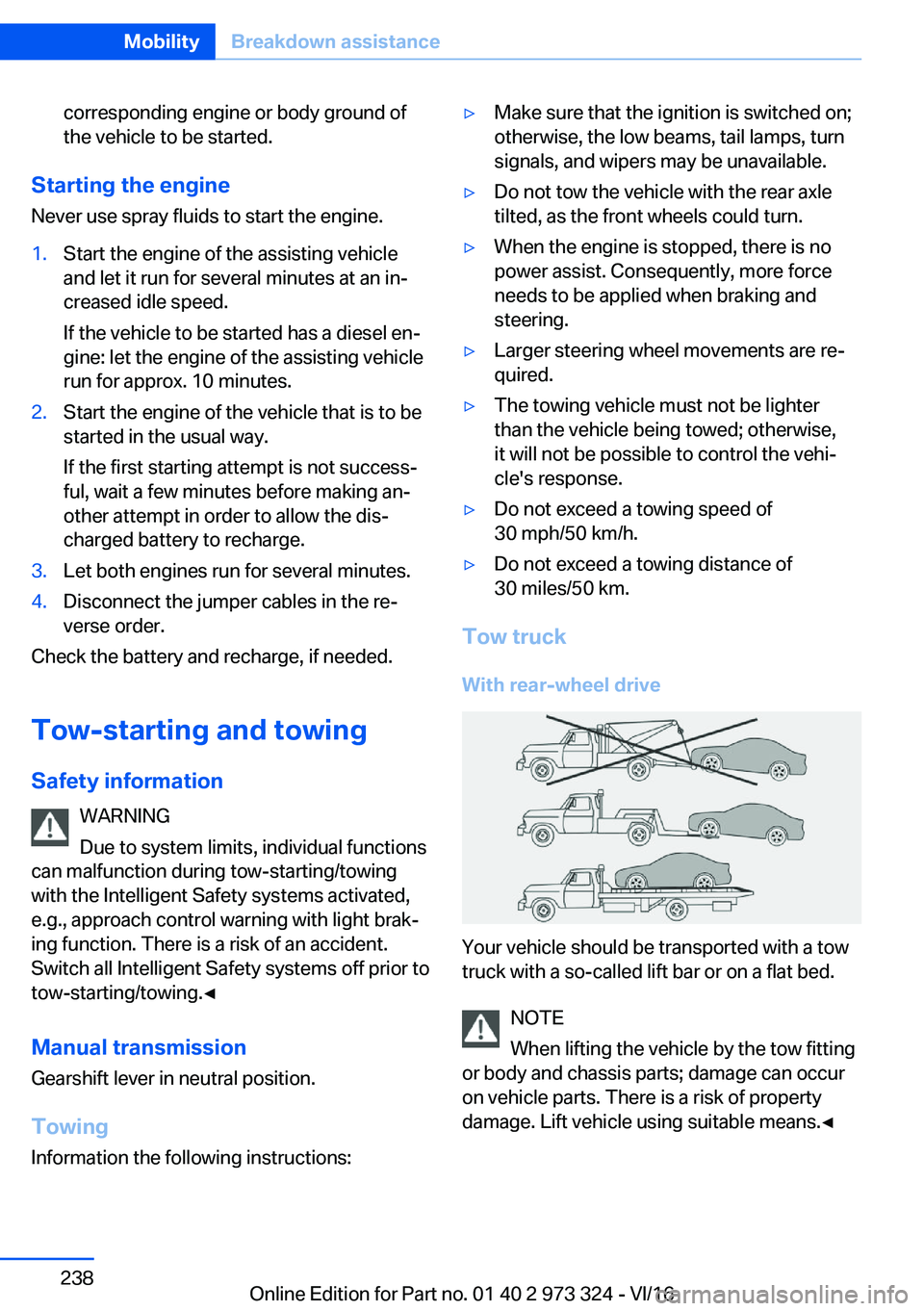

Starting
the
engine
Never use spray fluids to start the engine.
1.Start the engine of the assisting vehicle
and let it run for several minutes at an inj creased idle speed.
If the vehicle to be started has a diesel enj gine: let the engine of the assisting vehiclerun for approx. 10 minutes.2.Start the engine of the vehicle that is to bestarted in the usual way.
If the first starting attempt is not successj
ful, wait a few minutes before making anj
other attempt in order to allow the disj
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the rej verse order.
Check the battery and recharge, if needed.
Tow-starting
and
towing Safety
information WARNING
Due to system limits, individual functions
can malfunction during tow-starting/towing with the Intelligent Safety systems activated,
e.g., approach control warning with light brakj
ing function. There is a risk of an accident.
Switch all Intelligent Safety systems off prior to
tow-starting/towing.'

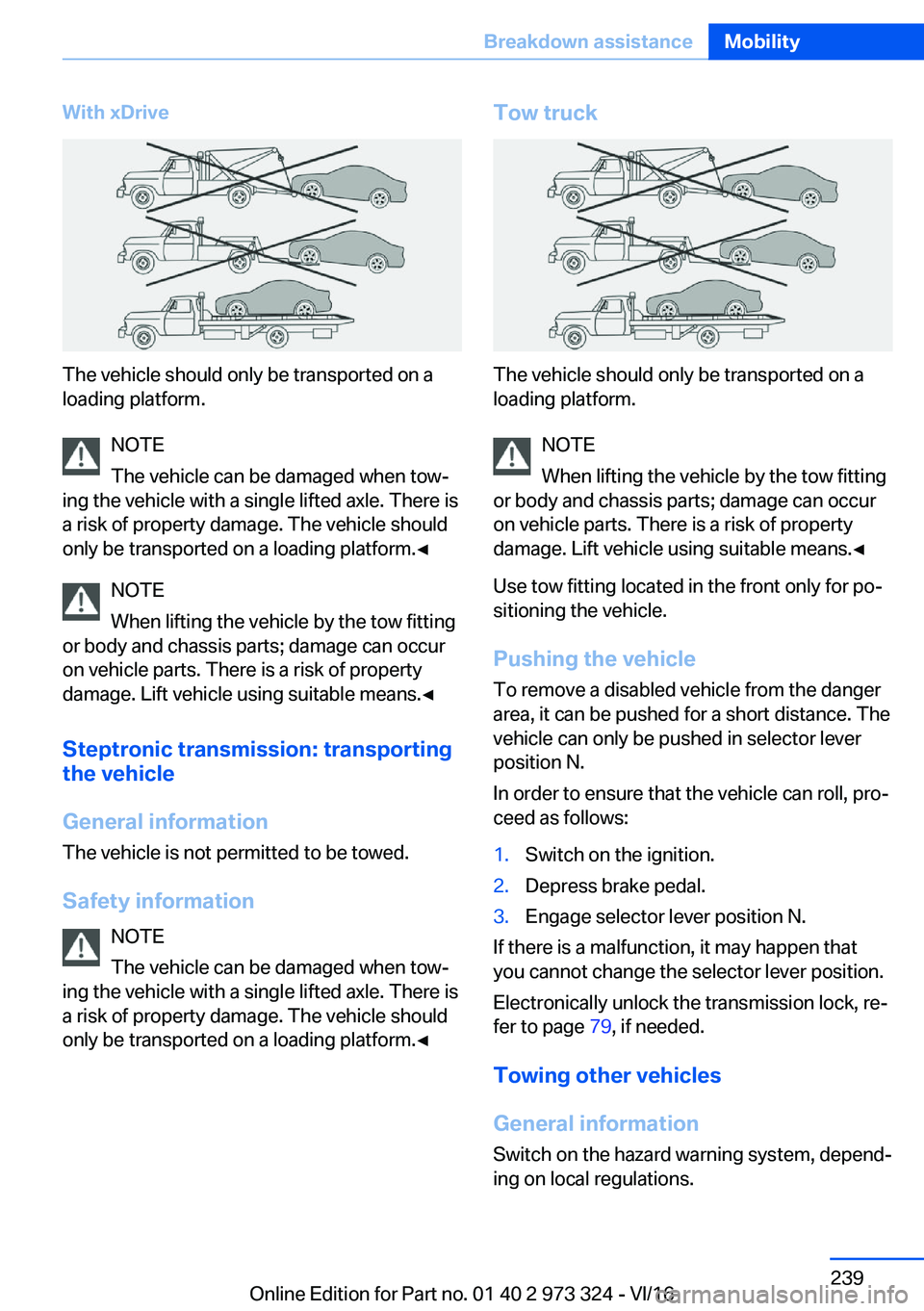

With
xDrive
The vehicle should only be transported on aloading platform.
NOTE
The vehicle can be damaged when towj
ing the vehicle with a single lifted axle. There is a risk of property damage. The vehicle should
only be transported on a loading platform.'

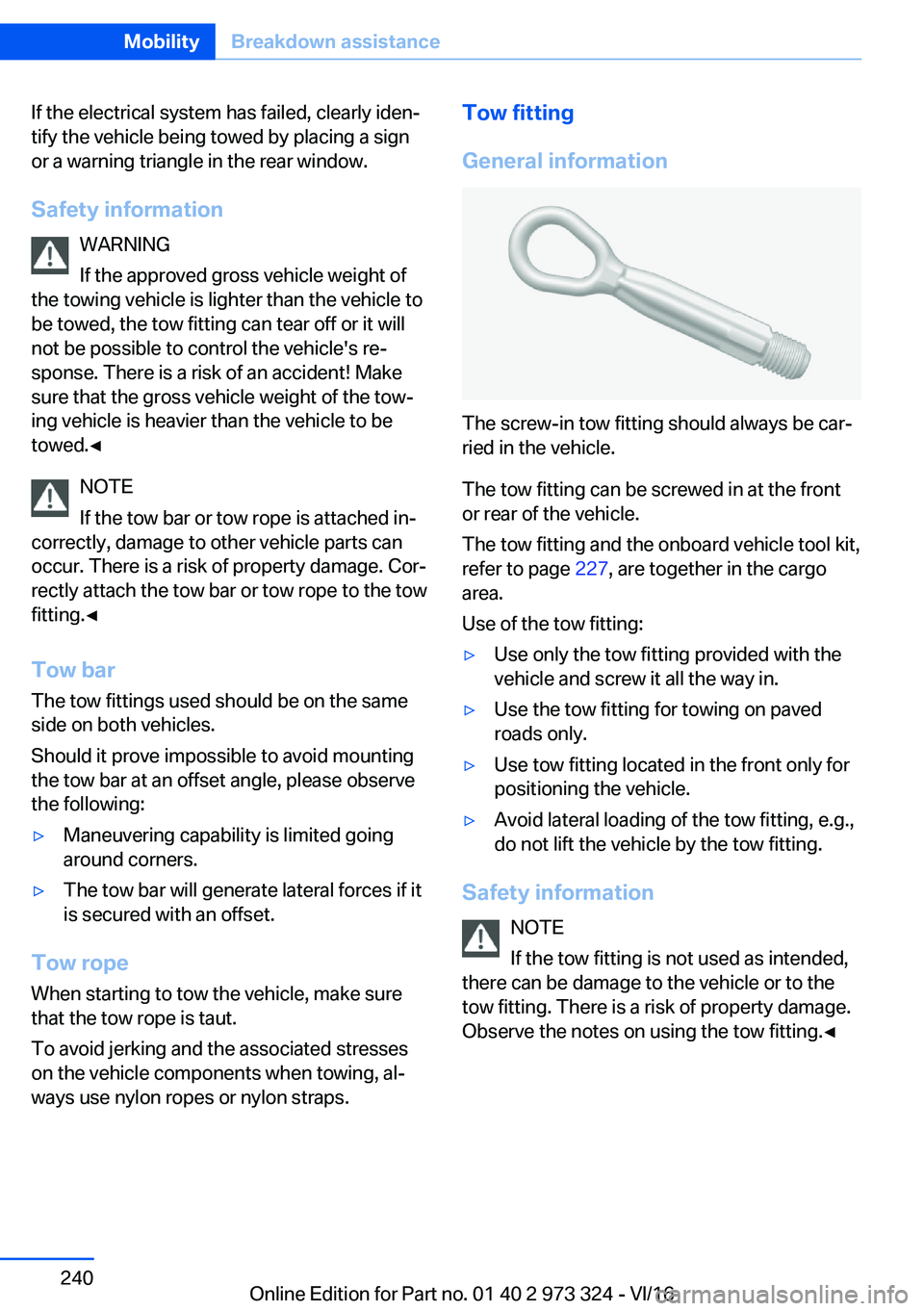

If the electrical system has failed, clearly idenjtify the vehicle being towed by placing a sign
or a warning triangle in the rear window.
Safety
information WARNING
If the approved gross vehicle weight of
the towing vehicle is lighter than the vehicle to be towed, the tow fitting can tear off or it will
not be possible to control the vehicle's rej
sponse. There is a risk of an accident! Make
sure that the gross vehicle weight of the towj
ing vehicle is heavier than the vehicle to be
towed.'
