Sea ts and stor age
(D Note
Make sure the safety belt is not pinched in the
backrest lock and damaged when the rear
seat backrest if folded back.
Lowering the cargo floor
In exceptional situations, the cargo floor can be
lowered.
F ig. 54 Luggage compartme nt: cargo floor removed
Fig. 55 Luggage compartment: spare tire removed
• Remove the cargo floor¢ page 281.
• Remove the plastic floo r panel ¢ fig. 54.
• Turn the handle counter-clockwise to remove
and remove the foam piece .
• Remove the spare tire.
• Reinsert the foam piece and tu rn the handle
clockwise to tighten .
.,. Now reinsert the cargo floor.
A WARNING
Please note that you are no longer mob ile in
the event of a flat tire. Please note the legal
regulat ions before remov ing the spare tire .
50

CD
CD
.... N
" N ...... 0
0
Ill co
Steering
Adjusting the steering wheel position
The steering wheel position is fully adjustable up
and down and forward and back.
Fi g. 59 Lever on th e steering column
... Tilt the lever c:::> fig . 59 downward c:::> A
... Bring the steering wheel into the desired posi­
tion .
... Push the lever against the steering column un­
t il it is secure.
A WARNING
Incorrect use of the steering wheel ad just­
ment and an incor rect seating posi tion ca n
cause se rious injuries.
- Only adjust the steeri ng column when the
vehicle is stat ionary so that you do not lose
cont ro l of the ve hicl e.
- Adjus t the dr iver's seat or steering wheel so
that there is at least a 10 in (25 cm) d is­
t an ce betwee n your chest a nd t he s teering
w heel. If y ou d o not m aint ain this dis tan ce,
yo u will n ot be proper ly protected by the a ir­
bag system.
- If your phys ic al characteris tics p reven t you
from sit ting a t least 1 0 in ( 25 cm) or mo re
away from the steering whee l, see if yo ur
authorized Audi dea ler or autho rized Audi
Service Facility can prov ide adapters that
will help.
- If your face is leve l with the steering wheel,
the a irbag does not provide as much protec­
t io n during a collision. Always make s ure
tha t the steering wheel is leve l with yo ur
chest.
D rivi ng
-Always hold the steering wheel with your
hands i n the 9 o'clock and 3 o'clock pos i­
tions to reduce the risk of injury if the airbag
deploys.
- Never hold the steering wheel in the 12
o'clock position or with both hands on the
rim or the center of the stee ring wheel.
H old ing the steer ing whee l incorrect ly sig­
n ificant ly increases the r isk of injury to the
hands, a rms and head if the air bag deploys.
Starting and stopping
the engine
Starting the engine
The ! S TART ENGINE STOPI button switches the
ignition on and starts the engine .
Fig . 60 Center console: START ENGINE STOP b utto n
Switching the ignition on /off
... To switch t he ignit io n on or off, press t he
!START ENGI NE STOPI but ton. Do not press the
brake pedal while doing this.
Starting the engine
... Press the brake pedal a nd move the selector
lever into the P or N position
c:::> ,&. .
... Press the !START ENGINE STOP I butto n
<=:> fig. 60. The eng ine will start.
If the engine does not start immediately, the
sta rt ing procedure stops a utoma tica lly after a
sho rt time. Repea t the s ta rt ing process .
A WARNING
- To redu ce the r is k of p oisoni ng, never allow
the eng ine to run in confined spaces.
57

System settings
System settings
Setting the date and
time
You con set the clock time manually or using the
CPS .
"'Select: I MENU I button> Settings> left control
button >
MMI settings > Date & time .
"'Or: select: I MENU I button> Vehicle> left con-
trol button >
Vehicle settings > Date & time .
Automatic setting
When this function is switched on~. the time
and date are automatically set.
Time
Requirement: the Automatic setting must be
switched off .
Press the control knob. You can set the
Time
manually by turning and pressing the control
knob.
Date
Requirement: the Automatic setting must be
sw itched off.
Press the control knob . You can set the
Date
manually by turning and press ing the control
knob.
Time zone
When selecting the appropriate time zone, a
sampling of countries in this zone will be listed .
Automatic time zone*
When this function is switched on~, the time
will automatically adjust to the corresponding
time zone.
Time format
If you select 24h , the clock will display, for ex­
ample,
13:00 . If you se lect AM/PM , the clock
w ill disp lay, for examp le,
1:00 PM.
Date format
If you select DD.MM .YYYY, the date display will
show, for examp le,
31.08.2017 . If you select
MM/DD/YYYY , the date display will show, for ex -
174
ample, 08/31/2017. If you select YYYY-MM­
DD ,
the date display will show, for example,
2017-08-31.
MMI settings
"'Select: !MENUI button> Settings > left control
button >
MMI settings .
Language
You can change the display language as well as
the language for the voice guidance* and voice
recognition system*.
The number of languages available depends on
the market .
Measurement units
The following units can be selected:
-Speed (mph or km/h)
-Distance (miles or kilometers)
-Temperature (°For 0
()
-Fuel consumption (l/l00km, mpg (US), mpg
(UK) or km/l)
- Volume (liters, ga llons)
Tool tips
When this function is switched on~. your MMI
shows you tips for input . The frequency of how
often it displays decreases with time. You can
switch off the operating tips at any time.
Speech dialog system
Applies to : vehicles wit h voice re cog nitio n syste m
Command display: when this function is switch­
ed on~. the MMI will show you the possible
commands for voice input in the respective
menu. You can sw itch the funct ion off at any
time .
Short dialog: when this function is switched on
~. a shorter form of the prompts is used. You
can switch the function off at any time .
Speech dialog system volume: you can adjust
the volume of the prompts by turning the control
knob.
ll-

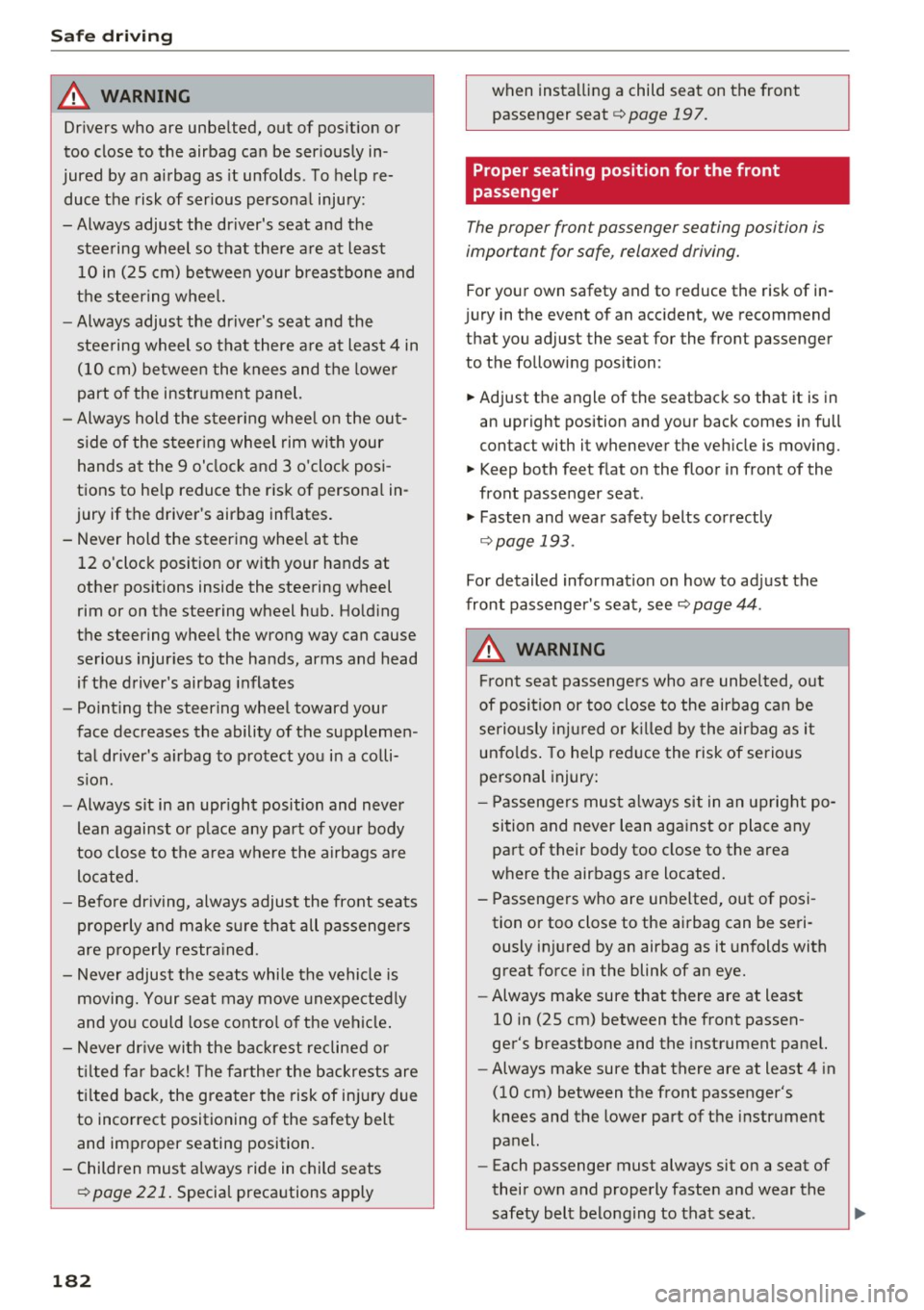

Safe driving
A WARNING
Drivers who are unbelted, out of position or
too close to the airbag can be seriously in­
jured by an airbag as it unfolds . To help re­
duce the risk of serious personal injury:
- Always adjust the driver's seat and the steering wheel so that there are at least 10 in (25 cm) between your breastbone and
the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least 4 in
(10 cm) between the knees and the lower
part of the instrument panel.
- Always hold the steering wheel on the out­
side of the steering wheel rim with your
hands at the 9 o'clock and 3 o'clock posi­
tions to help reduce the risk of personal in­
jury if the driver's airbag inflates.
- Never hold the steering wheel at the 12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Holding
the steering wheel the wrong way can cause
serious injuries to the hands, arms and head if the driver's airbag inflates
- Pointing the steering wheel toward your
face decreases the ability of the supplemen ­
tal driver's airbag to protect you in a colli­
sion.
- Always sit in an upright position and never
lean against or place any part of your body
too close to the area where the airbags are
located.
- Before driving, always adjust the front seats
properly and make sure that all passengers
are properly restrained.
- Never adjust the seats while the vehicle is
moving. Your seat may move unexpectedly
and you could lose control of the vehicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests are
tilted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats ¢
page 221. Special precautions apply
182
when installing a child seat on the front passenger seat¢
page 197.
Proper seating position for the front
passenger
The proper fron t passenger sea ting posi tion is
impor tan t for safe , relaxed driving.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the seat for the front passenger
to the following position:
.,. Adjust the angle of the seatback so that it is in
an upright position and your back comes in full
contact with it whenever the vehicle is moving.
.,. Keep both feet flat on the floor in front of the
front passenger seat.
.,. Fasten and wear safety belts correctly
¢ page 193.
For detailed information on how to adjust the
front passenger's seat, see ¢
page 44.
.&, WARNING
Front seat passengers who are unbelted, out
of position or too close to the airbag can be
seriously injured or killed by the airbag as it
unfolds. To help reduce the risk of serious
personal injury:
- Passengers must always sit in an upright po­
sition and never lean against or place any
part of their body too close to the area
where the airbags are located.
- Passengers who are unbelted, out of posi­ tion or too close to the airbag can be seri­
ously injured by an airbag
as it unfolds with
great force in the blink of an eye.
- Always make sure that there are at least
10 in (25 cm) between the front passen­
ger's breastbone and the instrument panel.
- Always make sure that there are at least 4 in
(10 cm) between the front passenger's
knees and the lower part of the instrument
panel.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the safety belt belonging to that seat .
~

-Always carefully follow the manufacturer's
instructions provided w ith the child seat or
carrier.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is
not, or to signa l that it is occ upied by some­
one who is heavier than the pe rson actua lly
s itting on the seat. The p resence of addi ­
tional objects could cause the passenger
fro nt airbag to be turned on when it shou ld
be off, or could cause the airbag to work in a
way that is different from the way it would
have worked without the object on the seat .
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
F ig . 160 Locat ion of driver a irbag: in stee ring wheel
Fig . 1 61 Locat ion of front passenger's airbag: i n the in -
CD st rume nt panel CD ,-t N
" ~ Your veh icle is equipped with a n "Adva nced Air-
~ bag System" in compl iance wi th Un ited States
co
Airb ag sys tem
Federal Motor Vehicle Safety Standa rd
(FMVSS) 208, as well as Canada Motor Vehicle
Safety Standard (CMVSS) 208 as applicable at
the time your ve hicle was manufactured. The
safety belts for the front seats have "pretension­
ers" that help to take slack out of the belt sys ­
tem . The pretens ioners are also activated by the
electronic control unit for the airbag system.
The front safety belts also have load limiters to
help reduce the fo rces applied to the body in a
crash.
The airbag for the driver is in the steering wheel
hub ¢
fig. 160 and the airbag for the front pas­
senger is in the instrument panel¢
fig . 161. The
general locat io n of the a irbags is marked "AIR­
BAG" .
There is a lot you need to know about the airbags
in you r vehicle. We urge you to read the deta iled
information about airbags, safety be lts and c hild
safety in this and the other chapte rs that make
u p the ow ner's literature. Please be sure to heed
the WARNINGS - they are ex tremely important
for yo ur safety and the safety of your passengers,
especially infants and small children.
A WARNING
-
Never rely on airbags alone fo r protect ion .
- Even when they deploy, airbags provide only
supp lemental protection .
- Ai rbag work most effectively when used
with proper ly worn safety be lts.
- T herefo re, always we ar you r safe ty be lts and
make sure that everybody in your vehicle is
proper ly restrained.
- Always hold the stee ring w heel with both
hands on the outside o f the steering wheel
rim at the 9 :00 o'clock and 3:00 o'clock po­
sitions to help reduce the risk of personal in­
jury if the driver's a irbag inflates.
- Never ho ld the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel o r on the
steer ing whee l hub. Holding the steering
wheel the wrong way increases the r is k of
seve re injury to the arms, hands, and head if
the dr iver airbag deploys.
~
201

Check ing and F illing
Cooling system
Coolant
The engine coo ling system is filled with a mixture
of pur ified wate r and coolan t addit ive at the fa c­
t ory . T his coo la nt must not be not changed .
The coolant leve l is monito red throug h the . in­
d icator light
c::> page 12. Howeve r, we do recom­
mend occasionally chec king the coo la nt level
manually.
If you must add coolant, use a m ixt ure of wa ter
a nd coo lant add it ive. Mixing the coolant additive
with d istilled water is recommended.
Coolant additive
The coolant additive is made of ant i-freezing and
corros ion protection agents. Only use the fo llow­
ing coolant add it ives. These addit ives may be
m ixed w it h each other.
Coolant additive Specification
G13
TL 774 J
G12++ TL 774 G
The amount of coo lant add itive that needs to be
mixed wit h water depends on the climate where
the vehicle will be operated . If the coolant addi ­
tive percentage is too low, the coolant can free ze
and damage the engine.
Coolant addi- Freeze protec-
tive tion
Warm regions min . 40%, m in. -13 °F
max . 45% (
- 25 °C)
Co ld regions min. 50%, max. -40 °F
max. 55% (-40 °C)
CJ) Note
-Befo re the start of winter, have your author ­
i zed Audi dealer or authorized A udi Service
Fac ility check if the coolant additive in yo ur
vehicle matc hes the percentage approp riate
for the climate . Th is is especially important
whe n driving in co lde r clima tes.
- If the approp riate coolant additive is not
available in an emergency, do no t add any
other addi tive . You cou ld damage the en-
250
gine . If this h appens, on ly use wa ter and re ­
store the correct m ixt ure ratio with t he
specified coo lant ad ditive as soon as poss i­
ble.
- Only refill w ith new coolant .
- Radiator sealant mus t not be mixed wi th
the coolant .
Adding coolant
Fig. 192 En gine co mpar tm ent: coo la nt expans io n ta nk
cove r
-"' -"' •
"" co a,
Observe the safety precautions c::> A in Working
in the engine compartment on page 244 .
Checking the eng ine coolant level
.,. Park your veh icle on a level s urface .
.,. Switch the ignit ion off.
.,. Read the coolant level on the coolant expansion
tank
c::> page 246, fig. 189. The coolant leve l
must be betwee n the markings when the en­
gi ne i n cold . When t he e ng ine is warm it can be
slightly above the uppe r mar king .
Adding coolant
Requirement: there must be a residual amount of
coolant in the expansion ta nk
c::> (D .
.,. Let the engine coo l down.
.,. Place a clot h over the coolant expansion tan k
cap and unscrew the cap counterclockw ise
¢ .&, .
.,. Add coo lant m ixed in the cor rect rat io
c;, page 250 up to t he up per ma rk ing .
.,. Make sure that the fluid level remains stab le.
Add mo re coolan t if necess ary.
.,. Close the cap sec urely .
Coo lant loss usually ind icates there is a lea k. Im-
med iate ly dr ive you r ve hicl e to a n author ized .,.

CD
CD
.... N
" N .... 0
0
Ill co
Audi dealer or authorized Audi Service Facility
and have the cooling system inspected. If the
cooling system is not leaking, a loss can come
from the coolant boiling through overheating
and being pushed out of the cooling system.
A WARNING
The cooling system is pressurized and can be­
come very hot . To reduce the risk of burns
from hot coolant:
- Do not open the coolant expansion tank cap when the eng ine is hot. This increases the
risk of burns.
- Stop the engine and allow it to cool.
- Protect your face, hands and arms from es-
caping coolant and steam by covering the
coolant tank cap with a large, thick cloth .
- Turn the coolant tank cap counterclockwise
slowly and keep light pressure on the cap .
- To reduce the risk of burns, do not allow any
antifreeze or coolant to drip onto the ex­
haust system or hot engine components .
The ethylene g lycol in engine coolant can
catch fire under certain circumstances.
- The coolant add itive and the coolant can be
dangerous to your health. For this reason,
keep the coolant in the original container
and away from children. There is a risk of
poisoning.
- When working in the engine compartment,
remember that the radiator fan can sw itch
on even if the ignition is switched off, which
increases the risk of injury.
(D Note
Do not add coolant if the expansion tank is
empty . Air could enter the cooling system and
damage the engine. If this is the case, do not
cont inue driving. See an authorized Audi deal­
er or authorized Audi Service Facility for assis­
tance.
Checking and Filling
Brake fluid
Fig. 193 En gi ne compartment: cover on the b rake fluid
rese rvoir
Observe the safety precautions QA in Working
in the engine compartment on page 244 .
Checking the brake fluid level
.,. Read the brake f luid level on the brake fluid
reservoir
Q page 246, fig . 189. The brake fluid
level must be between the MIN and MAX mark­
ings
Q A .
The brake fluid level is monitored automatically.
Changing the brake fluid
Have the brake fluid changed regularly by an au­
thorized Audi dealer or authorized Audi Service Facility.
.&_ WARNING
- If the brake fluid level is below the MIN
marking, it can impair the brak ing effect
and driving safety, which increase the risk of
an accident. Do not continue driving. See an
authorized Audi dealer or authorized Audi
Serv ice Facility for assistance.
- If the brake fluid is old, bubbles may form
in the brake system during heavy braking.
This would impair braking performance and
driving safety, which increases the risk of an
accident .
- To ensure the brake system functions cor­
rectly, only use brake fluids that comply
with VW standard 501 14 or
FMVSS-116 DOT 4.
251

Emerg enc y assis ta nc e
necessary by an authorized Audi dealer or author­
ized Audi Service Facility as soon as possible.
There are some restric tions on the use of the
compact spare tire. The compact spare tire has
been designed specifically for your type of vehi­
cle. Do not replace it with the spare tire from an­
other type of vehicle .
Remo ving th e spar e tire
.,. Turn the handle~ fig. 211 @counter-clock-
wise.
.,. Remove the spare tire.
Remov ing th e vehicle jac k
.,. Lift up the cover on the right side of the lug­
gage compartment and remove the vehicle
jack.
Snow chain s
For technical reasons, the use of snow cha ins on
the compact spare t ire is not permitted.
If you have to drive with snow chains and a front
tire fails, mount the spare wheel in place of a
rear tire. Install the snow cha ins on the rear tire
that you removed, and install that in place of the
front tire that failed .
.&, WARNING
-
-After installing a spare t ire, the tire p res­
s u re must be checked as soon as poss ible.
T he tire pressure is available on
~ page 265,
fig . 199.
-If the spare tire is more than 6 years o ld,
use it only in an emergency and with ex ­
treme caution and carefu l driving.
- T he spare tire is intended on ly for tempora­
ry and short-term use. It shou ld be replaced
as soon as possible with the norma l wheel
and tire.
- After mounting the compact spare tire, the
tire pressure must be checked as soon as
poss ible. The tire pressure of the compact
spare tire must be 61 psi (420 kPA); other­
wise, you risk hav ing an accident.
- Do not drive faster than SO mph (80 km/h).
You risk hav ing an accident.
288
- Avoid full-throttle acceleration, heavy brak­
ing, and fast cornering. You r isk having an
accident.
- Never drive using more than one spare
wheel and tire. You r isk having an accident.
- Normal summer or winter tires must not be
mounted on the compact spare wheel rim.
- For technical reasons, the use of tire chains
on the spare tire is not permitted. If it is
necessary to drive w ith tire chains, the spare
wheel must be mounted on the front axle in
the event of a flat in a rear t ire. The newly
ava ilable front wheel must then be installed
in place of the rear wheel with the flat tire.
Installing the tire chain before mounting
the wheel and tire is recommended.
- Loose items in the passenger compartment
can cause se rious personal injury during
ha rd bra king or in an accident. Never store
the inflatable spare tire or jack and tools in
the passenger compartment .
- Normal summer or winter tires must not be
mounted on the compact spare wheel rim .
