2017 AUDI Q5 jump start

Table of content s
Starting with jumper cables . . . . . . . . . . . 266
Use of jumper cables . . . . . . . . . . . . . . . . . 267
Towing with a tow tr uck . . . . . . . . . . . . . . 268
Ra is ing the vehicle . . . . . . . . . . . . . . . . . . . 270
Techni cal Data . . . . . . . . . . . . . . . . . . . 272
Te chnical data . . . . . . . . . . . . . . . . . . . . 272
Veh icle identification . . . . . . . . . . . . . . . . . 272
We ights . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 273
Capac ities . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Gasoline engi nes . . . . . . . . . . . . . . . . . . . . 274
D iese l eng ine . . . . . . . . . . . . . . . . . . . . . . . 275
Consumer information ....... .. . 276
Wa rranty cover ages . . . . . . . . . . . . . . . . . . 276
Operating your veh icle outs ide the U.S.A.
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Audi Service Repair Man ua ls and
Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 276
Accessories and technical changes . . . . . . 278
Declarat ion of Complia nce,
Telecommun ications and Electro nic
Sys tems . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Index .............. ............. .. 280
4

Hybrid
The connections in the engine compartment are
used for both charging and jump starting
c::> page 22 7 or c::> page 266.
Vehicle not ready to start. See owner's
manual
This message appears if the high voltage battery
charge level is too low. The vehicle can no longer
be started with its own power. The high voltage
battery must be charged with a charger or the ve­
h icle must be jump started with the aid of anoth­
er vehicle.
After the connecting the charger or jumper ca­
bles, the ignition must be turned off for approxi­
mately two minutes and then turned on again .
After no more than one m inute, one of the fol­
lowing indicator lights turns on in the instrument
cluste r display .
B Charging battery. Please wait ...
If the indicator light turns on and this message
appears, the high voltage battery is charg ing or
the vehicle is be ing jump started with assistance
from another veh icle .
If the 12 volt batteries are dead, the- indi­
cator light turns on . The charging procedure
takes longer in this case because the 12 volt bat­
ter ies are charged first. The procedure goes fast­
er with the ig nition sw itched off.
Vehicle ready to start.
This message appears if the charging procedure
was successful. The vehicle may be started again .
Battery could not be charged enough to start
vehicle .
This message appears if the charging procedure
was not successful or it was interrupted. Th is
may happen if the charger or the battery in the
veh icle that is assisting is too weak.
If the veh icle
can not be started, see an authorized repa ir facil i­
ty for ass istanc e.
(D Tips
-The charger should deliver a current of at
l east 30 A. Otherwise charging the high
voltage battery will take considerably Ion-
108
ger. A current between 50 A and 70 A is ide ­
al.
- Th e veh icle that is assisting should be some­
what within the same vehicle class when
jump starting a vehicle. A smaller vehicle's
battery may be drained.
- After approximately 30 minutes, the charg­
ing procedure ends because the ignit ion is
automatically turned off. If you would like
to cont inue to charge the battery, turn the
ignition on again.
Vehicle transport
App lies to: vehicles wit h hybrid drive
The following contains information you should
know about transporting your vehicle.
The lithium ion battery (SANYO 72 UF 121 285)
installed in your vehicle has passed test 38.3 in
accordance with UN handbook tests and criteria.
The vehicle may be transported with the battery
i nstalled as conventional class 9 hazardous mate­
rials without addit ional officia l consent for a ir
and sea transportation (current law !CAO-TI and
IMDG-Code 01.01.2012).

a,
a,
..... N r-­N ..... 0 0
0:
co
Checking and Filling
Engine compartment
Engine compartment
These are the most important items that you can check.
Fig. 196 Typical layout for containers and e ngin e oil fille r cap
(D Jump start po int(+) under a cover 227,267
@ Brake fluid reservoir (CO)) . . . . . . . 224
@ Engine oil filler cap(~) . . . . . . . 221
@ Coolant expansion tank (- L) . . . . . 223
® Jump start point( -) with hex head
screw . . . . . . . . . . . . . . . . . . . . . . . 227, 267
@ Windshield/headlight washer con -
tainer
(W) . . . . . . . . . . . . . . . . . . . 229
The position of the engine oil filling hole
c:> fig. 196 (item@) can differ depending on the
engine design .
A WARNING
Before you check anything in the engine com­
partment, always read and heed a ll WARN­
INGS
c:> &. in Working in the engine compart­
ment on page 217.
Engine oil
Engine oil specifications
The engine oil used must conform to exact speci­
fications.
T he serv ice interval display in the instrument
cluster of your vehicle will inform you when it is
time for an oi l change . We recommend that you
have your oi l changed by an authorized Audi Serv­
ice Advisor.
If you have to top off the oil between oil changes,
use the Audi oil quality standard specified in the
tab~ .
~
219

a,
a,
..... N
" ('I ..... 0 0
0:
co

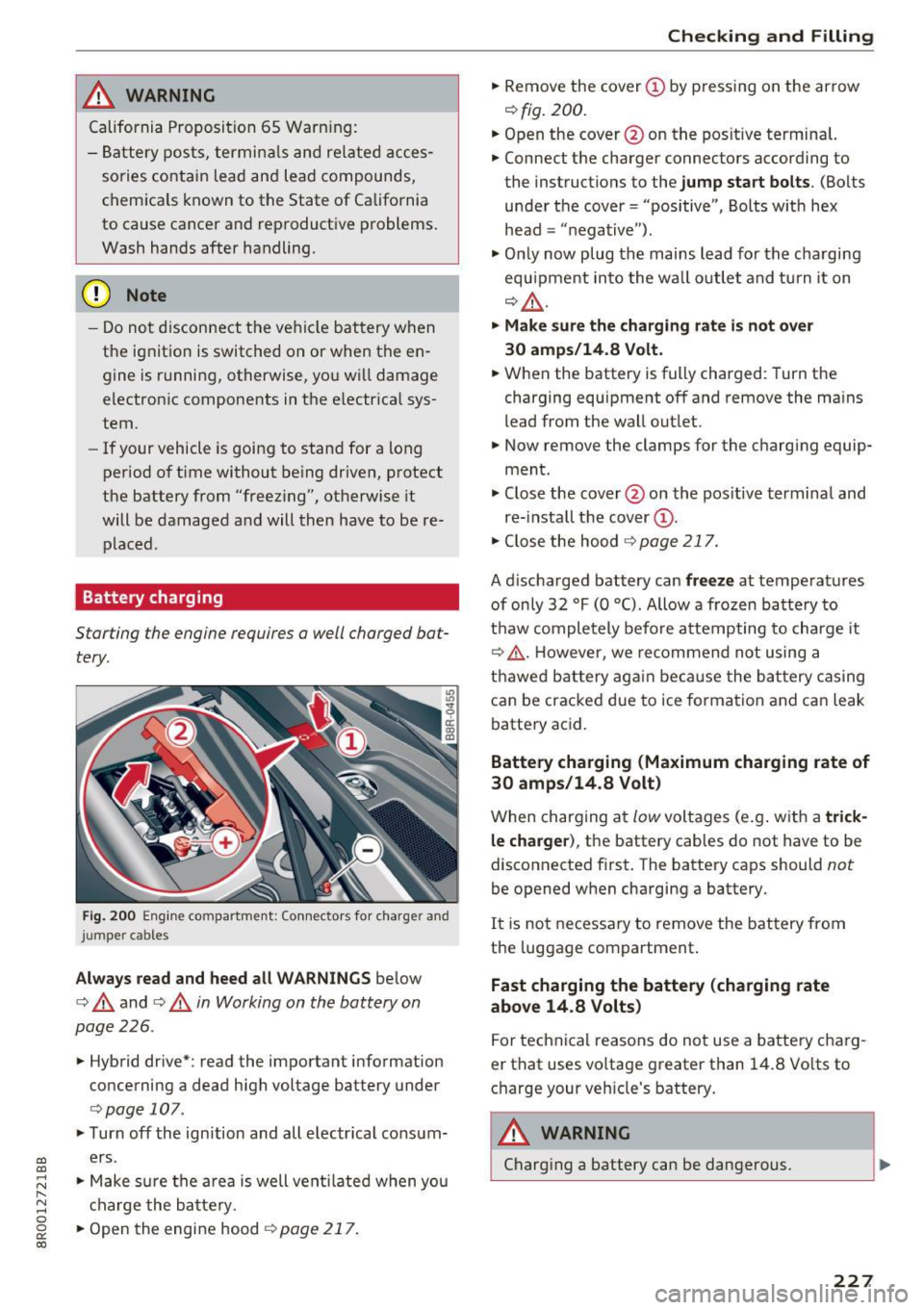

,&_ WARNING
California P roposition 65 Warn ing :
- B attery posts, termi na ls and re lated acces­
sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive problems.
Wash hands after handling.
(D Note
- Do no t disconnect the ve hicle bat tery when
t h e ignit ion is switched on or when the en ­
gine is runni ng, otherwise, you w ill damage
electron ic components in the e lectr ica l sys­
tem.
- If your vehicle is going to stan d for a long
period of time without be ing driven, protect
the battery from "freez ing", otherwise it
will be damaged a nd will then have to be re­
placed .
Battery charging
Starting the engine requires a well charged bat­
tery .
Fig. 200 Engin e co mpartme nt: Co nnectors for charger and
j um per ca bles
Always read and heed all WARNINGS below
c> & and <=> & in Working on the battery on
page 226 .
.. Hybrid dr ive*: read the important i nformation
co ncerning a dead high voltage battery under
<=> page 107.
.. Turn off the ignition and all e lectr ica l consum­
ers.
.. Make s ure the a rea is well vent ilated w hen you
c harge the b attery.
.. Open the engine hood
c> page 217 .
Checking and Filling
.. Remove the cover@ by pressing on the arrow
<=>fig . 200.
.. Open the cover @on the pos itive terminal.
.. Connect the charger connecto rs according to
the instructions to the
jump start bolts . (Bolts
under the cover = "positive" , Bolts w ith hex
head = "n egative ").
.,. Onl y now plug the mains lead for the cha rgi ng
equ ipme nt in to the wa ll ou tlet and turn it on
<=> & .
.. Make sure the charging rate i s not over
30 amps/14.8 Volt.
.. When the battery is fully charged: Turn the
charging equ ipment off and remove the ma ins
lead from the wall out let .
.,. Now remove the clamps for the charg ing equip­
ment .
.,. Close the cover @on the pos it ive termina l and
re- insta ll the cover
(D .
.,. Close the hood c> page 217.
A d ischarged battery can freeze at temperat ures
of on ly 32 °F (0 °C). Allow a frozen batte ry to
t h aw comple tely before attempting to charge it
c> .&, . However, we recommend not using a
t h awe d batt ery ag ain be ca use the bat tery ca sing
can be cracked due to ice formation and ca n leak
batte ry ac id.
Battery charging (Maximum charging rate of
30 amps/14.8 Volt)
W hen charging a t low voltages (e.g . w ith a trick­
le charger ),
th e battery cables do not have to be
disconnected first. The battery caps should
not
be opened when cha rging a battery.
It is no t necessary to remove the bat tery from
the luggage compartment .
Fast charging the battery (charging rate
above 14 .8 Volts)
F or technical rea sons do not use a batte ry charg­
er that uses vo ltage greater than 14.8 Vo lts to
c h arge your veh icle's battery .
A WARNING
-Charging a battery can be dangerous.
227

Emergency situations
Emergency situations
General
This chapter is intended for trained emergency crews and working personnel who have the nec­
essary tools and equipment to perform these
operations.
Starting by pushing or
towing
(D Note
Vehicles with an automatic transmission
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine con be started by con­
necting it to the battery of another vehicle.
If the engine should fail to start because of a dis­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumper cables to start the engine.
Jumper cables
Use only jumper cables of sufficiently large cross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated terminal
clamps which are distinctly marked :
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for
safe
handling of your vehicle's battery.
-Always shield your eyes and avoid leaning
over the battery whenever possible.
-A dead battery can freeze at temperatures
around 32 °F (0 °C) . If the vehicle battery is
frozen, you must thaw it before connecting
the jump start cables.
If you do not, this in-
266
creases the risk of an explosion and chemi­
cal burns. After jump starting the vehicle,
drive to an authorized Audi dealer or author­
ized Audi Service Facility immediately to
have the vehicle battery checked.
- Do not allow battery acid to contact eyes or
skin . Flush any contacted area with water
immediately.
- Improper use of a booster battery to start a
vehicle may cause an explosion .
- Vehicle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery.
- The voltage of the booster battery must also
have a 12-Volt rating. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batteries of different voltage or substantial­
ly different "Ah" rating may cause an explo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen. The battery case may have be weak­
ened.
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an explosion and injury. The capacity (Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
r=:> poge 217.
([) Note
-Applying a higher voltage booster battery
will cause expensive damage to sensitive electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.

a,
a,
..... N r-­N ..... 0 0
0:
co
@ Tips
The discharged battery must be properly con­
nected to the vehicle's electrical system .
When jump starting or charg ing the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negative ground cable to the negative ground
post of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!
Fig. 225 Engine compartment: Connectors fo r jumper ca­
bles and charger
Fig. 226 Jump starting with the battery of another vehicle:
@ booster battery, @ discharged vehicle battery
The procedure described below for connecting
jumper cables is intended to provide a jump start
for your vehicle.
Hybrid drive*: read the important information
concerning a dead high voltage battery under
¢page 107.
Emergency situations
Vehicle with discharged battery:
.,. Turn off lights and accessories, move lever of
automatic transmission to N (Neutral) or P
(Park) and set parking brake.
Connect POSITIVE(+) to POSITIVE(+) (red)
"' Remove the cover
CD by pressing on the arrow
¢fig. 225.
.,. Open the cover @on the positive terminal.
1. Connect one end of the red positive cab le on
the
jump start bolt¢ fig. 226 CD (Bolts un ­
der cover = "positive") of the vehicle to be
started @.
2. Connect the other end to the positive termi-
nal@of the booster battery @.
Connect NEGATIVE (-) to NEGATIVE(-)
(black)
3. Connect one end of the black negative cable
to the negative term i nal @of the booster
battery @.
4. Connect the other end of the b lack negative
cable to the
jump start bolt@ (Bolts with
hex head= "negative") of the vehicle to be
started @.
Starting the engine
.,. Start the engine of the vehicle with the booster
battery @. Run the engine at a moderate
speed .
.,. Start engine w ith discharged vehicle battery@
in the usual manner .
.,. If the engine fails to start: do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again .
.,. With engine running, remove jumper cables
from both vehicles in the exact
reverse order.
"' Close the cover @on the positive terminal and
re- install the cover
CD <=> fig . 225.
The battery is vented to the outside to prevent
gases from entering the vehicle interior. Make
sure that the jumper clamps are well connected
with their
metal parts in full contact with the
batte ry term inals. .,.
267

Automatic transmission . . . . . . . . . . . . . . . . . 94
Automatic Shift Lock (ASL) . . . . . . . . . . . . . 95
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Emergency mode . . . . . . . . . . . . . . . . . . . . . 98
Emergency release . . . . . . . . . . . . . . . . . . . . 99
H ill descent control . . . . . . . . . . . . . . . . . . . 97
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Manual shift program . . . . . . . . . . . . . . . . . 98
Removal lock (ignit ion key) . . . . . . . . . . . . . 81
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 94
Shift paddles . . . . . . . . . . . . . . . . . . . . . . . . 98
Automatic wipe/wash system . . . . . . . . . . . . 54
Auto Safety Hotline . . . . . . . . . . . . . . . . . . . 138
AUTO (climate control) . . . . . . . . . . . . . . . . . . 78
Average speed . . . . . . . . . . . . . . . . . . . . . . . . 19
Avoid damaging the vehicle . . . . . . . . . . . . . 195
B
Bass box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Battery location inside the luggage compart­
ment .. .. .. .. ...... ......... .. .. .. . 225
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 192
Charging . .. .. ............... .. . 107,227
Energy management . . . . . . . . . . . . . . . . . 192
Impor tant warnings when working on the
battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 266
Replacing the battery . . . . . . . . . . . . . . . . 228
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Winter operation . . . . . . . . . . . . . . . . . . . . 225
Working on the battery . . . . . . . . . . . . . . . 225
Before driving . . . . . . . . . . . . . . . . . . . . . . . . 131
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 146
Bio-ethanol (Fuel)....... ..... ... ... .. . 210
Blended gasoline . . . . . . . . . . . . . . . . . . . . . 209
Blower (climate control) . . . . . . . . . . . . . . . . 78
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . 176
B ra ke fluid
Changing the brake fluid . . . . . . . . . . . . . . 224
Checking the brake fluid l evel . . . . . . . . . . 224
Brake system
Anti-lock brake system . . . . . . . . . . . . . . . . 14
~ Brak e booster . . . . . . . . . . . . . . . . . . . . . . . 190 ....
~ Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 224
8 Brake fluid specifications for refill and re-
~ placement . . . . . . . . . . . . . . . . . . . . . . . . . 224 00
Index
Brake light defective . . . . . . . . . . . . . . . . . . 29
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Electromechanical parking brake . . . . . . . . 86
Fluid reservo ir . . . . . . . . . . . . . . . . . . . . . . 224
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warning/indicator lights . . . . . . . . . . . . . . . 15
Worn brake pads symbol . . . . . . . . . . . . . . . 29
Braking Brake assist . . . . . . . . . . . . . . . . . . . . . . . . 186
Braking guard . .. . ... ............. 109, 115
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Switching on and off . . . . . . . . . . . . . . . . . 116
Break -in per iod
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 190
Ti res . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Breaking in . . . . . . . . . . . . . . . . . . . . . . . . . . 194
New tires . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Breakover angle . . . . . . . . . . . . . . . . . . . . . . 198
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
C
Californ ia Proposition 65 Warning 218
Battery specific . . . . . . . . . . . . . . . . . . . . . 227
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
AdBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Engine oil ....... .. ................. 219
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Cargo area
refer to Loading the luggage compart-
ment...... ... . ... ................. 136
Cargo floor . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Catalytic converter . . . . . . . . . . . . . . . . . . . . 194
Cente r armrest
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Storage compartment . . . . . . . . . . . . . . . . . 65
Centra l locking . . . . . . . . . . . . . . . . . . . . . . . . 35
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 279
Changing Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Child restraints
Danger of using child restra ints in the front
seat...... .... .. .. ............... .. 149
System anchors . . . . . . . . . . . . . . . . . . . . . 181
Where can I get additional information
about child restraints and their use? . . . . 185
281

Index
Electronic Stabilization Control (ESC) Hill descent assist . . . . . . . . . . . . . . . . . . .
188
Offroad mode . . . . . . . . . . . . . . . . . . . . . . . 187
Warning/indicator lights . . . . . . . . . . . . . . . 13
Emergency braking . . . . . . . . . . . . . . . . . . . . . 88
Emergency flasher . . . . . . . . . . . . . . . . . . . . . S 1
Warning/indicator lights . . . . . . . . . . . . . . .
14
Emergency key . . . . . . . . . . . . . . . . . . . . . . . . 33
Starting engine . . . . . . . . . . . . . . . . . . . . . . 83
Emergency locking of the doors. . . . . . . . . . . 39
Emergency operation
Luggage compartment lid . . . . . . . . . . . . . .
42
Emergency release
Selector lever . . . . . . . . . . . . . . . . . . . . . . . .
99
Emergency starting . . . . . . . . . . . . . . . . . . . 266
Emergency unlocking
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . .
35
Energy management . . . . . . . . . . . . . . . . . . 192
Engine
Compartment ................... ... .
219
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Hood ...... .. ................... ... 217
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 107
Starting ... .. ................ 81, 84 , 101
Starting with jumper cables . . . . . . . . . . .
266
Stopping ... .. .. ... .... ...... . 83, 85, 101
Engine compartment ........... .... .. . 219
Safety instructions . . . . . . . . . . . . . . . . . . . 217
Working the engine compartment ...... 217
Engine coolant system
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . .
26
Engine coolant temperature
Temperature gauge . . . . . . . . . . . . . . . . . . . . 8
Engine hood
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
217
H ow to release the hood . . . . . . . . . . . . . . 217
Engine oil . .. .. ................... ... 219
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Additives. .. .. .. ... .. ..... ..... .. .. . 221
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Check oil level . . . . . . . . . . . . . . . . . . . . . . 221
Consumption . . . . . . . . . . . . . . . . . . . . . . . 221
Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
O il consumption . . . . . . . . . . . . . . . . . . . . . 220
Pressure malfunction . . . . . . . . . . . . . . . . . 27
Sensor defective . . . . . . . . . . . . . . . . . . . . . . 30
Specification and viscosity......... ... . 219
284
Engine speed limitation . . . . . . . . . . . . . . . . . 30
Environment
Catalyt ic converter . . . . . . . . . . . . . . . . . . .
194
Diesel particulate filter . . . . . . . . . . . . . . . 195
Dispos ing of your veh icle battery . . . . . . . 228
Driving at high speeds . . . . . . . . . . . . . . . . 196
Fuel......... ... .. .. ............... 212
Leaks under your vehicle . . . . . . . . . . . . . . 217
Letting the vehicle stand and warm up. . . 196
Proper disposal of drained brake fluid 224
Proper disposal of drained engine oil 221,222
Recycling used engine o il . . . . . . . . . . . . . 221
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Unleaded fuel . . . . . . . . . . . . . . . . . . . . . . . 209
What shou ld I do with an old battery? 228
EPC
refer to Electronic power control . . . . . . . . 12
ESC
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . . .
13
Ethyl alcohol (Fuel) . . . . . . . . . . . . . . . . . . . . 210
Event Data Recorder (EDR) . . . . . . . . . . . . . 188
Explanation of some technical terms . . . . . 198
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 49
Exterior mirrors Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
56
D ' . rmmrng ...... .. ... .... ....... .... .. 57
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Eyeglasses compartment . . . . . . . . . . . . . . . . 75
F
Fall line 198
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
176
Convertible child safety seats . . . . . . . . . . 175
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 174
Flexib le fue l . . . . . . . . . . . . . . . . . . . . . . . . . 210
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Folding chocks . . . . . . . . . . . . . . . . . . . . . . . 250
Folding the rear seat forward . . . . . . . . . 66, 67
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . .
135
For the sake of the environment
Environmentally -friendly driving . . . . . . .
195
Gasoline fumes and the environment .. .. 212
Letting the engine warm up . . . . . . . . . 81 , 84
