\.J - Rearview camera* /peripheral cameras*
There is no distance warning fo r the rear. The
fron t sensors remain activa ted . The visual display
switches to trai ler mode. The rearview camera
image will not show the orientation lines and the
b lue surfaces.
Trailer hitches that are not installed at the
factory may cause the parking system to ma l­
function or they may restrict its function.
Parking systems
119

-A worn or damaged nozzle or a nozz le that
i s too sma ll may not be ab le to open the
diesel misfueling guard. If this is the case,
try turning the nozzle before insert ing it in
the fue l fi ller neck, use a different fuel
pump, o r see an a uth orized Audi dea ler or
aut horized Aud i Serv ice Fac ility fo r ass is­
tance.
- The m isfueling guard does not open when
adding fue l from a fue l conta iner . You ca n
bypass it by addi ng the diesel fuel s low ly.
Fuel filler door emergency release
If the central locking system is faulty, the fuel
filler door con be unlocked manually .
Fig. 178 Righ t side tr im in the luggage compart ment : re ­
mov ing t he trim
N N
9
~
Fig . 17 9 Luggage compartme nt: fuel f iller door emerge ncy
release
Removing the side trim
.,. To remove the right side trim, first remove the
retaine r from the mounts
c::> fig. 178 .
.. Turn both locking mechanisms 90° to the left
us ing a coin or a similar object and remove the
~ locking mec hanisms . .-, N
" N .-, 0
00
~ ll Ma rket -spe cific
Checking and Filling
.. Tilt the retainer upward and pull the trim out .
Lay the trim down on its side, beca use there is
an elect rical wire for the soc ket* on the back .
Fuel filler door emergency release
.. Loose n the st rap from its br acke t and pull on it
c::> fig. 179 c::> (i) . The f uel f iller door is re le ased .
.. Press on the left side of the fue l filler door to
open it
c::> page 193, fig. 176 .
(D Note
Only pull on the loo p until yo u fee l resista nce .
You w ill not hea r it re lease . Othe rw ise you
could damage the emergency release mecha­
nism.
Selective catalytic reduction (AdBlue/DEF)
General information
Appl ies to: vehicles with selective catalytic reduct io n
In vehicles with selective catalyt ic reduction, a
urea sol ution (AdBlue/DEF) is injected into the
exhaust system before a nitrogen oxide catalytic
converter to reduce nitrogen em issions . The urea
solution is known as Ad Blue or DEF (Diesel Ex­
haust F luid) . Ad Blue is used in the fo llow ing .
The Ad Blue is carried in a separate tank in the ve­
hicle . The AdBlue usage acco unts for app rox i­
mately 0 .5% to 2.5% of the diesel fuel that is
u sed .
When a message about refi lling the AdBlue ap­
pears in the instrument cluste r display, you must
r efil l the Ad B lue yourse lf or have it refilled by an
autho rized Aud i dea le r or a utho rized Aud i Serv ice
Fa cility
c::> page 196 .
(D Tips
-The instr ument cluster d isp lay i ndicates the
distanc e remaining that ca n be driven
c::> page 1 96. If the Ad B lue tank is com­
ple tely emp ty, the eng ine will not s tart
agai n afte r the ign it io n is swit ched of f.
195

Checking and Filling
-Ad Blue is required by law to operate this ve­
hicle .
Messages in the instrument cluster display
Applies to: vehicles with selective catalytic reduction
The display indicates if the Ad Blue level is low or
if there is a system malfunction.
AdBlue level low
You will be informed if the Ad Blue in the tank
drops below a certain level.
Please refill AdBlue . Range x mi (km)
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
driver information system . Fill the AdBlue.
Ad Blue ,0 Refill AdBlue! Cannot start engine
in x mi (x km)! See owner's manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
driver information system. Fill the AdBlue. Other­
wise the engine will not start again if you stop it
once the distance indicated has been driven. You
can also check the remaining distance in the on­
board computer* .
Refill Ad Blue! No restart! See own-
er's manual
This message appears when the Ad Blue tank is
empty . Fill the Ad Blue . Otherwise you will not be
able to start the engine again once you stop it .
The AdB lue must be refilled when the amount in
the tank has reached the minimum level
c::> page 196, Filling AdBlue.
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a fluid other than AdBlue and the system
has detected that the tank was fi lled incorrect ly,
or if there is a system malfunction .
Ad Blue-/' Ad Blue : system fault. No re start in
x mi (x km) See owner's manual
This message appears when it is only possible to
d rive the distance indicated in the driver informa­
tion system. Drive to the nearest authorized Aud i
dealer or authorized Aud i Serv ice Facility to have
196
the malfunction corrected . Otherwise the engine
will not start again if you stop it once the dis­
tance indicated has been driven.
AdBlue: System fault No restart!
See owner's manual
This message appears if the system has detected
that the tank was fi lled incorrect ly or that there
i s a ma lfunction. Drive immed iate ly to the near­
est authorized Audi dealer or authorized Audi
Service Facility to have the ma lfunction co rrect ­
ed. Otherwise you wi ll not be able to start the en­
gine again once you stop it.
Filling AdBlue
Applies to: vehicles with selective cata lytic reduct ion
Fig. 180 R ig ht rea r side of t he ve hicle: removing the Ad B l­
ue cap
The Ad Blue tank open ing is located near the die­
sel tank opening . Add at least 1.5 gallons (S . 7
lit ers) of Ad Blue . This is the minimum amount re­
quired to ensure the system detects the refilling
and to start the eng ine. You can add a maximum
of 4.5 gallons (17 lite rs).
Requirement: the request to add AdBl ue must
appear in the ins trument cluster display .
.,. Switch the ignition off.
.,. Open the tank filler door
c::> page 193.
.,. Tu rn the cap on the filler neck counter-clock­
w ise using the wheel wrench from the vehicle
tool kit to remove it
c::> fig. 180.
.. Fill the Ad Blue using a bottle c::> page 197 or a
canister
c::> page 19 7.

Checking and Filling

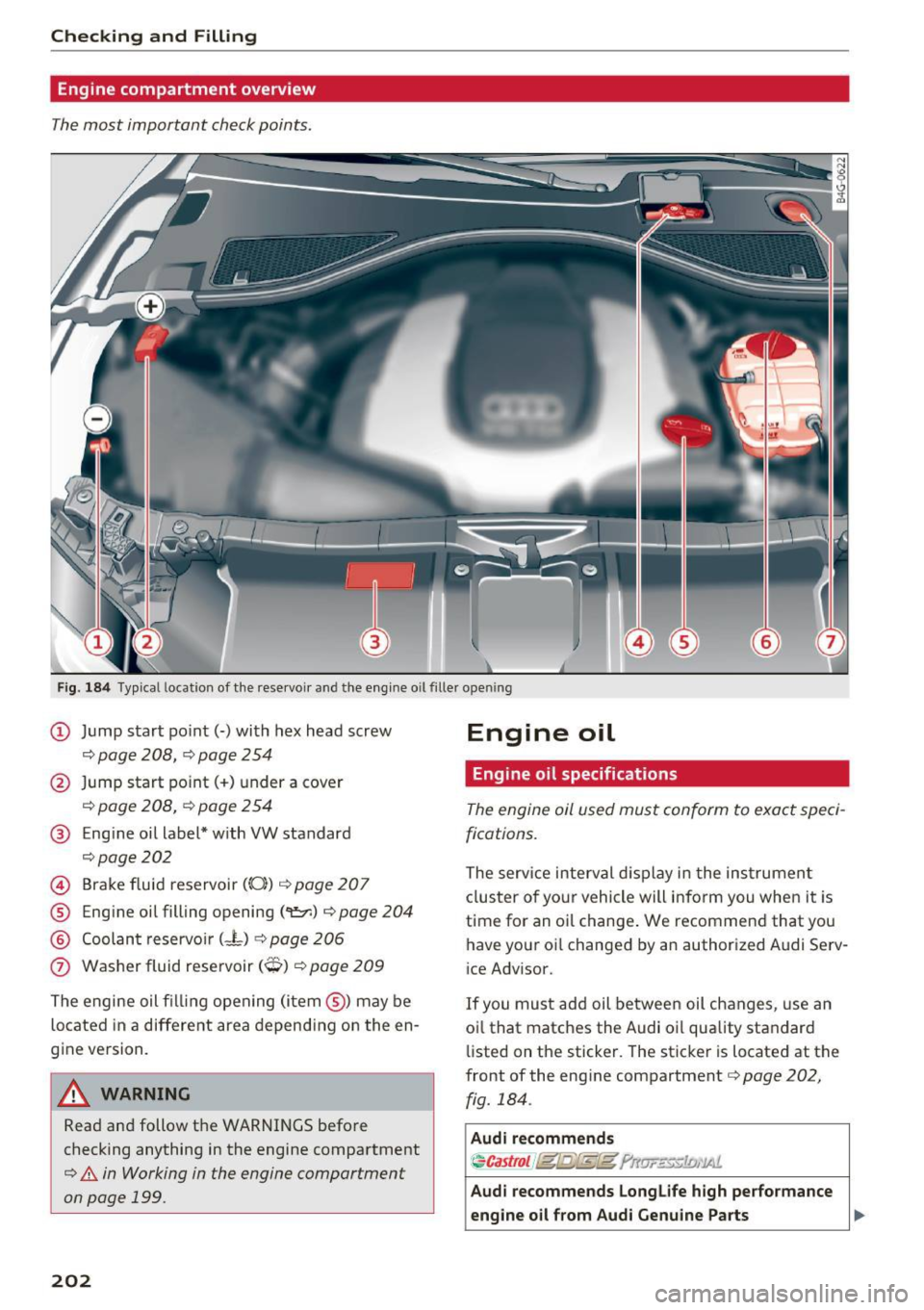

Engine compartment overview
The most important check points.
Fig. 184 Typical location of the rese rvoir and the engine o il fil le r open ing
(D Jump start po int(-) with hex head screw
<::;> page 208, <::;> page 254
@ Ju mp start point(+) under a cover
<::;> page 208, ¢ page 254
® Engine oil label* with VW standard
<::;> page 202
@ Brake fluid reservoir ((0)) <::;> page 207
® Engine oil filling opening (~)¢page 204
@ Coolant reservoir (- L) ¢ page 206
(j) Washer fluid reservoir (0) ¢ page 209
The engine oil f illing opening (item@) may be
located in a differe nt area depending on the en­
gine version .
A WARNING
Read and follow the WARNINGS before
checking anything in the engine compartment
¢ .&. in Working in the engine compartment
on page 199.
202
Engine oil
Engine oil specifications
The engine oil used must conform to exact speci­
fications.
The service interval display in the instrumen t
cluster of your vehicle will inform you when it is
time for an oi l change. We recommend that you
have your oi l changed by an authorized Audi Serv­
ice Advisor.
If you must add oil between oil changes, use an
oi l that matches the Audi oil quality standard
listed on the sticker. The sticker is located at the
front of the eng ine compartment ¢
page 202,
fig. 184 .
Audi recommends
~Castrol /fg/j;Sf.g;fg f'r Audi recommends Longlife high performance
engine oil from Aud i Genuine Parts .,_

co
co
.... N
" N .... 0
00
\.J ' Using the proper engine oil is important for the
functionality and s ervice life of the engine. Your
engine was factory-filled with a high -quality oil
which can usually be used throughout the entire
yea r.
Note
Your Limited New Vehicle Warranty does not
cover damage or malfunctions d ue to failure
to follow rec ommended maintenance and use
requireme nts as s et forth in the Audi Owner's
Manual and Warranty & Maintenance booklet .
- Use only a high quality engine oi l that ex-
pressly complies with the Au di oil quality
standard specified for your vehicle's engine.
Using any o ther oil can cause serious engine
damage.
- Do not mix any lubricants o r other additives
into the engine oil. Doing so can cause en­
gine damage.
@ Tips
If you need to add oil and there is none availa­
ble that meets the Audi o il quality standard
your eng ine requ ires, you may add a total of
no more than 0 .5 qt (0.5 l) of a h igh-quali ty
"synthet ic"oil that meets the following speci ­
fications.
- Applies to: gaso line engine: ACEA A3 or
API SM with a viscosity grade of SAE OW-30,
SAE 5W-30 or SAE 5W-40.
- Applies to: diesel engine: ACEA C3 or API CF
with a viscosity grade of SAE OW-30 o r
SAE 5W-30 .
- For more information about engine oil that
has been approved for your vehicle, please
contact e ither your authori zed Audi dea ler
or Audi Customer Relat ions at
1 (800) 822-2834 or visit our web site at
www .audiusa .com or www .aud ica nada.ca.
Engine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all of
its moving parts .
In order to provide effective lub rication and cool­
ing of in ternal engine componen ts, all internal
Ch eck ing and Filling
combustion engines consume a certain amo unt
of oil. Oil consumption vari es from engin e to en­
gine and may change s ignificantly over the life of
the engine . Typ ically, engines w ith a specified
break-in period (see¢
page 65) consume mo re
o il during the break -in per iod than they consume
after o il consumption has stab il ized .
Under normal cond itions, the rate of oil con ­
sump tion depends on the qu ality and viscos ity of
the oil, the RPM (revolutions per minute) at
wh ich the engine is operated, the amb ient tem­
perature and road co ndit ions. Further facto rs a re
the amount of oi l di lution from wate r condensa ­
tion or fuel resid ue and the oxidat ion level of the
o il. As any engine is subject to wear as mileage
builds up, the oil consumption may increase over
time unti l replac ement of worn components may
become necessary.
With a ll these variab les coming into play, no
standard rate of oil consumption can be estab ­
li sh ed or sp ecified . There is no alternative to reg­
u lar and frequent checking of the oi l level, see
Note .
If the yellow engine oil leve l warning symbo l in
the instr ument cluster
Ill lights up, yo u should
check the oi l level as soon as possible
¢
page 204. Top off the o il at your earliest con­
venience ¢
page 204 .
A WARNING
-Before you check anyt hing in the engine com -
partment, always read and heed all WARN­
INGS
¢ .&. in Working in the engine compart­
ment on page 199.
{(D Note
Driving w it h an insufficient oil level is likely to
cause severe damage to the eng ine .
(D Tips
-The oil pressure wa rn ing display. is not
an indicator of the o il leve l. Do not rely on
i t . Instead, check th e oil level in your en­
gine at regular interval s, preferably each
time you refuel, and alway s before going
on a long trip .
203

co
co
,...,
N
" N ,...,
0
00
\.J ' ~ Clamp the charger terminal clamps to the jump
start pins according to the instructions. (pin un­
der the red cover = "positive", pin with hexago ­
nal head = "negative").
~ Insert the power cable for the charging device
into the socket and switch the device on .
~ At the end of the charging process, switch the
charger off and pull the power cab le out of the
socket.
~ Remove the c harge r te rmi nal clamps.
~ Close the red cover on the positive term inal.
~ Close the hood ¢ page 201.
A WARNING
- A highly explosive mixtu re of gases can form
when charging batter ies. On ly charge the
vehicle battery in well-vent ilated areas.
- A drained battery can freeze at tempera­
tures around 32 °F (0 °C). A frozen or
thawed vehicle battery must not be charged
and must not be used anymore . The battery
housing can crack and battery acid can leak
out if ice fo rms, wh ich increases the r is k of
an exp losion and chemical burns , Contact an
au thori zed Aud i dealer o r autho riz ed Aud i
Service Facility fo r more information.
- Do not con nect o r disconne ct the c harg ing
c able while charg ing be cause th is increases
the risk of an exp losion.
(j) Tips
- Only cha rge the vehicle bat tery through t he
con nections in the engine compartmen t.
- Read all of the manufacture r's instructions
fo r the charger befo re c harg ing the ve hicl e
batte ry.
Ch eck ing and Filling
Windshield washer
system
Fi g. 1 89 E ngine compar tmen t: washer f luid reservo ir cap
M N
-N ~
"' m
The windshield washer rese rvoir O contains the
cleaning so lution for the windshield and the
headlight washer system*
q page 202, fig. 184.
The reservoir capacity can be found in
¢page 262.
To reduce the risk of lime scale depos its on the
spray nozzles, use clean water with low amo unts
of calcium. Always add w indow cleaner to the wa­
ter. When the outside temperatures are cold, an
anti-freezing agent shou ld be added to th e water
so that it does not freeze .
(!) Note
-The concentration of ant i-freez ing agent
must be adjusted to the vehicle operat ing
conditions in the respective climate . A con­
centration that is too high can lead to vehi­
cle damage.
- Never add radiator anti-freeze or other addi­
tives to the washer fluid.
- Do not use a glass cleaner that contains
paint so lvents, because th is could damage
the paint.
Service interval display
The service in terval display detects when your ve­
hicle is due for service.
T he serv ice inte rval d isplay wo rks in two stages:
-Inspect ion or oil change rem inder: after a cer-
tain distance driven, a message appears in the ..,.
209

Check ing and F illing
instrument cluster display each time the ign i­
tion is switched on or off . The remaining dis­
tance or time is displayed br iefly.
- Inspection or oil change due: if yo ur vehicle
has reached an inspection o r oi l change interval
or both intervals at the same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af­
ter switch ing the ignit ion on/off .
Checking service intervals
You can check the rema ining distance o r time un­
til the next oil change o r next inspection in the
Car menu. To do this, select : the
IC ARI function
button
> (Car) * Systems control button > Service
& checks > Service interv als .
Resetting the indicator
Your author ized Audi dealer or authoriz ed A udi
Serv ice Facility will reset the serv ice interval d is­
p lay after performing serv ice.
If you have changed the oil yourself, you must re ­
set the oil change interva l.
fo reset the indica to r, se lec t: the
ICAR I fu nction
but ton
> (Car) * Systems con trol b utton > Service
& checks > Service intervals. Tu rn the control
knob downward to
Reset oil change interval and
press the cont rol knob.
(D Note
- Only reset the oil change indicato r if the oil
was changed .
- Fo llow ing the service i nte rva ls is critical to
maintai ning the service life an d va lue of
your ve hicle, especia lly the engine. Even if
the m ileage on the vehicle is low, do not ex­
ceed the time for the next service.
- Ca lculating the t ime to the next oi l change
i s interrupted when the ve hicle battery is
d iscon nected¢
page 239 .
210

Wheels
As an added safety feature, your vehicle has been
equipped with a tire pressure mon itor ing system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­
ly under-inflated . Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and ti re tread life,
and may affect the vehicle's handling and stop­
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under- inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale . When the system detects a
malfunction, the telltale will flash for approxi ­
mately one m inute and then remain cont inuously
illuminated . This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists .
When the malfunct ion indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
230
Tire pressure monitoring system
Applies to: vehicles with Tire Pressure Monitoring System in­
dicator
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 194 Instrumen t cl uster : indicator l ig ht with me ssage
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu­
al tires. If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
Rt] and a message.
If only one tire is affected, the location of that
tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle
¢ page 231. The tire pressure mon i­
toring system only monitors the tire pressure you have stored . Refer to the tire pressure label for
the recommended tire pressure for your vehicle
¢page 221, fig. 193.
Tire tread circumference and vibrat ion character­
istics can change and cause a tire pressure warn­
ing if :
- the tire pressure in one or more tires is too low.
- the tire has structural damage.
- the tire was replaced or the tire pressure was
changed and it was not stored¢
page 231 .
-the spare tire* is installed.
Indicator lights
RI]-Loss of pressure in at least one tire¢.&_ .
Check the tires and replace or repair if necessary . .,..
