2017 AUDI A5 CABRIOLET tow

a:,
a:,
...... N r--. N ...... 0
0
LL 00
Airbag system .. .. .... ... .. .. .... . 130
Important information . . . . . . . . . . . . . . . 130
F ront a irbags . . . . . . . . . . . . . . . . . . . . . . . 134
Mon itoring the Advanced Airbag System . 140
K nee airbags . . . . . . . . . . . . . . . . . . . . . . . . 144
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 146
Ch ild safety . . . . . . . . . . . . . . . . . . . . . . 150
Important information . . . . . . . . . . . . . . . 150
C hi ld seats . . . . . . . . . . . . . . . . . . . . . . . . . 155
Secur ing c hild seats . . . . . . . . . . . . . . . . . . 159
L ATCH system ( lower anchorages a nd
tethers for chi ld ren) . . . . . . . . . . . . . . . . . 163
Addit io nal info rmat ion 166
Driver messages . . . . . . . . . . . . . . . . . 167
In telligent Technology . . . . . . . . . . 167
E lectronic Stabilization Control ( ESC) . . . . 16 7
N otice about data recorded by the Event
Data Recorde r and vehicle control
modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Brak ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Electro-mechan ica l power assist, dynamic
steer ing . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
D riving w ith your quatt ro . . . . . . . . . . . . . 172
E ne rgy management . . . . . . . . . . . . . . . . . 173
Driving and the environment .... 175
Break ing in . . . . . . . . . . . . . . . . . . . . . . . . . 17 S
Avoi d damagi ng the vehicle . . . . . . . . . . . 175
D riving throug h wate r on roads . . . . . . . . 17 5
Cata lytic conve rte r. .. .... ... .. .. .... . 176
Shutting down veh icle . . . . . . . . . . . . . . . . 176
Economical and environmentally-friendly
driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Trailer towing . . . . . . . . . . . . . . . . . . . . 179
Driving w ith a t railer . . . . . . . . . . . . . . . . . 179
T rai ler tow ing informat ion . . . . . . . . . . . . 180
Operating instructions . . . . . . . . . . . 182
Care and cleaning . . . . . . . . . . . . . . . . 182
Gene ral information . . . . . . . . . . . . . . . . . 182
Car washes . . . . . . . . . . . . . . . . . . . . . . . . . 182
C lean ing and care information . . . . . . . . . 183
Pl acing your ve hicle out of se rvice . . . . . . 186
Table of contents
Fuel and Refueling . . . . . . . . . . . . . . .
188
Fuel. ... .. .. .. .. .. .... . ..... ... .. .. 188
Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Checking and Filling . . . . . . . . . . . . . 193
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Engine compartment . . . . . . . . . . . . . . . . . 195
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Cooling system . . . . . . . . . . . . . . . . . . . . . . 199
Brake fl uid . . . . . . . . . . . . . . . . . . . . . . . . . 202
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
W indsh ield/headlight* washer conta iner. 206
Wheels ........ .. ................. 207
Whee ls and Tires . . . . . . . . . . . . . . . . . . . . 207
T ire p ressure monito ring sys tem 224
Do It Yourself . . . . . . . . . . . . . . . . . . . . 227
Emergency a ssistance . . . . . . . . . . . 227
Vehicle too l ki t . . . . . . . . . . . . . . . . . . . . . . 227
Space -sav ing spare tir e ( compac t spare
t ire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Replacing w heels . . . . . . . . . . . . . . . . . . . . 228
Fuses and bulbs . . . . . . . . . . . . . . . . . . 234
Fuses ... .. .. .. .. .. .... . ..... ... .. .. 234
B ul bs ... .. .. .. .. .. .... . ..... ... .. .. 237
Emergency situations . . . . . . . . . . . . 238
Genera l . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Start ing by pushing or tow ing . . . . . . . . . . 238
Start ing with jumper cables . . . . . . . . . . . 238
Use of jumper cables . . . . . . . . . . . . . . . . . 239
T ow ing with a tow t ruck . . . . . . . . . . . . . . 240
Raising the vehicle . . . . . . . . . . . . . . . . . . . 242
Technical data . . . . . . . . . . . . . . . . . . . . 243
Technical data . . . . . . . . . . . . . . . . . . . . 243
Vehicle iden tification . . . . . . . . . . . . . . . . . 243
Weig hts . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Di mens ions . . . . . . . . . . . . . . . . . . . . . . . . . 244
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . 2 44
Gasoline engines . . . . . . . . . . . . . . . . . . . . 245
Consumer informat ion ...... .. .. 246
War ranty coverages . . . . . . . . . . . . . . . . . . 246
Operating your vehicle outside the U.S.A.
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 246
3

Instruments and indicator lights
cooling system -you could damage your en­
gine .
~- Steering column lock
• Steering defe cti ve! Do not dri ve vehicle!
If the indicator lig ht t urns on and the message
appears, there is an electronic steering column lock malf unction . You cannot switch the ignition
on.
Do
not tow your vehicle because i t cannot be
steered. Seek professional assistance.
£II S te erin g lo ck: C ontact dealer!
If t he indicator light turns on and the message
appears, there is an electro nic steer ing colum n
lock malfunct ion.
Drive to your authori zed Aud i dea ler immediately
to have the malfunct ion corrected.
A WARNING
Your vehicle must not be towed in the eve nt
of a malfunction i n the elect ronic steering
co lumn lock be ca use it cannot be steered d ue
t o the locked steering. If it is towed wi th t he
steering locked, the re is the r isk of an acci ­
dent .
0-Ignition lock
• Ignit ion lock defecti ve. Contact dealer!
If the indicator lig ht tu rns on and the message
appears, do
not switch the ign ition off because
you may not be ab le to switch it on again .
D rive to you r autho rized Aud i dea le r i mmedia tely
to have the malf unct ion corrected.
On ve hicles w ith convenience key*, the engine
should not be switched off using the
I S T AR T ENG IN E STOP I button because the en­
g ine ca nnot be sta rted again after the ignition
has been switched off .
(D Tips
The symbol's appearance mig ht be diffe re nt
in some mode ls .
16
!;. J[/; Electronic Stabilization Control (ESC)
If the bJ ind icator light blinks while driving , the
ESC o r ASR (A nti-Sl ip Regulation) is act ively regu­
l ating .
If the
bJ ind icator light turns on, the system has
switched the ESC off. In t his case, you can switch
t h e ign it io n off and then on to swi tch the ESC on
again. The indicator light t urns off when the sys­
tem is functioning fu lly .
If the . indicator light turns on, ESC was re­
stri cted or sw itched off using the
I.$ O FF I butto n
qpage 167 .
Stabilization cont rol (ESC / ABS ): Fault! See
owner' s manual
If the indicator l ight DJ and the ABS indicator
li ght
[IlJ (USA models) ;El] (Canada mode ls)
turn o n and the message appears, the ABS or
electron ic different ial lo ck is malfunctioning.
This also causes the ESC to malfunc tion. The
brakes st ill function with the ir norma l power, but
ABS is not active .
D rive to your au thori zed Audi dealer immediate ly
to have the malfunc tion cor rected .
Fo r more info rmation about the ESC
q page 167 .
A WARNING
If the 11111 (USA models)/ . (Canada mod­
e ls) br ake system indicator light turns on to­
gether with the ABS and ESC ind icator lights,
the ABS/ESC regulating function may have
failed. F unctions that stabilize the vehicle are
no longer ava ilab le. This could cause the vehi­
cle to swerve and increase the risk of sliding. Drive carefully to the nearest authorized Aud i
dealer and have the malfunction corrected .
(D Tips
For additional informat ion on ESC and ABS,
r efer to
q page 167.

Opening and clo sin g
- Never leave your vehicle unattended espe­
c ially w ith the rear lid left open. A child
could crawl into the car through the luggage
compartment and pull the lid shut, becom­
ing trapped and unable to get out . To re­
duce the risk of persona l injury, never let
children p lay in or around your veh icle. Al­
ways keep the rear lid as well as the vehicle
doors closed when not in use .
- Always ensure that no one is within range of
the rear lid when it is moving, in particular
close to the hinges -fingers or hands can be
pinched .
© Tips
When the vehicle is locked, the rear lid can be
opened separa tely by p ressing the button
e:5
on the master key . When you close the rear
lid again, it locks automatically .
Emergency unlocking of the luggage
compartment lid
There is an emergency release for the rear lid.
Fig . 25 Rear lid: Lock cylinder
.,. Remove the mechan ica l key c:> page 29 .
.,. Inse rt the key in the lock cylinder and turn it in
the d irec tion of the arrow .
34
Trunk escape handle
In case of an emergency, the luggage compart­
ment lid can
be opened from the inside using the
trunk escape handle.
Fig . 26 Trunk escape handle: view from ins ide the closed
r ear lid
To open lugg age compartment lid
.. Pull the handle down towards the bumper
c:>fig . 26.
The trunk escape handle inside the luggage com­
partment lid is made of fluorescent material to
glow in the dark .
&_ WARNING
The trunk escape handle is to be used only in
an emergency.
(D Tips
The emergency release lever should never be
used as a handle for closing the luggage com­
partment lid.

the vehicle speed and try closing/opening the power top again.
A WARNING
Never drive when the power top is not locked
co rrectly. The w ind from dr iving co uld cause
the power top to open. This can result in inju­
r ies and damage to the vehicle.

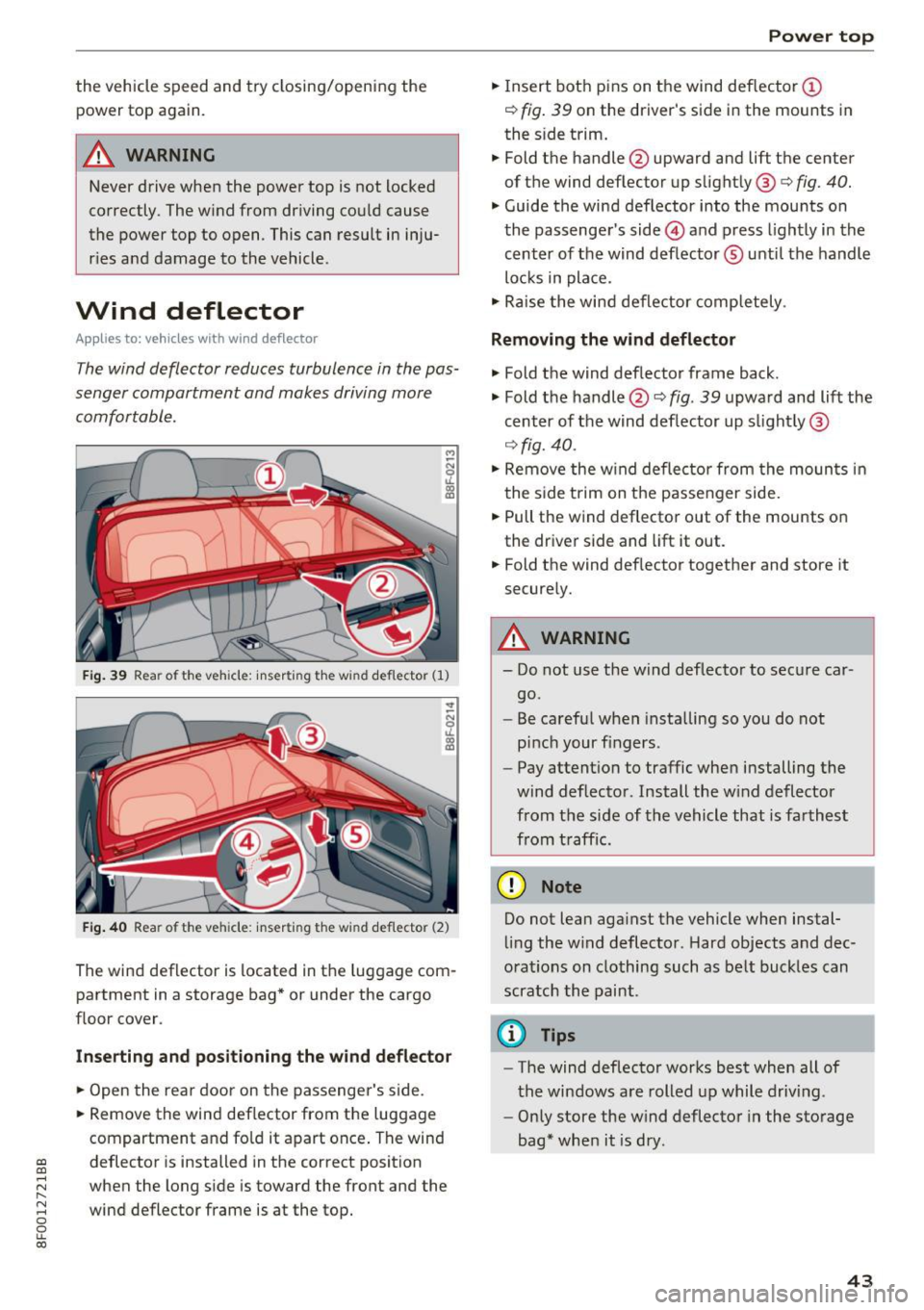

Wind deflector
A ppl ies to: ve hicles with wind defl ecto r
The wind deflector reduces turbulence in the pas­
senger compartment and makes driving more comfortable.
F ig. 3 9 Rear of the veh icle: inserti ng t he w ind deflector (1)
Fig. 40 Rea r of the veh icle: inser ting t he w ind def lector (2)
The wind deflector is located in the luggage com­
partment in a storage bag * or under the cargo
f loor cover .
Inserting and positioning the wind deflector
.,. Open the rea r door on the passenger 's side.
.. Remove the wind deflector from the luggage
compartment and fold it apart once . The wind
~ deflector is installed in the correct position
;:::: when the long s ide is toward the front and the
I'-
~ wind deflector frame is at the top. 0
0
LL co
Power top
.,. Insert both pins on the wind deflector @
¢
fig . 39 on the driver's side in the mounts in
the s ide trim .
.. Fold the handle @upward and
lift the center
of t he wind deflector up s light ly @
c> fig. 40.
.,. Guide the wind deflector into the mou nts on
the passenge r's side @ and press lightly in the
center of the wind def lector ® unti l the handle
lo ck s in pla ce .
.,. Ra ise the wind deflector completely .
Removing the wind deflector
.,. Fold the wind def lector frame back.
.,. Fold the handle @¢
fig. 39 upwa rd and lift the
c e nter of the wind def lector up s light ly @
¢ fig. 40 .
.. Remove the w ind de flec tor from the moun ts in
t he s ide trim on t he passenger side .
.. Pull the wind deflector out of the mounts on
the dr iver side and lift it out .
.. Fold the wind def lector together and store it
secure ly.
A WARNING
-- Do not use the wind deflector to sec ure car­
go.
- Be ca ref ul when insta lling so you do not
p inc h your fingers.
- Pay attent ion to traffic when installing the
wind deflector. Install the w ind deflector
from the side of the vehicle that is far thest
from t raff ic.
Q) Note
Do not lean aga inst the vehicle when instal­
lin g the w ind deflector . Hard objects and dec­
ora tions on clothing such as be lt buck les can
scra tch the paint .
(D Tips
-The wind deflector works best when all of
the windows a re rolled u p while driv ing .
- Only store the w ind deflector in the storage
bag* when it is dry.
43

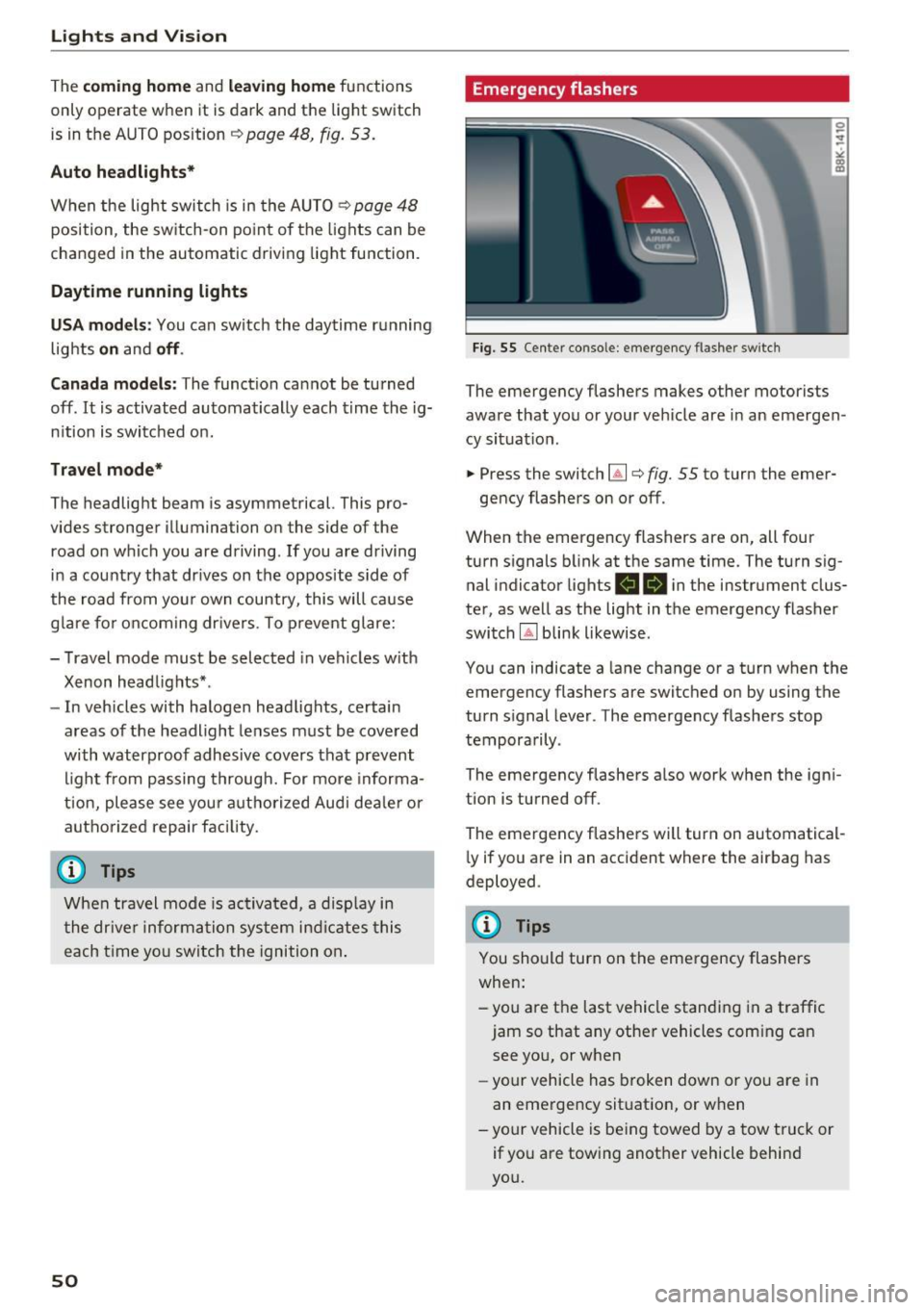

Lights and Vision
The co ming home and leaving h ome functions
only operate when it is dark and t he light switch
is in the AUTO position
~ page 48, fig. 53.
Auto headlights*
W hen the light swi tch is in the A UTO ~ page 48
position, the sw itch-on po int of the lights can be
cha nged in the automatic driving light function.
Daytime running lights
USA models :
You can switch the daytime r unning
lights
on and off .
Canada models: The funct ion cannot be tu rned
off .
It is activated automatically each t ime the ig­
n ition is switched on.
Tra vel mode*
The headlight beam is asymmetrical. This pro­
vides stronger illumination on the side of the
road on which you are driving.
If you are driving
in a cou ntry that dr ives on the opposite side of
the road from you r own country, this will cause
g lar e fo r oncom ing dr ive rs . To p revent glare:
- Travel mode must be selected in veh icles w ith
Xenon headlights* .
- In vehicles with halogen headlights, certain
areas of the headlight lenses must be cove red
with waterproof adhesive covers that prev ent
l ight from passing through. For more informa­
tion, ple ase see you r auth orized Audi dea le r or
a uthorized repair fa ci lity .
When travel mode is ac tiva ted, a disp lay in
t he dr ive r inf orm ation sys tem in dicates this
e ach t ime yo u sw itch the ignition on .
50
Emergency flashers
Fig. 55 Center console: emergency flashe r switc h
The emergency flashers makes other motorists
aware that you or your ve hicle are in an emergen­
cy situat io n .
.. Press the switch~¢
fig. 55 to turn the emer-
gency flashers on or off .
When the emergency flashers are on, all four
turn s ignals b link at the same time. The turn sig­
nal indicator lights
RB i n the instrument clus­
ter, as well as the light in t he emergency flasher
switch
IA] blink likewise .
You can indicate a lane change or a turn when the
emergency flashers are switched on by using the
turn signal lever . The emergency flashers stop
tempora rily .
The emergency flashe rs a lso work when the igni­
tion is turned off.
The emergency flashers will turn on automatical­
l y if you a re in an accident where the airbag has
deployed .
@ Tips
You should turn on the emergency flashers
when:
-you are the last vehicle standi ng in a traffic
jam so that any other vehicles com ing can
see yo u, or when
- yo ur ve hicle has broken down or yo u are in
an eme rge ncy sit uat ion, or w hen
-your vehicle is be ing towed by a tow tru ck or
if yo u are towing another vehicle behin d
you.

a:,
a:,
...... N
" N ...... 0
0
LL co
Interior Lighting
Front/rear interior lights
Fig. 56 Fro nt headliner: interio r lighting controls
Fig. 57 Re ar headliner: rear reading lights
@Interio r ligh ts
Press the button @. The LED in the button illu­
minates.
If the LED i lluminates, the interior lighting is
controlled automatically.
@ Front /rear read ing light s
To turn a reading light on/off, press the b utton
~ <=>fig. 56 or <=>fig. 57.
Lights and V ision
Instrument illumination
Th e basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted .
Fig. 58 Instrument ill umina tion
• Press the knob to release it.
• Turn the knob toward"- " or"+" to reduce or in­
crease the brightness.
• Press the knob again to return it to its original
position .
@ Tips
The instrument illumination (for dials and
needles) lights on when the ignition
is switch­
ed on and the vehicle lights are turned off. As
the daylight fades, the illumination of the di­
a ls likewise dims automatically and will go
out completely when the outside light is very
low. This featu re is meant to remind yo u to
switch on the headlights when outside light
conditions become poor.
Vision
Adjusting the exterior mirrors
Fig. 59 Driver's door: knob for the exterior mirro rs
Turn the knob to the desired position :
51

a:,
a:,
...... N
" N ...... 0
0
LL co
-If electrolyte gets into the eyes, flush them
thoroughly with large amounts of clean wa­
ter for at least 15 minutes; med ical atten­
t ion is recommended .
- If electrolyte contacts skin, flush affected
area with clean water for at least 15 mi­ nutes and then wash affected area w ith
soap and water; medical attention is recom­
mended. Thoroughly wash affected clothing
and shoes before reuse.
- If swallowed and person is conscious, rinse mouth with water for at least 15 m inutes.
Do not induce vomiting unless instructed to
do so by medical profession al. Get medical
attent ion immed iate ly.
(D Note
Liquid elect rolyte leaking from broken m irror
glass will damage any p lastic surfaces it
comes in co ntact wi th. C lean up sp illed ele c­
t rolyte immediately with clean water and a
sponge .
@ Tips
-Switch ing off the dimming f unction of the
i nside rear v iew mirror also deactivates the
automatic dimming function of the exterior
mirrors.
- Automat ic dimming for the mirror on ly op­
erates properly if the light striking the in­
s ide mirror is not hindered by other objects.
- The automatic dimming mirrors do not dim
when the interior lighting is turned on or
the reverse gear is selected.
Sun visors
T.__~l
F ig . 61 Dr ive r's side: su n visor
Lights and V ision
The sun visors for the driver and passenger can
be pulled out of their brackets in the center of
the vehicle and turned towards the doors(!).
T he m irror light switches on when the cover ove r
the vanity mirror @opens.
Windshield wipers
Switching the windshield wipers on
®
Fig . 62 W inds hield w iper leve r
Move the windshield wiper lever to the corre­
sponding position:
@ -Windshield wiper off
(!) -Interval mode. To extend/shorten the w iper
in tervals, move the switch @to the left/right. In
vehicles with a rain sensor* the wipers tu rn on in
the rain once the vehicle speed exceeds approxi­ mately 2 mph (4 km/h) . The higher the sensitivi ­
ty of the rain sensor* is set (switch @to the
right), the earlier the windshield wipers react to
moisture on the w indshield. In some models, you
can switch ra in sensor mode off and switch inter­
mittent mode on in the MM I* . Select :
ICARI func­
t ion button
> Car system s* control button > Driv­
er assist > Rain sen sor.
In intermittent mode,
yo u can adjust the interval time using the@
switch.
@ -S low w ip ing
@ -Fast w iping
@ -Single wipe
® -Clean the w indshie ld. To eliminate wate r
droplets , the w indshield wiper performs one af­
terwipe operation after several seconds whi le
driving. You can switch this function off by mov-
ing the lever to position ® within 10 seconds of ..,.
53

a:,
a:,
...... N
l'­
N
...... 0
0
LL co
Securing the ski sack
Applies to: vehicles with ski sack
Long objects such as skis or snowboards can be
transported in the ski sack.
Fig. 80 Luggage compartment: Securing the ski sack
Fig. 81 Rear bench seat: securing the ski sack
~ Fold both backrests forward ¢ page 64.
~ Slide the ski sack from the luggage compart­
ment through the opening ¢.&. with the zipper
at the rear .
~ To secure the ski sack in the luggage compart­
ment, hang the hooks@¢
fig. 80 in the rear
tie-downs.
~ Tighten the strap@¢ fig. 81 on the ski sack to
prevent the objects in the sack from sliding.
_& WARNING
- The ski sack is intended only for the trans­
portation of skis and other light objects . To
reduce the risk of serious personal injury,
never transport heavy or pointed objects in
the ski sack.
- When braking rapidly or during an accident,
the load could be displaced and cause injury
to occupants.
- Sharp edges on the load must be covered
for protection. Always fasten the belt tight-
Seats and storage
Ly around the sack and its contents
¢fig. 81.
-For safety reasons, do not transport more
than two pairs of skis in the ski sack.
- You must secure the ski sack with the strap
after loading.
- Make sure that all objects you are transport­
ing with the backrests folded forward are
secured. Otherwise they could slide around
during sudden braking maneuvers and cause
injuries.
(D Tips
- Never stow the ski sack away when it is still
wet or damp (for example, snow melting
from skis). Allow it to dry completely before
stowing it away.
- When transporting skis or snowboclrds,
tighten the securing strap between the
bindings.
- Position skis in the ski sack with the pointed
ends facing the front and ski poles with the
pointed ends facing the rear.
65
