-the e lectron ic control modu le and externa l side
impact sensors
- the two side airbags located in the sides o f the
front backrests
- the a irbag warning light in the inst rument cl us-
ter.
The a irbag system is monitored electronically to
make certa in that it is func tioning properly at all
times. Each time you turn on the ignit ion, the air­
bag system indicator light will come on for a few
seconds (self diagnostics).
The s ide a irbag system supp lements the safety
be lts and can help to reduce the risk of injury to
the driver's and fron t passenger 's upper torso on
the side of the vehicle that is struck in a side col­ lision. The airbag d eploys on ly in side impacts
and only when the veh icle acceleration reg istered
by the contro l unit is high enough. If this rate is
below the reference value programmed into the
control un it, the s ide a irbags w ill not be tr ig­
gered, even though the car may be badly dam­
aged as a resu lt of the collision .
It is not possib le
to define an airbag trigge ring range that w ill cov­
e r every possible angle of impact, since the ci r­
cumstances wi ll vary considerably between one
collision and another. Important factors include,
for examp le, the nature (hard or soft) of the im ­
pacting objec t, the ang le of impact, vehicle
speed, etc. ¢
page 148, Impor tant safety in­
structions on the side airbag system .
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in posit ion in the event of a side collision
so that the s ide a irbags can provide protection .
T he airbag system is
not a substitute for your
safety belt. Rather, it is part of the overa ll occu­
pant restrain t system in your veh icle. Always re­
member that the s ide a irbag system can only
h elp to protect yo u if you a re wearing your safety
be lt and wea ring it properly. This is another rea­
son why you s hou ld always wear yo ur safety
be lts, not just bec ause the law req uires yo u to do
so ¢
page 122 , General information.
It is important to remember that wh ile the s up­
p lemental s ide a irbag system is designed to re­
d uce the likelih ood of serious injur ies, other inju-
Airb ag sys tem
ries, for example, swelling, bru is ing , and minor
abrasions can also be associated wit h deployed
s ide airbags . Remember too, s ide airbags will de­
ploy only once and only in certain k inds of acci­
den ts -your safety belts are always there to offer
protect io n.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessar ily an ind ication
of over-sens it ive or fa iled a irbag activation. In
some collisions, both front and side airbags may i nflate. Remember too, that a irbags w ill deploy
only once and only i n certa in kinds of collisions -
you r safety be lts are always there to offer protec­
t ion in those accidents in wh ich airbags are no t
s u pposed to deploy or when they have already
deployed .
The side airbag system will not deploy:
-when t he ignit ion is t urned off
- in side collisions whe n the acceleration meas-
ured by the sensor is too low
- in front -end coll is ions
- in rear-end collisions
- in rollovers.
In some types of accidents the fron t air bags and
s ide airbags may be triggered togethe r.
.&, WARNING ~
- Safety belts and the airbag system will only
provide protect ion when occupants are in
the proper seat ing pos ition ¢
page 148 .
-If the ai rbag ind icator light¢ page 17
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate when it is not sup ­
posed to, or w ill not inflate w hen it should .
147

a:,
a:,
...... N r--. N ...... 0
0
LL 00
exceptional circumstances and the PASSEN·
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear­
ward-facing child safety seat in a rear seat­
ing posit ion and have the airbag system in­
spected immediately by your authorized
Audi dealer.
A WARNING
If, in except ional circumstances, you must in­
stall a forward-facing chi ld restraint on the
front passenger's seat :
- Always make sure the forward-fac ing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and s ide airbag .
- Always follow the manufac turer 's instruc­
tions provided with the chi ld safety seat or
carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possib le before installing the child
restra int. The backrest must be adjusted to
an upr ight position.
-Always make sure that the
PA SSENGER AIR
B AG OFF
light comes on and stays on all the
t ime whenever the ignition is switched on.
Always replace ch ild restraints that were in­
stalled in a vehicle dur ing a crash. Damage to
a child restraint that is not visib le could cause
it to fail in another collision situation.
Advanced front airbag system and children
Your veh icle is equipped with a front "Advanced
A irbag System" i n compliance w ith United States
F edera l Moto r Vehicle Safety Standard ( FMVSS)
208, as well as Canada Motor Ve hicle Safety
Standard (CMVSS) 208 as applicable at the time
your vehicle was manufactured .
The Advanced Airbag system in your ve hicle has
been ce rtified to meet the " low-risk" requ ire­
ments for 3 -and 6-yea r old children on the pas ­
senger side and sma ll adults on the driver side .
Child safety
The low risk deployment criteria a re intended to
reduce the risk of injury through interaction with
the a irbag that can occur, for example, by be ing
too close to the steering wheel and instrument panel when the airbag inflates. In addition, the
system has been certified to comply with the "suppression" requirements of the Safety Stand·
ard, to turn off the front airbag for infants up to
12 months who are restrained on the front pas­
senger seat in ch ild rest raints that are listed in
the Standard.
Even though your veh icle is equipped with an Ad·
vanced Airbag system, all ch ild ren, especially
those 12 yea rs and you nger, sho uld a lways ride
in the back seat proper ly restrained for their age
and size . The airbag on the passenger side makes
the front seat a potentially dangerous p lace for a
child to ride. The front seat is not the safest place
for a ch ild in a forward-fac ing ch ild safety seat. It
can be a very dangerous place for an infant or a
larger ch ild in a rearward-facing seat .
' Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced A irbag System in your vehicle de ­
tects the presence of an infant or chi ld in a chi ld
restraint on the front passenger seat using the
weight -sensing mat in the seat cushion and the
sensor below the safety belt latch on the front
passenger seat that measures the tens ion on the
safety belt.
The weight-sensing mat measures total weight of the child and the chi ld safety seat and a child
blanket on the front passenger seat . The weight
on the front passenger seat is related to the de­
s ign of the child restra int and its "footprint", the
s ize and shape of the bottom of the ch ild re-
straint as it sits on the seat. The weight of a ch ild
restra int and its "footprint" va ry for different
k inds of child restra ints and for the different
models of the same kind o f chi ld rest raint of -
fered by chi ld restraint manufacturers.
T he we igh t ranges for the indiv id ual types,
makes and mode ls of ch ild restraints that the
NH TSA has specified in the Safety Standard to­
gether with the weight ranges of typical infants .,.
15 1

Model Manufactured on or
after
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back Boos -
September 25, 200 7
ter 22-209
Evenflo Tr ibute V September 25, 2007
379xxxx
Evenflo Medallion 254 December 1, 1999
Evenflo Generations September 25, 2007
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
.&, WARNING
To reduce the risk of serious inju ry, make sure
that the
PA SSEN GER AIR BAG OFF light
comes on and stays on whenever a child re ­
straint is installed on the front passenger seat
and the ignition is switched on.
- Take the child restraint off the front passen ­
ger seat and install it properly at one of the
rear seat positions if the
P A SSEN GER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.
(D Tips
The chi ld seats listed in categories A to C have
been statically tested by Audi only for the Ad­
vanced Airbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially re­
duces the risk of injury in an accident!
As the driver, you are responsible for the safety
of everybody in the veh icle, especially children:
gi .,. Always use the right chi ld safety seat for each ......
~ child and a lways use it properly qpage 155. N ...... 0
0
LL 00
Child safety
.,. Always carefully follow the chi ld safety seat
manufacturer's instructions on how to route
the safety belt properly through the ch ild safe ­
ty seat.
.,. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety belt
to prevent the chi ld safety seat from moving
q page 159.
.,. Push the ch ild safety sea t down with yo ur full
weight to get the safety belt really tight so that the seat cannot move forward or sideways
more than one inch (2.5 cm).
.,. If a strap or tether is being used to tie the child
safety seat to the front passenger seat, make
sure that it is not so tight that it causes the
weight -sensing mat to measure more weight
than is actually on the seat .
.,. Secure unused safety belts on the rear seat
q page 155.
Always remember: Even though your veh icle is
equipped with an Advanced Airbag system, all
c hi ldren, especia lly t hose 12 yea rs and younger,
sho uld a lways ride in th e back seat p roper ly re·
strained for their age and s ize.
A WARNING
=
Not using a child safety seat, using the wrong
chi ld safety seat or improperly insta lling a
chi ld restraint increases the risk of serious
personal injury and death.
- All vehicle occupants and especially children
must always be restrained properly whenev­
er riding in a vehicle.
- An unrestra ined o r improperly restrained
c hi ld can be injured o r killed by being
thrown aga inst the inside of the veh icle or
by being ejected from it during a sudden
maneuver or impact.
- An unrestra ined or improperly restrained
child is at much greater risk of injury or
death by being struck by an inflating air­ bag.
- Commercially availab le child safety seats
are requi red to comply with U .S. Federal
Motor Vehicle Safety Standard (FMVSS) 213
(in Canada CMVSS 213). ..,_
153

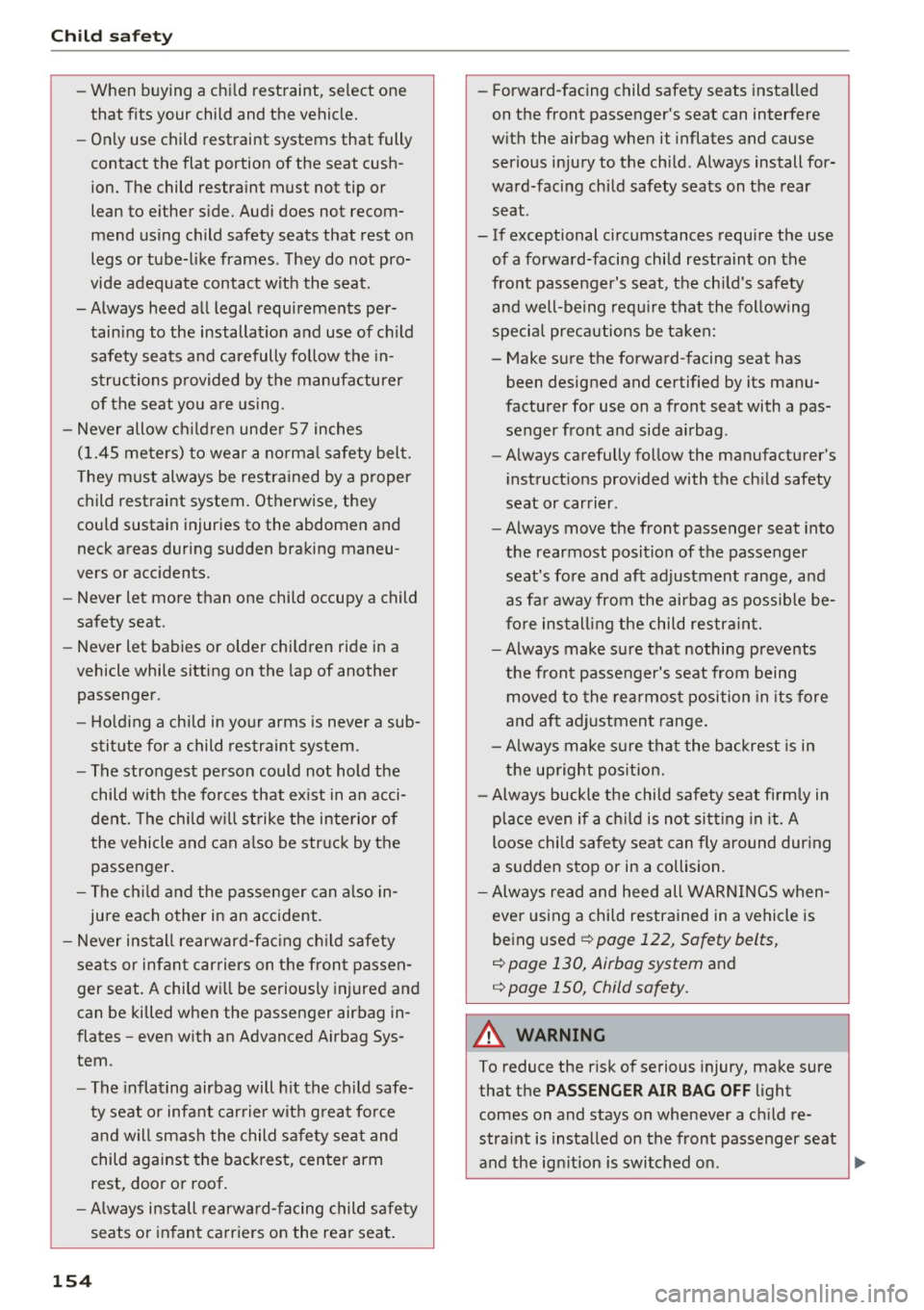

Child safety
-When buying a child restraint, select one
that fits your child and the vehicle.
- Only use child restraint systems that fully
contact the flat portion of the seat cush­
ion. The child restraint must not tip or
lean to either side. Audi does not recom­
mend using child safety seats that rest on
legs or tube-like frames . They do not pro­
vide adequate contact with the seat.
- Always heed all legal requirements per­
taining to the installation and use of child
safety seats and carefully follow the in­
structions provided by the manufacturer
of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety belt.
They must always be restrained by a proper
child restraint system. Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or accidents.
- Never let more than one child occupy a child
safety seat.
- Never let babies or older children ride in a
vehicle while sitting on the lap of another
passenger .
- Holding a child in your arms is never a sub­
stitute for a child restraint system.
- The strongest person could not hold the
child with the forces that exist in an acci­
dent. The child will strike the interior of
the vehicle and can also be struck by the
passenger.
- The child and the passenger can also in­
jure each other in an accident.
- Never install rearward-facing child safety
seats or infant carriers on the front passen­
ger seat. A child will be seriously injured and
can be killed when the passenger airbag in­
flates -even with an Advanced Airbag Sys­
tem .
- The inflating airbag will hit the child safe­
ty seat or infant carrier with great force
and will smash the child safety seat and
child against the backrest, center arm
rest, door or roof.
- Always install rearward-facing child safety
seats or infant carriers on the rear seat.
154
-Forward-facing child safety seats installed
on the front passenger's seat can interfere
with the airbag when it inflates and cause
serious injury to the child . Always install for­
ward-facing child safety seats on the rear seat .
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require that the following
special precautions be taken:
- Make sure the forward-facing seat has been designed and certified by its manu­
facturer for use on a front seat with a pas­
senger front and side airbag .
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Always move the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and
as far away from the airbag as possible be­
fore installing the child restraint.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Always make sure that the backrest is in
the upright position.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 122, Safety belts,
¢ page 130, Airbag system
and
¢ page 150, Child safety.
A WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on. ..,.

a:,
a:,
...... N
" N ...... 0
0
LL co
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.
Secure unused safety belts on the rear seat
Fig. 154 Schemat ic overv iew: keep unused s-afety belts
away from children in chil d safety seats. @-oute r rear
sa fety belt
If a chi ld safety seat is used on the rear bench,
especially with LA TCH universal lower anchorag­
es, the unused safety belts
must be secured so
that the child in the child restraint cannot reach
them
c::> ,& .
-Guide the safety belt webbing @behind the
head restraint of the seat where the child re­
straint is installed
c::> fig . 154. When doing so,
do not engage the convertible locking retrac­
tor! You should not hear a "clicking" sound
when winding up the safety belt .
- Let the belt retractor wind up the safety belt
webbing .
A WARNING
A child in a child safety seat installed with the
LATCH lower anchorages or with the standard
safety belt or a child in a booste r seat on the
rear seat could play with unused rear seat
safety belts and become entangled. This
cou ld cause the chi ld serious personal injury
and even death.
- Always secure unused rear seat safety belts
out of reach of children in child seats such
as by proper ly routing them aro und the
Child safety
head restraint of the seat where the child
restraint is installed .
- Never activate the convertible locking re­
tractor when routing the safety belts around
the head restraints.
Child seats
Infant seats
Babies and infants up to about one year old and
20 lbs. or
9 kg need special rearward-facing
child restraints that support the back , neck and
head in a crash.
Fig. 155 Schematic overview: rearward -facing infant seat,
p roper ly insta lled o n the rear seat
... When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertib le locking retractor on the safety belt
to prevent the child safety seat from moving
c::>poge 159 or install the seat using the LATCH
attachments.
... Push the ch ild safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways more than one inch (2 .5 cm) .
... Secure unused safety belts on the rear seat
c::>page 155.
Infants up to about one year (20 lbs. or 9 kg) are
best protected in special infant carriers and child
safety seats designed for their age group . Many
experts believe that infants and small children
shou ld ride only in special restraints in which the
child faces the back of the vehicle. These infant
seats support the baby's back, neck and head in a
crash
r=;, fig. 155 . .,..
155

Child safety
The airbag on the passenger side makes the front
seat a potentially dangerous p lace for a child to
ride. The front seat is not the safest place for a
child in a forward-facing child seat. It is a very
dangerous place for an infant or a larger child in
a rearward-fac ing seat.
A WARNING
Not using a ch ild safety seat, using the wrong
child safety seat or improperly installing a
child restra int increases the r isk of serious
personal inju ry and death in a crash.
- Never install rearward-fac ing ch ild safety
seats or infant carriers on the front passen­ ger seat -even w ith an Advanced A irbag Sys­
tem. A child will be seriously injured and can
be ki lled when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and
child against the backrest, center armrest,
door or roof
c::, page 131, Child restraints on
the front seat -some important things to
know.
-Always install rearward-fac ing ch ild safety
seats or infant carriers on the rear seat.
- Never install a rearward-facing child re­
straint in the forward-facing direction. Such restra ints are des igned for the special needs
of infants and very small ch ild ren and can­
not protect them properly if the seat is for­
ward- facing.
- If you mus t install a rearward fac ing ch ild
safe ty seat on the front passenger seat be­
ca use of exceptiona l circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediate ly install
the rearward-facing child safety seat in a
rear seat ing position and have the airbag
system inspected by your author ized Audi
dealer.
- Always read and heed all WARNINGS when­
ever using a child restrained in a veh icle is
being used
c:> page 122, Safety belts,
c:> page 130, Airbag system and
9 page 150, Important information.
156
Convertible child safety seats
Properly used convertible child safety seats can
help protect toddlers and children over age one
who weigh between 20 and 40 lbs. (9 and 18 kg)
in a crash.
Fig . 156 Schemat ic overv iew : installat ion of the attach ­
ments applicable to a LA TCH seat
Fig. 157 Schemat ic overv iew: installat ion of the seat using
the vehicle's safety belt system
.. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertib le locking retractor on the safety belt
to prevent the child safety seat from moving
c:> page 159 or install the seat using the LATCH
attachments .
.. Push the chi ld safety seat down wi th your full
we igh t to get the safe ty belt really tight so that
the seat cannot move forward or sideways
more than one inch (2 .5 cm)
c:>page 159.
.. Secure unused safety belts on the rear seat
c:> page 155.
A toddler or child is usua lly too la rge for an in­
fant restraint if it is more than one year old and
weighs more than 20 lbs . (9 kg).
Toddlers a nd chi ldren who are older than one
year up to about 4 years old and weigh more than 20 lbs . (9 kg) up to 40 lbs. (18 kg) must always ..,.

a:,
a:,
...... N r--. N ...... 0
0
LL 00
be properly restrained in a chi ld safety seat certi­
fied for their size and weight¢
fig. 156 and
¢fig . 157.
The airbag on the passenger side makes the front
seat a potentia lly dangerous p lace for a child to
ride. The front seat is not the safest place for a
child in a forward-facing child safety seat . It is a
very dangerous place for an infant or a larger
child in a rearward-facing seat.
A WARNING
Not using a ch ild safety seat, using the wrong
child safety seat or improperly installing a
child restra int increases the r isk of serious
personal inju ry and death in a collis ion or oth­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an a irbag inflates.
A chi ld in a rearward-facing child safety seat
installed on the front passenger seat wi ll be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof .
- Always install rearward-fac ing ch ild safety
seats on the rear seat .
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be­ cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immed iate ly install
the rearward-facing child safety seat in a
rear seating position and have the airbag
system inspected by your authorized Audi
dealer .
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat .
-Always read and heed all WARNINGS when ­
ever using a child restrained in a vehicle is
being used ¢
page 122, Safety belts,
Child safety
¢ page 130 , Airbag system and
¢ page 150, Important information.
A WARNING
-If exceptional c ircumstances requ ire the use
of a forward-facing ch ild restraint on the
front passenger's seat, the child's safety and well-being requ ire that the following special
p recautions be taken:
- Make sure the forward-fac ing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side ai rbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat o r
infant carrie r.
- Always move the front passenger seat into
the rea rmost pos ition of the passenger
seat's fore and aft adjustment range, and as
far away from the airbag as possib le before
installing the child restraint.
- Always make sure that nothing preven ts the
front passenger's seat from being moved to
the rearmost position in its fore and aft ad ·
justment range.
- Always make sure the backrest is in an up­
right position.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ignit ion is switched on .
- If the light does not stay on, perform the
checks ¢
page 140, Monitoring the Ad­
vanced Airbag System.
- Take the child restraint off the front passen­
ge r seat and install it properly at one of the
rear seat positions if the
PA SS ENGER AIR
BAG OFF
light does not stay on whenever
the ignition is switched on.
157

a:,
a:,
...... N r--. N ...... 0
0
LL 00
& WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos­
ter seat or using the vehicle safety belt im­
properly increases the risk of serious personal
injury and death in a collision or other emer­
gency situation. To help reduce the risk of se­
r ious personal injury and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body.
It must neve r lie across the th roat or
neck. The lap belt must lie across the pelv is
and never across the stomach or abdomen.
Make sure the belt lies flat and snug. Pull on
the belt to tighten if necessary .
- Failure to proper ly route safety belts over a
child's body will cause severe injuries in an
accident or other emergency situation
¢ page 122.
-The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an a irbag inflates.
- Never let a child stand or kneel on any seat.
- Never let a child ride in the cargo area of
your vehicle.
- Always remember that a child leaning for­
ward, sitting sideways or out of position in
any way during an accident can be struck by
a deploying airbag. This will result in serious
personal injury or death.
- If you must install a booster seat on the
front passenger seat because of exceptional
c ircumstances the
PA SSENGER AIR B AG
OFF
light must come on and stay on, when­
ever the ignition is switched on.
- If the
PASSEN GER AIR BAG OFF light does
not come on and stay on, perform the
checks described ¢
page 140, Monitoring
the Advanced Airbag System.
- Take the ch ild restraint off the front passen­
ger seat and install it properly at one of the
rea r seat positions if the
PASSENGER AIR
-
Ch ild safety
BAG O FF light does not stay on whenever
the ignition is switched on.
- Always read and heed all WARNINGS when­
ever us ing a child restrained in a vehicle is
be ing used
c> page 122, Safety belts,
c> page 130, Airbag system and
c> page 150, Important information.
Securing child seats
Securing a child safety seat using a safety
belt
Safety belts for the rear seats and the front pas­
senger's seat can be locked with the convertible
locking retractor to properly secure child safety
seats.
The safety belts emergency locking retractors for
the rear seats safety be lts and for the front pas­
senger's seat safety be lt have a convertible lock ­
ing retractor for child restraints. The safety be lt
must be locked so that belt webb ing cannot un­
reel. The retractor ca n be activated to lock the
safety belt and prevent the safety belt webbing
from loosening up dur ing norma l driving. A ch ild
safety seat can on ly be prope rly insta lled when
the safety belt is locked so that the c hild and
c h ild safety seat will stay in place .
Always remembe r: Even though your veh icle is
equipped with an Advanced Airbag system, all
children, especia lly those 12 yea rs and younger,
shou ld a lways ride in the back seat p roperly re ­
strained for their age and weight.
& WARNING
=
Improperly installed child safety seats in-
crease the risk of serious personal injury and
death in a co llision.
- Always make sure that the safety be lt re­
tractor is locked when installing a child
safety seat. An un locked safety be lt retrac­
tor cannot hold the ch ild safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a ch ild is not sitt ing in it. A
loose child safety seat can fly a round dur ing
a sudden stop or in a co llision.
~
159
