2017 AUDI A5 CABRIOLET key

Power top
Power top emergency
operation
General information
The power top con be closed manually if there is
a malfunction .
• Set the parking brake.
• Open the windows.
• Switch the ignition off .
• To reduce pressure in the power top hydraulics,
pull the~ button for approximate ly 10 to 15
seconds ¢
page 40, fig. 34 .
Only close the power top manually in an emer­
gency. Have a second person he lp you. Drive to an
authorized Audi dealer or authorized repair facili­
ty immediately to have the malfunction correct­
ed.
A WARNING
- There is a risk of pinching your hands or in­
juring other people during all steps in the power top emergency operation process.
- Ma ke sure a ll windows a re open dur ing
emergency operation.
- Do not hold the power top supports or
other moving parts.
- Never dr ive when the power top is not
locked correctly . The wind from driving
could cause the power top to open . This can
result in injuries and damage to the vehicle .
(1) Tips
The vehicle headliner is not clipped in and the
power top compartment cover is not locked
after using the power top emergency opera ­
tion procedure. Drive to an authorized Audi
dea ler or authorized repair facility immediate­
ly to have the malfunction corrected.
44
.
Step 1: Releasing the power top storage
bay lid
Fig. 41 L uggage compa rtment : release lever
Fig. 42 Luggage compar tment : s ide trim
• Open the luggage compartment lid .
• Reach w ith your finger into the gap behind the
trim near the center of the vehicle ¢
fig. 41.
• Press the re lease lever down to release the
power top compartment
cove r.
• Open the left side trim and press the yellow
lever in the direction of the arrow¢
fig. 42.
• Remove the emergency release key (hex key)
from the left side trim®¢
fig. 42.
• Open the r ight side trim and press the yellow
lever in the direction of the arrow .

a:,
a:,
...... N
" N ...... 0
0
LL co
Step 2: Lifting the power top compartment
cover out
Fig. 43 Rea r of veh icle: storage bay cove r pa rt ia ll y ope n
Fig. 44 Rear of veh icle: power top storage compartmen t
cov er comp lete ly open
0
"'
"' 0 ,1. co a,
.. First press the luggage compartm ent lid lightly
in the direction of the ar row
(D ¢ fig. 43 ¢ A
in General informa tion on page 44.
.. Then raise the power top compartment cover
out of the power top storage bay @and hold it
in place.
.. Close the luggage compartment lid.
.. Open the power top storage compartment cov­
er completely ¢
fig. 44.
Step 3: Opening the latch
Fig. 4S Rear of veh icle: op ening t he latch
Power top
.. Remove the cap from the trim and insert the
emergency release key in the open ing.
.. Turn the emergency release key counter-clock­
wise until it stops to open the latch .
.. Remove the emergency release key.
Step 4: Closing the power top
Fig. 46 Rear of vehicle: closing t he powe r top
Fi g. 47 W inds hield : clos ing the power to p
.. Raise the power top out of the storage bay and
pull it out completely ¢
A in General informa­
t ion on page 44 .
.,. Press the power top onto the windshield frame
¢ fig. 47 .
.,. Press the .d:, button ¢ page 40, fig. 34 to close
the power top.
If this does not work, proceed
w ith ¢
page 46, Step 5: Retracting the power
top compartment cover .
45

Power top

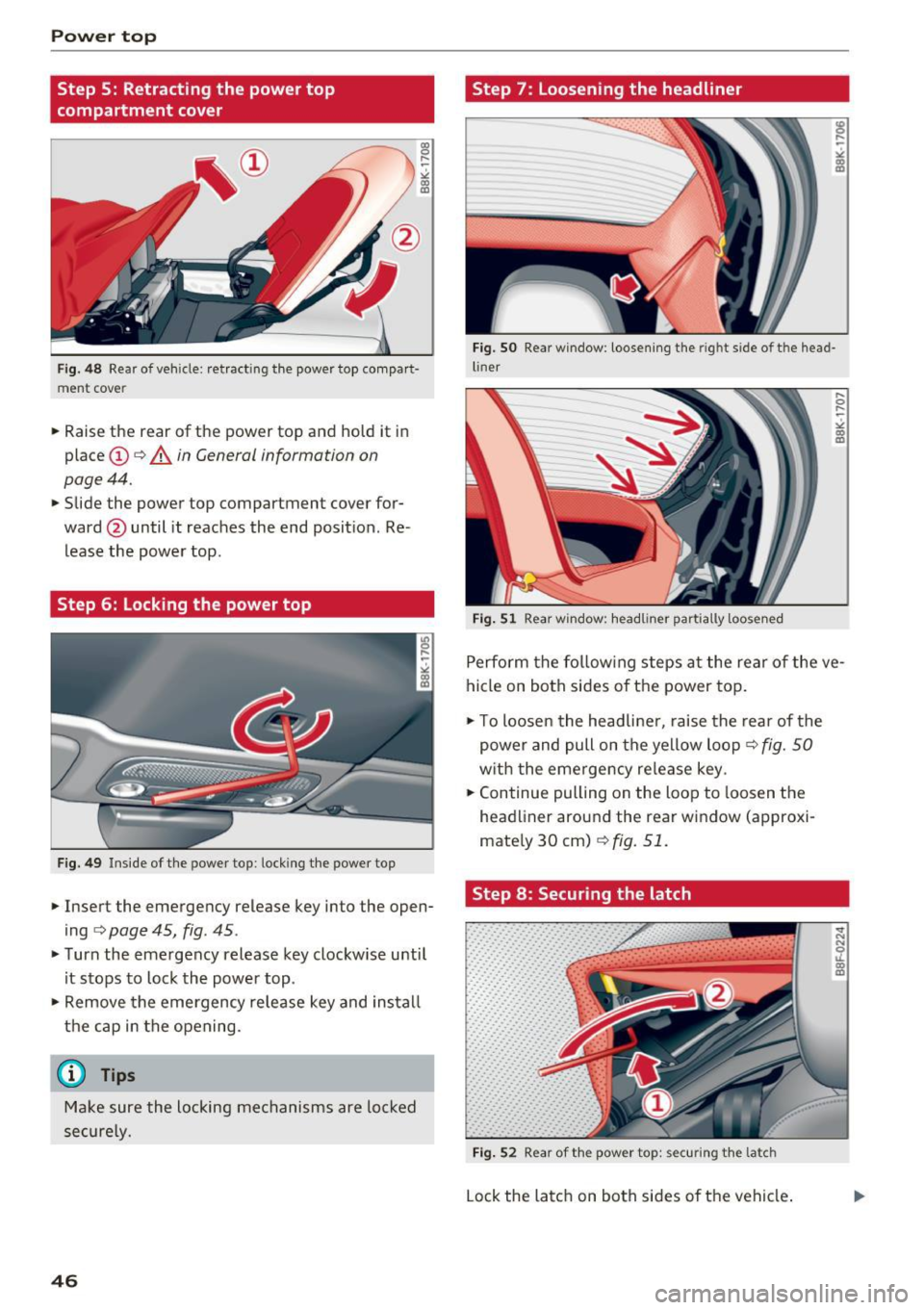

Step S: Retracting the power top
compartment cover
"' 0 ,.... ~
" "' U)
Step 7 : Loosening the headliner
Fig. SO Rear window: loosen ing the right side of the head-
Fig. 48 Rear of vehicle: ret racting the power top com par t· liner
ment cover
.. Raise the rear of the power top and hold it in
place @
¢ A in General information on
page 44 .
.. Slide the power top compartment cover for­
ward @ until it reaches the end position. Re ­
lease the power top .
Step 6: Locking the power top
Fig. 49 Inside of the power top: locking the power top
.. Insert the emergency release key into the open­
ing
¢ page 45, fig. 45 .
.. Turn the emergency release key clockwise until
it stops to lock the power top .
.. Remove the emergency release key and install
the cap in the opening.
(D Tips
Make sure the locking mechanisms are locked
securely .
46
Fig. 51 Rear wfndow: headliner partially loosene d
Perform the following steps at the rear of the ve­
hicle on both sides of the power top .
.. To loosen the headliner, raise the rear of the
power and pull on the yellow loop ¢
fig. 50
with the emergency release key .
.. Continue pulling on the loop to loosen the
headliner around the rear window (approxi­
mately 30 cm)
Q fig. 51 .
Step 8: Securing the latch
Fig. 52 Rear of the power top: securin g the la tc h
Lock the latch on both sides of the vehicle.
... N N
:r (0 U)

a:,
a:,
...... N r--. N ...... 0
0
LL 00
~ Pull the power top headliner to the side in the
area by the rear head restraints
r:!> fig. 52.
~ Insert the short end of the emergency release
lever in the yellow sleeve on the power top sup­
port
r:!> fig. 52.
~ Turn the emergency release key in the direction
of the arrow@ until the support is locked .
~ Put the emergency release key away@
r:!> page 44, fig. 42.
Power top
47

a:,
a:,
...... N
" N ...... 0
0
LL co
the windshield in this area in order to
prevent malfunctions or failures .
- Some exterior lighting functions can be ad­
justed
c:, page 49.
- When you remove your key from the igni­
tion while the vehicle's lights are turned on,
a buzzer sounds as long as the driver's door
is open.
- In cool or damp weather, the inside of the
headlights, turn signals and tail lights can
fog over due to the temperature difference
between the inside and outside. They will
clear shortly after switching them on. This does not affect the serv ice life of the light­
ing .
- In the event of a light sensor malfunction,
the driver is notified in the instrument clus­
ter display
c:, page 19.
Turn signals and high beam lever
The lever operates the turn signals, the high
beams and the headlight flasher.
Fig . 54 Turn signal and high beam lever
Turn signals¢¢
g N
0
~ CD
The turn signals activate when you move the lev­
er into a turn signal position when the ignition is
switched on.
@ -right turn signal
@-left turn signal
The turn signal blinks three times if you just tap
the lever.
High beams and headlight flasher ~D
Move the lever to the corresponding position:
@ -high beams on
Lights and Vision
@-high beams off or headlight flasher
The indicator light
II in the instrument cluster
turns on.
Notes on these features
-The turn signals only work with the ignition
turned on. The indicator lights . or
II in the
instrument cluster also blink.
- After you have turned a corner, the turn signal
switches off automatically.
- The
high beam works only when the headlights
are on. The indicator light
II in the instrument
cluster illuminates when the high beams are
on.
- The
headlight flasher works only as long as you
hold the lever -even if there are no lights
switched on . The indicator light
II in the in­
strument cluster illuminates when you use the
headlight flasher.
WARNING
Do not use the high beam or headlight flasher
if you know that these could blind oncoming
traffic.
Adjusting exterior lighting
The functions are selected in the radio or MMI* .
.,. Select: !CAR I function button> Exterior light­
ing .
Or
.,. Select: 1-C~A ~ R-.l function button > Car systems*
control button > Vehicle settings > Exterior
lighting .
Coming home (light when leaving car)*,
Leaving home (light when unlocking car)*
The coming home function illuminates the area
around the vehicle when the ignition is switched
off and the driver's door is opened. Depending on
vehicle equipment, the function can be switched on and off or the length of time the lights remain
on* can be adjusted .
The
leaving home function illuminates the area
around the vehicle when unlocking it. This func-
tion can be switched on and off.
ll>
49

Lights and Vision
Q/P -Adjusting the left/right exterior mirror.
Move the knob in the desired direction.
4ill -Heat ing the m irro r glass depending on the
ou tside temperat ure*.
.9 -Folding exterior mirrors* . In the Infotain­
men t system, you can select if the mirrors fold in
automatically when you lock the veh icle
¢page 32.
Front passenger's ext erior mirror tilt
function*
To help you see the c urb when ba cking in to a
p ar king space, the surface of the mirror tilts
slightly. Fo r this to happen, the knob must be in
the posit ion for the front passenger's outs ide
mirror.
You can adjust the ti lted mi rror sur fa ce by turn­
ing the knob in the desired direction. When you
move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key yo u are us ing.
The mirror goes back into its original position
once yo u drive forward faster than 9 mph
(15 km/h) or tu rn the ignition
off .
A WARNING
Curved mir ror surfaces (convex or spherical *)
increase your f ield of view. Remember that
vehicles o r other objects will appear sma ller
and farther away than when seen in a flat mir­
ror. If you use t his mirror to est imate d istan­
ces of following vehicles whe n cha nging
lanes, yo u co uld estimate incor rec tly and
c ause an accident .
(D Note
-If the mir ror housing was moved by force
(fo r example, by r unning into an object
when maneuvering the vehi cle), the mirror
must be folded all the way in using the pow­
er fold ing function . The mirror housing
must not be moved back into place by hand
beca use this would impair the f unction o f
the mirro r mechan ism.
- If you wash the ve hicle in an automatic car
wash, you m ust fold the exterior mi rrors in
52
to reduce the r isk o f damage to the m irrors .
Never fold power folding exterior mirrors*
by hand . On ly fold them in and out using
the power controls.
(D Tips
- If the power adjusting function malfunc­
tions, the glass in both mirrors can be ad­
justed by pressing on the edge of it by hand.
- The e xterior m irro r settings are sto red w it h
the memory funct ion *¢
page 61.
Dimming the mirrors
Fig. 60 Automatic dim ming rearview m ir ror *
Manual dimming rearview mirror
.,. Pull the lever on the bot tom of the m irror bac k.
Automat ic dimming rearvi ew mirror*
.,. Press the button@¢ fig. 60. The indicator
light @ turns on . The rea rview and ex ter ior*
m irrors d im au tomat ically when light shines on
them, for examp le from headlights on a veh icle
t o the rea r.
~ WARNING
Electrolyte fluid can leak from automatic d im­
ming mirrors if the glass is broken . Electro­
lyte fluid can irritate sk in, eyes and respirato­
ry system.
- Repeated or prolonged exposure to electro­
lyte can cause irritat ion to the resp iratory
system, especially among people with ast h­
ma or other respiratory conditions. Get
fresh air immediate ly by leaving the vehicle
or, if that is not possible, open windows a nd
d oors all the way.
llll>

Sea ts and stor age
sudden braking or an accident, you would not
be able to brake or accelerate.
Front passenger's seat
Always move the front passenger seat into the
rearmost position.
To avoid contact with the a irbag while it is de­
p loying, do not sit any closer to the instrument
panel than necessary and a lways wear the three­
point safety belt provided adjusted correctly. We
recommend that you adjust the passenger's seat
in the following manner:
.,. Bring the backrest up to an (a lmost) upright
position .
Do not ride with the seat reclined.
.,. Applies to vehicles with adjustable head re­
straints: Adjust the head restra int so the upper
edge is as even as poss ible with the top of your
head. If that is not possible, try to adjust the
head restraint so that it is as close to th is posi­
tion as poss ible
¢ page 60.
.,. Place your feet on the floor in front of the pas­
senger's seat.
Front seats
Power seat adjustment
App lies to: vehicles with power adjustable seats
Fig . 66 Fro nt seats: power seat adjustment
Controls
@ -Adjusting the lumba r support*: press the
button in the corresponding position¢& .
@-Movi ng the seat up/down: p ress the but ton
up/down¢ &.
@ -Moving the seat forward/back: press the but­
ton forwa rd/back ¢,& .
58
©-Adjusting the backrest ang le: press the but­
ton forward/back ¢
.&..
©-Raising/ lower ing* the head restra ints: press
the button up/down ¢& .
@ -Lengthening/sho rtening the upper th igh
suppo rt*: lift the handle. A spr ing moves the
front seat cushion forward ¢
,&.
& WARNING
-Never ad just the driver's or front passeng­
er's seat while the vehicle is moving.
If you
do this while the veh icle is moving, you will
be out of posit ion. Always ad just the driver's
or front passenger's seat when the vehicle is
not moving .
- Be carefu l when adjusting the seat height .
Check to see that no one is in the way, or se­
rious injury could result!
- Because the seats can be electrically adjust­
ed w ith the ignition off or with the ig nition
key removed, never leave children unattend­
ed in the vehicle. Unsupe rvised use of the
electric seat adj ustments may cause ser ious
m Jur y.
- To red uce the r isk of injury in the case of
sudden b raking or acc ident, front passen­
ge rs must neve r ride in a moving ve hicle
w it h the backrest reclined. Sa fety belts and
the airbag system on ly offer maximum pro­
tect ion when the backrest is upr ight and the
safety belts are properly positioned on the
body. The more the backrest is reclined, the
greater the risk of personal injury from an
incorrect seating position and improper ly
positioned safety belts.
-

a:,
a:,
,....,
N
" N ,....,
0
0
LL co
Memory function
Description
Applies to: vehicles with memory function
The memory funct ion allows yo u to qu ickly and
eas ily store and recall personal seat ing profi les
for the driver. The memory function is operated
through the master key and the memory buttons
in the driver 's door.
The drive r's seating profile is stored and assigned
to the maste r key each t ime the vehicle is locked.
When you open the door, the seat profile is auto ­
matica lly recalled.
If two people use one vehicle,
it is recomm ended that each person a lways uses
"their own" master key .
Up to 2 seat prof iles can be stored in the memory
buttons in the driver 's door . Once they are stor­
ed, these s eat profiles can be selected at any
time.
I n addition to the driver 's seat settings, you can
a lso store and access the exterior mirror adjust­
ment settings* using the remote control key or
memory button .
Remote control key
Applies to: veh icles with seat memory
To assign the driver 's seat settings to the remote
control key when locking the vehicle, the function
must be act ivated in the rad io or MMI*
.. Select :
I CARI function button > Seat adjust­
ment > Driver's seat > Remote con trol ke y
>
on .Or
.,. Select :
- 1 C_ A_ R_ I funct io n button > Car sy stem s*
contro l button > Vehicl e sett ing s > Seat s>
Driv er' s s eat > Remote control key > On .
@ Tips
If you do not wa nt another driver 's settings to
be assigned to the remo te key, switch off the
memory fu nction us ing t he radio o r MMI* or
t he
I ON/OF F I button ¢ page 61.
Seats and storag e
Memory buttons
Applies to: vehicles with seat memory
Fig. 72 D river 's doo r: memo ry fu ncti on butto ns
The memory buttons are located in the driver's
door .
Switching th e m emo ry functi on on /off
.. Press the ION/O FF I button to switch the memo­
ry function on/off. The word
OFF lights up
when the memory function is swit ched off . Seat
profiles are nei ther stored nor recalled.
Storing a seat p rofil e
.. Press the ISE TI button. When the word S ET
lights up, the memory is ready to store set­
tings.
.,. Press a memory button
tone confirms that the sett ings were sto red.
Accessing a sea t profile
.. If the driver's door is open and the ignition is
switched off, press th e memory button .
.. If the driver's door is closed or the ignition is
sw itched on, press and hold the memory but­
ton u ntil the seat adjustment is complete .
.&_ WARNING
-For safety reasons, the seat sett ing can only
be reca lled when the vehicle is st ationa ry -
o therwise yo u ris k hav ing an accident.
- I n an emergency the recall proced ure can be
cancelled by pressi ng the
I ON/OF F I switch or
by tapping the memory bu ttons.
61
