Opening and closing
Luggage compartment lid emergency
unlocking from the inside
Applies to: vehicles with emergency release from inside
-
Applies to: version 1
Fig. 28 Sect io n of the l ugg age comp artment : access to t he
emergency release
Applies to: version 2
Fig. 29 Sect ion of the l uggage compa rtment : access to t he
emergency re lease
The luggage compartment lid can be released
from the inside in an emergency.
Applies to: veh icles w ith: emergency release on
the outside*: please read the information in
¢ page 40, Luggage compartment lid emer­
gency unlocking from the outside.
Applies to : version 1
.,. Fold the backrest on the rear bench seat for­
ward ¢ page 67 .
.,. Pry off the cover using the key bit on the
opened vehicle key
(I)¢ fig. 28 .
.,. Insert the key in the opening behind the cover
@and press the key in the direct ion of the ar­
row until the lock releases.
Applies to: version 2
• Fold the backrest on the rear bench seat for­
ward
¢ page 67.
40
.,. Remove the screwdriver from the vehicle tool
kit¢ page 353. Use the flat side of the reversi­
ble screwdriver blade.
.,. Use the screwdr iver to pry the cover off @
¢fig. 29 .
.,. Insert the key in the opening behind the cover
@and press the key in the direction of the ar­
row unti l the lock releases .
Luggage compartment lid emergency
unlocking from the outside
Applies to: vehicles with emergency release from outside
Fig. 30 Rear lid: eme rgency release lock cyl inde r
.,. Insert th e key into the lock cy linder nea r the
ha ndl e.
.,. Turn the key counterclockwise.

a, a, ..... N
" N ..... 0 N > 00
.. Pull the release loop down from the rear to re­
lease the power top storage compartment cov­
er ¢ fig. 41 .
.. Slide the covers on both sides of the vehicle in
the direction of the arrow until they lock in
place
¢ fig . 42 .
Step 2 : Lift the power top storage
compartment cover out
Appl ies to: vehicles wit h powe r top
Fig. 43 Lift ing t he powe r top sto rage compa rtment cove r
ou t ahd setting up t he supports
Fig. 44 Power to p storag e com pa rtm ent cove r: suppor ts
set up
.. Raise the power top compartment cover out of
the power top compartment and hold it in
place@¢ fig. 43 <:> .&, in General information
on page 48 .
.. Secure the power top stora ge compa rtment
cover by pressing on the side supports on both
sides@.
A WARNING
-Always make sure that the side supports on
the open power top storage compartment cover are in place, even when the power top
is not fully open or closed. Otherw ise, the
Power top
power top storage compartment cover could
fall, which increases the r isk of an accident.
- Avoid touching the support rods and other
moving parts when open ing the power top
storage compartment cover . If do you make
contact, your hands could be pinched.
Step 3: Open the locking pin
Applies to: veh icles w ith power top
Fig. 4 5 Rear of the veh icle : open ing the lock ing pin
.. Remove the cap on the trip and insert the
wheel wrench into the opening .
.. Turn the wheel wrench clockwise until it stops
to open the locking pin .
.. Remove the wheel wre nch .
49

Power top
Step 4: Close the power top
Applies to: vehicles w ith power top
Fig. 46 Rear of vehicle: closing the power top (1)
Fig. 47 Rear of veh icle: clos ing the power top (2)
• Position yourself near the vehicle .
• Hold the power top by its front edge and pull it
out
completely¢ fig. 46 ~ .&. in General infor­
mation on page 48.
• Lift the rear edge of the power top.
• Release the power top storage compartment
cover by pulling on the side supports to release
them.
• Close the power top storage compartment cov­
er @ and let the rear edge of the power top
drop @¢ fig. 47.
Step 5: Lock the power top
Appl ies to : ve hicles w ith power top
Fig. 48 Windshield: closing the power top
50
Fig. 49 In side of the power top: locking the power top
• Press the power top onto the windshield frame
¢ fig. 48 ¢.&. in General information on
page 48.
• Insert the wheel wrench into the opening and
turn it counterclockwise until it stops¢
fig. 49.
• Remove the wheel wrench and seal the opening
with the cap.
• Put the wheel wrench back into the vehicle tool
kit.
&_ WARNING
- When positioning the power top, avoid con­
tact with the supports or other moving
parts. Otherwise you could pinch your
hands.
- When pressing the power top down onto
the windshield frame, make sure that you
do not pinch yourself or anyone else.
(D Tips
Make sure the locking mechanisms are locked
securely.

Driving
other damage to the vehicle or other property .
-Have your vehicle maintained properly and
in accordance with the service recommenda­
tions in your Warranty
& Maintenance book­
let . Lack of proper maintenance as well as
improper use of the vehicle will impair the
function of the emission control system and
could lead to damage.
- Do not alter or remove any component of
the Emission Control System unless ap­
proved by the manufacturer .
- Do not alter or remove any device, such as
heat shields, switches, ignition wires,
valves, which are designed to protect your
vehicle's Emission Control System and other
important vehicle components.
(I) Tips
The consumption estimates as published by
ENVIRONMENTAL PROTECTION AGENCY
(EPA) and Transport Canada may not corre­
spond to your actual consumption on the
road, which will vary depending upon vehicle
load and speed, road and weather conditions,
trip length, etc .
Steering
Adjusting the steering wheel position
The steering wheel position is fully adjustable up
and down and forward and back .
Fig. 88 Steering column: steering col umn adjustment lever
.,. Tilt the lever c:::;, fig. 88 downward c:::;, ,& .
.,. Bring the steering wheel into the desired posi­
tion.
76
.,. Push the lever against the steering column un­
til it is secure.
A WARNING
Incorrect use of the steering wheel adjust­ ment and an incorrect seating position can
cause serious injuries.
- Only adjust the steering column when the
vehicle is stationary so that you do not lose control of the vehicle .
-
-Adjust the driver's seat or steering wheel so
that there is at least 10 inches (25 cm) dis­
tance between your chest and the steering
wheel
c:::;, page 248, fig. 222 . If you do not
maintain this distance, the airbag system
will not be able to provide its full protec­
tion .
c:::;,page248, fig. 222.
- If your physical characte ristics prevent you
from s itting at least 10 inches (25 cm) or
more away from the steering whee l, see if
an authorized Audi dealer or authorized
Audi Service Facility can provide adapters
that will help.
- If your face is level with the steering whee l,
the airbag does not provide as much protec­
tion during a collision. Always make sure
that the steer ing wheel is level with your
chest.
- Always hold the steering wheel with your
hands in the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of injury if the airbag
deploys.
- Never hold the steering wheel in the 12
o'clock position or with both hands on the
rim or the center of the steering wheel.
Holding the steer ing wheel incorrect ly sig­
nificant ly increases the r isk of injury to the
hands, arms and head if the airbag deploys.

CXl CXl .... N r--­N .... 0 N > 00
System settings
Setting the date and
time
You can set the clock time manually or using the
CPS*.
.,. Select : I MENU I button> Settings> left control
button >
MMI settings> Date & time .
.,. Or: select : IMENUI button> Vehicle > left con-
trol button >
Vehicle settings> Date & time.
Automatic setting
When this function is switched on g, the time
and date are automatically set.
Time
Requirement: the Automatic setting must be
switched
off .
Press the control knob. You can set the Time
manually by turning and pressing the control
knob.
Date
Requirement: the Automatic setting must be
switched
off.
Press the control knob . You can set the Date
manually by turning and press ing the cont rol
knob.
Time zone
When selecting the appropriate time zone, a
sampling of countr ies in this zone will be listed .
Automatic time zone*
When this function is switched on g, the time
will automatically adjust to the corresponding
time zone.
Automatic daylight saving time*
When this function is switched on g, the time
will automatically switch to daylight saving time .
Time format
If you select 24h, the clock will disp lay, for ex­
ample ,
13:00 . If you se lect AM/PM , the clock
will disp lay, for example,
1:00 PM .
System settings
Date format
If you select DD.MM .YYYY , the date display will
show, for example,
31.08.2017. If you select
MM/DD/YYYY , the date display will show, for ex­
ample,
08/31/2017. If you select YYYY-MM­
DD ,
the date display will show, for example,
2017-08-31 .
MMI settings
.,. Select: !MENUI button> Settings> left control
button >
MMI settings .
Language
You can change the display language as well as
the language for the voice guidance* and voice
recognition system*.
T he number of languages available depends on
the market.
Measurement units
The following units can be selected:
-Speed (mph or km/h)
- Distance (miles or kilometers)
-Temperature (°For 0
()
-Fuel consumption (L/100km, mpg (US), mpg
(UK) or km/l)
- Volume (liters , gallons)
Tool tips
When this function is switched on g, your MMI
shows you tips for input. The frequency of how
often it displays decreases with time.
Speech dialog system
Applies to : vehicles wi th voice recog nitio n system
Depend ing on vehicle equipment, the following
functions may be ava ilable:
Command display : when this function is switch­
ed on
g, the MMI will show you the possible
commands for voice input in the respective
menu.
Short dialog : when this function is switched on
g, a shorter form of the prompts is used .
Command during voice output*: this function is
switched on at the factory . When this function is
II>-
241

CXl CXl .... N ,.__
N .... 0 N > 00
~ Always keep both feet in the footwell so that
you are in control of the vehicle at all times.
F or detailed information on how to adjust the
driver's seat, see
¢ page 61.
A WARNING
Drivers who are unbelted, out of position or
too close to the airbag can be seriously in­
jured by an airbag as it unfolds. To help re­
duce the risk of serious personal injury:
-Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breastbone
and the steering wheel.
-Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and the
lower part of the instrument panel.
-Always hold the steering wheel on the out­
side of the steering wheel rim with your
hands at the 9 o'clock and 3 o'clock posi­
tions to help reduce the risk of personal in ­
jury if the driver's airbag inflates.
-Never hold the steer ing wheel at the
12 o'clock posit ion or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Holding
the steering wheel the wrong way can cause
serious injuries to the hands, arms and head if the driver 's airbag inflates.
-Pointing the steering wheel toward your
face decreases the ability of the supplemen­
tal driver's airbag to protect you in a colli­ sion.
-Always sit in an upright position and never lean against or place any part of your body
too close to the area where the airbags are
located.
-Before driving, always adjust the front seats
properly and make sure that all passengers
are properly restrained.
-For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
-Never adjust the seats while the vehicle is
moving. Your seat may move unexpectedly
and you could lose control of the vehicle.
-
Driving safety
-Never drive with the backrest reclined or
tilted far back! The farther the backrests are
tilted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
-Children must always ride in child safety
seats
c::;, page 292. Special precautions ap­
ply when installing a child safety seat on the
front passenger seat
c::;, page 267.
Proper seating position for the front
passenger
The proper front passenger seating position is
important for safe, relaxed driving.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the seat for the front passenger
to the fol lowing position:
~ Adjust the angle of the seatback so that it is in
an upright position and your back comes in full
contact with it whenever the vehicle is moving.
~ For adjustable head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it is as close to this position as possible
c::;, page 63. Move the head restraint so that it is
as close to the back of the head as possible .
~ Keep both feet flat on the floor in front of the
front passenger seat.
~ Fasten and wear safety belts correctly
c::;, page 2 62 .
For detailed information on how to adjust the
front passenger's seat, see
c::;, page 61 .
A WARNING
Front seat passengers who are unbe lted, out
of position or too close to the airbag can be
seriously injured or killed by the airbag as it
unfolds . To help reduce the risk of serious
personal injury:
-Passengers must always sit in an upright po­
sition and never lean against or place any pa rt of their body too close to the area
where the airbags are located.
.,,.
249

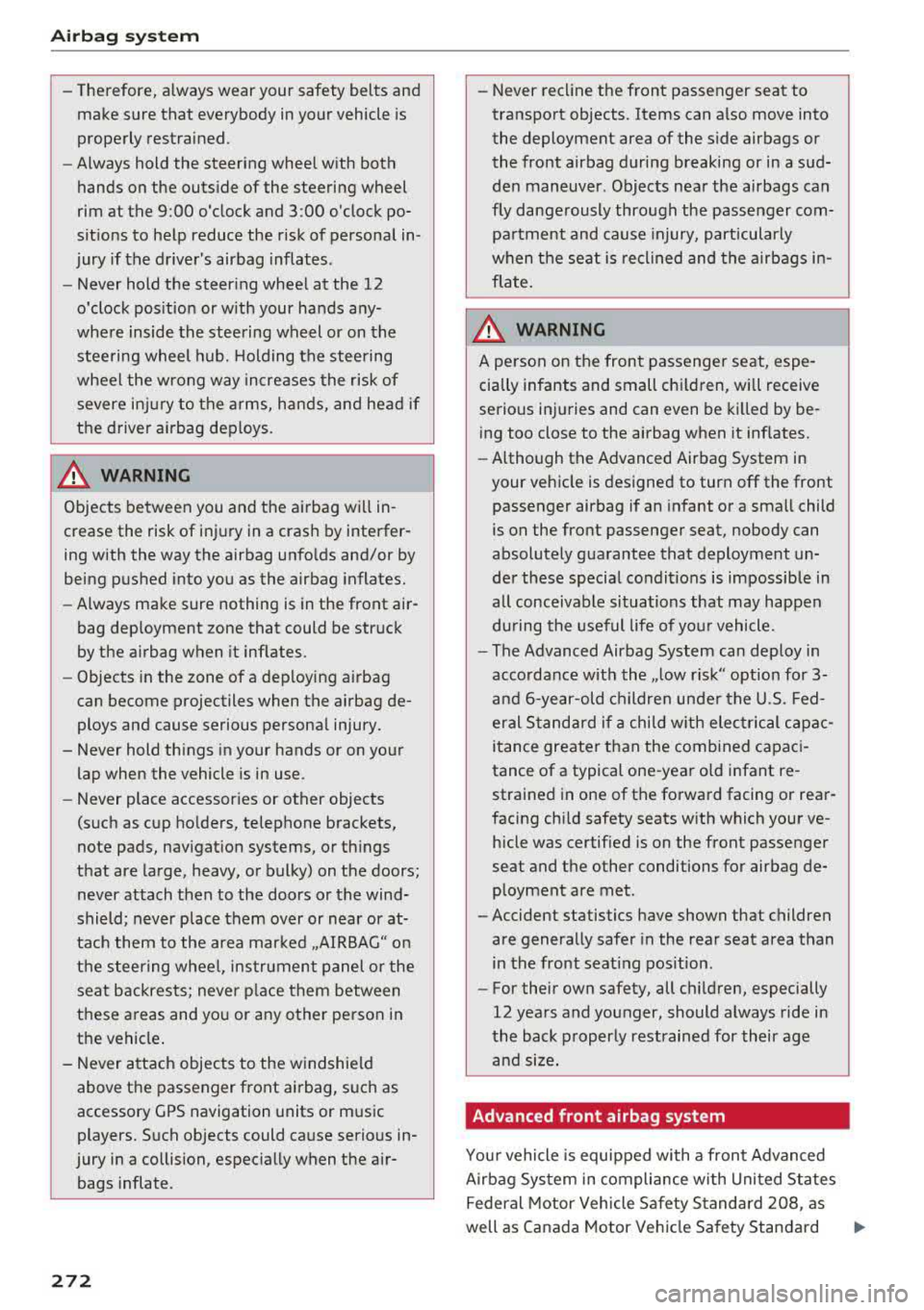

Airbag system
-Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o 'clock and 3 :00 o'clock po­
sitions to help reduce the risk of personal in ­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your lap when the vehicle is in use .
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked
,.AIRBAG" on
the steering wheel, instrument panel or the
seat backrests; never place them between
these areas and you or any other person in
the vehicle.
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
272
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver . Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
A WARNING
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates .
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
-The Advanced Airbag System can deploy in
accordance with the .,low
risk" option for 3-
and 6-year-old children under the U.S . Fed­
eral Standard if a child with electrical capac­
itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
facing child safety seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard
..,.

Checking and Filling
Fueling
Fig . 265 -Applies to: veh icles wi tho ut p lug -in hybrid dr ive­
ri ght rea r side of t he veh icle: ope nin g the fuel filter door
Fig. 266 Fue l fi ll er doo r w it h attached fuel cap
Plug-in hybrid drive* : Please a lso read the infor­
matio n under
¢page 105, Refueling.
The fuel filler door is unlocked or locked by the
central locking system.
Op en ing th e fuel cap
"' Applies to : vehicles with p lug-in hybri d drive :
Also read the information found
in c> page 105,
Opening the fuel filler door .
"'Applies to : vehicles wi tho ut plug-in hybrid
dr ive: Press the left side of the fuel filler door
to open it-arrow-
¢ fig . 265.
"' Unscrew the tank cap counterclockw ise.
"' Place the cap from above on the open fue l filler
door ¢ fig. 266.
Closing th e fu el cap
"' Turn the fuel cap clockwise until you hear it
lock.
"' Close the fuel fille r door unt il it l atches.
Once the pump nozzle sw itches off, the fuel tank
is
" full" . Do not fi ll the tank more . Otherw ise the
expansion space in the tank will be f illed.
314
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional informat ion on fuel,
see
¢ page 312.
The fuel tank capacity of your ve hicle is listed in
the
T echn ical Dat a section ¢ page 375.
To avoid fuel spilling or evaporat ing from the fuel
tank always close fue l fi ller cap properly and
completely . An improperly closed fuel fi ller cap
may also cause the MIL
l amp ¢ page 23 to come
on .
_& WARNING
Not pay ing attention when fueling or han­
dling fuel incorrectly can lead to fires, explo­
sions or serious injur ies.
-Fue l ignites easily and can cause serious
burns and other injur ies.
-
-If you do not switch the engine off when fu­
eling and/or do not insert the fuel nozzle
completely into the tank open ing, fuel can
leak out or run over . Leaked fuel ca n ign ite
and start a fire.
-Do not use the telephone while f ueling. The
elec tromagnetic rays ca n cause sparks,
which can ignite fue l vapors and start a fire.
- Do not sit in your vehicle wh ile fue ling. If
you must make an exception and ente r your
veh icle agai n while fueling, close the door
an d touch me tal to d ischarge stat ic elect ric­
ity before to uching the f uel nozz le . Static
electricity can create spa rks, which can ig ­
nite vapors when fueling.
-Do not smoke or have an open flame in the
area when fueling your vehicle or fi lling a
fue l container because this increases the
risk of an explosion.
-For your safety, carrying fuel containers in
your vehicle is not recommended. W hether
fu ll or empty, the container can leak and
cause a fire in the event of an acc ident.
- If you must make an exception and trans- port a fuel container, note the fo llow ing:
- Never fill the fuel container with fuel
while i t is in o r on the vehicle. Static e lec­
tricity is discharged whe n filling w hich can
.,._
