2017 Acura TLX Navigation Manual

296
uuError Messages uPandora ®
Troubleshooting
Unable to play PANDORA.
Please try again later.Appears when you try to play
PANDORA.Try again later.
Unable to play PANDORA.
Music licensing restricts play in this area.Try again later.
Unable to play PANDORA.
When stopped, log-in to PANDORA.Log in to the PANDORA sever.
This PANDORA station is currently not available.
Please select another station.Appears when the station you selected
is not currently available.Select another station.
Error MessageCauseSolution
16 ACURA TLX NAVI-31TZ38100.book 296 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

297
uuError Messages uAhaTM Radio
Troubleshooting
AhaTM Radio
If an error occurs while playing AhaTM Radio, you may see the following error
messages.
If you cannot clear the error message, contact a dealer.
Error MessageCause
Cannot connect to AcuraLink.
When stopped, check your mobile device.Appears when the AhaTM app is not activated. Check your device.
Incompatible USB Device
Please Check Owner’s ManualAppears when an incompatible device is connected. Disconnect the device. Then
turn the audio system off, and turn it on again. Do not reconnect the device that
caused the error.
16 ACURA TLX NAVI-31TZ38100.book 297 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

298
16 ACURA TLX NAVI-31TZ38100.book 298 ページ ２０１５年７月２９日　水曜日　午後４時１１分

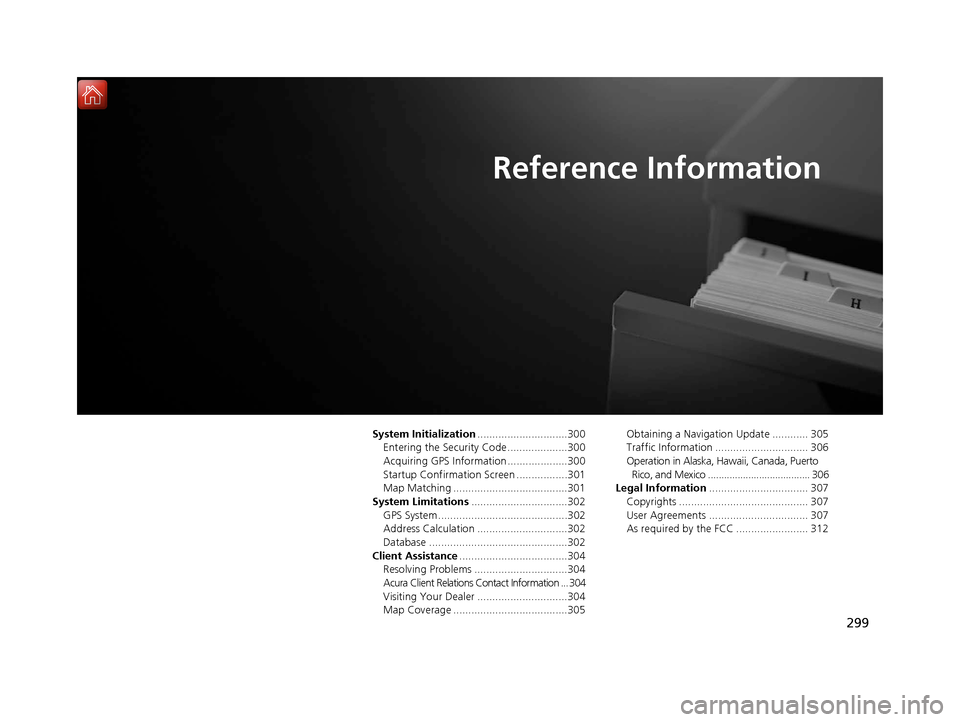

299
Reference Information
System Initialization..............................300
Entering the Security Code ....................300
Acquiring GPS Information ....................300
Startup Confirmation Screen .................301
Map Matching ......................................301
System Limitations ................................302
GPS System...........................................302
Address Calculation ..............................302
Database ..............................................302
Client Assistance ....................................304
Resolving Problems ...............................304
Acura Client Relations Contact Information ... 304
Visiting Your Dealer ..............................304
Map Coverage ......................................305 Obtaining a Navigation Update ............ 305
Traffic Information ............................... 306
Operation in Alaska, Hawaii, Canada, Puerto
Rico, and Mexico ...................................... 306
Legal Information ................................. 307
Copyrights ........................................... 307
User Agreements ................................. 307
As required by the FCC ........................ 312
16 ACURA TLX NAVI-31TZ38100.book 299 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

300
Reference Information
System Initialization
The navigation system must be initialized if
power to the navigation system is
interrupted for any reason (e.g., the battery
was disconnected).
Entering the Security Code
In most cases, you do not need to enter a
security code. Follow the steps to reactivate
the system.
1. Set the power mode to ON, and turn on
the audio system.
2. Press and hold the (Power) button for
more than two seconds.
u The system is reactivated when the
system’s control unit recognizes that
the system is in your vehicle.
If the control unit fa ils to recognize,
you must go to a dealer and have the
system checked.
Acquiring GPS Information
Depending on the length of time the power
was interrupted, your system may require
GPS initialization.
If initialization is not necessary, the system
proceeds directly to the Startup
Confirmation screen.
If the system fails to locate a sufficient
number of satellites to locate your position
within 10 minutes, the following screen is
displayed.
If you are experiencing GPS reception
problems:
2 GPS System P. 302
16 ACURA TLX NAVI-31TZ38100.book 300 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

301
uuSystem Initialization uStartup Confirmation Screen
Reference Information
Startup Confirmation
Screen
The Startup Confirmation screen is
displayed when initialization has
successfully completed. It is displayed every
time you start your vehicle. Press to
select OK to continue.
Map Matching
Map matching is the process of using the
acquired GPS information to locate your
position on the map screen. If you are on a
mapped road, the name of the road is
displayed along the bottom of the map
screen when map matching is completed.
Do not enter a destination until the road
name is displayed.
The system may initially show your location
on a different street (e.g., in urban areas
where streets are close together), may show
an incorrect elevation, or may delay the
display of the vehicle position icon at
intersections. This is normal; the system will
correct itself while you drive.
16 ACURA TLX NAVI-31TZ38100.book 301 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

302
Reference Information
System Limitations
GPS System
The signals received from the GPS satellites
are extremely weak (less than a millionth of
the strength of a local FM station) and
require an unobstructed view of the sky.
The GPS antenna is located in the
dashboard. The signal reception can easily
be interrupted or interfered with by the
following:
• Metallic window tint on the front or side windows
• Mobile phones, PDAs, or other electronic devices docked in a cradle or lying loose
on the dashboard
• Remote starters or “hidden” vehicle tracking systems mounted near the
navigation unit
• Audio electronic devices mounted near the navigation unit
• Trees, tall buildin gs, freeway/highway
overpasses, tunnels, or overhead
electrical power wires
The GPS is operated by the U.S. Department
of Defense. For security reasons, there are
certain inaccuracies bu ilt into the GPS for
which the navigation system must
constantly compensate. This can cause occasional positioning errors of up to
several hundred feet or tens of meters.
Address Calculation
The destination icon shows only the
approximate location of a destination
address. This occurs if the number of
possible addresses is different from the
number of actual addr
esses on a block. For
example, the address 1425 on a 1400 block
with 100 possible addresses (because it is
followed by the 1500 block) will be shown a
quarter of the way down the block by the
system. If there are only 25 actual addresses
on the block, the actual location of address
1425 would be at the end of the block.
Database
The digitized map database reflects
conditions as they existed at various points
in time before production. Accordingly,
your database may contain inaccurate or
incomplete data or information due to the
passage of time, road construction,
changing conditions, or other causes.
For example, some places/landmarks may
be missing when you search the database
because the name was misspelled, the place
was improperly categorized, or a place/
landmark is not yet in the database. This is
also true for police stations, hospitals, and
other public institutions. Do not rely on the
navigation system if you need law
enforcement or hospital services. Always
check with local information sources.
In addition, the map database contains
verified and unverified areas. Unverified
streets may be missing from the map, in the
wrong location, or have an incorrect name
or address range. A message will warn you
if your route includes unverified streets.
Exercise additional caution when driving in
unverified areas.
16 ACURA TLX NAVI-31TZ38100.book 302 ページ ２０１５年７月２９日　水曜日　午後４時１ １分

303
uuSystem Limitations uDatabase
Reference Information
The database does no t include, analyze,
process, consider, or reflect any of the
following categories of information:
• Neighborhood quality or safety
• Population density
• Availability or proximity of law enforcement
• Emergency, rescue, medical, or other assistance
• Construction work, zones, or hazards
• Road and lane closures
• Legal restrictions (such as vehicular type, weight, load, height, and speed
restrictions)
• Road slope or grade
• Bridge height, width, weight, or other
limits
• Traffic facilities safety
• Special events
• Pavement characteristics or conditions
Every effort has been made to verify that
the database is accurate. The number of
inaccuracies you experience increases the
longer you go without obtaining an
updated map database.
2 Obtaining a Navigation Update P. 305
We assume no liability for any incident that
may result from an error in the program, or
from changed conditions not noted above.
