2017 Acura NSX trunk

35
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and yo ur passenger make a habit of checking these items each
time before you drive.
• After everyone has entered the vehicle, be sure both doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 115
•Adjust your seat to a position suitable fo r driving. Be sure the seats are adjusted
as far to the rear as possible while allo wing the driver to control the vehicle.
Sitting too close to a front airbag can resu lt in serious or fatal injury in a crash.
2Adjusting the Seats P. 144
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passenger is properly belted as well.
2 Fastening a Seat Belt P. 39
•If you choose to ignore our warnings and carry a child in this vehicle, make every
effort to protect them by properly using a s eat belt or a child seat according to the
child’s age, height, and weight.
2 Child Safety P. 58
1Safety Checklist
If the Door Open or Door And Trunk Open
message appears on the driver information interface,
a door and/or the trunk (h atch) is not completely
closed. Close both doors and the trunk (hatch) tightly
until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 88
17 NSX-31T6N6000.book 35 ページ ２０１６年４月２２日　金曜日　午後３時４４分

88
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if any door or the trunk (hatch) is not
completely closed.
●Appears if any door or the trunk (hatch) is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk (hatch) are
closed.
●Appears if there is a problem with the radiator system.●Drive slowly to prevent overheating and have your
vehicle checked by an author ized Acura NSX dealer as
soon as possible.
●Appears when there is a pr oblem with the headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.
●Appears if there is a problem with the parking sensor
system.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acur a NSX dealer.Models with
parking sensor
system
17 NSX-31T6N6000.book 88 ページ ２０１６年４月２２日　金曜日　午後３時４４分

uuOpening and Closing the Hatch uUsing the Remote Transmitter
120
Controls
Push the release button on the hatch after the
doors are unlocked.
2 When You Cannot Open the Hatch P. 450
Even if the hatch is locked, you can open the
hatch if you carry the keyless access remote.
u The beeper sounds.
Using the Remote Transmitter
Press the hatch release button for
approximately one second to unlock and open
the hatch.
1Using the Hatch Release Button
•If you forget the remote inside, the beeper will
sound and the hatch will not close.
•A person who is not carryi ng the keyless access
remote can unlock the hatch if a person who is
carrying it is within range.
•If the beeper sounds after close the hatch, move
the keyless access remote away from the trunk and
close again.
•The keyless access remote may not operate if it is
too close to the hatch.
Hatch
Release
Button
17 NSX-31T6N6000.book 120 ページ ２０１６年４月２２日　金曜日　午後３時４４分

121
uuOpening and Closing the Hatch uHatch Main Switch
Controls
Hatch Main Switch
The hatch main switch disables the hatch
release button on the remote transmitter, the
hatch release button on the hatch and the
hatch release button on the driver’s door to
protect luggage in the trunk.
1. Turn off the hatch main switch in the glove
box.
2. Lock the glove box.
Emergency Hatch Opener
The hatch release lever allows you to open the
hatch from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Hatch Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.Main Switch
ON
OFF
1 Emergency Hatch Opener
Parents should decide if their children should be
shown how to use this feature.
Lever
17 NSX-31T6N6000.book 121 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Continued299
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 301
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the seat footwe lls. Make sure to secure the floor mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock both doors and the hatch.
2 Locking/Unlocking the Doors from the Inside P. 115
•Adjust your seating position properly.
2 Adjusting the Seats P. 144
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 141
2 Adjusting the Steering Wheel P. 140
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk ha ve the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
17 NSX-31T6N6000.book 299 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Continued305
uuBefore Driving uHigh-Performance Driving
Driving
• Burnish the brake pads shortly before high -performance driving so that they have
the performance characteristics necessary to repeatedly and quickly slow the NSX
when it is being operated at signific antly high speeds. (While the NSX’s brake
pads are properly burnished for the demands expected in ordinary day-to-day
driving, high-performance driving puts unique demands on the brake system
which require further burnishing.)
• Inspect ALL cooling openings to confirm th ey are open and free of debris such as
leaves, etc. Cooling openings include engine undercover ducts, heat resistance
ducts, brake ducts, radi ators, and intercoolers
• Remove Tire Repair Kit from the trunk, along with any other cargo area contents
• Check tire wear and tire pressure, and m ake certain wheel lug bolts are properly
torqued, as driving at high speed puts additional strain on tires and wheels. Never
use slick tires, and do not use Summer Only tires and Ultra High Performance tires
if temperatures will be lower than 45°F (7°C)
• If you anticipate sustained driving at speeds greater than 168 mph/270 km/h,
adjust the cold tire pressure as shown on the driver door jamb warning label. This
will help avoid heat build-up and sudden tire failure1 High-Performance Driving
3WARNING
Use of slick tires/racing slicks may subject
the chassis and body components to higher
dynamic loads than they were designed for.
Higher than intended dynamic loads could
result in component failu re, loss of control,
and serious injury or death to you or others.
Do not install slick tires on the NSX.
Canadian models
U.S. models
17 NSX-31T6N6000.book 305 ページ ２０１６年４月２２日　金曜日　午後３時４４分

387
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura NSX dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Lights
Front turn signal/parking lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
17 NSX-31T6N6000.book 387 ページ ２０１６年４月２２日　金曜日　午後３時４４分

418
Handling the Unexpected

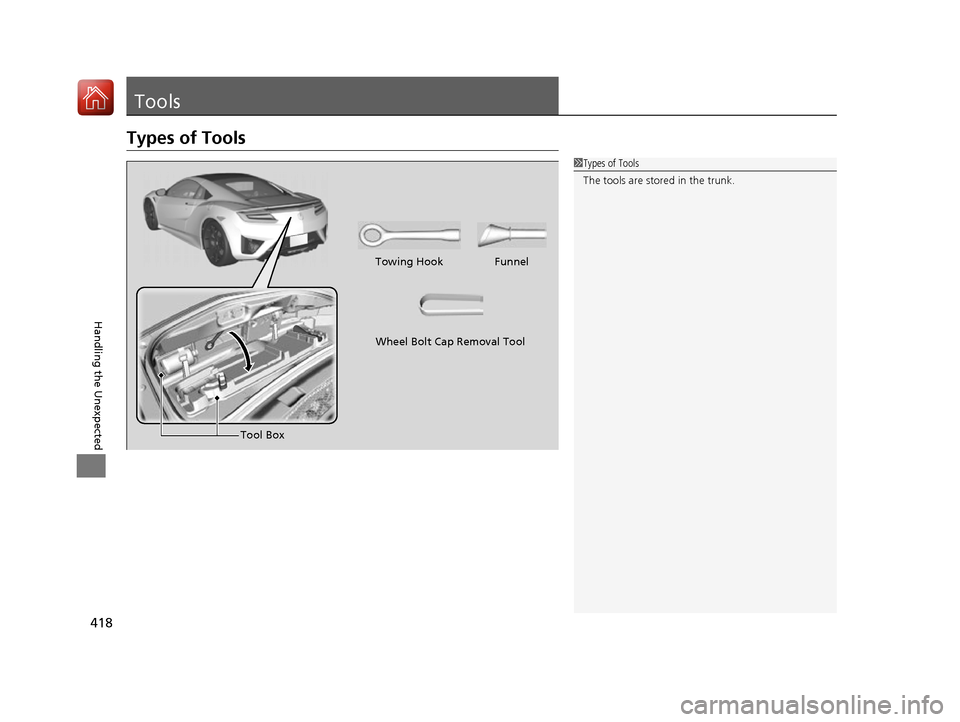

Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Towing Hook Funnel
Tool Box
Wheel Bolt Cap Removal Tool
17 NSX-31T6N6000.book 418 ページ ２０１６年４月２２日　金曜日　午後３時４４分
