2017 Acura NSX Owner's Manual

California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assi st in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requ ired or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain perform ance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
17 NSX-31T6N6000.book 0 ページ ２０１６年４月２２日　金曜日　午後３時４４分 0
0X31-T6N-6000 2017 NSX Owner's Manual

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTIONYou CAN be HURT if you don’t follow
instructions.
17 NSX-31T6N6000.book 1 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31

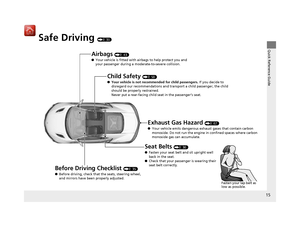

For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 69
Indicators P. 70 Gauges and Displays P. 95
2Controls P. 103

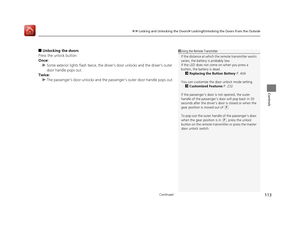

Clock P. 104 Locking and Unlocking the Doors P. 105
Operating the Switches Around the Steering Wheel P. 127
Interior Lights/Interior Convenience Items P. 149
2 Features P. 161
Audio System P. 162 Audio System Basic Operation P. 166

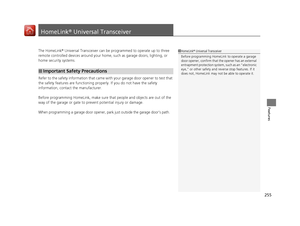

Customized Features P. 232 HomeLink® Universal Transceiver P. 255
2 Driving P. 297

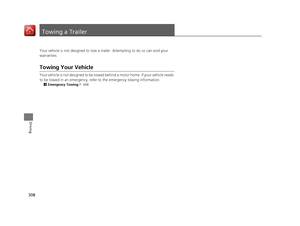

Before Driving P. 298 Towing a Trailer P. 308

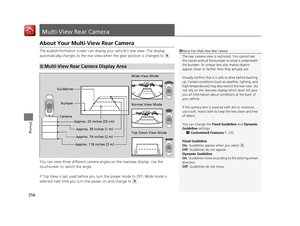

Multi-View Rear Camera P. 356
2Maintenance P. 361
Before Performing Maintenance P. 362 Maintenance MinderTM P. 365
Checking and Maintaining Wiper Blades P. 390
Climate Control System Maintenance P. 405
2Handling the Unexpected P. 417
Tools P. 418 If a Tire Goes Flat P. 419
Overheating P. 436 Indicator, Coming On/Blinking P. 438
When You Cannot Open the Hatch P. 450
2 Information P. 453

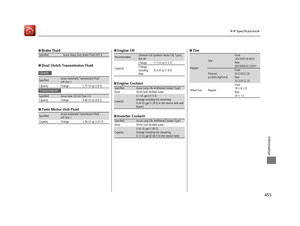

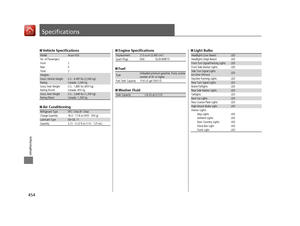

Specifications P. 454 Identification Numbers P. 456
Emissions Testing P. 459 Warranty Coverages P. 461
17 NSX-31T6N6000.book 2 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Contents

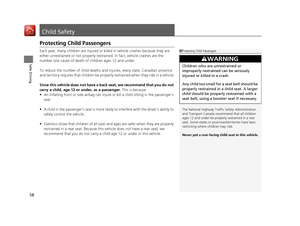

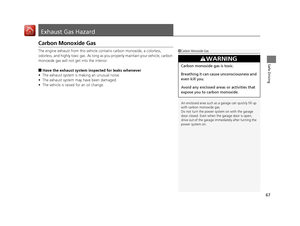

Child Safety P. 58Exhaust Gas Hazard P. 67Safety Labels P. 68
Opening and Closing the Hatch P. 119 Security System P. 122 Opening and Closing the Windows P. 125
Adjusting the Mirrors P. 141 Adjusting the Seats P. 144
Climate Control System P. 156
Audio Error Messages P. 223 General Information on the Audio System P. 226
Bluetooth® HandsFreeLink ® P. 258 AcuraLink ®* P. 292
When Driving P. 309 Braking P. 344Parking Your Vehicle P. 351
Refueling P. 357 Fuel Economy and CO
2 Emissions P. 359
Maintenance Under the Hood and Hatch P. 371 Replacing Light Bulbs P. 387
Checking and Maintaining Tires P. 393 12-Volt Battery P. 403 Remote Transmitter Care P. 404
Cleaning P. 406 Accessories and Modifications P. 412 Storage P. 414
Power System Won’t Start P. 431 Jump Starting P. 434
Fuses P. 443 Emergency Towing P. 448 When Y ou Cannot Unlock the Fuel Fill Door P. 449
Refueling P. 451
Devices that Emit Radio Waves P. 457 Reporting Safety Defects P. 458
Authorized Manuals P. 463 Client Service Information P. 464
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 69
ControlsP. 103
FeaturesP. 161
DrivingP. 297
MaintenanceP. 361
Handling the UnexpectedP. 417
InformationP. 453
IndexP. 465
17 NSX-31T6N6000.book 3 ページ ２０１６年４月２２日　金曜日　午後３時４４分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 140)
❙ENGINE START/STOP Button (P 127)

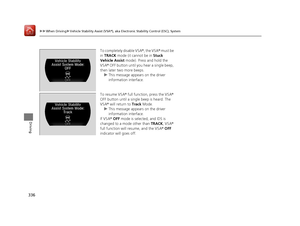

❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 334)
❙System Indicators (P 70)
❙Gauges (P 95)
❙Driver Information Interface (P 98)
❙Rear Window Defogger/
Heated Mirror Button
(P 137)
❙Parking Sensor System Button*
(P 353)
❙Hazard Warning Button
❙Seat Heater Buttons* (P 155)
❙Audio System (P 162)
❙Climate Control System (P 156)
❙MID Vents (P 20, 156)
❙Navigation System*
() See the Navigation System Manual
❙IDS Mode Switch (P 323)
17 NSX-31T6N6000.book 4 ページ ２０１６年４月２２日　金曜日　午後３時４４分

5
Quick Reference Guide
❙Wipers/Washers (P 135)
❙Headlights/Turn Signals (P 130, 131)
❙Paddle Shifter (Shift down) (P 322)
❙Paddle Shifter (Shift up) (P 322)
❙Horn (Press an area around .)
❙Voice Control Buttons (P 184)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 258)
❙TRIP Button (P 99, 100)
❙Right Selector Wheel (P 98)
❙Audio Remote Controls (P 165)
❙Brightness Control (P 136)
❙Mph/Km/h Change Button (P 95)
❙Cruise Control Buttons (P 330)
* Not available on all models
17 NSX-31T6N6000.book 5 ページ ２０１６年４月２２日　金曜日　午後３時４４分

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 125)
❙Driver’s Front Airbag (P 46)
❙Hatch Release Button (P 119)

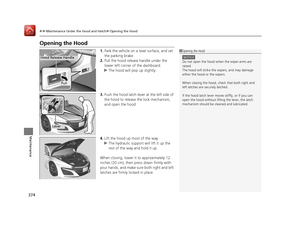

❙Hood Release Handle (P 374)
❙Passenger’s Front Airbag
(P 46)
❙Glove Box (P 151)
❙Driver’s Knee Airbag (P 50)
❙Door Mirror Controls (P 142)
❙Power Door Lock Master Switch (P 117)
❙Fuel Fill Door Release Button (P 358)
❙USB Port (P 163)
❙Memory Buttons* (P 139)
❙SET Button* (P 139)
❙Rearview Mirror (P 141)
❙Driver’s Side Interior Fuse
Boxes
(P 445)
❙Passenger’s Side Interior Fuse
Box
(P 446)
❙USB Port (P 163)
❙Accessory Power Socket
(P 154)
❙Electric Parking Brake Switch
(P 344)

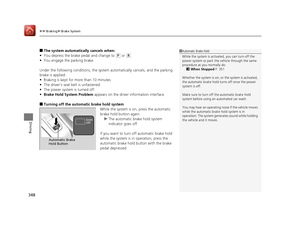

❙Automatic Brake Hold Button
(P 347)
❙Shift Button

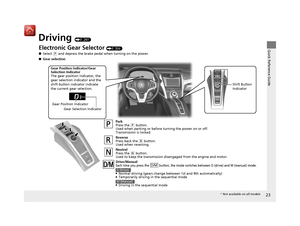

Electronic Gear Selector
(P 314)
17 NSX-31T6N6000.book 6 ページ ２０１６年４月２２日　金曜日　午後３時４４分

7
Quick Reference Guide❙Side Airbags (P 52)
❙Side Curtain Airbags (P 54)
❙Seat Belts (P 36)
❙Seat (P 144)
❙Sun Visors
❙Map Lights (P 150)
❙Seat Belt (Installing a Child Seat) (P 63)
* Not available on all models
