2017 Acura NSX brake

30
Quick Reference Guide
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver's
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver's door and manually change the gear
position. u
When opening the driver’s door (P 317)
17 NSX-31T6N6000.book 30 ページ ２０１６年４月２２日　金曜日　午後３時４４分

70
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 439
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact an authorized Acura
NSX dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Acura NSX dealer.
2 If the Brake System Indicator (Red)
Comes On P. 439
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system starts.
●Comes on when the engine oil
pressure is low.
●Comes on if there is a problem with
the engine oil pressure system.
●Comes on while driving - Immediately
stop in a safe place and set the power
mode to VEHICLE OFF (LOCK), then
contact an authorized Acura NSX dealer.
U.S.
Canada
(Red)
17 NSX-31T6N6000.book 70 ページ ２０１６年４月２２日　金曜日　午後３時４４分

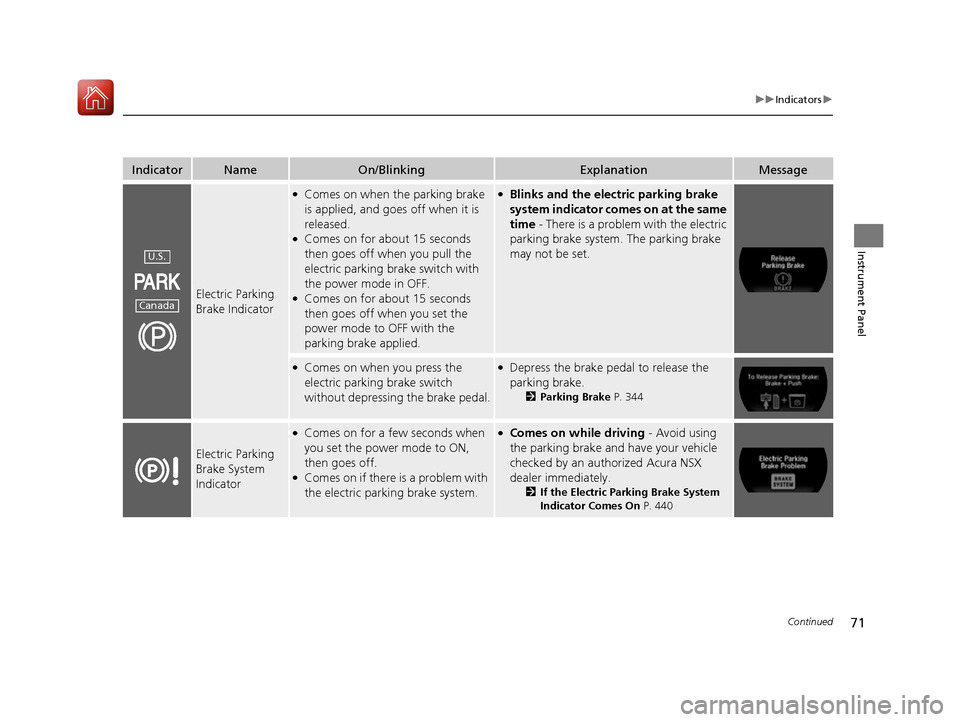

71
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Parking
Brake Indicator
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on for about 15 seconds
then goes off when you pull the
electric parking brake switch with
the power mode in OFF.
●Comes on for about 15 seconds
then goes off when you set the
power mode to OFF with the
parking brake applied.
●Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.
●Comes on when you press the
electric parking brake switch
without depressing the brake pedal.●Depress the brake pedal to release the
parking brake.
2 Parking Brake P. 344
Electric Parking
Brake System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem with
the electric parking brake system.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by an auth orized Acura NSX
dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 440
U.S.
Canada
17 NSX-31T6N6000.book 71 ページ ２０１６年４月２２日　金曜日　午後３時４４分

72
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 347
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 347—
U.S.
Canada
17 NSX-31T6N6000.book 72 ページ ２０１６年４月２２日　金曜日　午後３時４４分

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem with
a system related to braking other
than the conventional brake system.
●Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on while driving - Have your
vehicle checked by an authorized Acura
NSX dealer.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to an
authorized Acura NSX dealer immediately.
●With this indicator on, your vehicle still has
normal braking ability.U.S.
Canada
(Amber)
U.S.
Canada
17 NSX-31T6N6000.book 73 ページ ２０１６年４月２２日　金曜日　午後３時４４分

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem with
the electric vehicle system.
●Comes on while driving - Have your
vehicle checked by an authorized Acura
NSX dealer immediately.
READY Indicator
●Comes on when the vehicle is ready
to drive.
2Turning on the Power P. 309
Active Damper
System Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the Active Damper System. The
speed of the vehicle will be limited.
●Stays on constantly - Have the vehicle
checked by an authorized Acura NSX
dealer. With this indicator on, your vehicle
has normal damping ability without the
active damper feature.
2 Integrated Dynamics System (IDS)
P. 323
Brake Wear
Indicator*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if a worn brake pad is
detected.
●Comes on while driving - The brake
pads may need to be replaced. Have your
vehicle inspected by an authorized Acura
NSX dealer.U.S.
Canada
U.S.
Canada
* Not available on all models
17 NSX-31T6N6000.book 74 ページ ２０１６年４月２２日　金曜日　午後３時４４分

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator
●Indicates the current gear selection.
2Shifting P. 314—
Transmission
System Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by an
authorized Acura NSX dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authoriz ed Acura NSX dealer
for inspection.—
●The indicated current gear selection
or all the gear positions blink if there
is a problem with the transmission
system.●Immediately stop in a safe place.2 Emergency Towing P. 448●Have your vehicle checked by an
authorized Acura NSX dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 442
●Set the parking brake when parking.●Have your vehicle checked by an
authorized Acura NSX dealer immediately.
17 NSX-31T6N6000.book 76 ページ ２０１６年４月２２日　金曜日　午後３時４４分

78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS )
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by an authorized Acura NSX
dealer. With this indicator on, your vehicle
still has normal braking ability but no
anti-lock function.
2 Anti-lock Brake System (ABS) P. 349
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Knee airbag system
- Seat belt tensioner
●Stays on constantly or does not come
on at all - Have your vehicle checked by
an authorized Acura NSX dealer.
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system is on.
●Comes on if there is a problem with
the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
an authorized Acura NSX dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 439
17 NSX-31T6N6000.book 78 ページ ２０１６年４月２２日　金曜日　午後３時４４分
