Important manual information
EAU10134
Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are subject to change without notice.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation wh
ich, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
BN3-9-E0.book 1 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

3-1
1
23
4
5
6
7
8
9
10
11
12
Instrument and control functions
EAU10462

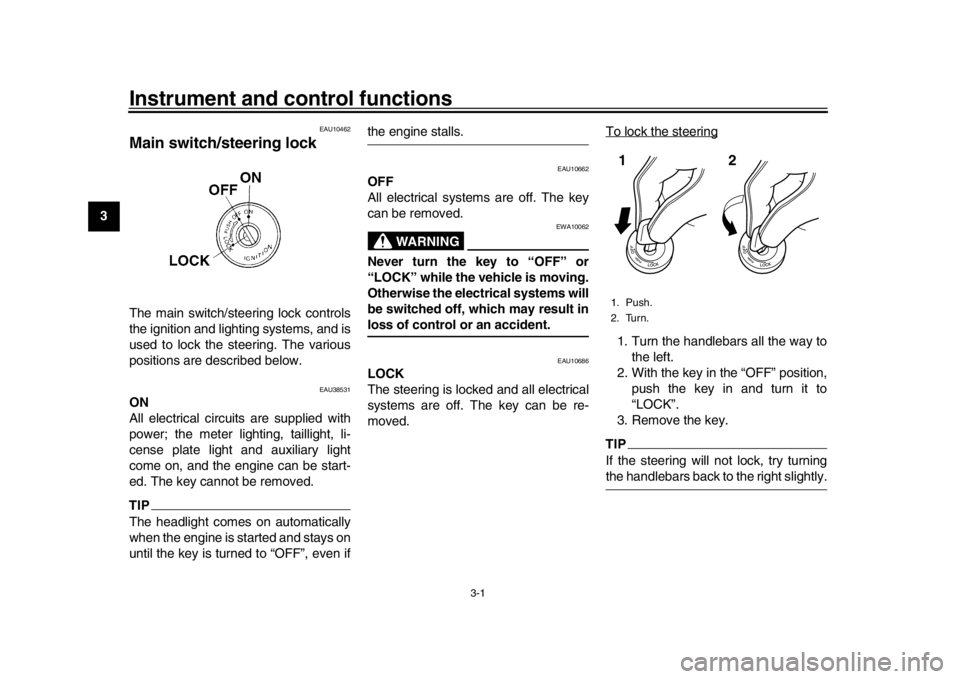

Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38531
ON
All electrical circui ts are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10662
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10686
LOCK
The steering is lock ed and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turningthe handlebars back to the right slightly.1. Push.
2. Turn.12
BN3-9-E0.book 1 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-2
1
234
5
6
7
8
9
10
11
12
To unlock the steering
1. Insert the key.
2. With the key in the “LOCK” posi-
tion, push the key in and turn it to
“OFF”.
EAU49398
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11354
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2.1 L (0.55 US gal, 0.46 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU11447
Coolant temperature warning light
“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
1. Push.
2. Turn.12
1. Coolant temperature warning light “ ”
2. Fuel level warning light “ ”
3. Neutral indicator light “ ”
4. Turn signal indicator light “ ”
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
1 234
56
BN3-9-E0.book 2 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-3
1
23
4
5
6
7
8
9
10
11
12 can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10022
Do not continue to operate the en-gine if it is overheating.TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.

If the engine overheats, see page6-44 for further instructions.
EAU11535
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the self-diagnosis system. (See page 3-8
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU4527A
Multi-function display
WARNING
EWA12313
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.1. “RESET” button
2. “SELECT 1” button
3. “SELECT 2” button
4. Clock/stopwatch
5. Speedometer
6. Odometer/tripmeter/fuel reserve tripmeter
1
23
4
5
6
BN3-9-E0.book 3 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-4
1
234
5
6
7
8
9
10
11
12
TIP
The multi-function display can be
set to the basic mode or the mea-
surement mode.

Tripmeter A will automatically re-
set to zero when changing from
the basic mode to the measure-ment mode or vice versa.
Basic mode:

a speedometer

an odometer

two tripmeters

a fuel reserve tripmeter

a clock

a self-diagnosis device
Measurement mode:

a speedometer

a distance-compensation tripme-
ter

a stopwatch

a self-diagnosis device
TIP
Be sure to turn the key to “ON” be-
fore using the “SELECT 1”, “SE-
LECT 2” and “RESET” buttons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
and then disappear, in order to test
the electrical circuit.

For the UK: To switch the speed-
ometer and odometer/tripmeter
displays between kilometers and
miles, press the “SELECT 2” but-ton until the distance units change.
Speedometer
The speedometer shows the vehicle’s
traveling speed. Basic mode
Odometer and tripmeter modes
The odometer shows the total distance
traveled by the vehicle.
The tripmeters (A and B) show the dis-
tance traveled since they last reset and
the fuel reserve tripmeter “F” shows the
distance traveled since the fuel level
warning light came on.TIP
The odometer will lock at 99999.

The tripmeters will reset to 0.0 andcounting after 999.9 is reached.
During normal operation, push the “SE-
LECT 2” button to switch the display
between the odometer mode and the
tripmeter modes A and B in the follow-
ing order:
odometer  tripmeter A  tripmeter B
 odometer
1. Stopwatch indicator “ ”
2. Tripmeter A indicator “ ”/
Distance-compensation tripmeter “ ”
3. Tripmeter B indicator “ ”
1
3
2
BN3-9-E0.book 4 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-6
1
234
5
6
7
8
9
10
11
12
The clock displays when the key is
turned to “ON”.
To set the clock
1. Push the “SELECT 1” button for at
least two seconds.
2. When the hour digits start flashing, push either select button to set the
hours.
3. Push the “RESET” button, and the minute digits will start flashing.
4. Push either select button to set the minutes.
5. Push the “RESET” button, and the second digits will start flashing.
6. Push either select button to set the second digits to zero.
7. Push the “RESET” button for at least two seconds, and then re-
lease it to start the clock.TIP
When setting the clock, push the
“SELECT 1” button to increase the
digits or “SELECT 2” button to de-
crease the digits. Pushing and
holding either button will increase
or decrease the digits continuously
until the button is released.

If the “RESET” button is not
pushed within 30 seconds, the
clock will not be set and will returnto the prior time.
Changing from the basic mode to
the measurement mode
With the odometer selected, push the
“SELECT 1” button and “SELECT 2”
button together for at least two seconds
to change to the measurement mode.
Changing from the measurement
mode to the basic mode
TIPThe stopwatch must be stopped beforechanging to the basic mode. 1. Check that the stopwatch is not in operation. If the stopwatch is in op-
eration, stop it by pushing the “SE-
LECT 1” button and “SELECT 2”
button together.
2. Push the “SELECT 1” button and “SELECT 2” button together for at
least two seconds to change to the
basic mode. Measurement mode (for the stop-
watch)
When the measurement mode is se-
lected, the stopwatch is displayed and it
can be started manually or automatical-
ly.
Manual start
The manual start is the default setting
for the stopwatch. The stopwatch indi-
cator “ ” and the distance-compensa-
tion tripmeter indicator “ ” will start
flashing.
1. Push the “RESET” button to start the stopwatch.
2. Push the “SELECT 1” button and “SELECT 2” button together to
stop the stopwatch.
3. To resume stopwatch counting,
BN3-9-E0.book 6 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-9
1
23
4
5
6
7
8
9
10
11
12
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12661
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41701
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-19.)1. Clutch lever
1
BN3-9-E0.book 9 ページ ２０１５年６月２５日　木曜日　午前１０時４６分

Instrument and control functions
3-11
1
23
4
5
6
7
8
9
10
11
12
EAU44364
Fuel tank capTo remove the fuel tank cap 1. Insert the key into the lock and turn it counterclockwise as shown.
2. Turn the fuel tank cap counter- clockwise and pull it off.
To install the fuel tank cap 1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock, and then turn the cap
clockwise.
2. Turn the key clockwise, and then remove it.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA10122
Make sure that the fuel tank cap is
properly closed and locked beforeriding. Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Key
2. Fuel tank cap
1
2
1. Key
2. Fuel tank cap
1
2
BN3-9-E0.book 11 ページ ２０１５年６月２５日　木曜日　午前１０時４６分
