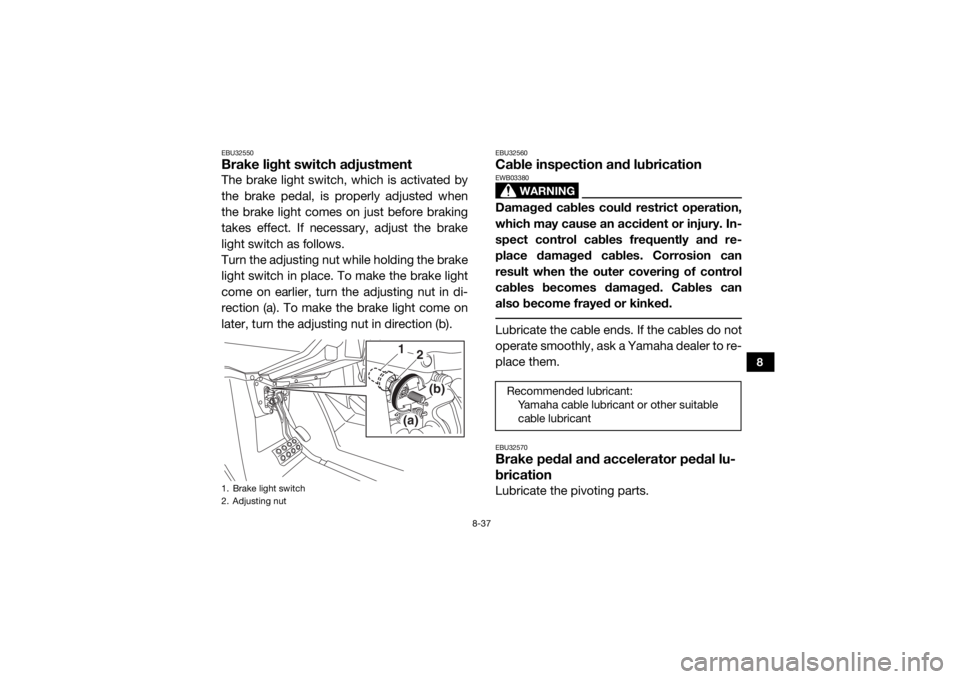

EBU32550Brake light switch adjustmentThe brake light switch, which is activated by
the brake pedal, is properly adjusted when
the brake light comes on just before braking
takes effect. If necessary, adjust the brake
light switch as follows.
Turn the adjusting nut while holding the brake
light switch in place. To make the brake light
come on earlier, turn the adjusting nut in di-
rection (a). To make the brake light come on
later, turn the adjusting nut in direction (b).
EBU32560Cable inspection and lubrication
WARNING
EWB03380Damaged cables could restrict operation,
which may cause an accident or injury. In-
spect control cables frequently and re-
place damaged cables. Corrosion can
result when the outer covering of control
cables becomes damaged. Cables can
also become frayed or kinked. Lubricate the cable ends. If the cables do not
operate smoothly, ask a Yamaha dealer to re-

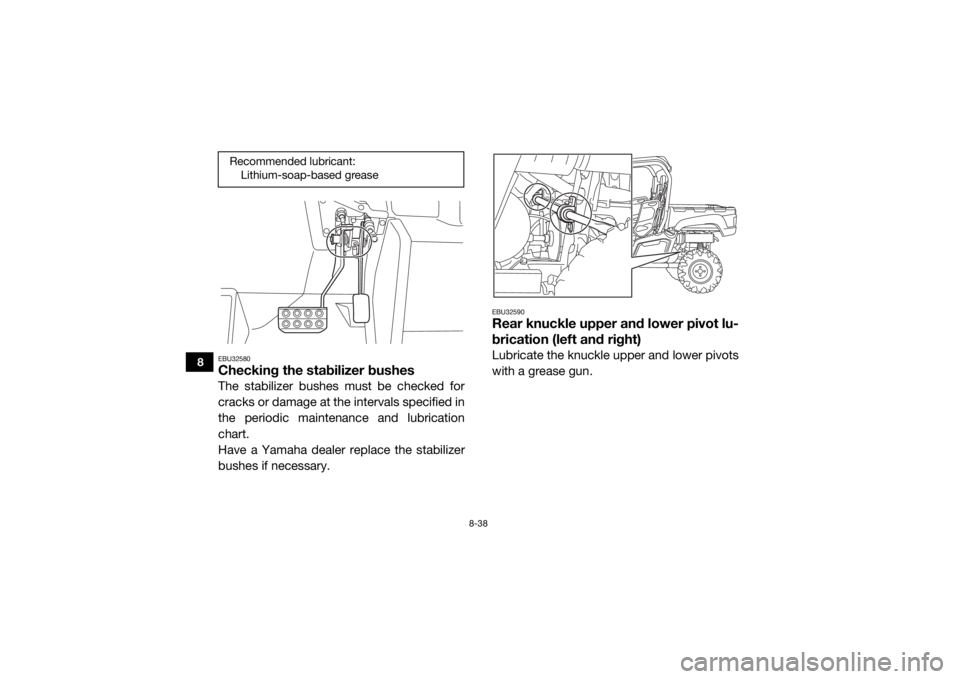

place them.EBU32570Brake pedal and accelerator pedal lu-
bricationLubricate the pivoting parts.
1. Brake light switch
2. Adjusting nut
1(a)
(b)
2
Recommended lubricant: Yamaha cable lubricant or other suitable cable lubricant
UB427AE0.book Page 37 Monday, May 18, 2015 9:17 AM

8-38
8
EBU32580Checking the stabilizer bushesThe stabilizer bushes must be checked for
cracks or damage at the intervals specified in
the periodic maintenance and lubrication
chart.
Have a Yamaha dealer replace the stabilizer
bushes if necessary.

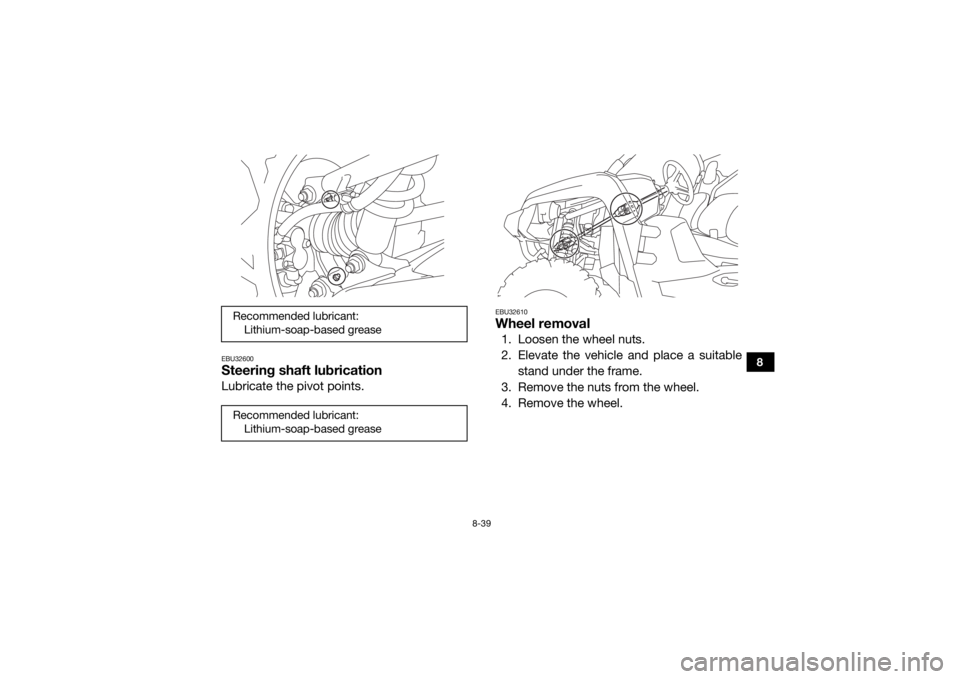

EBU32590Rear knuckle upper and lower pivot lu-
brication (left and right)Lubricate the knuckle upper and lower pivots
with a grease gun.
Recommended lubricant:Lithium-soap-based grease
UB427AE0.book Page 38 Monday, May 18, 2015 9:17 AM

8-39
8
EBU32600Steering shaft lubricationLubricate the pivot points.
EBU32610Wheel removal1. Loosen the wheel nuts.
2. Elevate the vehicle and place a suitablestand under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
Recommended lubricant: Lithium-soap-based grease
Recommended lubricant: Lithium-soap-based grease
UB427AE0.book Page 39 Monday, May 18, 2015 9:17 AM

8-40
8
EBU32620Tire replacementAlways use the same size and type of tires
recommended in this owner’s manual. The
tires that came with your Yamaha Viking were
designed to match the performance capabili-
ties and to provide the best combination of
handling, braking, and comfort. It is best to
replace all four tires at the same time. If that is
not possible, you must replace the tires inpairs (front or rear) with tires of the same size
and type as the originals. Never replace just
one tire.
WARNING
EWB03390Installing improper tires on your Yamaha
Viking can affect handling and stability.
This can cause a loss of control. The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of
America for this model.
1. Wheel nut
1
1
Front tire: Size:25 x 8-12NHS
Manufacturer/model: MAXXIS/MU09
Rear tire: Size:25 x 10-12NHS
Manufacturer/model: MAXXIS/MU10
UB427AE0.book Page 40 Monday, May 18, 2015 9:17 AM

8-41
8
EBU33030Wheel installation1. Install the wheel and the nuts.TIPFor YXM70VPXG / YXM70VPHG: tapered
nuts are used for both the front and rear
wheels. Install the nuts with their tapered side
towards the wheel. YXM70VPXG / YXM70VPHG2. Lower the vehicle so that the wheel is on the ground. 3. Tighten the wheel nuts in a crisscross
pattern to the specified torque.
WARNING
EWB03400Do not reverse the rims on your Yamaha
Viking to widen the track width. Installing
wheels improperly increases the risk of
wheel failure and accidents. EBU32640BatteryThe battery is located under the hood. (See
page 8-10 for hood removal and installation
procedures.)
This model is equipped with a VRLA (Valve
Regulated Lead Acid) battery. There is no
need to check the electrolyte or to add dis-
1. Tapered nut
1
Tightening torques:Front wheel nut:75 Nm (7.5 m·kgf, 54 ft·lbf)
Rear wheel nut: 75 Nm (7.5 m·kgf, 54 ft·lbf)
UB427AE0.book Page 41 Monday, May 18, 2015 9:17 AM

8-42
8
tilled water. However, the battery lead con-
nections need to be checked and, if
necessary, tightened.
WARNING
EWB03410Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burned
by the sulfuric acid in battery electrolyte. In
case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.
WARNING
EWB03420Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition. To remove the battery
1. Turn the key to “ ” (off).
2. Remove the hood. (See page 8-10 for hood removal and installation proce-
dures.)
3. Remove the air intake duct panel by re-
moving the quick fastener screws.
UB427AE0.book Page 42 Monday, May 18, 2015 9:17 AM

8-43
8
4. Unhook the battery bands.
5. Disconnect the negative battery lead first,then the positive battery lead by remov-
ing their bolt. NOTICE: When removing
the battery, the main switch must be
off, and the negative lead must be dis-
connected before the positive lead.
[ECB01002]
6. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as
soon as possible if it seems to have dis-
charged. Keep in mind that the battery tends
to discharge more quickly if the vehicle is
equipped with optional electrical accessories.

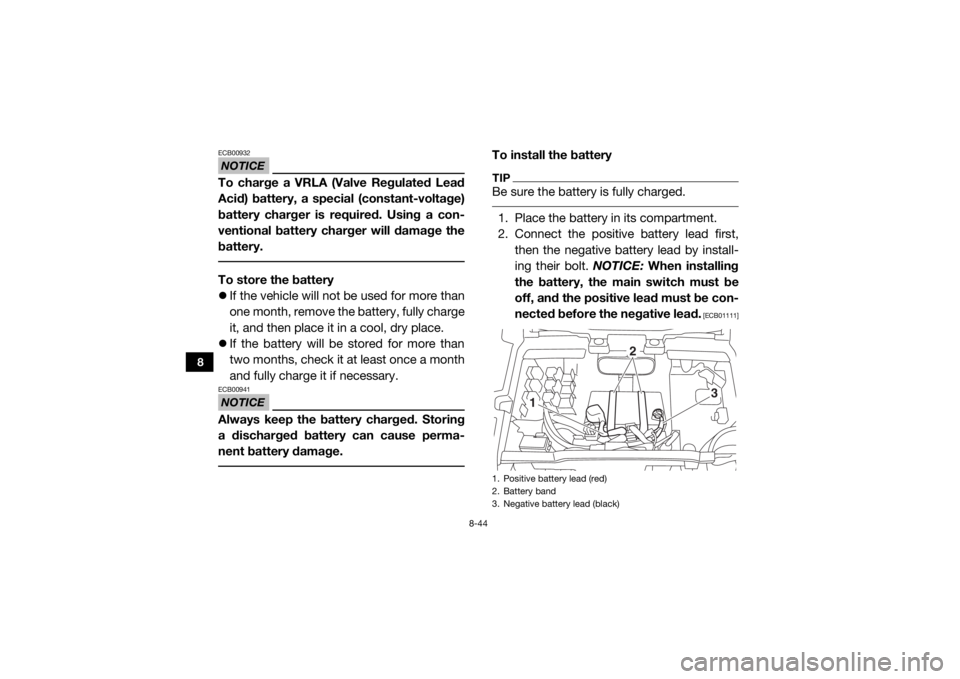

1. Quick fastener screw
2. Air intake duct panel
2
1
1. Positive battery lead (red)
2. Battery band
3. Negative battery lead (black)
2
1
3
UB427AE0.book Page 43 Monday, May 18, 2015 9:17 AM

8-44
8
NOTICEECB00932To charge a VRLA (Valve Regulated Lead
Acid) battery, a special (constant-voltage)
battery charger is required. Using a con-
ventional battery charger will damage the
battery. To store the battery
If the vehicle will not be used for more than
one month, remove the battery, fully charge
it, and then place it in a cool, dry place.
 If the battery will be stored for more than
two months, check it at least once a month
and fully charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing
a discharged battery can cause perma-
nent battery damage.
To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first,
then the negative battery lead by install-
ing their bolt. NOTICE: When installing
the battery, the main switch must be
off, and the positive lead must be con-
nected before the negative lead.
[ECB01111]

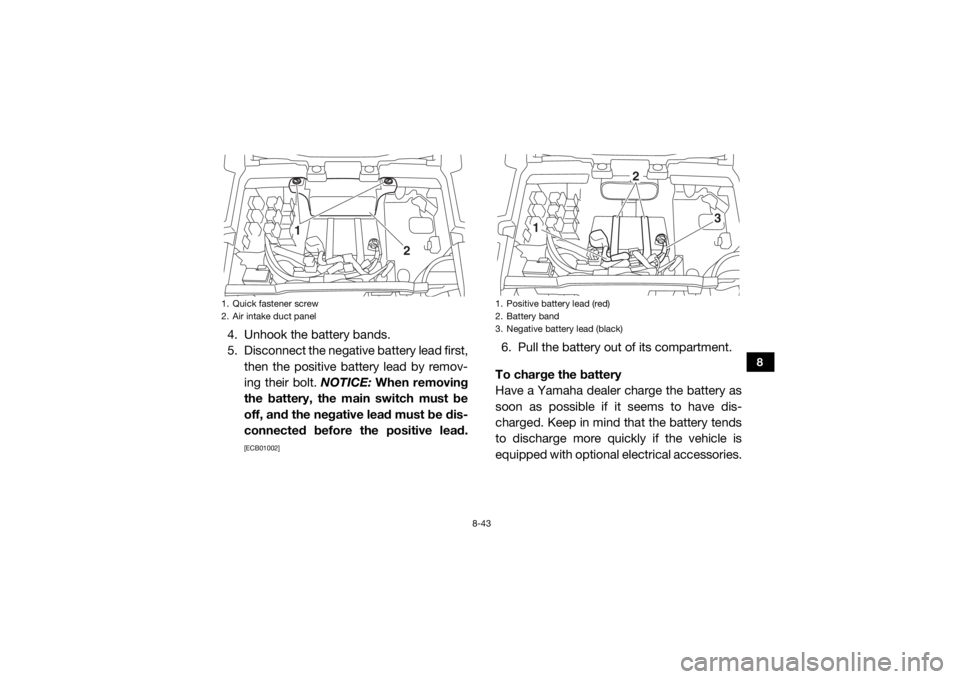

1. Positive battery lead (red)
2. Battery band
3. Negative battery lead (black)
2
1
3
