2016 VOLVO V60 CROSS COUNTRY Owner´s Manual

11 Specifications
11
383

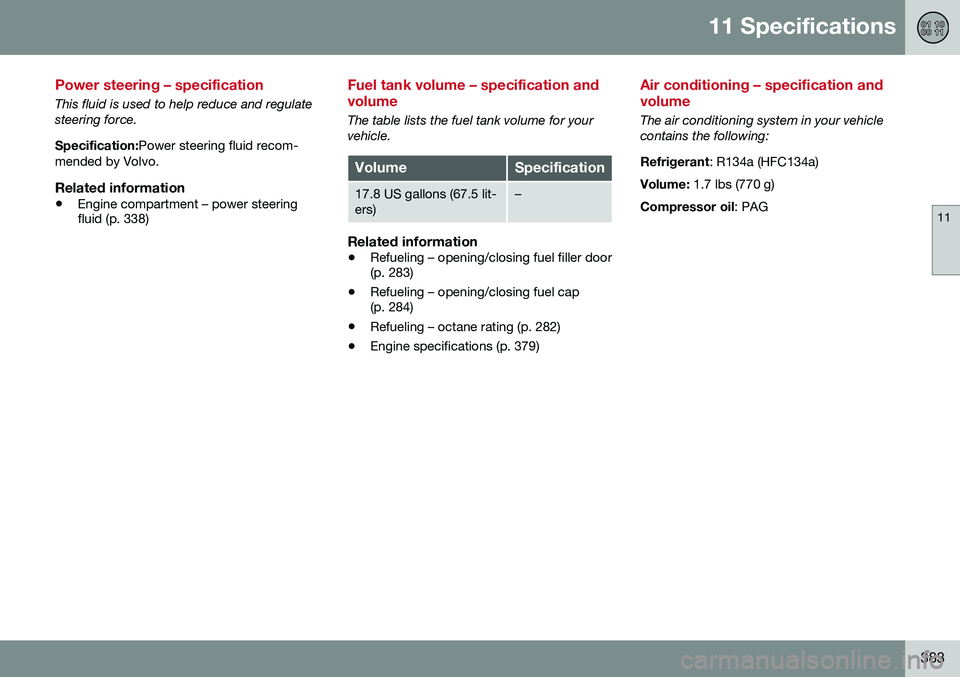

Power steering – specification
This fluid is used to help reduce and regulate steering force. Specification:Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 338)
Fuel tank volume – specification and volume
The table lists the fuel tank volume for your vehicle.
VolumeSpecification
17.8 US gallons (67.5 lit- ers)–
Related information
•Refueling – opening/closing fuel filler door (p. 283)
• Refueling – opening/closing fuel cap(p. 284)
• Refueling – octane rating (p. 282)
• Engine specifications (p. 379)
Air conditioning – specification and volume
The air conditioning system in your vehicle contains the following: Refrigerant
: R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG

11 Specifications
11
384* Option/accessory, for more information, see Introduction.
Battery specifications
If the battery is replaced, replace it with a bat- tery of the same cold start capacity as theoriginal (see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop*12800 A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop

11 Specifications
11
}}
385

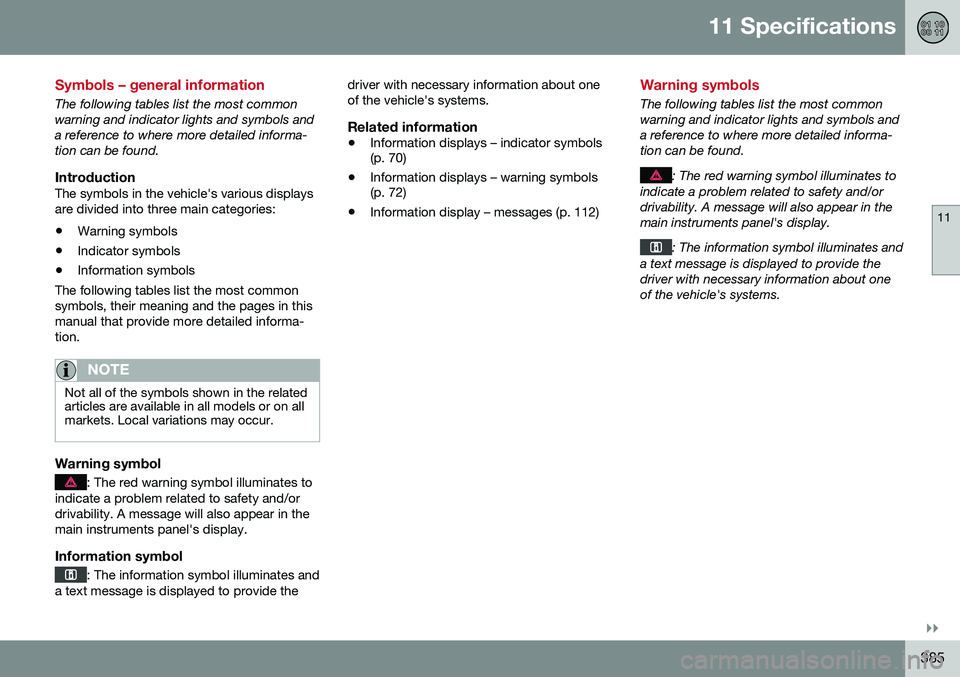

Symbols – general information
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
IntroductionThe symbols in the vehicle's various displaysare divided into three main categories:• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about one of the vehicle's systems.
Related information
•
Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Warning symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.

||
11 Specifications
11
386* Option/accessory, for more information, see Introduction.
Symbols in the main instrument panel
Warning symbols in the instrument panel
SymbolDescriptionSee
Low oil pressure(p. 72)
Parking brake A(p. 72)
SRS airbags(p. 72)
Seat belt reminder(p. 72)
Generator not charg- ing(p. 72)
Fault in the brake sys- tem(p. 72)
Warning symbol(p. 72)
A
The symbol is Park only on models with the optional digital
instrument panel.
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Indicator symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Indicator symbols in the instrument
panel
SymbolDescriptionSee
Fault in the Active Bending Light(ABL)*system(p. 70)
Malfunction indicator light(p. 70)
Anti-lock brake sys- tem (ABS)(p. 70)
Rear fog lights on(p. 70)
SymbolDescriptionSee
Stability system, Hill Descent Control,Trailer StabilityAssist*(p. 70)
Tire pressure moni- toring sensor (TPMS)(p. 70)
Low fuel level(p. 70)
Information symbol, see text in informa-tion display(p. 70)
High beam indicator(p. 70)
Left turn signal indi- cator(p. 70)
Right turn signal indi- cator(p. 70)
Stability system , Sport mode(p. 170)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)

11 Specifications
11
* Option/accessory, for more information, see Introduction.387
Information symbols
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
Information symbols in the instrument
panel
SymbolDescriptionSee
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control *(p. 179)
Adaptive Cruise Control * (Distancealert)(p. 179)
Radar sensor*(p. 188)
SymbolDescriptionSee
Camera sensor, laser sensor(p. 210) (p. 203)
Collision Warning with Full Auto-brake and Pedes-trian Detection*(p. 215)
Active Bending Lights (ABL)*(p. 90)
Driver Alert Sys- tem*(p. 217)
Driver Alert Sys- tem*(p. 217)
Parking brake(p. 274)
Rain sensor*(p. 97)
Active High Beams (AHB)*(p. 88)
Windshield sensor*(p. 88)
SymbolDescriptionSee
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Driver Alert Sys- tem* (LaneDeparture Warning/Lane Keeping Aid)(p. 222)
Fuel tank on pas- senger's side of thevehicle(p. 283)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)

11 Specifications
11
388* Option/accessory, for more information, see Introduction.
Information symbols – ceiling console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Seat belt reminder(p. 30)
Occupant Weight Sen- sor(p. 36)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)
Information symbols – center console
The following tables list the most common warning and indicator lights and symbols anda reference to where more detailed informa-tion can be found.
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
: The information symbol illuminates and
a text message is displayed to provide the driver with necessary information about oneof the vehicle's systems.
SymbolDescriptionSee
Audio filesSensus Info- tainment sup-plement
CD folderSensus Info- tainment sup-plement
Video filesSensus Info- tainment sup-plement
Bluetooth- connected cellphoneSensus Info- tainment sup-plement
SymbolDescriptionSee
Bluetooth TM
hands-freeSensus Info- tainment sup-plement
HD radioSensus Info- tainment sup-plement
Park Assist*(p. 232)
Related information
• Information displays – indicator symbols (p. 70)
• Information displays – warning symbols(p. 72)
• Information display – messages (p. 112)

11 Specifications
11
389

12 Index
12
390
A
ABS (anti-lock brake system).................. 273
Accessory installation warning.................. 23
Active chassis system............................. 169
Active high beams..................................... 88Active yaw control........................... 169, 170
Adaptive brake lights............................... 273
Adaptive cruise control.................... 179, 180Airbags disconnecting the front passenger’s
side....................................................... 36
front...................................................... 33
inflatable curtain................................... 41
side impact........................................... 39
Air conditioning................................ 128, 129
Air distribution.................................. 124, 130
Air distribution table................................. 132
Air vents................................................... 124
Alarm........................................ 164, 165, 166
All Wheel Drive......................................... 269
Ambient temperature sensor..................... 75
Anti-freeze....................................... 280, 336Anti-lock brake system warning light......................................... 71
Anti-lock Brake System (ABS)................. 273 Approach lighting.............................. 96, 149
Auto-dim rearview mirror......................... 102
Automatic locking retractor....................... 47Automatic transmission
Eco (driving function).......................... 267
Geartronic........................................... 259
general description..................... 257, 259
oil........................................................ 382
shiftlock override................................ 261
Axle weight.............................................. 306
B
Battery maintenance............................... 351, 352
remote key, replacing......................... 154
replacing............................................. 352
specifications...................................... 384
start/stop............................................ 384
warning symbols................................. 350
Blind Spot Information System (BLIS)..... 245 Cross Traffic Alert (CTA)..................... 247
Booster cushion, integrated.......... 57, 59, 60
Booster cushions....................................... 54
Brake lights.............................................. 273 Brake system
ABS..................................................... 273
Brake pad inspection.......................... 271
checking fluid level............................. 337
emergency brake assistance.............. 274
fluid..................................................... 382
general information............................. 271
Hill Descent Control.................... 269, 270
Bulbs cargo area lighting.............................. 345
headlights... 339, 340, 341, 342, 343, 344
introduction......................................... 339
license plate lights.............................. 345
specifications...................................... 346
C
Camera, Park Assist................................ 241
Capacity weight....................................... 306Cargo area changing bulbs................................... 345
steel grid............................................. 143
Cargo area cover..................................... 143
Cargo area net......................................... 141
Cargo net................................................. 141
Catalytic converter................................... 285
