2016 VOLVO V60 CROSS COUNTRY Owner´s Manual

11 Specifications
11
}}
375

||
11 Specifications
11
376

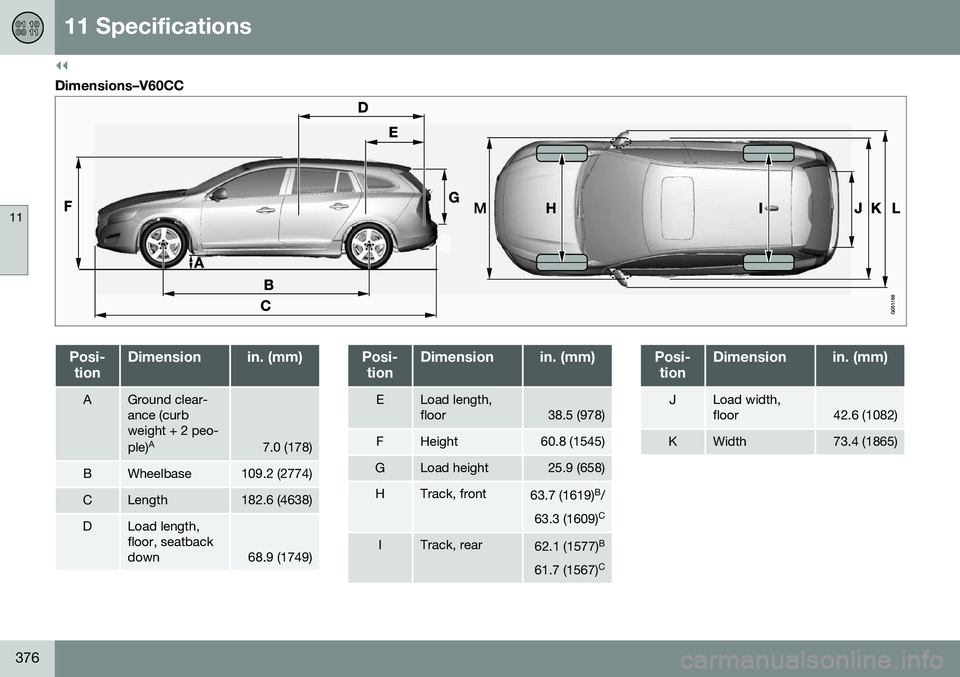

Dimensions–V60CC
Posi-tionDimensionin. (mm)
AGround clear- ance (curbweight + 2 peo- ple) A
7.0 (178)
BWheelbase109.2 (2774)
CLength182.6 (4638)
DLoad length, floor, seatbackdown
68.9 (1749)
Posi-
tionDimensionin. (mm)
ELoad length, floor38.5 (978)
FHeight60.8 (1545)
GLoad height25.9 (658)
HTrack, front63.7 (1619) B
/
63.3 (1609) C
ITrack, rear62.1 (1577)
B
61.7 (1567) C
Posi-
tionDimensionin. (mm)
JLoad width, floor42.6 (1082)
KWidth73.4 (1865)

11 Specifications
11
377

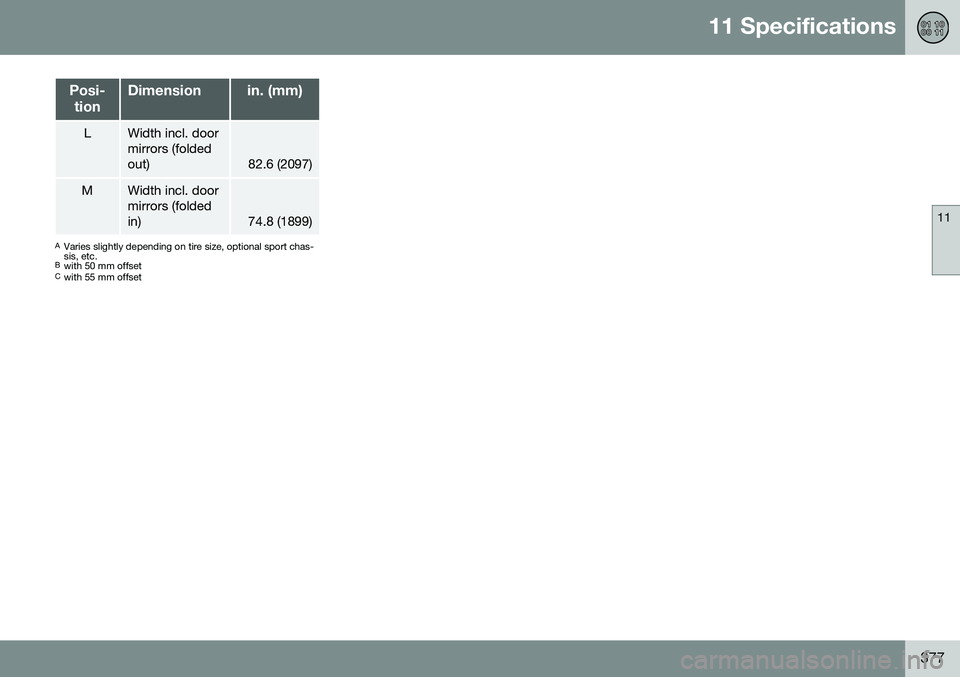

Posi-tionDimensionin. (mm)
LWidth incl. door mirrors (foldedout)
82.6 (2097)
MWidth incl. door mirrors (foldedin)
74.8 (1899)
A Varies slightly depending on tire size, optional sport chas- sis, etc.
B with 50 mm offset
C with 55 mm offset

11 Specifications
11
378

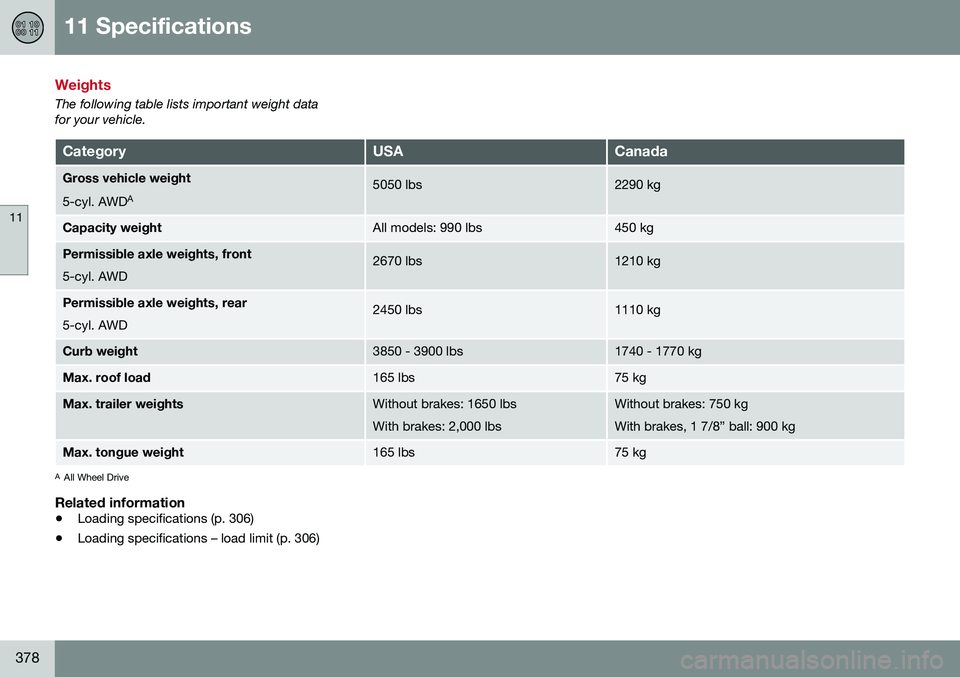

Weights
The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 5-cyl. AWDA5050 lbs2290 kg
Capacity weightAll models: 990 lbs450 kg
Permissible axle weights, front 5-cyl. AWD2670 lbs1210 kg
Permissible axle weights, rear 5-cyl. AWD2450 lbs1110 kg
Curb weight3850 - 3900 lbs1740 - 1770 kg
Max. roof load165 lbs75 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes: 2,000 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kg
Max. tongue weight165 lbs75 kg
A
All Wheel Drive
Related information
• Loading specifications (p. 306)
• Loading specifications – load limit (p. 306)

11 Specifications
11
379
Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model5-cyl. T12
Engine designationB5254T12
Output (kW/rps)187/90
Output (hp/rpm)250/5400 rpm
Torque (Nm/rps)360/30-70
Torque (ft. lbs./rpm)266/1800-4200
No. of cylinders5
Bore (in/mm)3.27/83
Stroke (in/mm)3.63/92.3
Displacement2.497 liters / (152.4 cu. in.)
Compression ratio9.5:1
Related information
•
Coolant – specification and volume (p. 382)
• Oil specifications (p. 380)
• Oil volume (p. 381)

11 Specifications
11
380
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
Related information
•
Oil volume (p. 381)
• Engine compartment – engine oil (p. 334)

11 Specifications
11
381
Oil volume
The following table provides technical data for the respective engines. Some of theseengines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
Related information
•
Engine compartment – engine oil (p. 334)
• Oil specifications (p. 380)

11 Specifications
11
382
Coolant – specification and volume
The table lists coolant volumes and specifica- tions.
Sys- temVolumeSpecification
T59.4 US qts. (8.9 liters)Coolant with cor- rosion inhibitormixed with water(50/50 mix), seepackaging.
--
Related information
•Engine compartment – coolant (p. 336)
Transmission oil – specification and volumes
The table lists transmission oil 1
volumes and
specifications.
Auto- matictrans-missionVolumeSpecifi- cation
TF-80SC7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 371)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylin-der and to the slave cylinders on each wheel. Specification:
DOT 4 boiling point >536 °F
(>280 °C) Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 337)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
