2016 VOLVO S60 CROSS COUNTRY Owner´s Manual

11 Specifications
11
}}
367
Dimensions
This section lists your vehicle's most impor- tant dimensions.
Dimensions–S60
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people)A4.9 (124 )
BWheelbase109.3 (2776)
CLength182.5 (4635)
DLoad length, floor, seatback down68.9 (1749)
ELoad length, floor38.0 (965)
FHeight???

||
11 Specifications
11
368

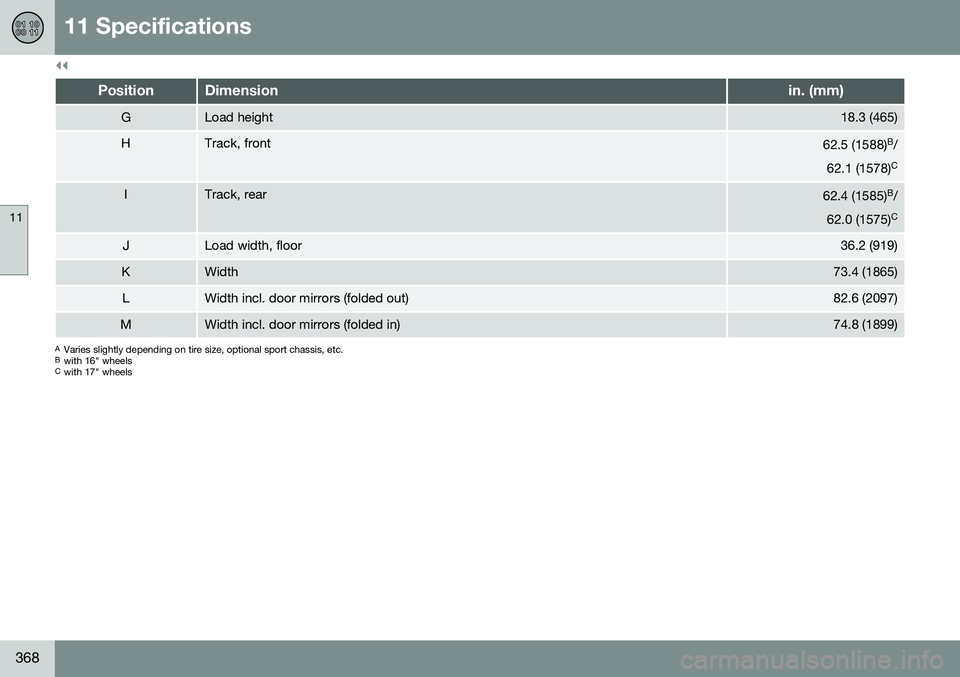

PositionDimensionin. (mm)
GLoad height18.3 (465)
HTrack, front62.5 (1588)B
/
62.1 (1578) C
ITrack, rear62.4 (1585)B
/
62.0 (1575) C
JLoad width, floor36.2 (919)
KWidth73.4 (1865)
LWidth incl. door mirrors (folded out)82.6 (2097)
MWidth incl. door mirrors (folded in)74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 16" wheels
C with 17" wheels

11 Specifications
11
369
Weights
The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 5-cyl. AWD (All Wheel Drive)4850 lbs2200 kg
Capacity weight 5-cyl. AWD (All Wheel Drive)990 lbs450 kg
Permissible axle weights, front 5-cyl. AWD (All Wheel Drive)2670 lbs1210 kg
Permissible axle weights, rear 5-cyl. AWD2270 lbs1030 kg
Curb weight3824 - 3831 lbs1725 - 1735 kg
Max. roof load165 lbs75 kg
Max. trailer weightsWithout brakes: N/A With brakes, N/AWith brakes, N/AWithout brakes: N/A With brakes, N/AWith brakes, N/A
Max. tongue weightN/AN/A
Related information
•Loading specifications (p. 298)
• Loading specifications – load limit (p. 298)

11 Specifications
11
370
Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model5-cyl.
Engine designationB5254T12
Output (kW/rps)187/90
Output (hp/rpm)250/5400 rpm
Torque (Nm/rps)360/30-70
Torque (ft. lbs./rpm)266/1800-4200
No. of cylinders5
Bore (in/mm)3.27/83
Stroke (in/mm)3.63/92.3
Displacement2.497 liters / (152.4 cu. in.)
Compression ratio9.5:1
Related information
•
Coolant – specification and volume (p. 373)
• Oil specifications (p. 371)
• Oil volume (p. 372)

11 Specifications
11
371
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only:
Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
Related information
• Oil volume (p. 372)
• Engine compartment – engine oil (p. 326)

11 Specifications
11
372
Oil volume
The following table provides technical data for the respective engines. Some of theseengines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine modelVolume (incl. filter)
3.0 T6 (6 cyl.)B6304T47.18 US qts (6.8 liters)
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Related information
•
Engine compartment – engine oil (p. 326)
• Oil specifications (p. 371)

11 Specifications
11
373
Coolant – specification and volume
The table lists coolant volumes and specifica- tions.
SystemVolumeSpecifica- tion
3.0T/T59.4 US qts. (8.9 liters)Coolant with corrosioninhibitor mixedwith water(50/50 mix),see packaging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Related information
•Engine compartment – coolant (p. 328)
Transmission oil – specification and volumes
The table lists transmission oil 1
volumes and
specifications.
Auto- matictrans-missionVolumeSpecifi- cation
TF-80SC7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 364)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylin-der and to the slave cylinders on each wheel. Specification:
DOT 4 boiling point >536 °F
(>280 °C) Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 329)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

11 Specifications
11
374
Power steering – specification
This fluid is used to help reduce and regulate steering force. Specification:Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 330)
Fuel tank volume – specification and volume
The table lists the fuel tank volume for your vehicle.
VolumeSpecification
17.8 US gallons (67.5 lit- ers)–
Related information
•Refueling – opening/closing fuel filler door (p. 275)
• Refueling – opening/closing fuel cap(p. 276)
• Refueling – octane rating (p. 274)
• Engine specifications (p. 370)
Air conditioning – specification and volume
The air conditioning system in your vehicle contains the following: Refrigerant
: R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG
