2016 VAUXHALL VIVARO Owner's Manual

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 42, Seat adjustment
3 43.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage. Do not lean on backrest
when adjusting.
Seat position 3 42, Seat adjustment
3 43.
Seat height
Lever pumping motion:
up:seat higherdown:seat lower
Seat position 3 42, Seat adjustment
3 43.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 41.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25°).
To release belt, press red button on
belt buckle.
Seat position 3 42, Seat belts
3 48, Airbag system 3 52.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever onthe underside of the mirror housing.
Interior mirror, Wide view mirror
3 37, Automatic anti-dazzle interior
mirror 3 38.

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 36.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 36,
Electric adjustment 3 36, Folding
exterior mirrors 3 36, Heated
exterior mirrors 3 37.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 52, Ignition
positions 3 114.

10In briefInstrument panel overview

In brief111Side air vents ...................... 109
2 Ashtray .................................. 78
Cupholder ............................ 66
3 Light switch .......................... 95
Rear fog light ......................... 98
Front fog lights .....................98
Exit lighting .......................... 100
Turn and lane-change
signals ................................... 97
Sidelights .............................. 95
Headlight flash, low beam
and high beam ......................96
4 Instruments .......................... 78
Driver Information Centre
(DIC) ..................................... 89
5 Horn ...................................... 74
Driver airbag ......................... 55
6 Windscreen wiper,
windscreen washer system ..75
Rear window wiper, rear
window washer system ........76
Trip computer ....................... 917Card reader for electronic
key system ............................ 22
8 Steering column controls ......74
9 Centre air vents ................... 109
10 Power outlet .......................... 77
Cigarette lighter ..................... 78
Coin tray, USB slot ................ 65
11 Driver Information Centre
(DIC) ..................................... 89
Trip computer ....................... 91
12 Front passenger airbag .........55
13 Glovebox .............................. 65
14 Heated exterior mirrors .........37
Heated rear window ..............40
Idle speed control ...............116
15 Power outlet .......................... 77
Cigarette lighter ..................... 78
16 Climate control system ........ 101
Electronic climate control
system ................................. 103
17 Ashtray .................................. 78
Cupholder ............................ 6618Hazard warning flashers .......97
Central locking system ..........23
19 Power button for electronic
key system .......................... 114
20 Eco button for fuel
economy mode ...................112
21 Stop-start system ................117
Cruise control and speed
limiter ................................. 131
22 Remote control on
steering wheel ......................74
Cruise control .....................131
23 Ignition switch with
steering wheel lock .............114
24 Steering wheel adjustment ...74
25 Bonnet release lever ...........144
26 Fuse box ............................. 159
27 Ultrasonic parking assist ....134
Electronic Stability
Program (ESP® Plus
)............ 129
Traction Control system
(TC) ..................................... 128

12In briefHeadlight range
adjustment ........................... 96
Instrument panel
illumination control ................98
Auxiliary heater ...................106
Speed limiter ....................... 134Exterior lighting
Turn outer switch:
7:off8:sidelights9P:headlights
Vehicles with automatic light control:
AUTO:automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 95, Automatic light
control 3 95, Headlight warning
device 3 90, Adaptive forward
lighting 3 97.

In brief13Front and rear fog lights
Turn inner switch
>:front fog lightsr:rear fog light
Front fog lights 3 98, Rear fog light
3 98.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 95, High
beam 3 96, Headlight flash 3 96.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 97.

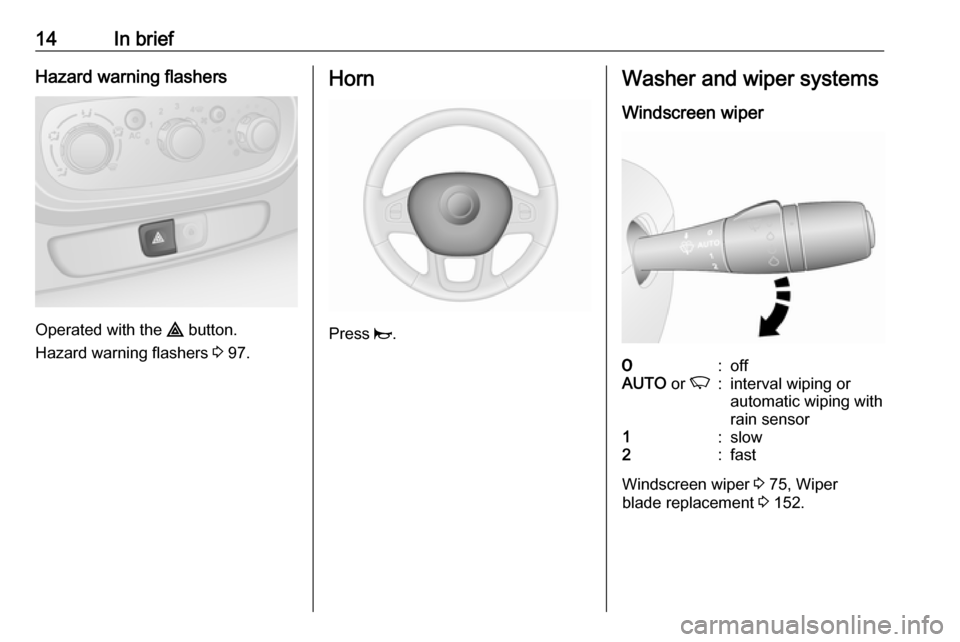

14In briefHazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 97.
Horn
Press j.
Washer and wiper systems
Windscreen wiper7:offAUTO or K:interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 75, Wiper
blade replacement 3 152.
