526
VERSO_EE_OM64590E

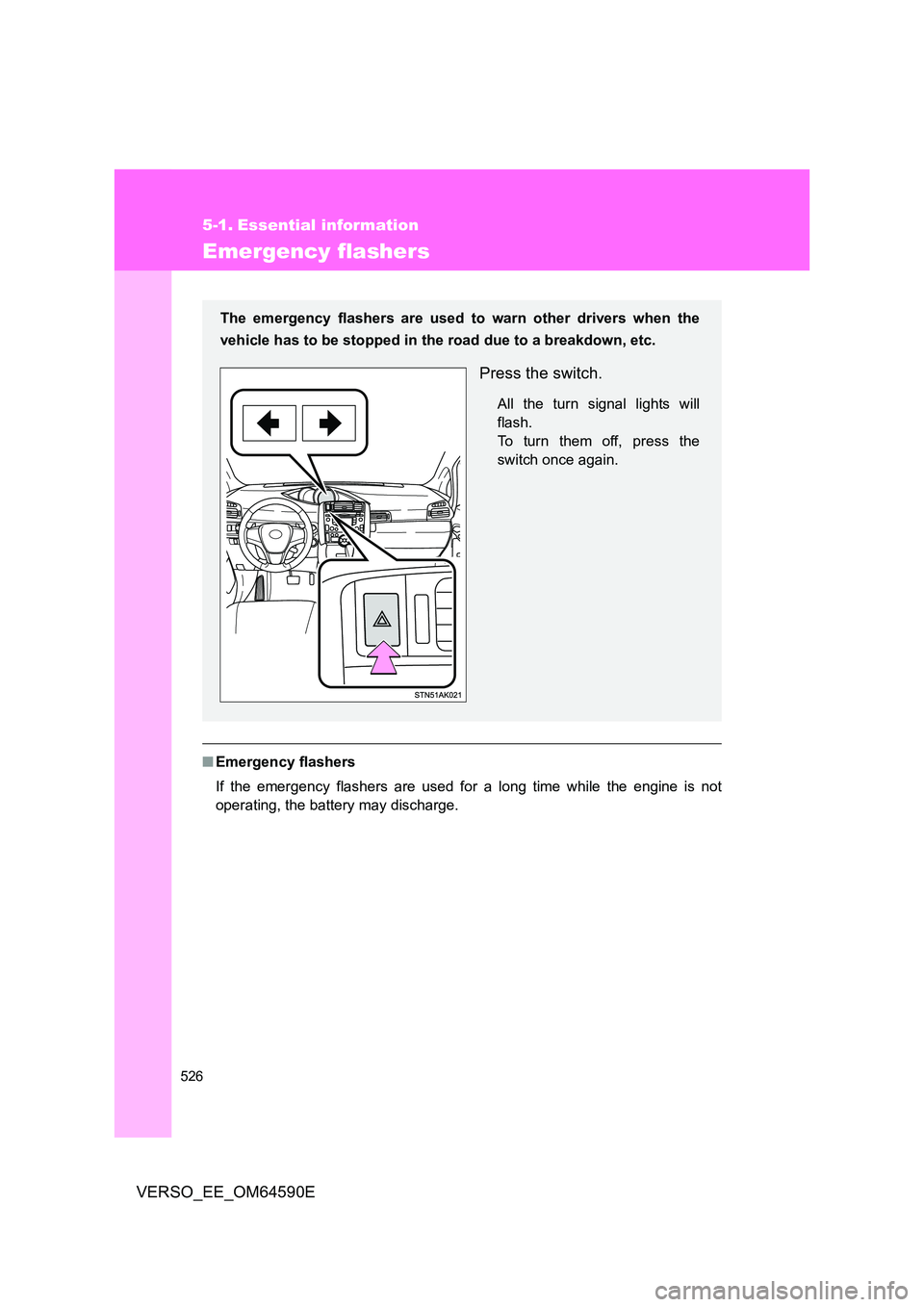

5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.

5
543
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
■ If the tire pressure warning system is not functioning (vehicles with a
tire pressure warning light system)
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters
are used
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
● If the tire inflation pressure is 380 kPa (3.9 kgf/cm2 or bar, 55 psi) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby
● If a radio set at a similar frequency is in use in the vehicle
● If a window tint that affects the radio wave signals is installed
● If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
● If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
● If tire chains are used
■ If the tire pressure warning light frequently comes on after blinking for
1 minute (vehicles with a tire pressure warning light system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch (vehicles without smart entry & start system)
or the “ENGINE START STOP” switch (vehicles with smart entry & start sys-
tem) is turned on, have it checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

636
6-1. Specifications
VERSO_EE_OM64590E
Light bulbs
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
Exterior
Headlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)
55
35
60
A
B
C
Front fog lights 19 D
Front position lights/daytime running
lights (Bulb type) 21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
Interior
Front personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I

651
Alphabetical index
VERSO_EE_OM64590E
Floor mat .................................. 413
Fluid
Washer.................................. 459
Fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Foot lights ................................ 388
Front fog lights
Replacing light bulbs ............. 500
Switch ................................... 254
Wattage................................. 636
Front position lights
Replacing light bulbs ............. 500
Switch ................................... 248
Wattage................................. 636
Front seats
Adjustment .............................. 84
Front turn signal lights
Replacing light bulbs ............. 500
Switch ................................... 218
Wattage................................. 636
Fuel
Capacity ................................ 621
Fuel gauge ............................ 222
Fuel pump shut off system .... 535
Gas station information ......... 664
Information ............................ 637
Refueling ............................... 119
Type ...................................... 621
Fuel door .................................. 119
Fuel filler door .......................... 119
Fuel filter................................... 460
Fuel pump shut off system ..... 535
Fuses ........................................ 485
Gas station information .......... 664
Gauges ..................................... 222
Glove box ................................. 394
Glove box light......................... 394
Hazard lights
Switch ................................... 526
Head restraints
Adjusting ................................. 94
Headlight cleaners................... 258
Headlights
Automatic High Beam ........... 283
Discharged headlights
precautions......................... 523
Replacing light bulbs............. 500
Switch ................................... 248
Wattage ................................ 636
Heaters
Seat heaters ......................... 406
Side mirror ............................ 349
Hill-start assist control............ 311
Hood ......................................... 440
Hooks
Cargo hooks ......................... 415
Horn .......................................... 221
FG
H

653
Alphabetical index
VERSO_EE_OM64590E
Lane Departure Alert (LDA) .... 278
LDA (Lane Departure Alert) .... 278
License plate lights
Replacing light bulbs ............. 500
Switch ................................... 248
Wattage................................. 636
Light bulbs
Replacing .............................. 500
Wattage................................. 636
Lights
Automatic High Beam ........... 283
Door courtesy lights .............. 388
Emergency flasher switch ..... 526
Fog light switch ..................... 254
Foot lights ............................. 388
Front door courtesy lights ..... 388
Hazard light switch ................ 526
Headlight switch .................... 248
Luggage compartment light .... 80
Personal/interior light
switch.......................... 389, 390
Replacing light bulbs ............. 500
Turn signal lever ................... 218
Vanity lights........................... 403
Wattage................................. 636
Luggage compartment
Auxiliary boxes ...................... 416
Cargo hooks.......................... 415
Luggage cover ...................... 417
Luggage cover ......................... 417
Maintenance
Do-it-yourself
maintenance ....................... 436
Maintenance data ................. 616
Maintenance
requirements ...................... 433
Manual air conditioning
system .................................... 334
Manual headlight leveling
dial .......................................... 249
Manual transmission
Gear Shift Indicator ............... 215
Manual transmission ............. 214
Meter
Instrument cluster light
control................................. 224
Meters ................................... 222
Mirrors
Inside rear view mirror .......... 105
Side mirror heater ................. 349
Side mirrors .......................... 109
Vanity mirrors........................ 403
MP3 disc ................................... 362
Multi-information
display .................................... 232
Multidrive
7-speed sport sequential
shiftmatic mode .................. 211
If the shift lever cannot be
shifted from “P”................... 597
Multidrive .............................. 208
LM

654
Alphabetical index
VERSO_EE_OM64590E
Odometer .................................. 222
Oil
Engine oil .............................. 447
Opener
Fuel filler door ....................... 119
Hood ..................................... 440
Outside rear view mirrors
Adjusting and folding............. 109
Outside temperature
display .................................... 233
Overhead console.................... 397
Overheating, Engine ................ 607
Panoramic roof shade ............. 116
Parking brake ........................... 219
PCS (Pre-Collision System) .... 267
Function ................................ 267
PCS switch............................ 268
Warning light ......................... 539
Personal/interior lights
Switch ........................... 389, 390
Wattage................................. 636
Power heater ............................ 347
Power outlets ........................... 404
Power windows ........................ 112
Pre-Collision System (PCS) .... 267
Function ................................ 267
PCS switch............................ 268
Warning light ......................... 539
Radiator .................................... 454
Radio......................................... 353
Rear fog light
Replacing light bulb .............. 500
Switch ................................... 254
Wattage ................................ 636
Rear seats
Adjustment .............................. 86
Folding the seats .................... 89
Rear side sunshades............... 411
Rear turn signal lights
Replacing light bulbs............. 500
Switch ................................... 218
Wattage ................................ 636
Rear window defogger ............ 349
Rear window wiper and
washer .................................... 260
Replacing
Fuses .................................... 485
Key battery............................ 481
Light bulbs ............................ 500
Tires ...................................... 560
Roof luggage carrier ............... 317
O
P
R

655
Alphabetical index
VERSO_EE_OM64590E
Seat belts
Adjusting the seat belt............. 96
Child restraint system
installation........................... 167
Cleaning and maintaining
the seat belts ...................... 431
Emergency Locking
Retractor............................. 100
How to wear your seat belt ..... 96
How your child should wear
the seat belt ........................ 100
Pregnant women, proper seat
belt use ............................... 101
Rear passenger’s seat belt
reminder light.............. 231, 539
Reminder light ....................... 539
Seat belt pretensioners ......... 100
Seat heaters ............................. 406
Seatback tables........................ 409
Seats
Adjustment ........................ 84, 86
Adjustment precautions .... 85, 93
Child seats/child restraint
system installation .............. 167
Cleaning ................................ 430
Front seats adjustment ........... 84
Head restraints........................ 94
Properly sitting in the seat..... 146
Rear seats adjustment ............ 86
Seat heaters.......................... 406
Sensor
Automatic High Beam ........... 263
Headlight............................... 251
Inside rear view mirror .......... 107
LDA
(Lane Departure Alert)........ 263
PCS
(Pre-Collision System)........ 263
Rain-sensing wind shield
wipers ................................. 258
Service reminder
indicators .............................. 227
Shift lever
If the shift lever cannot
be shifted from “P” .............. 597
Manual transmission ............. 214
Multidrive .............................. 208
Shift lock system ..................... 597
Side airbags ............................. 148
Side mirrors
Adjusting and folding ............ 109
Side turn signal lights
Replacing light bulbs............. 500
Switch ................................... 218
Wattage ................................ 636
Smart entry & start system
Antenna location ..................... 44
Entry function .......................... 42
Starting the engine................ 202
S

657
Alphabetical index
VERSO_EE_OM64590E
Tachometer .............................. 222
Tail lights
Replacing light bulbs ............. 500
Switch ................................... 248
Wattage................................. 636
Theft deterrent system
Alarm..................................... 137
Double locking system .......... 135
Engine immobilizer system ... 124
Intrusion sensor .................... 139
Tire inflation pressure ............. 473
Tire pressure warning
system .................................... 462
Function ................................ 462
Initializing .............................. 463
Installing tire pressure
warning valves and
transmitters......................... 462
Registering ID codes............. 465
Tire pressure warning
reset switch......................... 463
Warning light ......................... 539
Tires
Chains................................... 322
Checking ............................... 461
Emergency tire puncture
repair kit.............................. 577
If you have a flat
tire .............................. 560, 577
Inflation pressure .................. 473
Replacing .............................. 560
Rotating tires......................... 461
Size ....................................... 633
Snow tires ............................. 320
Spare tire .............................. 560
Tire pressure warning
system ................................ 462
Tools ................................. 560, 577
Towing
Emergency towing ................ 529
Trailer towing ........................ 324
Toyota parking
assist-sensor ......................... 296
Traction control ....................... 311
Trailer towing ........................... 324
Transmission shift switches .. 208
TRC ........................................... 311
Trip information display.......... 233
Trip meter ................................. 222
Turn signal lights
Replacing light bulbs............. 500
Switch ................................... 218
Wattage ................................ 636
T
