2016 TOYOTA VERSO turn signal

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
■ Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Ta i l l i g h t
Rear fog light*2
License plate lights
Rear turn signal light
Back-up light*1
Rear fog light*1
Back-up light*2

502
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
When replacing the light bulbs
■ When replacing the following bulbs:
● Headlight (halogen headlights)
● Front position light/daytime running light (halogen headlights)
● Front turn signal light
■ Before replacing the bulbs
Left side
Remove the upper part of the air cleaner duct.
Remove the securing clip.
Move the upper part of the air
cleaner duct forward and
back.
Remove the duct part while
turning it.
After replacing the bulbs, make
sure to firmly install the upper part
of the air cleaner duct and secure
it with the clip.

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Remove the light bulb.
When installing, reverse the steps listed.
■ Front turn signal light
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.

512
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Remove the light bulb.
When installing, reverse the steps listed.
■ Side turn signal lights
Insert a flathead screwdriver and
release the claw for the outside
rear view mirror cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Release the cover claws span-
ning over the entire perimeter.
Claw

513
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

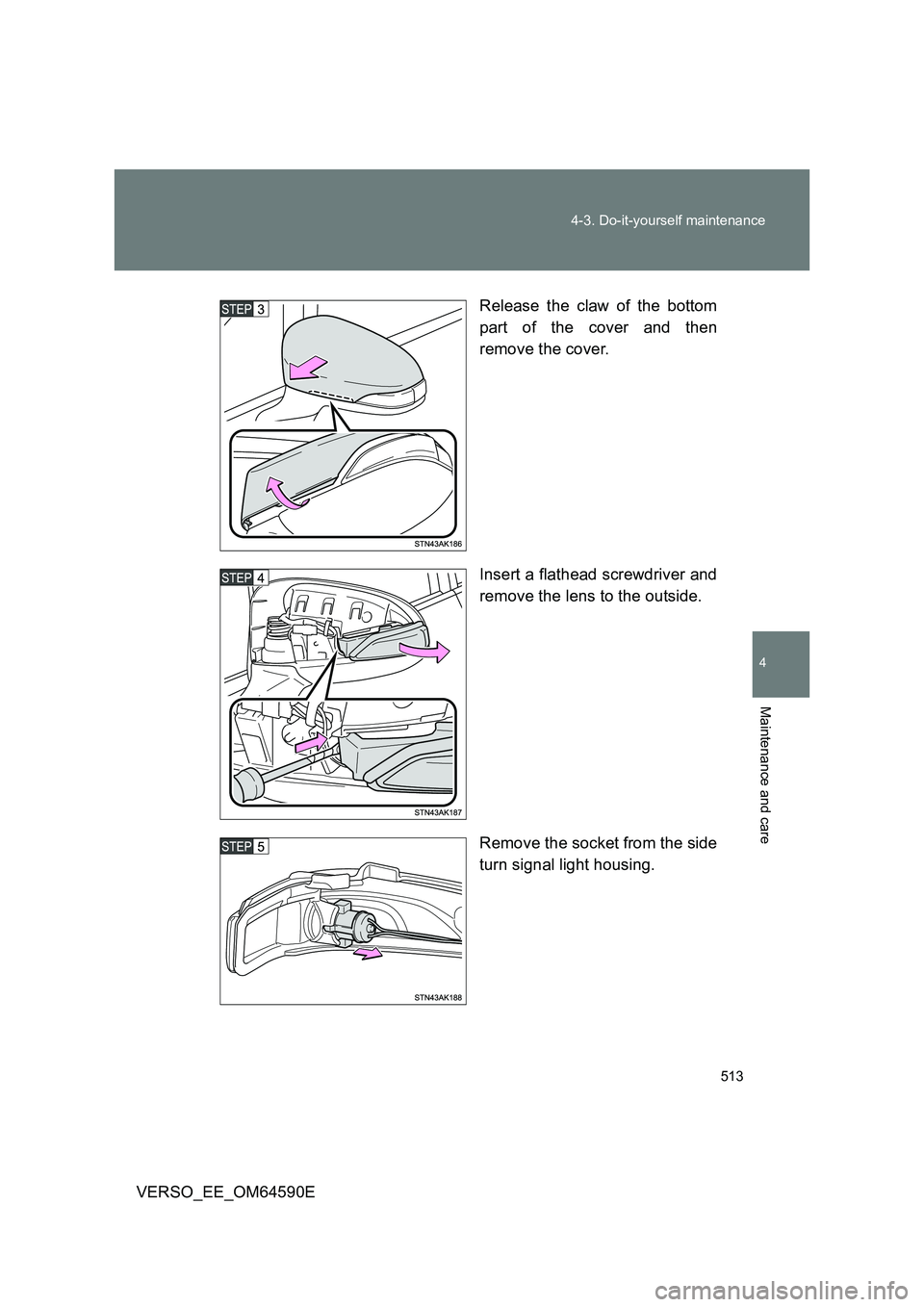

Release the claw of the bottom
part of the cover and then
remove the cover.
Insert a flathead screwdriver and
remove the lens to the outside.
Remove the socket from the side
turn signal light housing.

514
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Remove the bulb.
Replace the bulb and install the
socket to the side turn signal
light housing.
Align the grooves of the socket to
the side turn signal light housing.
Insert the claw of the lens.
Attach the lens.
Arrange the wire harness on the
back side of the lens.

516
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

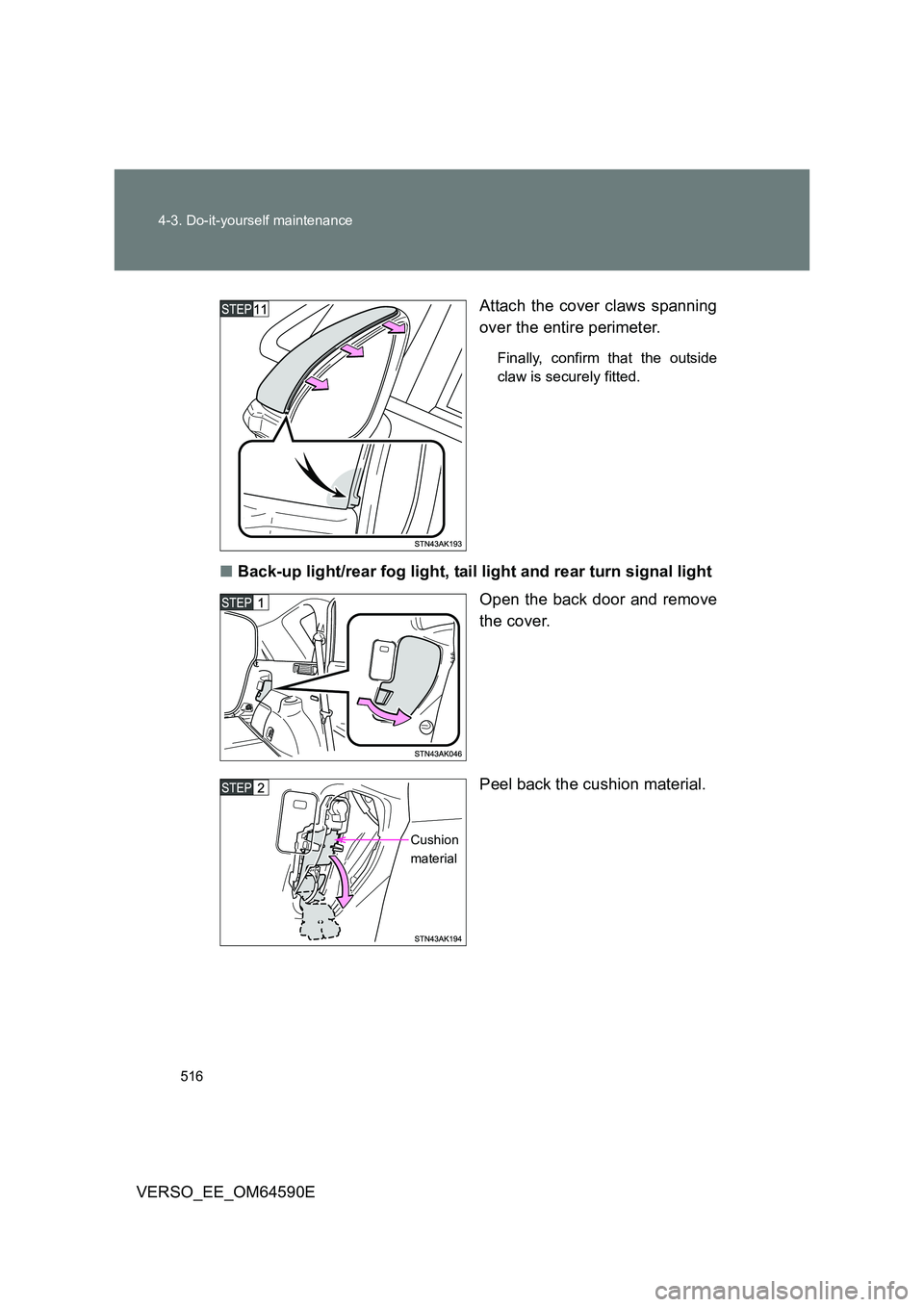

Attach the cover claws spanning
over the entire perimeter.
Finally, confirm that the outside
claw is securely fitted.
■ Back-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Peel back the cushion material.
Cushion
material

517
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Align the tabs and while pushing,
twist and install the bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Check that the wire harness is
attached to the clamp.
