2016 TOYOTA VERSO stop start

141
1-6. Theft deterrent system
1
Before driving
VERSO_EE_OM64590E
■ When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automati-
cally lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm
is activated.
● While the alarm is activated, a person remaining in the vehicle unlocks
the door.
● When recharging or replacing the battery.
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● Vehicles without smart entry & start system: After the intrusion sensor is
canceled, turn the engine switch to the “ON” position or unlocking the
doors using the wireless remote control will re-enable the intrusion sen-
sor.
● Vehicles with smart entry & start system: After the intrusion sensor is
canceled, pressing the “ENGINE START STOP” switch or unlocking the
doors using the smart entry & start system or wireless remote control will
re-enable the intrusion sensor.
● When the alarm system is set again, the intrusion sensor will also be set.
■ Intrusion sensor considerations
The sensor may trigger the alarm in the following situations.
● Persons or pets are in the vehicle.

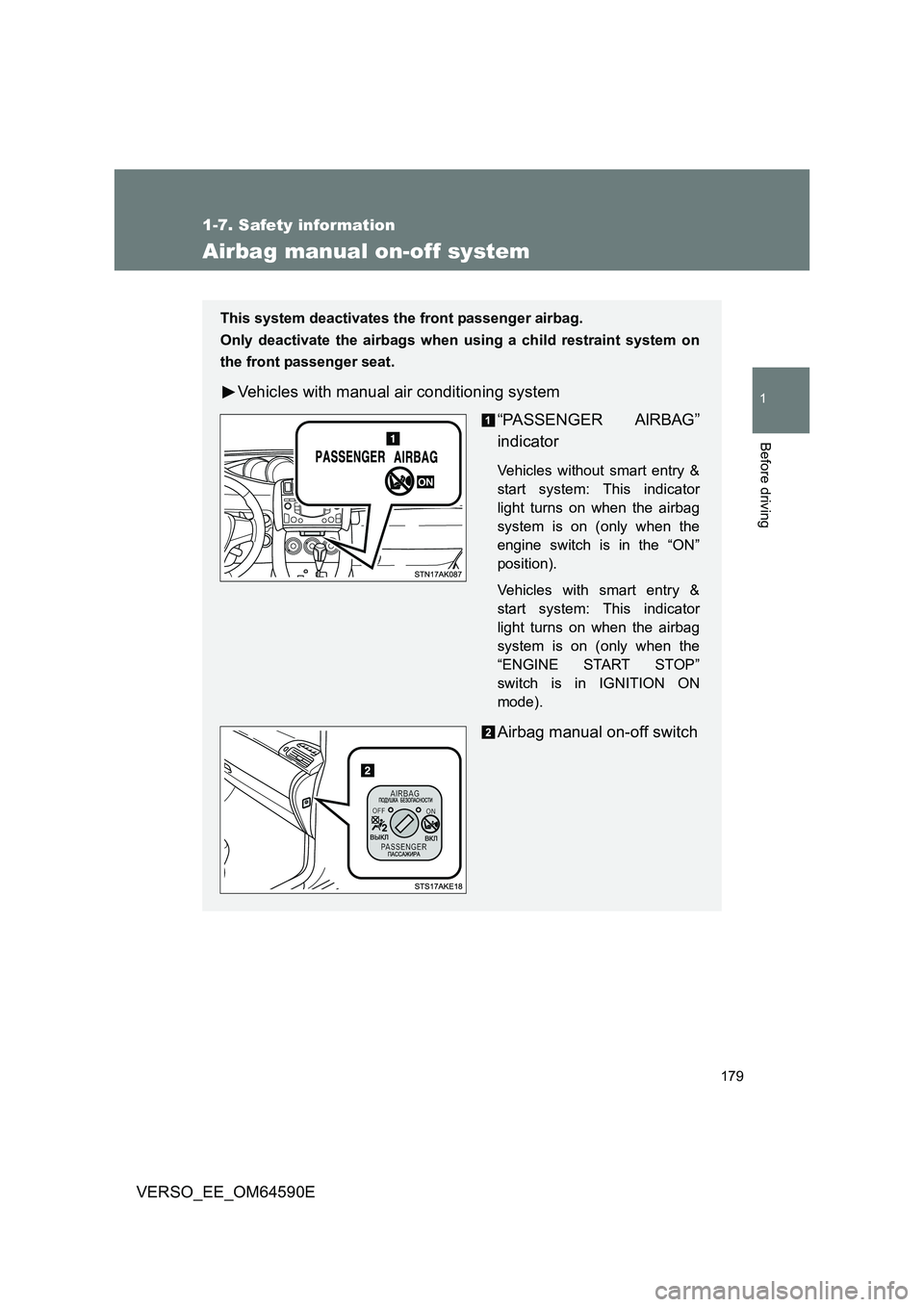

179
1
1-7. Safety information
Before driving
VERSO_EE_OM64590E
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Vehicles with manual air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
engine switch is in the “ON”
position).
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode).
Airbag manual on-off switch

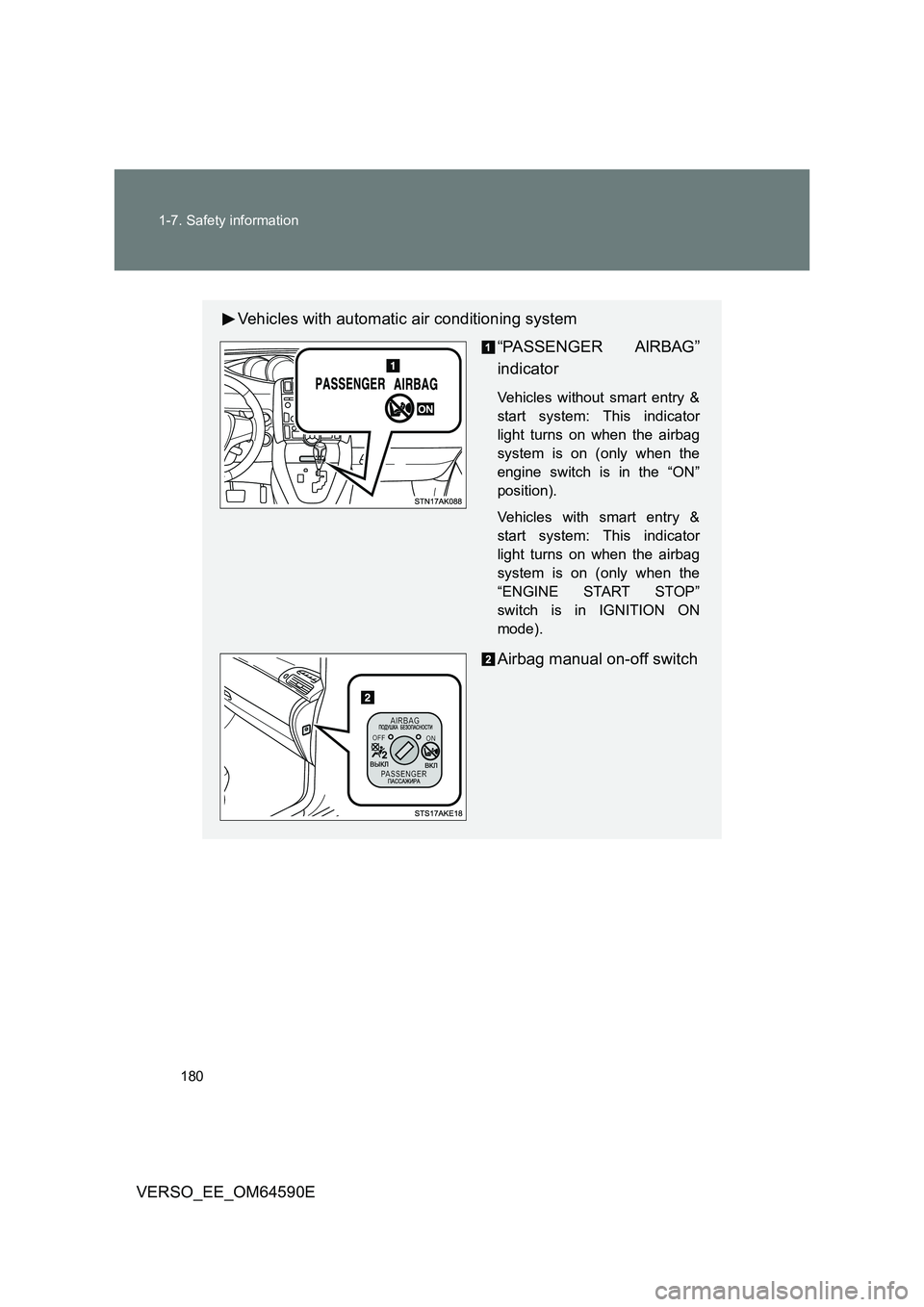

180
1-7. Safety information
VERSO_EE_OM64590E
Vehicles with automatic air conditioning system
“PASSENGER AIRBAG”
indicator
Vehicles without smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
engine switch is in the “ON”
position).
Vehicles with smart entry &
start system: This indicator
light turns on when the airbag
system is on (only when the
“ENGINE START STOP”
switch is in IGNITION ON
mode).
Airbag manual on-off switch

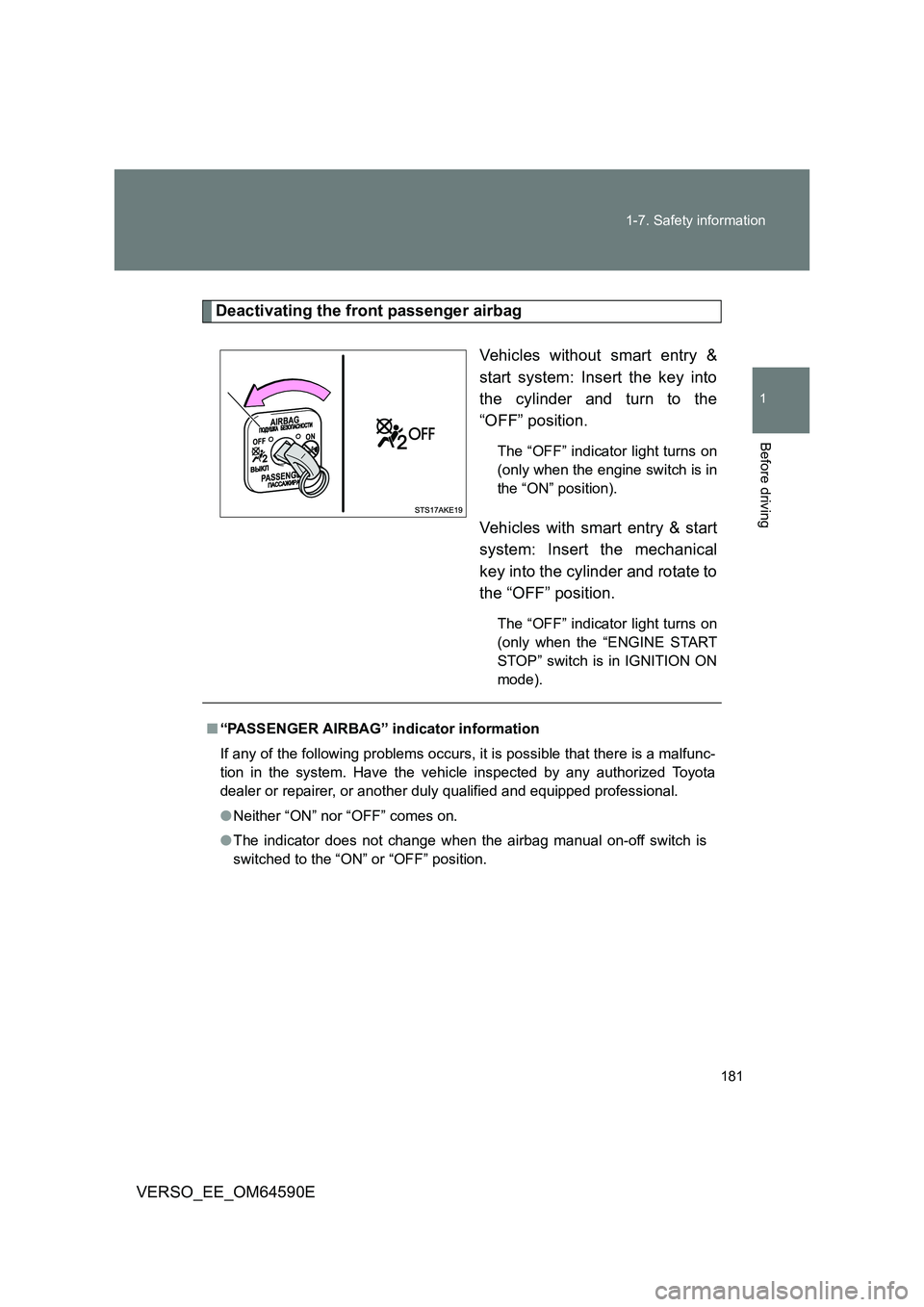

181
1-7. Safety information
1
Before driving
VERSO_EE_OM64590E
Deactivating the front passenger airbag
Vehicles without smart entry &
start system: Insert the key into
the cylinder and turn to the
“OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with smart entry & start
system: Insert the mechanical
key into the cylinder and rotate to
the “OFF” position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
■ “PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
● Neither “ON” nor “OFF” comes on.
● The indicator does not change when the airbag manual on-off switch is
switched to the “ON” or “OFF” position.

2When driving
183
VERSO_EE_OM64590E
2-1. Driving procedures
Driving the vehicle ............ 184
Engine (ignition) switch
(vehicles without smart
entry & start system)....... 198
Engine (ignition) switch
(vehicles with smart
entry & start system)....... 202
Multidrive .......................... 208
Manual transmission......... 214
Turn signal lever ............... 218
Parking brake ................... 219
Horn .................................. 221
2-2. Instrument cluster
Gauges and meters .......... 222
Indicators and warning
lights ............................... 227
Multi-information display ... 232
Fuel consumption
information ...................... 244
2-3. Operating the lights and
wipers
Headlight switch ............... 248
Fog light switch ................. 254
Windshield wipers and
washer ............................ 255
Rear window wiper and
washer ............................ 260
2-4. Toyota Safety Sense
Toyota Safety Sense ........ 261
PCS (Pre-Collision
System) .......................... 267
LDA (Lane Departure
Alert) ............................... 278
Automatic High Beam ....... 283
2-5. Using other driving systems
Cruise control.................... 289
Speed limiter ..................... 293
Toyota parking
assist-sensor .................. 296
Stop & Start system .......... 304
Driving assist systems ...... 311
2-6. Driving information
Cargo and luggage ........... 317
Winter driving tips ............. 320
Trailer towing .................... 324

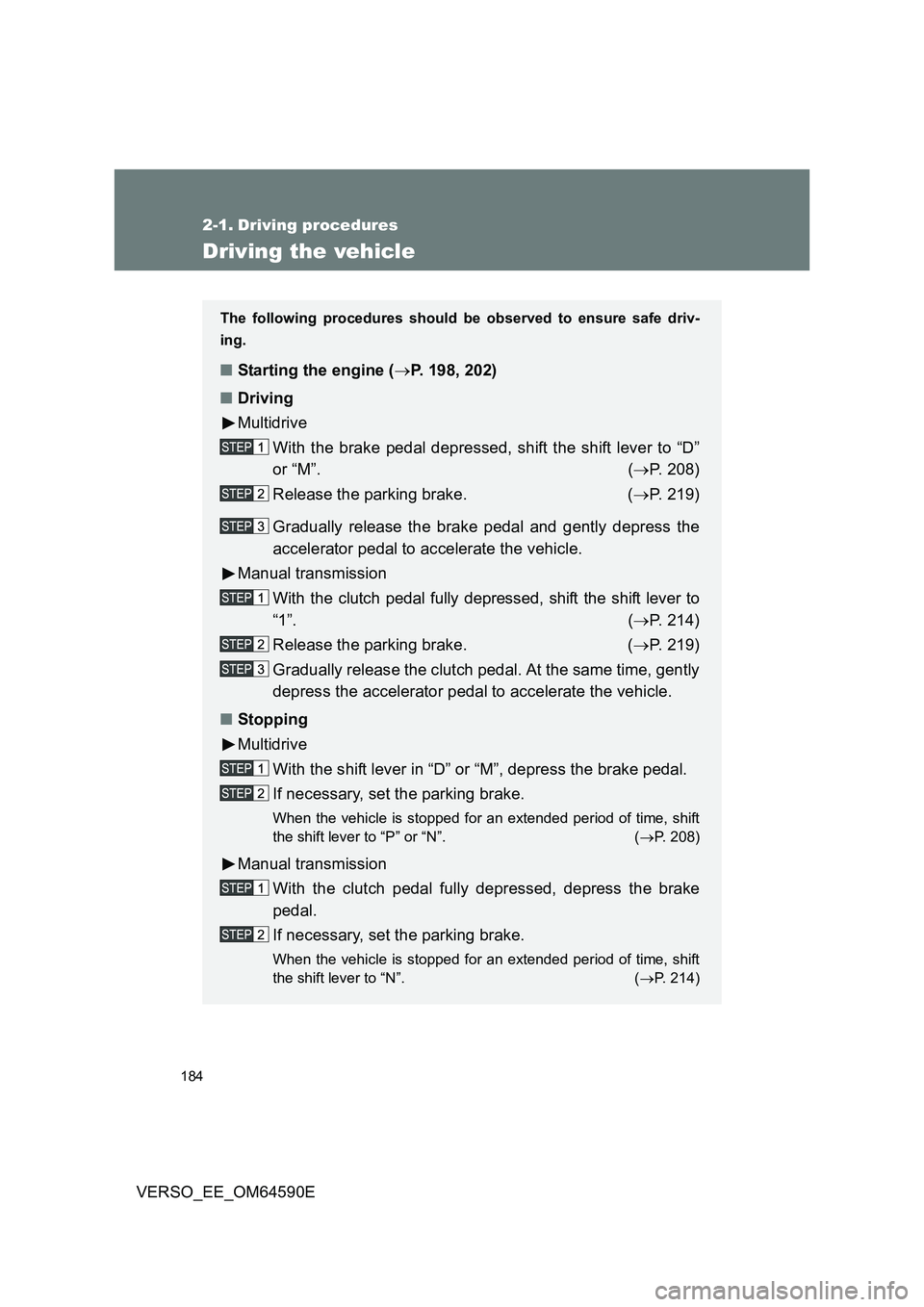

184
VERSO_EE_OM64590E
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine (P. 198, 202)
■ Driving
Multidrive
With the brake pedal depressed, shift the shift lever to “D”
or “M”. ( P. 208)
Release the parking brake. ( P. 219)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
With the clutch pedal fully depressed, shift the shift lever to
“1”. ( P. 214)
Release the parking brake. ( P. 219)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Multidrive
With the shift lever in “D” or “M”, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to “P” or “N”. ( P. 208)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to “N”. ( P. 214)

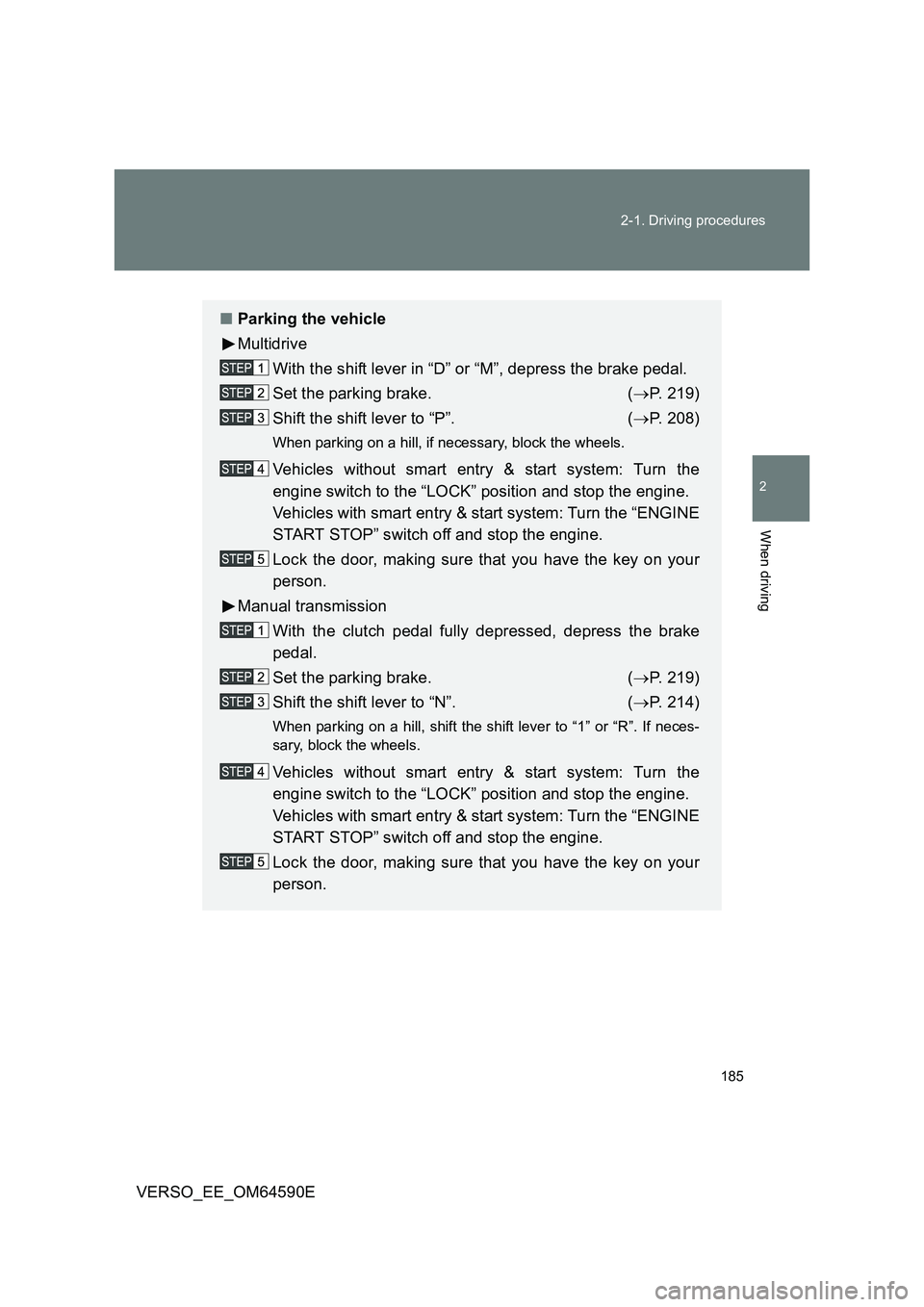

185
2-1. Driving procedures
2
When driving
VERSO_EE_OM64590E
■ Parking the vehicle
Multidrive
With the shift lever in “D” or “M”, depress the brake pedal.
Set the parking brake. ( P. 219)
Shift the shift lever to “P”. ( P. 208)
When parking on a hill, if necessary, block the wheels.
Vehicles without smart entry & start system: Turn the
engine switch to the “LOCK” position and stop the engine.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch off and stop the engine.
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. ( P. 219)
Shift the shift lever to “N”. ( P. 214)
When parking on a hill, shift the shift lever to “1” or “R”. If neces-
sary, block the wheels.
Vehicles without smart entry & start system: Turn the
engine switch to the “LOCK” position and stop the engine.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch off and stop the engine.
Lock the door, making sure that you have the key on your
person.

189
2-1. Driving procedures
2
When driving
VERSO_EE_OM64590E
WARNING
■ When starting the vehicle (vehicles with a Multidrive)
Always keep your foot on the brake pedal while stopped with the engine run-
ning. This prevents the vehicle from creeping.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident
that could result in death or serious injury.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly, allowing you to depress the brake and accelerator
pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
● On vehicles with a Multidrive, do not let the vehicle roll backwards while
the shift lever is in a driving position, or roll forward while the shift lever is
in “R”.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
● If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door is closed.
Large amounts of exhaust in the vehicle can cause driver drowsiness and
an accident, resulting in death or a serious health hazard. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
