2016 TOYOTA VERSO engine

660
VERSO_EE_OM64590E

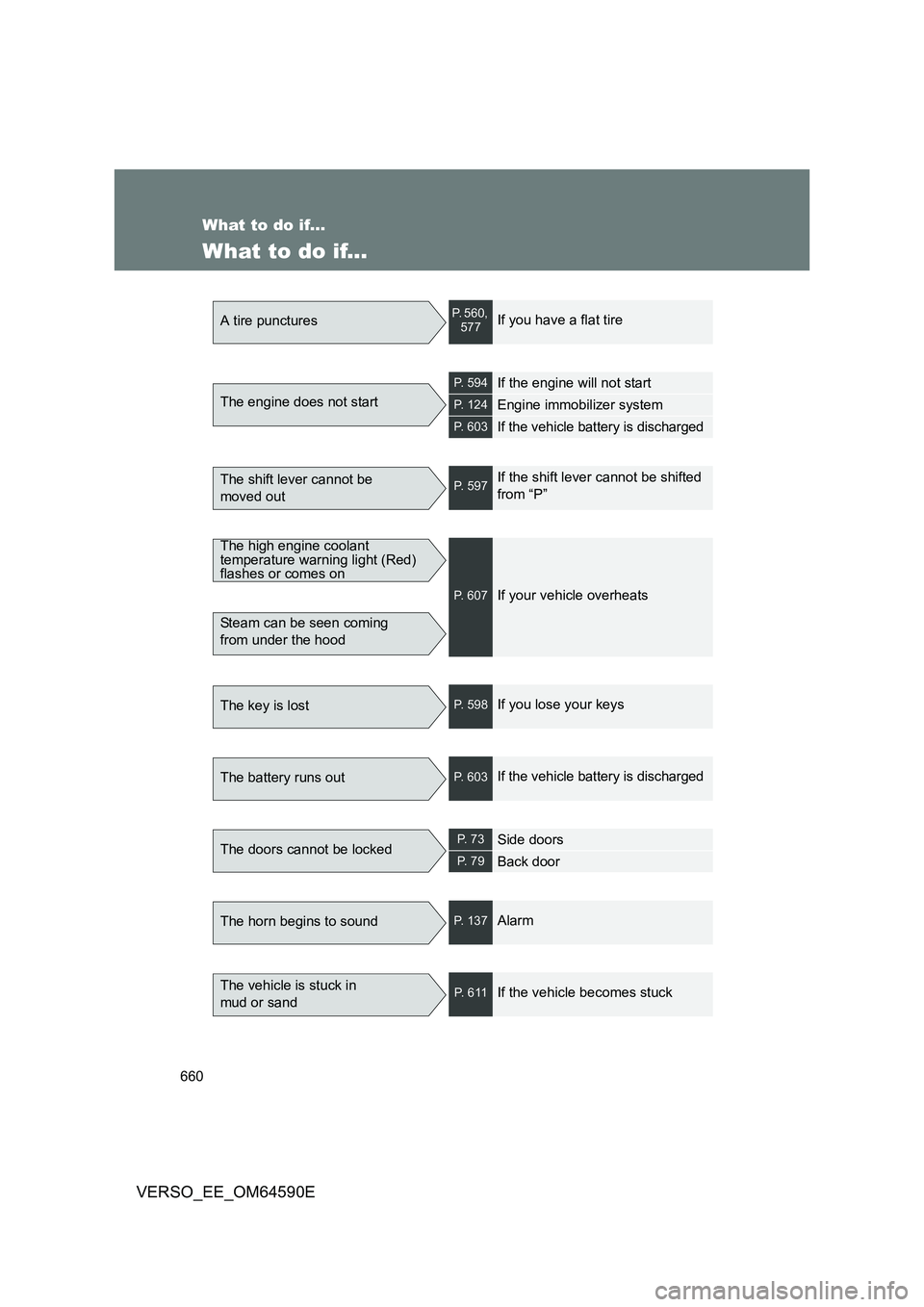

What to do if...
What to do if...
A tire puncturesP. 560, 577If you have a flat tire
The engine does not start
P. 594If the engine will not start
P. 124Engine immobilizer system
P. 603If the vehicle battery is discharged
The shift lever cannot be
moved outP. 597If the shift lever cannot be shifted
from “P”
The high engine coolant temperature warning light (Red) flashes or comes on
Steam can be seen coming
from under the hood
P. 607If your vehicle overheats
The key is lostP. 598If you lose your keys
The battery runs outP. 603If the vehicle battery is discharged
The doors cannot be lockedP. 7 3Side doors
P. 7 9Back door
The horn begins to soundP. 137Alarm
The vehicle is stuck in
mud or sandP. 6 1 1If the vehicle becomes stuck

663
What to do if...
VERSO_EE_OM64590E
■ Warning lights
P. 536P. 537
P. 536P. 537
P. 536P. 538
(Red)
P. 537P. 540
P. 537P. 540
P. 537P. 540
P. 537P. 541
P. 539
or
P. 537P. 541
*1: The light flashes to indicate a malfunction.
*2: The light comes on to indicate a malfunction.
Brake system warning
light
Stop & Start cancel indi-
cator light*1
Charging system warn-
ing light
High engine coolant temperature warning
light
Automatic headlight
leveling system warning light
Malfunction indicator
lamp
Low fuel level warning
light
SRS warning lightMaster warning light
ABS warning lightTire pressure warning
light
Electric power steering system warning
light
PCS (Pre-Collision
System) warning light*1Rear passenger’s seat belt reminder light
Cruise control warning
light*1
Driver’s and front passen- ger’s seat belt reminder light
Slip indicator light*2
The warning message is
displayedP. 545If a warning message is displayed

664
VERSO_EE_OM64590E
GAS STATION INFORMATION
Fuel filler door
P. 1 1 9
Auxiliary catch lever
P. 440
Tire inflation pressure
P. 6 3 3
Fuel filler door opener
P. 1 1 9
Hood lock release lever
P. 440
Fuel tank capacity (reference)
Gasoline engine:
60 L (15.9 gal., 13.2 Imp.gal.) Diesel engine:55 L (14.5 gal., 12.1 Imp.gal.)
Fuel type P. 621, 637
Cold tire inflation pressure P. 633
Engine oil capacity
(drain and refill - reference) P. 6 2 2
Engine oil type P. 623
