2016 TOYOTA VERSO USB

378
3-2. Using the audio system
VERSO_EE_OM64590E
■ USB memory
● Compatible devices
USB memory that can be used for MP3 and WMA playback
● Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12 mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
● MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and
to the media/formats on which the files are recorded.

380
3-2. Using the audio system
VERSO_EE_OM64590E
● MP3 and WMA playback
• When a device containing MP3 or WMA files is connected, all files in
the USB memory are checked. Once the file check is finished, the first
MP3 or WMA file is played. To make the file check finish more quickly,
we recommend that you do not include any files other than MP3 or
WMA files or create any unnecessary folders.
• When the USB memory is connected and the audio source is changed
to USB memory mode, the USB memory will start playing the first file in
the first folder. If the same device is removed and reinserted (and the
contents have not been changed), the USB memory will resume play
from the same point in which it was last used.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be skipped (not played).
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for
MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• Microsoft, Windows, and Windows M edia are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
WARNING
■ Caution while driving
Do not connect USB memory or operate the controls. Doing so may cause
an accident, resulting in death or serious injury.

381
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E
NOTICE
■ To prevent damage to USB memory or its terminal
● Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the USB memory.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
● Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.
● Depending on the size and shape of the USB memory that is connected to
the system, the passenger’s seat may hit the USB memory when moving
the seat forward. In this case, do not forcibly move the seat forward as this
may damage the USB memory or the terminal, etc.

385
3-2. Using the audio system
3
Interior features
VERSO_EE_OM64590E
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AM FMCD modeiPod or USB memory*AUX*
*: If equipped
Some audio features can be cont rolled using the switches on the
steering wheel.
Vo lu m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

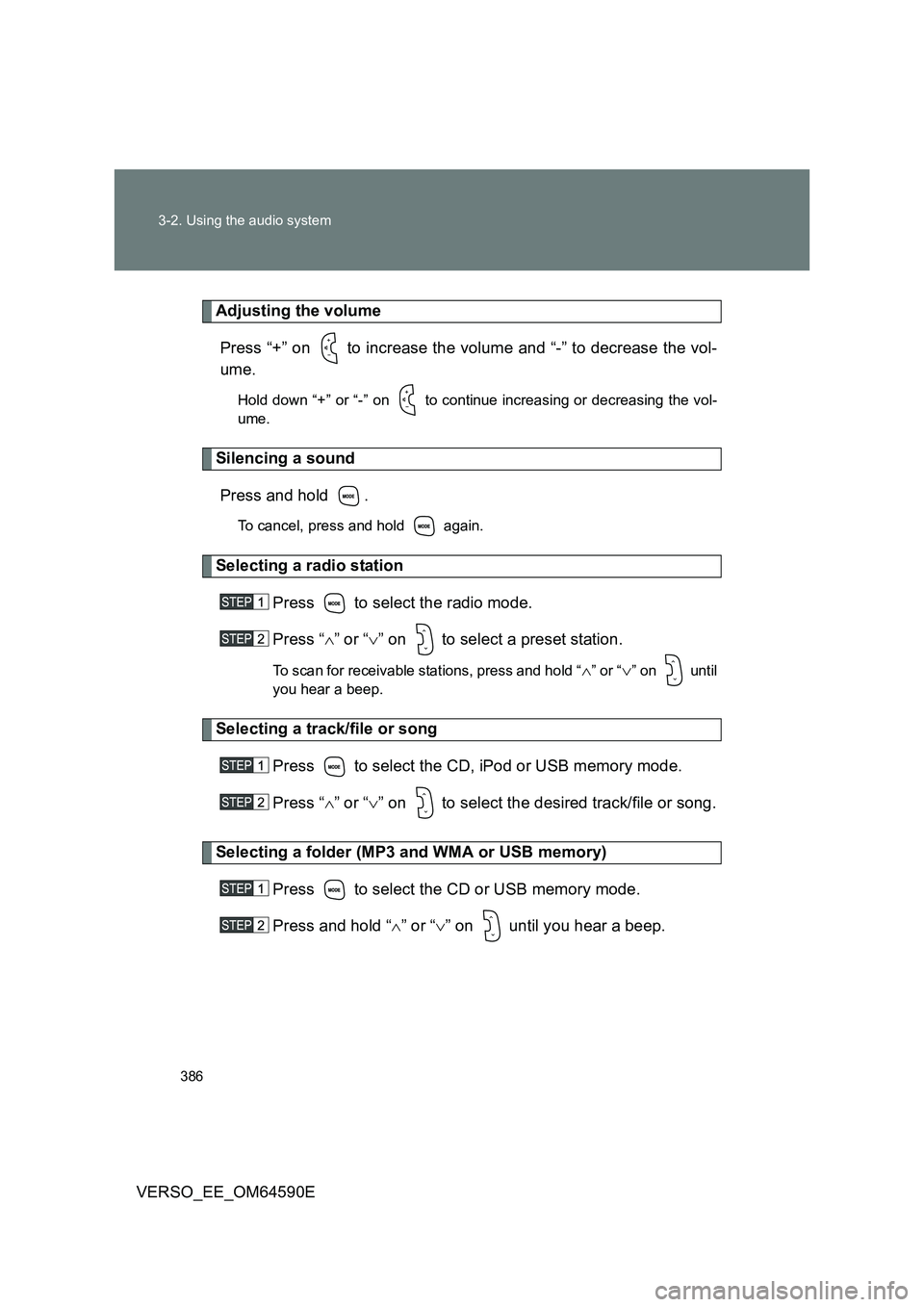

386
3-2. Using the audio system
VERSO_EE_OM64590E
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Silencing a sound
Press and hold .
To cancel, press and hold again.
Selecting a radio station
Press to select the radio mode.
Press “ ” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on until
you hear a beep.
Selecting a track/file or song
Press to select the CD, iPod or USB memory mode.
Press “ ” or “” on to select the desired track/file or song.
Selecting a folder (MP3 and WMA or USB memory)
Press to select the CD or USB memory mode.
Press and hold “ ” or “” on until you hear a beep.

647
VERSO_EE_OM64590E
Alphabetical index
Alphabetical index
A/C
Air conditioning filter.............. 478
Automatic air conditioning
system ................................ 340
Manual air conditioning
system ................................ 334
ABS ........................................... 311
Active head restraint ................. 84
Air conditioning filter .............. 478
Air conditioning system
Air conditioning filter.............. 478
Automatic air conditioning
system ................................ 340
Manual air conditioning
system ................................ 334
Airbags
Airbag manual on-off
system ................................ 179
Airbag operating
conditions ........................... 150
Airbag precautions for your
child .................................... 154
Airbag warning light .............. 537
Curtain shield airbag
operating conditions ........... 150
Curtain shield airbag
precautions ......................... 154
General airbag
precautions ......................... 154
Locations of airbags.............. 148
Modification and disposal of
airbags................................ 158
Proper driving
posture ....................... 146, 154
Side airbag operating
conditions ........................... 150
Side airbag precautions ........ 154
SRS airbags.......................... 148
Alarm ........................................ 137
Antenna .................................... 356
Anti-lock brake system .......... 311
Armrests ................................... 408
Assist grips .............................. 412
Audio input............................... 384
Audio system
Antenna ................................ 356
Audio input ............ 368, 375, 384
AUX port ............................... 384
CD player .............................. 357
iPod....................................... 368
MP3/WMA disc ..................... 362
Optimal use........................... 382
Portable music player ........... 384
Radio .................................... 353
Steering wheel audio
switch ................................. 385
Type ...................................... 351
USB memory ........................ 375
