2016 TOYOTA VERSO stop start

5

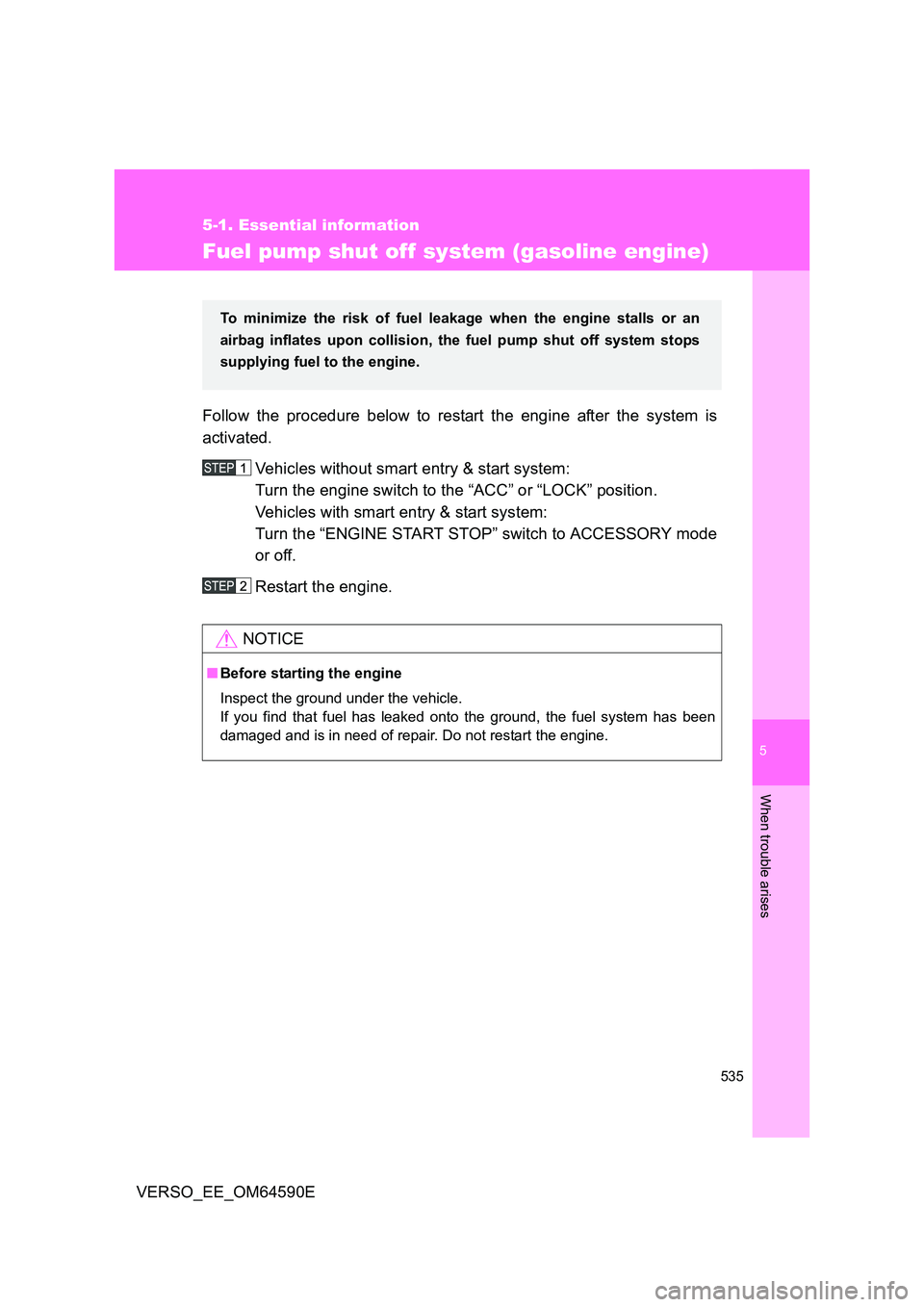

535
5-1. Essential information
When trouble arises
VERSO_EE_OM64590E
Fuel pump shut off system (gasoline engine)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or off.
Restart the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an
airbag inflates upon collision, the fuel pump shut off system stops
supplying fuel to the engine.

5

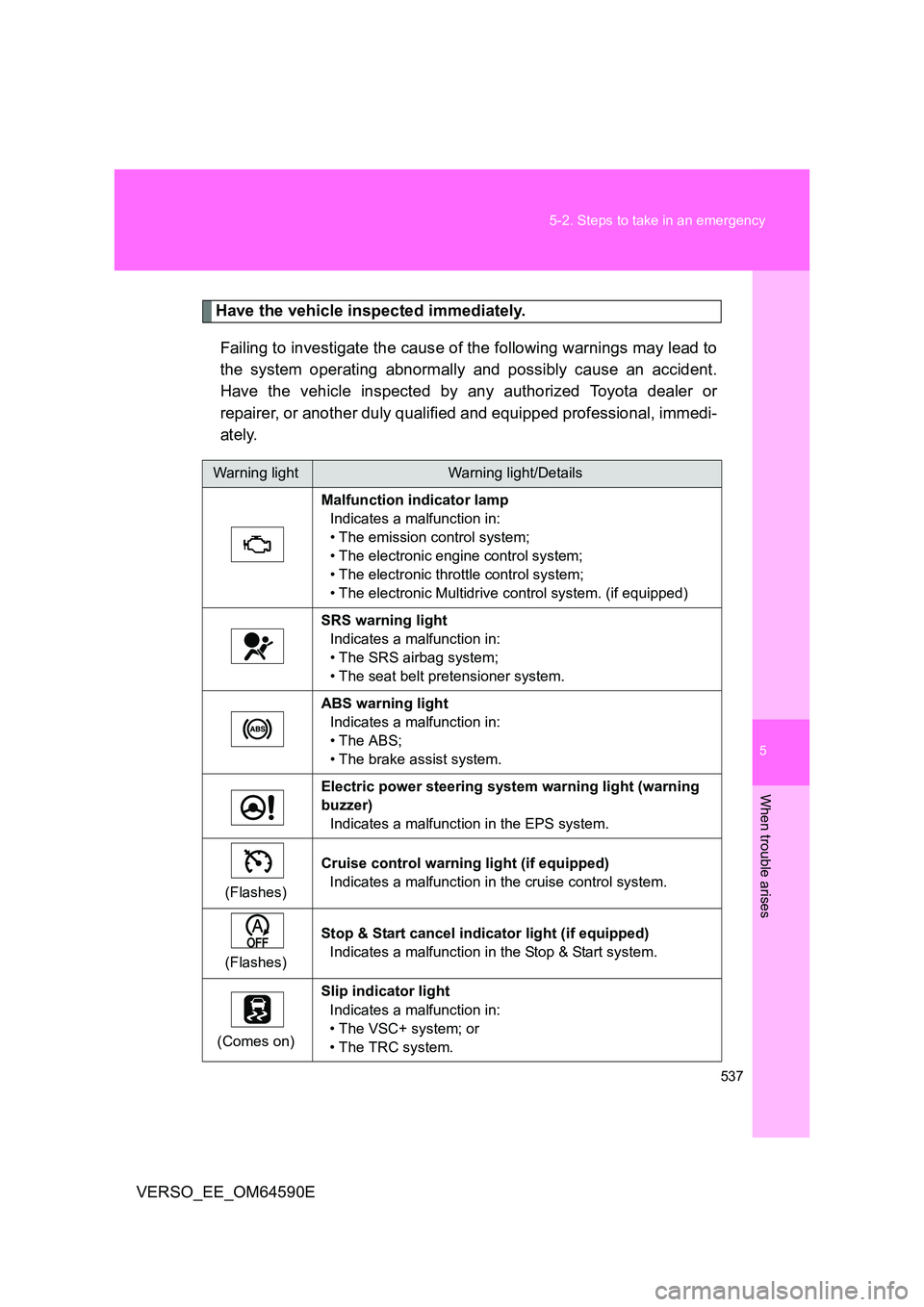

537
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive control system. (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
• The brake assist system.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS system.
(Flashes)
Cruise control warning light (if equipped)
Indicates a malfunction in the cruise control system.
(Flashes)
Stop & Start cancel indicator light (if equipped)
Indicates a malfunction in the Stop & Start system.
(Comes on)
Slip indicator light
Indicates a malfunction in:
• The VSC+ system; or
• The TRC system.

5
543
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
■ If the tire pressure warning system is not functioning (vehicles with a
tire pressure warning light system)
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters
are used
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
● If the tire inflation pressure is 380 kPa (3.9 kgf/cm2 or bar, 55 psi) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby
● If a radio set at a similar frequency is in use in the vehicle
● If a window tint that affects the radio wave signals is installed
● If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
● If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
● If tire chains are used
■ If the tire pressure warning light frequently comes on after blinking for
1 minute (vehicles with a tire pressure warning light system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch (vehicles without smart entry & start system)
or the “ENGINE START STOP” switch (vehicles with smart entry & start sys-
tem) is turned on, have it checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

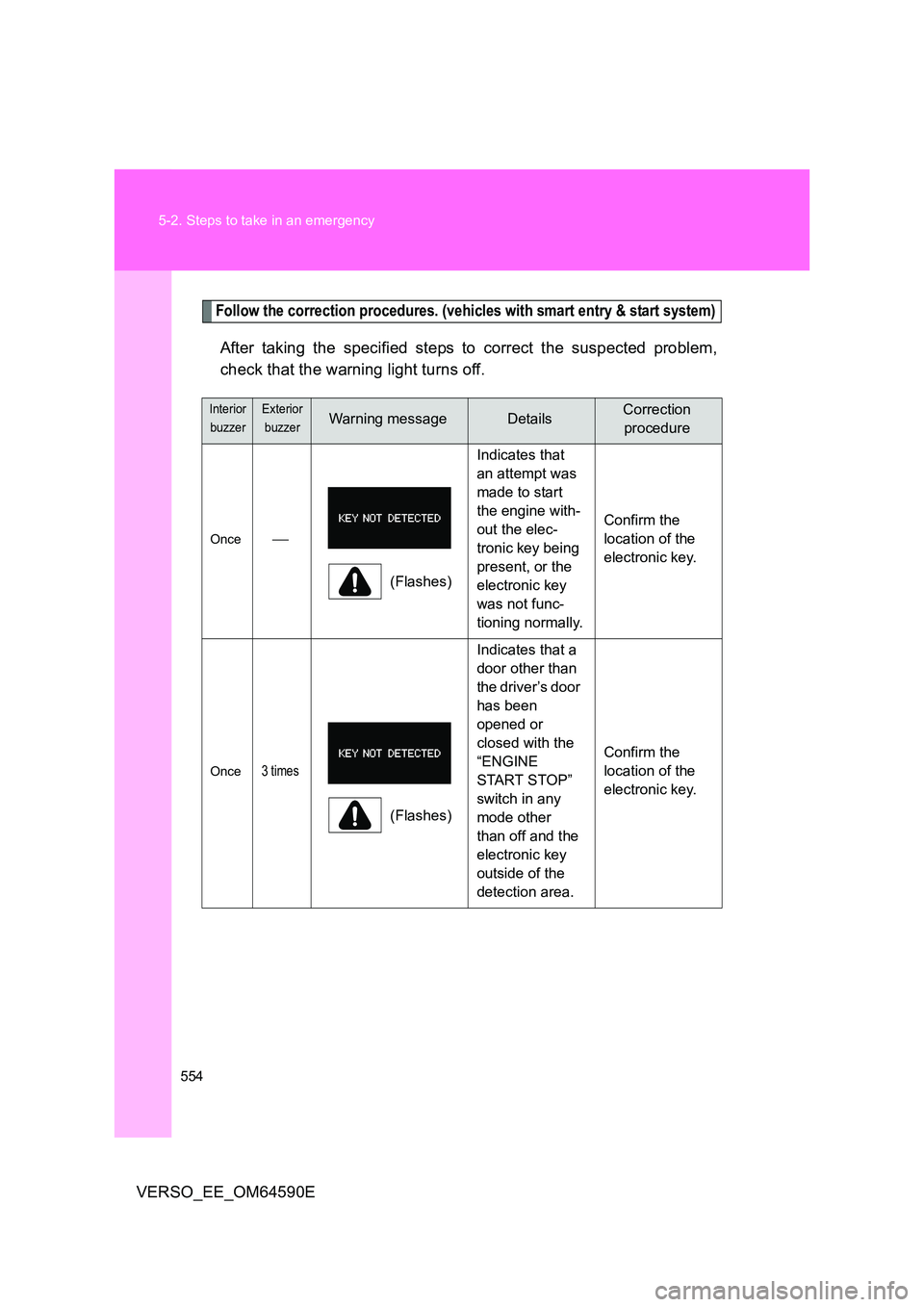

554
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)
Indicates that
an attempt was
made to start
the engine with-
out the elec-
tronic key being
present, or the
electronic key
was not func-
tioning normally.
Confirm the
location of the
electronic key.
Once3 times
(Flashes)
Indicates that a
door other than
the driver’s door
has been
opened or
closed with the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key.

5

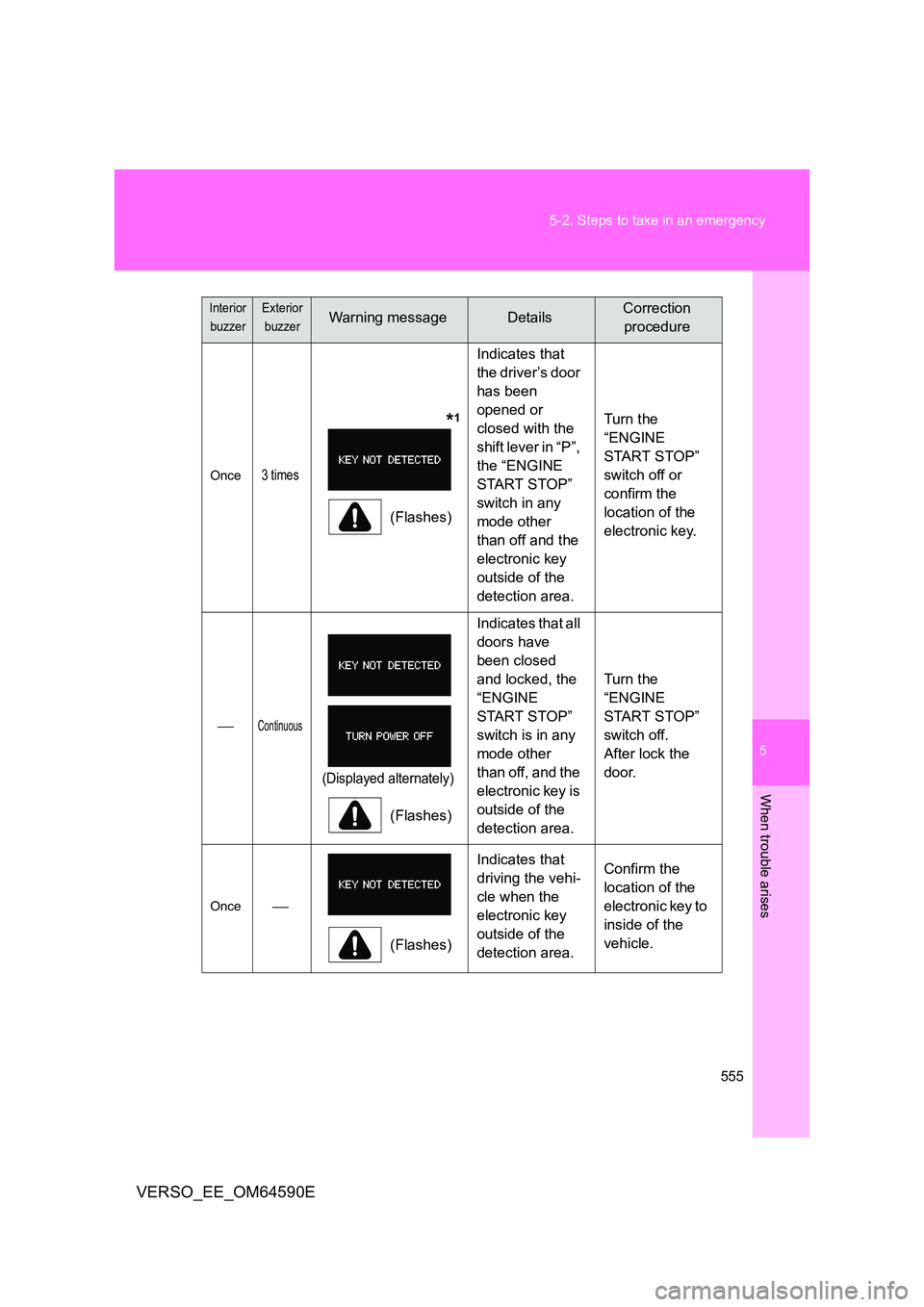

555
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Once3 times
*1
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift lever in “P”,
the “ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off or
confirm the
location of the
electronic key.
Continuous
(Displayed alternately)
(Flashes)
Indicates that all
doors have
been closed
and locked, the
“ENGINE
START STOP”
switch is in any
mode other
than off, and the
electronic key is
outside of the
detection area.
Turn the
“ENGINE
START STOP”
switch off.
After lock the
door.
Once
(Flashes)
Indicates that
driving the vehi-
cle when the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key to
inside of the
vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

556
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Continuous
*1
(Flashes)
Indicates that
the driver’s door
has been
opened with the
shift lever out of
in “P”, the
“ENGINE
START STOP”
switch in any
mode other
than off.
Shift the shift
lever to “P”.
Continuous Continuous
(Displayed alternately)
(Flashes)
Indicates that
the driver’s door
has been
opened or
closed with the
shift the shift
lever out of in
“P”, the
“ENGINE
START STOP”
switch in any
mode other
than off and the
electronic key
outside of the
detection area.
• Shift the shift
lever to “P”.
• Confirm the
location of the
electronic key.
OnceContinuous
(Flashes)
Indicates that a
door has been
closed and the
electronic key
leave in the
vehicle.
Take the elec-
tronic key out-
side of the
vehicle. After
lock the door.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

5

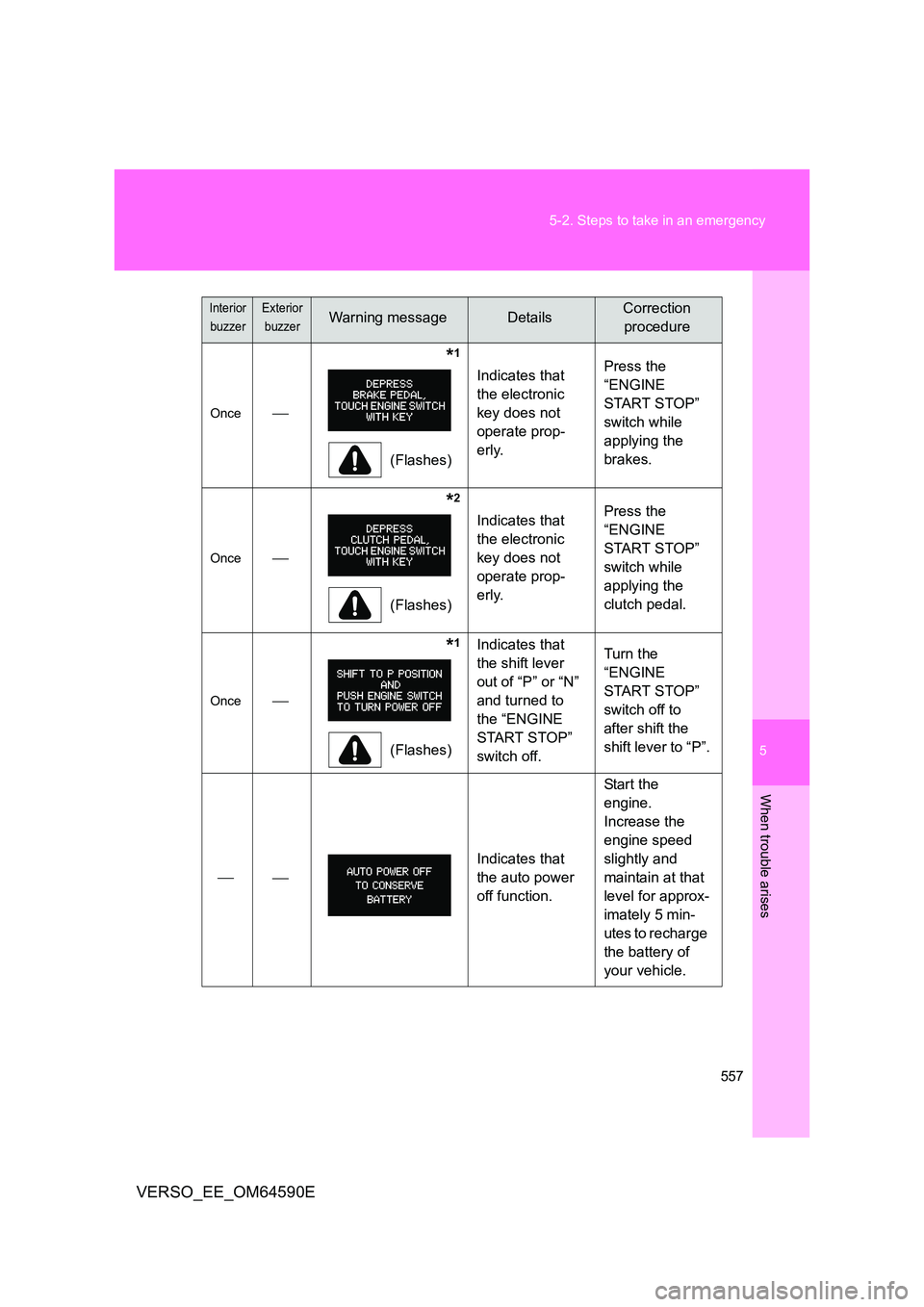

557
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64590E
Once
*1
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that
the electronic
key does not
operate prop-
erly.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
*1
(Flashes)
Indicates that
the shift lever
out of “P” or “N”
and turned to
the “ENGINE
START STOP”
switch off.
Turn the
“ENGINE
START STOP”
switch off to
after shift the
shift lever to “P”.
 
Indicates that
the auto power
off function.
Start the
engine.
Increase the
engine speed
slightly and
maintain at that
level for approx-
imately 5 min-
utes to recharge
the battery of
your vehicle.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure

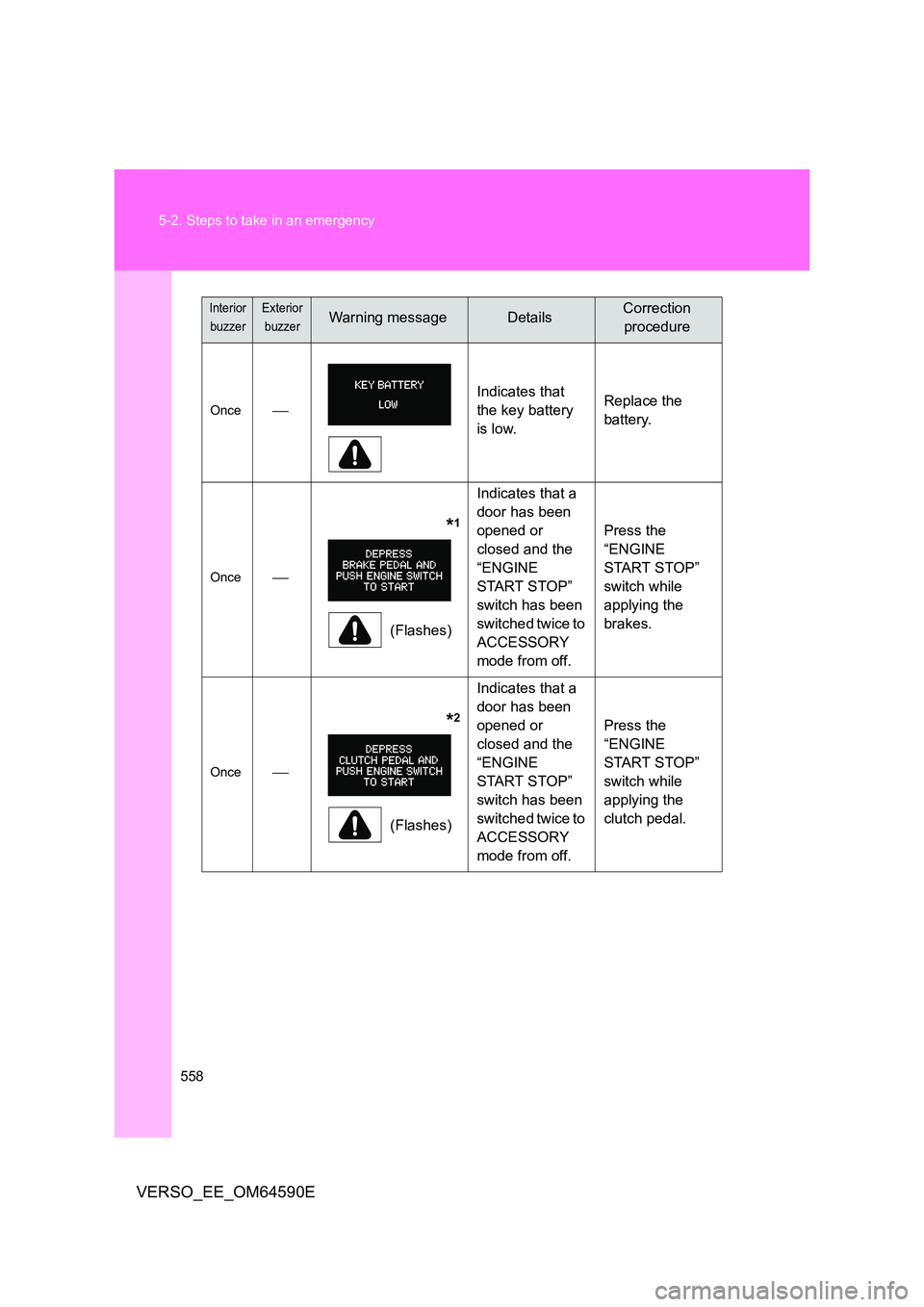

558
5-2. Steps to take in an emergency
VERSO_EE_OM64590E
Once
Indicates that
the key battery
is low.
Replace the
battery.
Once
*1
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.
Once
*2
(Flashes)
Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from off.
Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Interior
buzzer
Exterior
buzzerWarning messageDetailsCorrection
procedure
