2016 TOYOTA VERSO stop start

439
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

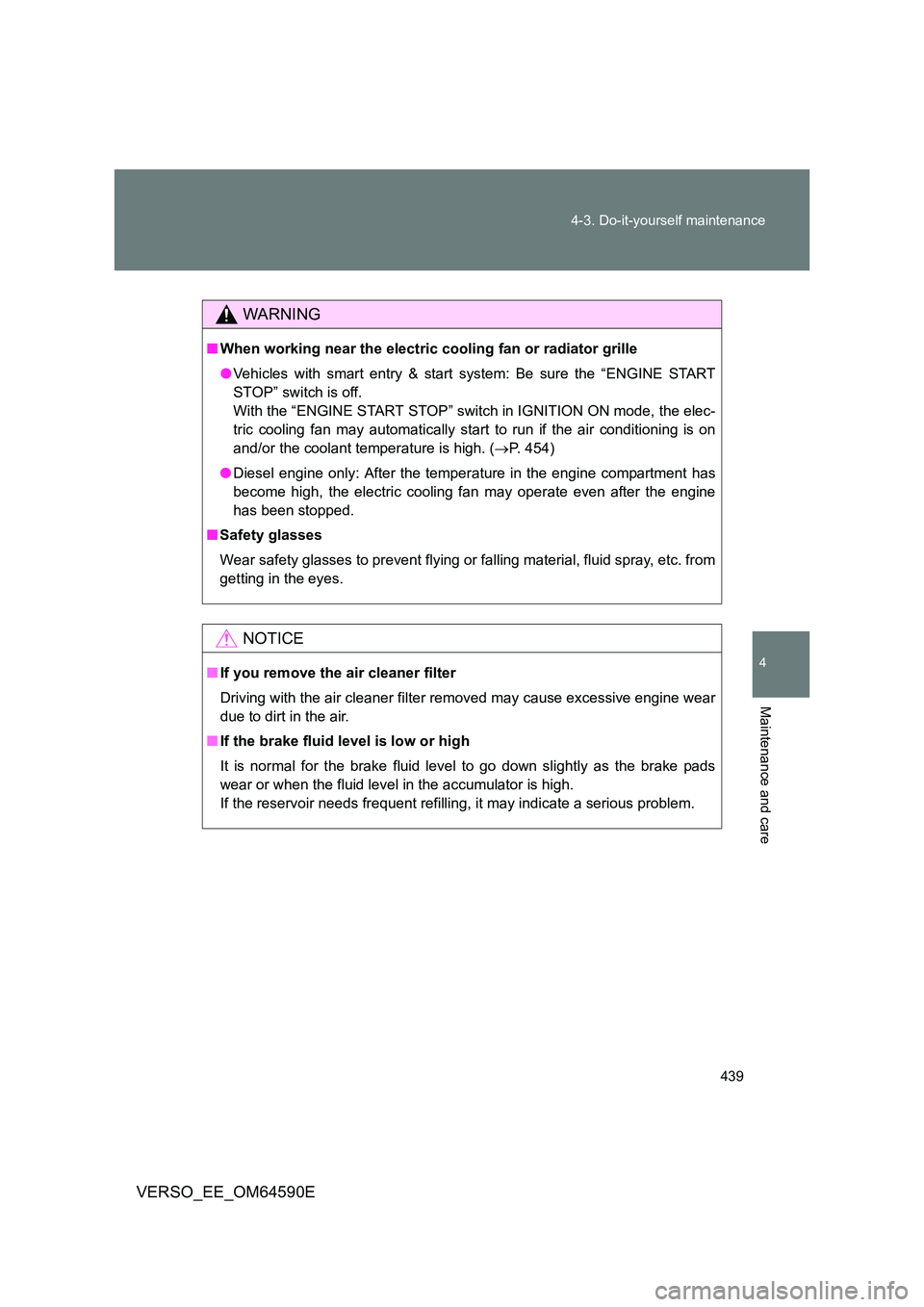

WARNING
■ When working near the electric cooling fan or radiator grille
● Vehicles with smart entry & start system: Be sure the “ENGINE START
STOP” switch is off.
With the “ENGINE START STOP” switch in IGNITION ON mode, the elec-
tric cooling fan may automatically start to run if the air conditioning is on
and/or the coolant temperature is high. ( P. 454)
● Diesel engine only: After the temperature in the engine compartment has
become high, the electric cooling fan may operate even after the engine
has been stopped.
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in the eyes.
NOTICE
■ If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

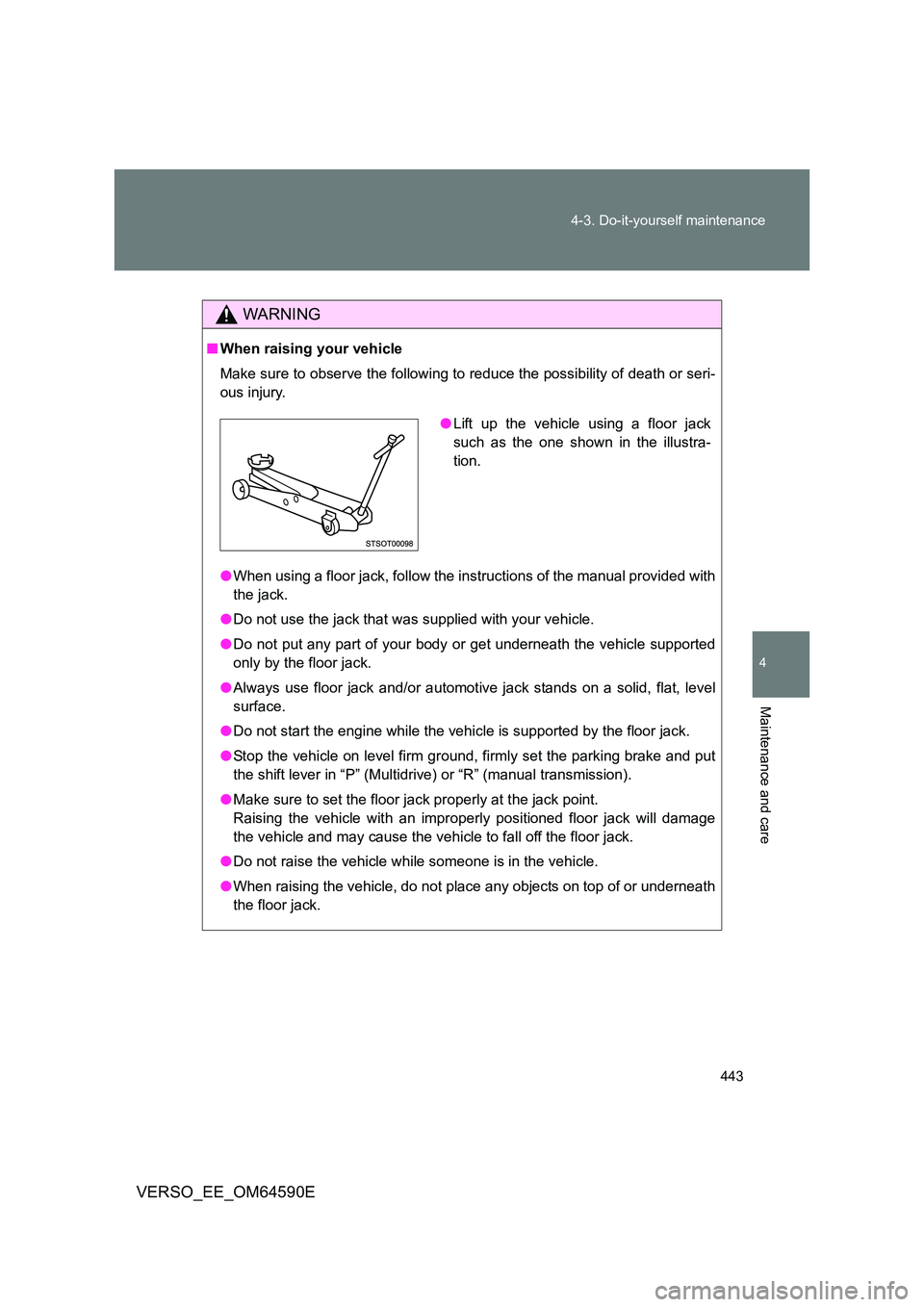

WARNING
■ When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P” (Multidrive) or “R” (manual transmission).
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
● Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

450
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
The oil maintenance interval is variable and depending on the vehicle usage
condition.
■ After changing the engine oil (diesel engine only)
The engine oil maintenance should be reset. Perform the following proce-
dures:
Turn the engine switch to the “ON” position (vehicles without smart
entry & start system) or the “ENGINE START STOP” switch to
IGNITION ON mode (vehicles with smart entry & start system) and
then switch the display to the trip meter A. ( P. 224)
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or “ENGINE START STOP” switch off
(vehicles with smart entry & start system).
Continue to press and hold the button until the meter displays
“00000”, and then the system reset will be completed.
While pressing the display change button
( P. 224), turn the engine switch to the
“ON” position (vehicles without smart
entry & start system) or the “ENGINE
START STOP” switch to IGNITION ON
mode (vehicles with smart entry & start
system) and the message shown in the
illustration will appear on the display.

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

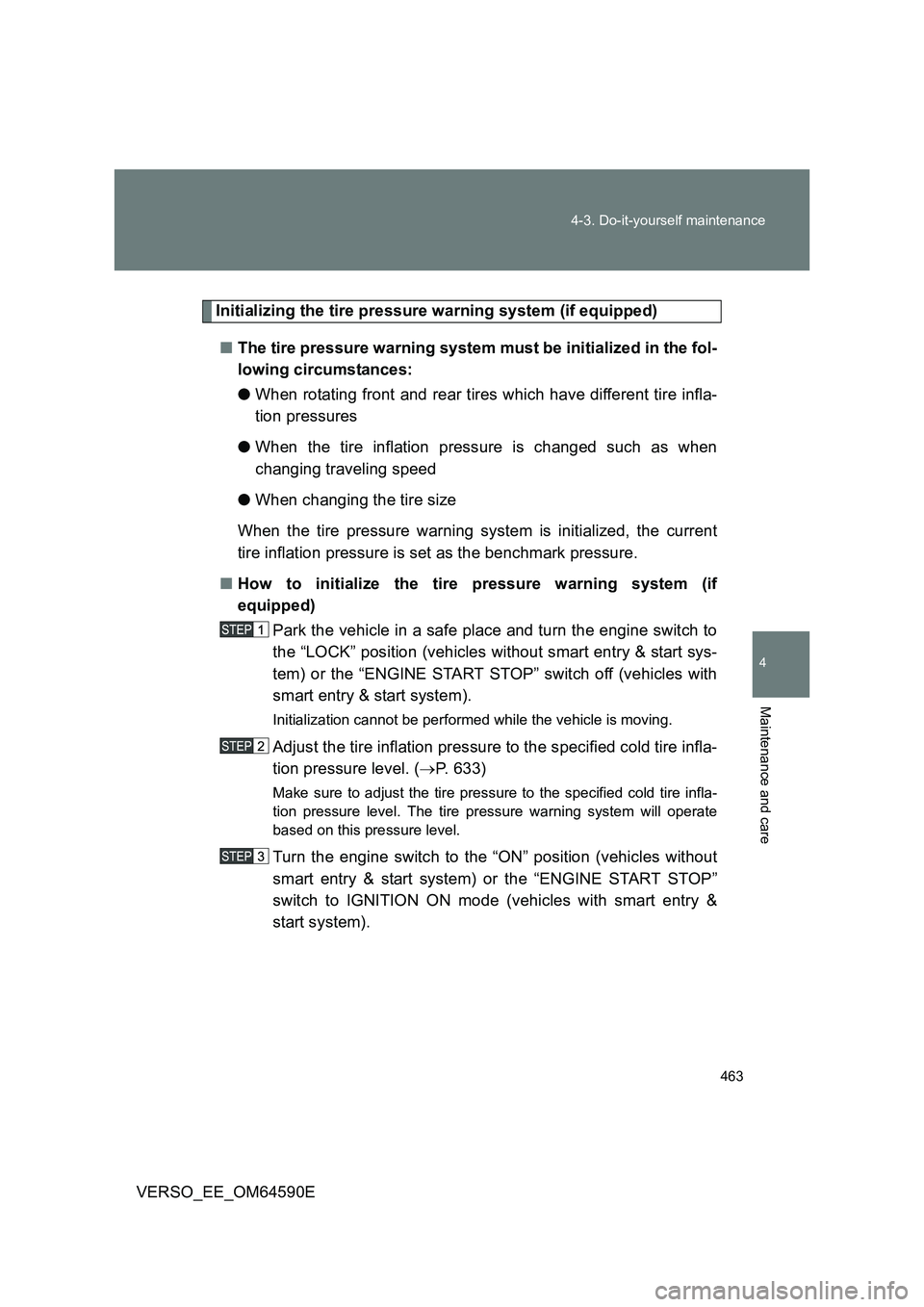

Initializing the tire pressure warning system (if equipped)
■ The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When rotating front and rear tires which have different tire infla-
tion pressures
● When the tire inflation pressure is changed such as when
changing traveling speed
● When changing the tire size
When the tire pressure warning system is initialized, the current
tire inflation pressure is set as the benchmark pressure.
■ How to initialize the tire pressure warning system (if
equipped)
Park the vehicle in a safe place and turn the engine switch to
the “LOCK” position (vehicles without smart entry & start sys-
tem) or the “ENGINE START STOP” switch off (vehicles with
smart entry & start system).
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire infla-
tion pressure level. ( P. 633)
Make sure to adjust the tire pressure to the specified cold tire infla-
tion pressure level. The tire pressure warning system will operate
based on this pressure level.
Turn the engine switch to the “ON” position (vehicles without
smart entry & start system) or the “ENGINE START STOP”
switch to IGNITION ON mode (vehicles with smart entry &
start system).

464
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

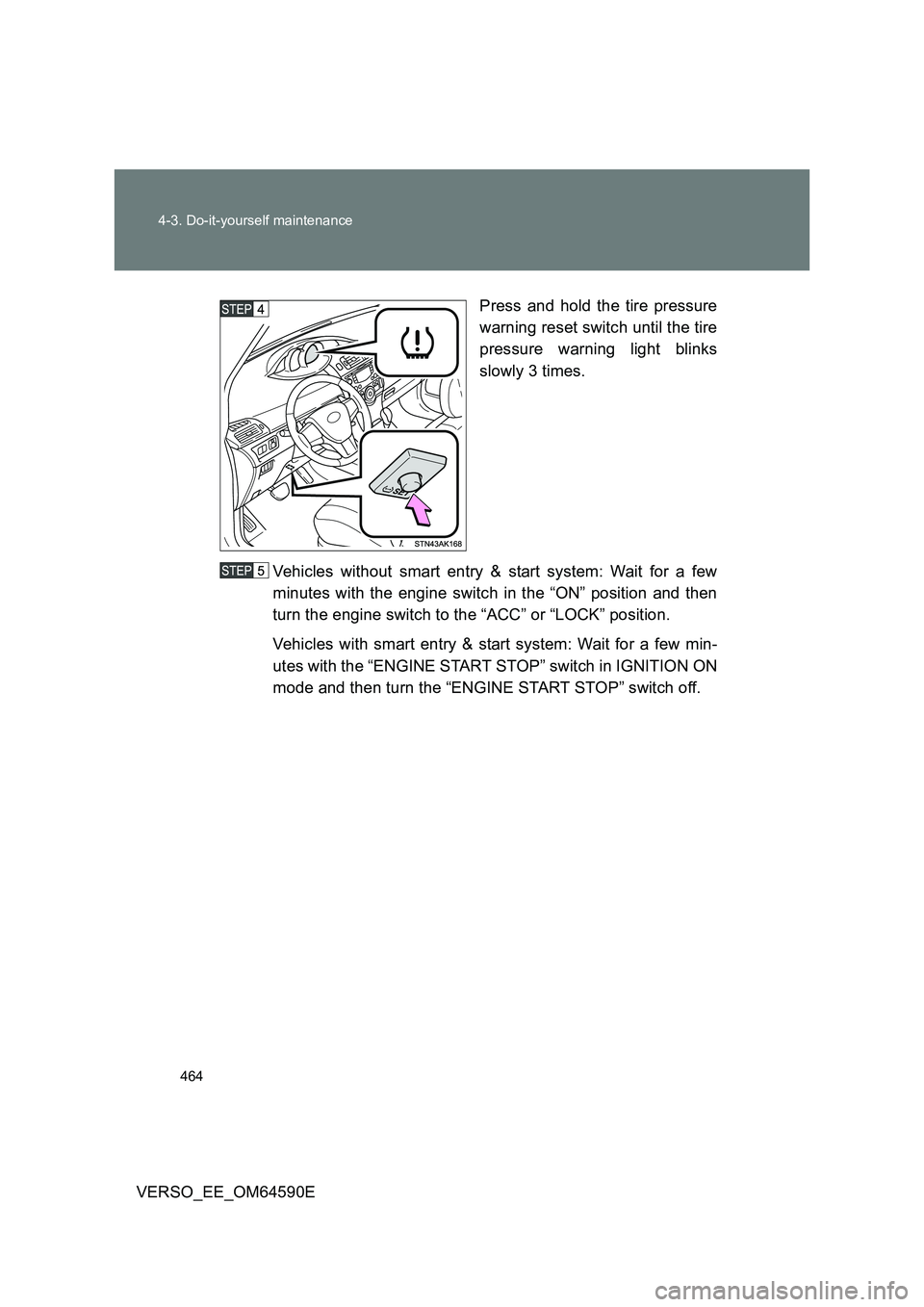

Press and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times.
Vehicles without smart entry & start system: Wait for a few
minutes with the engine switch in the “ON” position and then
turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system: Wait for a few min-
utes with the “ENGINE START STOP” switch in IGNITION ON
mode and then turn the “ENGINE START STOP” switch off.

478
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E

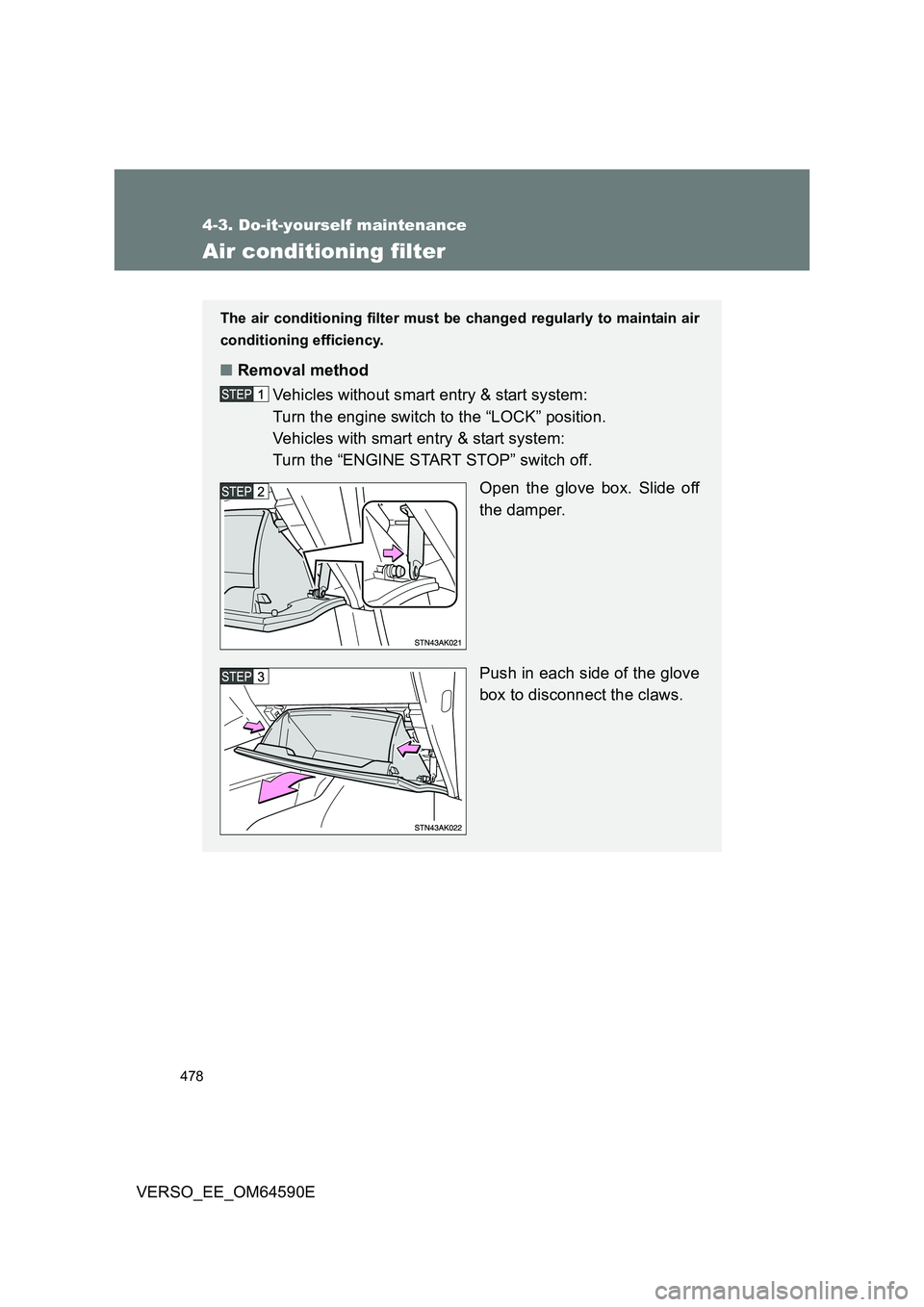

Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
■ Removal method
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch off.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
■ Engine compartment
Push the tab in and lift the lid
off.
■ Under the driver’s side instrument panel (left-hand drive
vehicles)
Ty p e A
Remove the lid.

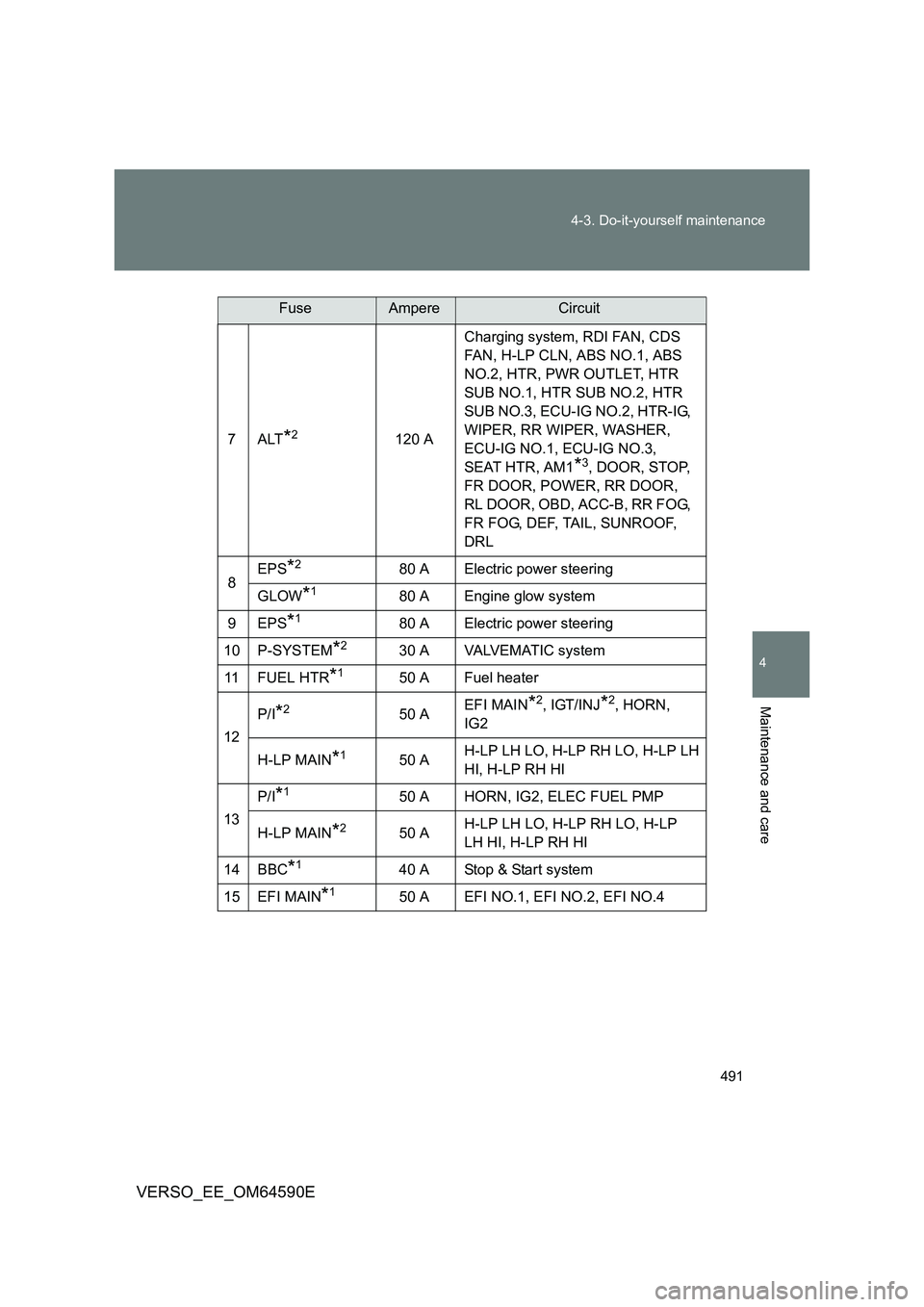

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
7ALT*2120 A
Charging system, RDI FAN, CDS
FAN, H-LP CLN, ABS NO.1, ABS
NO.2, HTR, PWR OUTLET, HTR
SUB NO.1, HTR SUB NO.2, HTR
SUB NO.3, ECU-IG NO.2, HTR-IG,
WIPER, RR WIPER, WASHER,
ECU-IG NO.1, ECU-IG NO.3,
SEAT HTR, AM1*3, DOOR, STOP,
FR DOOR, POWER, RR DOOR,
RL DOOR, OBD, ACC-B, RR FOG,
FR FOG, DEF, TAIL, SUNROOF,
DRL
8 EPS*280 A Electric power steering
GLOW*180 A Engine glow system
9 EPS*180 A Electric power steering
10 P-SYSTEM*230 A VALVEMATIC system
11 F U E L H T R*150 A Fuel heater
12
P/I*250 A EFI MAIN*2, IGT/INJ*2, HORN,
IG2
H-LP MAIN*150 A H-LP LH LO, H-LP RH LO, H-LP LH
HI, H-LP RH HI
13
P/I*150 A HORN, IG2, ELEC FUEL PMP
H-LP MAIN*250 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
14 BBC*140 A Stop & Start system
15 EFI MAIN*150 A EFI NO.1, EFI NO.2, EFI NO.4
FuseAmpereCircuit
