2016 TOYOTA VENZA light

1101-6. Theft deterrent system
VENZA_OM_OM73030U_(U) ■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the key is in contact with a metallic object.
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle.
■ Certifications for the en gine immobilizer system
● For vehicles sold in the U.S.A.
Vehicles with smart key system
FCC ID: NI4TMIMB-1
Vehicles without smart key system
FCC ID: MOZRI-21BTY
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. Vehicles without smart key
system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate
that the system is operating.
The indicator light stops flash-
ing after the registered key has
been inserted into the engine
switch to indicate that the sys-
tem has been canceled.

1121-6. Theft deterrent system

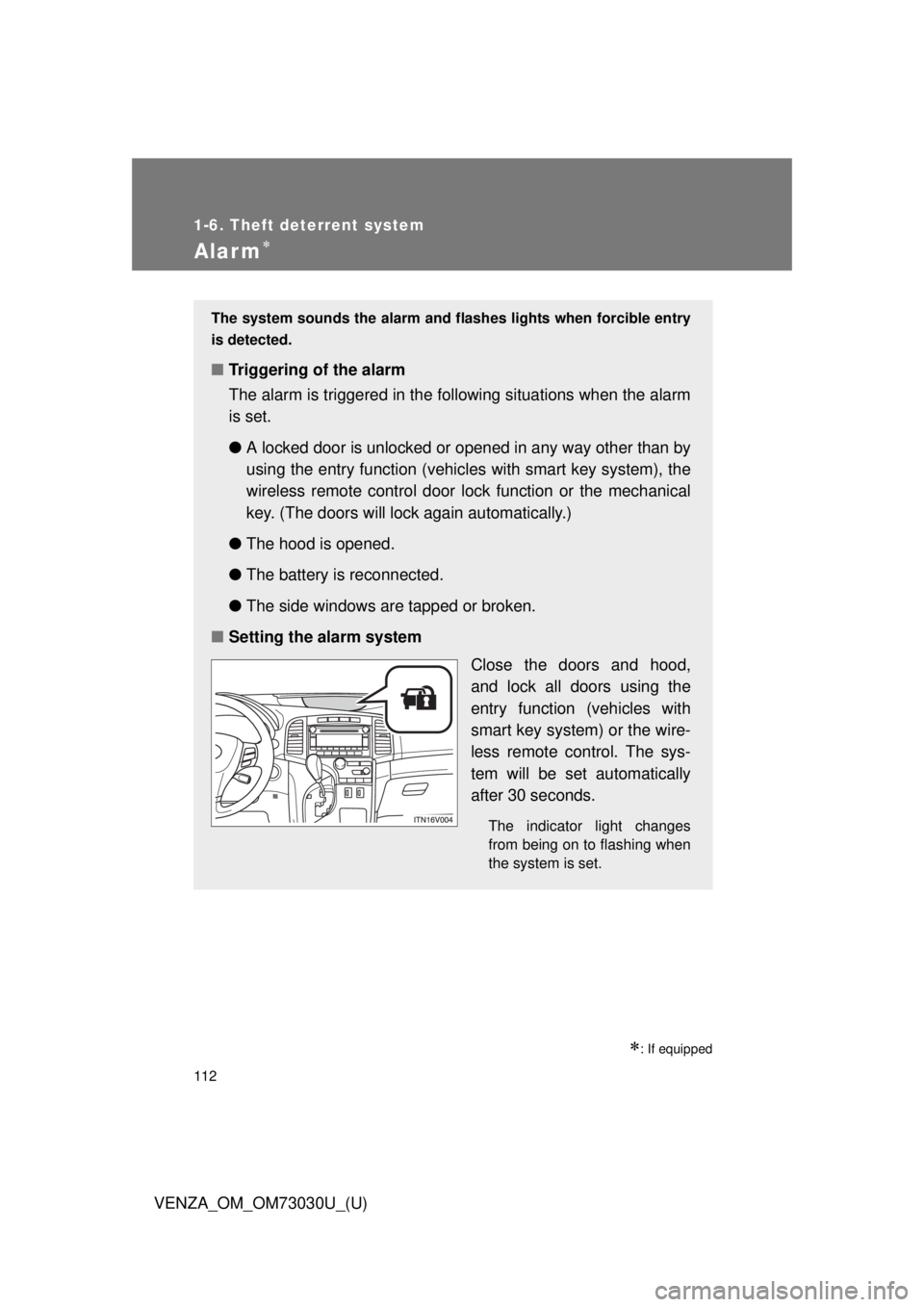

VENZA_OM_OM73030U_(U)Alarm 
 : If equippedThe system sounds the alarm and fl ashes lights when forcible entry
is detected.
■ Triggering of the alarm
The alarm is triggered in the fo llowing situations when the alarm
is set.
● A locked door is unlocked or o pened in any way other than by
using the entry function (vehicles with smart key system), the
wireless remote control door lo ck function or the mechanical
key. (The doors will lock again automatically.)
● The hood is opened.
● The battery is reconnected.
● The side windows are tapped or broken.
■ Setting the alarm system
Close the doors and hood,
and lock all doors using the
entry function (vehicles with
smart key system) or the wire-
less remote control. The sys-
tem will be set automatically
after 30 seconds. The indicator light changes
from being on to flashing when
the system is set.

1151-6. Theft deterrent system
1
Before driving
VENZA_OM_OM73030U_(U) ■ Panic mode
Vehicles with smart key system
Vehicles without smart key system
■ Customization
Settings (e.g. time elapsed before the alarm is set) can be changed.
(Customizable features  P. 645)
NOTICE■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed. When is pressed for longer than
about one second, an alarm will sound for
about 60 seconds and the vehicle lights
will flash or come on to deter any person
from trying to break into or damage your
vehicle.
To stop the alarm, press any button on
the wireless remote control.

1211-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) Airbag system components
Front passenger airbag
Curtain shield airbag
Seat belt pretensioners and
force limiters
Side airbag
“AIR BAG ON/OFF” indicator
light
Front passenger occupant
classification system (ECU
and sensors)
Side impact sensors (rear)
SRS warning light Driver airbag
Side impact sensors (front
door)
Driver’s seat belt buckle
switch
Driver’s seat position sensor
Knee airbag
Front passenger’s seat belt
buckle switch
Front impact sensors
Airbag sensor assembly

1221-7. Safety information
VENZA_OM_OM73030U_(U) Your vehicle is equipped with “ADVANCED AIRBAGS” designed
based on the US motor vehicle safety standards (FMVSS208). The
airbag sensor assembly (ECU) cont rols airbag deployment based on
information obtained from the sens ors etc. shown in the system com-
ponents diagram above. This inform ation includes crash severity and
occupant information. As the air bags deploy, a chemical reaction in
the inflators quickly fills the airbag s with non-toxic gas to help restrain
the motion of the occupants. ■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising et c., may be sustained from SRS air-
bags, due to the extremely high speed deployment (inflation) by hot
gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator)
as well as the front seats and parts of the front and rear pillars, and roof
side rail, may be hot for several minutes. The airbag itself may also be
hot.
● The windshield may crack.

1281-7. Safety information
VENZA_OM_OM73030U_(U) CAUTION■ SRS airbag precautions
Observe the following precautions regarding the airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devic es to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250 mm) from your driver airbag provides
you with a clear margin of safety. This distance is measured from the cen-
ter of the steering wheel to your breastbone. If you sit less than 10 in. (250
mm) away now, you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in.
(250 mm) distance, even with the driver seat all the way forward, sim-
ply by reclining the back of the seat somewhat. If reclining the back of
your seat makes it hard to see the road, raise yourself by using a firm,
non-slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.

1341-7. Safety information

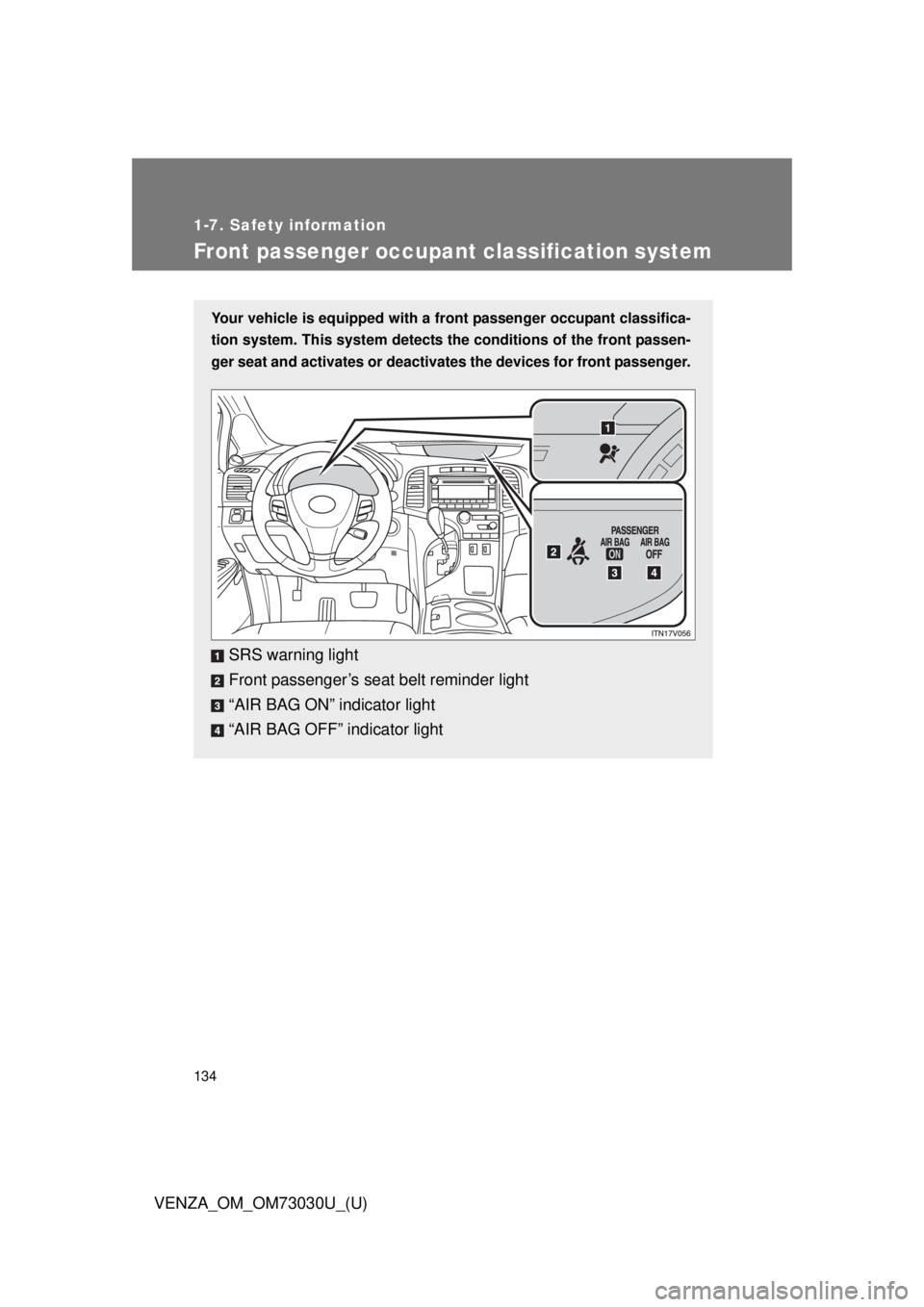

VENZA_OM_OM73030U_(U)Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica-
tion system. This system detects the conditions of the front passen-
ger seat and activates or deactivates the devices for front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG ON” indicator light
“AIR BAG OFF” indicator light

1351-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) Condition and operation in the fr ont passenger occupant classi-
fication system
■ Adult
* 1
■ Child
* 3
or child restraint system
* 4Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
* 2
Devices Front passenger airbag
ActivatedSide airbag on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF”
* 5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
* 2
Devices Front passenger airbag Deactivated
Side airbag on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger’s seat belt pretensioner
