2016 TOYOTA MIRAI Quick Reference Guide

QUICK REFERENCE GUIDE
00505QRG16MIR Printed in U.S.A. 8/15
15 - T C S - 0 8 9 7 5
2016CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
MIRAI

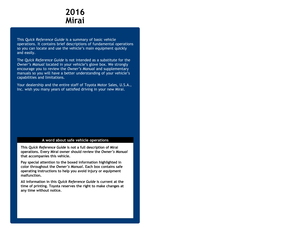

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
,QFZLVK\RXPDQ\\HDUVRIVDWLV

1
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEWFEATURES/OPERATIONS
Automatic air conditioning system 20
Audio 21
Automatic Transmission 14-15
Auto lock/unlock1,2 14
Bluetooth® Device Pairing Section 30-39Clock 22

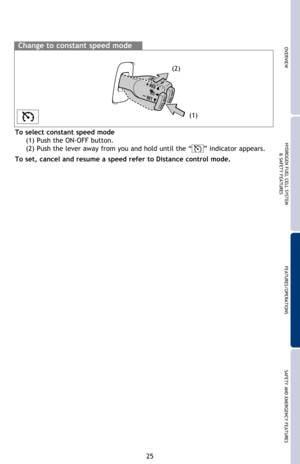

Dynamic radar cruise control 24-25
Lights
1 & turn signals 19
Multi-Information display 23

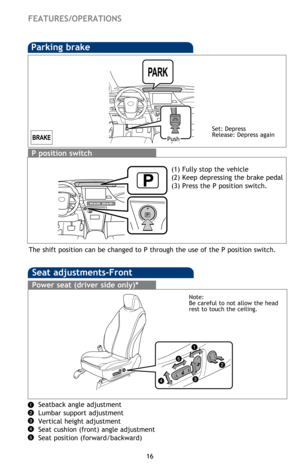

Parking brake 16
Power outlet 21
Seat adjustments-Front 16
Seat heaters 19
Seats-Head restraints 17
Seats-Folding down rear seats 17

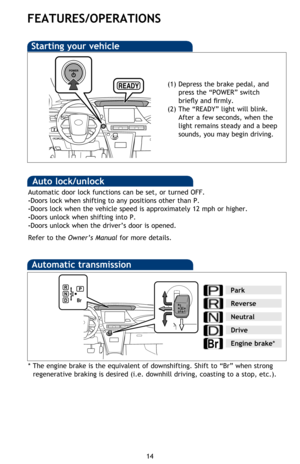

Starting your vehicle 14
Steering wheel switches 22
Windows-Power 17
Windshield wipers & washer 18
Tilt & telescopic steering wheel 18
USB/AUX port 21
Wireless charger 22



Door locks 28
Doors-Child safety locks 28
Emergency tire puncture repair kit 26
Floor mat installation 28
Garage door opener (Homelink®)
3 27
Seat belts 27
Seat belts-Shoulder belt anchor 27
Star Safety System™ 29
Tire pressure monitoring (warning) system 26
Fuel door release button and cap 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel
2-3Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key System1,2 6-7







Automatic high beams 10
Blind spot monitor (BSM) 13
Hydrogen fuel cell system 9
Lane Departure Alert (LDA) 11
Pre-Collision System (PCS) 12
Water release (H2O) switch 10


















HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
SAFETY AND EMERGENCY FEATURES

2
OVERVIEW
Instrument panel
Steering wheel controls
Multimedia controls
Multi-Information display controls
Dynamic Radar Cruise Control (DRCC) distance switch
Lane Departure Alert (LDA) ON switch
Cruise control
Turn signal lever and headlight switch
Windshield wiper and washer switch
Power switch
Audio/Navigation system
1
(PHUJHQF\

3
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ECO MODE” switch
“Traction OFF” or “ON” switch
“P” position switch
Luggage security system (disable trunk opener) switch
Transmission
Parking brake lever
Tilt and telescopic steering control switch
Hood lock release lever
Trunk opener
Fuel door opener
Instrument panel light control switches
Water release switch
Automatic high beam switch
1
For details, refer to the “Navigation System Owner’s Manual.”

4
OVERVIEW
Indicator symbols
Instrument cluster
Indicators and warning lights
Main display
Multi-Information Display
Clock
Transmission shift position indicator
Anti-lock Brake System warning1
Slip indicator1
Pre-Collision System warning light
Open door warning Hydrogen leak warning
Charging system warning1
Brake system warning1
Parking brake warning1
Electric power steering system warning1
Brake system warning light (yellow indicator)1


,ILQGLFDWRUGRHVQRWWXUQRIIZLWKLQDIHZVHFRQGVRIVWDUWLQJ+\GURJHQ)XHO&HOO6\VWHPWKHUH
 PD\EHPDOIXQFWLRQ+DYHYHKLFOHLQVSHFWHGE\\RXU7R\RWDGHDOHU
For details, refer to “Indicators and warning lights,” Section 3-3,  2ZQHU·V
0DQXDO.
High coolant temperature warning
Supplemental Restraint System warning

5
OVERVIEWHYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURESFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2,IWKLVOLJKW

6
OVERVIEW
Keyless entry
Push
Locking operation
Push ONCE: Driver door
TWICE: All doors
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Unlocking trunk
Push and hold
Panic button
Push and hold
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; Fuel Cell System is not engaged.
All systems OFF.
Accessory
Ignition On
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting the Fuel Cell System)
OFF
Push Depress
brake pedal
