2016 TOYOTA LAND CRUISER rear view mirror

LC200_OM_OM60M88U_(U)
3514-5. Using the driving support systems
4
Driving
The Rear Cross Traffic Alert functions when your vehicle is in reverse.
It can detect other vehicles approaching from the right or left rear of
the vehicle. It uses radar sensors to alert the driver of the other vehi-
cle’s existence through fl ashing the outside rear view mirror indicators
and sounding a buzzer.
RCTA function
Approaching vehicles Detection areas12

3805-1. Using the air conditioning system and defogger
LC200_OM_OM60M88U_(U)■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
Press the switch again to turn the defogger off.
■
Micro dust and pollen filter
Press on the control screen.
Press .
Outside air mode switches to recirculated air mode. Pollen is removed
from the air and the air flows to the upper part of the body.
Usually the system will turn off automatically approximately 1 to 3 min-
utes.
To stop the operation, press again.
■
Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press on the control screen.
Press .
Press again to turn the de-icer off.
1
2
1
2

3845-1. Using the air conditioning system and defogger
LC200_OM_OM60M88U_(U)
WARNING
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid
weather. The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
■ To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers are on.
● Do not touch the glass at lower part of the windshield or to the side of the
front pillars when the windshield wiper de-icer is on. (vehicles with wind-
shield wiper de-icer)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is not running.
●Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

580
LC200_OM_OM60M88U_(U)
8-2. Customization
■Outside rear view mirrors (P. 147)
■Front seat heaters and ventilators ( P. 390)
■Driving position memory ( P. 136)
FunctionDefault settingCustomized
setting
Automatic folding/
extending operation Linked to lock-
ing/unlocking of
the doors Off——O
Linked to engine
switch operation
Linked mirror function
when reversing On Off——O
123
FunctionDefault settingCustomized
setting
Adjustment of the front
seat heater tempera-
ture or the ventilator fan
speed during automatic
operation (individual
seat adjustment avail-
able) Level 3
(standard) Level 1 (low) to
level 5 (high)
——O
123
FunctionDefault settingCustomized setting
Selection the door link-
ing driving position
memory with door
unlock operation Driver’s door All doors
——O
123

582
LC200_OM_OM60M88U_(U)
8-2. Customization

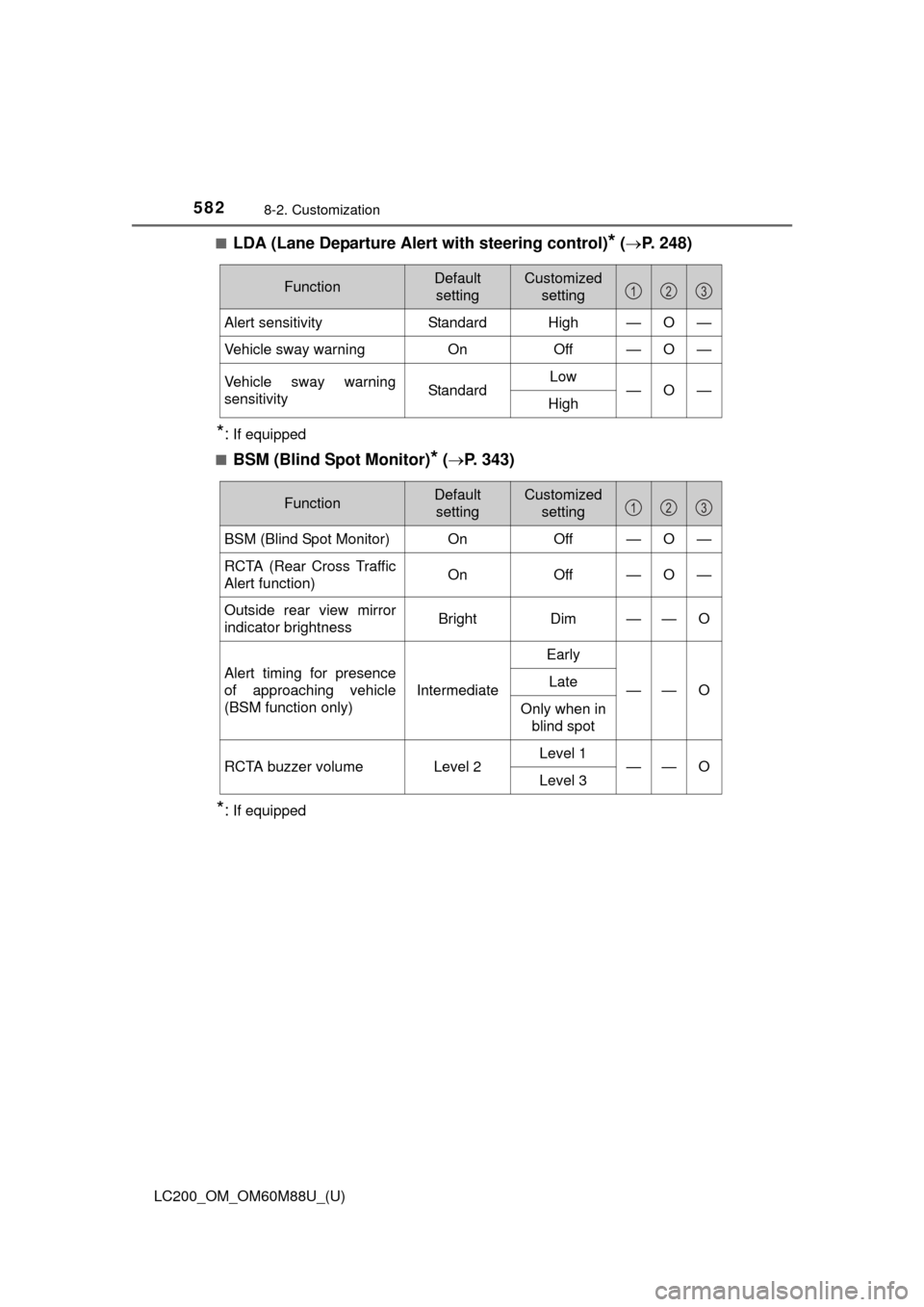

■LDA (Lane Departure Alert with steering control)* ( P. 248)
*:If equipped
■
BSM (Blind Spot Monitor)* (  P. 343)
*:If equipped
FunctionDefault
settingCustomized setting
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning
sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
RCTA (Rear Cross Traffic
Alert function)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim——O
Alert timing for presence
of approaching vehicle
(BSM function only)
Intermediate
Early
——OLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1——OLevel 3
123

595Alphabetical index
LC200_OM_OM60M88U_(U)
Child safety ................................ 57Airbag precautions .................. 41
Back door precautions .......... 117
Battery precautions ....... 460, 545
Child-protectors .................... 109
Child restraint system ............. 58
How your child should wear the seat belt ................. 34
Installing child restraints ......... 63
Moon roof precautions .......... 157
Power window lock switch .... 150
Power window precautions ......................... 153
Rear door child-protectors .... 109
Removed key battery
precautions ......................... 480
Safety information ................... 57
Seat belt extender
precautions ........................... 37
Seat belt precautions .............. 36
Seat heater precautions........ 389
Child-protectors....................... 109
Cleaning ........................... 434, 437 Aluminum wheels.................. 434
Exterior ................................. 434
Interior................................... 437
Radar sensor ........................ 346
Seat belts .............................. 438
Clock ......................................... 409
Coat hooks ............................... 420
Compass .................................... 89
Condenser ................................ 456
Console box ............................. 398
Coolant Capacity ................................ 556
Checking ............................... 455
Preparing and checking before winter....................... 369
Cool box ................................... 406
Cooling system ........................ 455
Engine overheating ............... 546 Crawl Control ........................... 284
Cruise control
Cruise control ....................... 269
Dynamic radar cruise control ................................ 257
Cup holders ............................. 400
Curtain shield airbags............... 38
Customizable features ............ 574
Daytime running light system.................................... 207
Defogger Outside rear view
mirrors ................................ 380
Rear window ......................... 380
Windshield ............................ 379
Differential................................ 557
Dimension ................................ 552
Dinghy towing.......................... 192
Display Drive information .................... 92
Dynamic radar cruise control ................................ 257
Fuel consumption information ........................... 98
Intuitive parking assist .......... 273
LDA (Lane Departure
Alert)................................... 252
Multi-information display ......... 89
Warning messages ............... 519
D
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

596Alphabetical index
LC200_OM_OM60M88U_(U)
Do-it-yourself maintenance .... 447
Door courtesy lightsLocation ................................ 393
Doors Automatic door locking and
unlocking system ................ 110
Back door.............................. 114
Door glasses ......................... 150
Door lock............................... 106
Open door warning buzzer ... 512
Open door warning light........ 512
Outside rear view mirrors...... 147
Rear door child-protectors .... 109
Side doors............................. 106
Drive information ....................... 92
Driver’s seat belt reminder light......................................... 512
Driver’s seat position memory .................................. 136
Driving ...................................... 160
Break-in tips .......................... 161
Correct posture ....................... 28
Driving in the rain .................. 161
Off-road precautions ............. 364
Procedures ........................... 160
Winter drive tips .................... 369
Driving position memory ........ 136
Driving position memory ....... 136
Memory recall function.......... 137
Dynamic radar cruise
control .................................... 257Function ................................ 257 Eco Driving Indicator ................ 96
EDR (Event data recorder)........ 10
Electronic key .......................... 102
Battery-saving function ......... 122
If the electronic key does not operate properly ........... 540
Replacing the battery............ 479
Emergency, in case of
If a warning buzzer sounds................................ 510
If a warning light
turns on .............................. 510
If a warning message is displayed ........................ 519
If the electronic key does not operate properly ........... 540
If the engine will not start ...... 537
If the shift lever cannot be
shifted from P ..................... 539
If the vehicle has
discharged battery.............. 543
If you have a flat tire ............. 524
If you lose your keys ..... 103, 105
If you think something is wrong ................................. 508
If your vehicle becomes stuck ................................... 549
If your vehicle has to be stopped in an
emergency ......................... 501
If your vehicle needs to be towed.................................. 502
If your vehicle overheats....... 546E

599Alphabetical index
LC200_OM_OM60M88U_(U)
HeatersFront automatic air
conditioning system ............ 374
Outside rear view mirrors...... 380
Seat heaters ......................... 390
High mounted stoplight Replacing .............................. 497
Hill-start assist control............ 357
Hood ......................................... 449
Hooks Cargo hooks ......................... 404
Coat hooks............................ 420
Retaining hooks (floor mat) ............................. 26
Horn .......................................... 143
I/M test ...................................... 446
Identification Engine................................... 553
Vehicle .................................. 553
Ignition switch (engine switch) ...................... 193
Ignition switch light (engine switch light) ............. 393
Illuminated entry system ........ 395
Immobilizer system ................... 74
Indicators ................................... 80 Initialization
Items to initialize ................... 584
Maintenance ......................... 441
Power windows..................... 152
Tire pressure warning
system .......... ...................... 465
Inside door handle light .......... 393
Inside rear view mirror ............ 145
Instrument panel light control ...................................... 86
Interior lights ........................... 393
Switch ................................... 394
Intuitive parking assist ........... 272
Jack Vehicle-equipped
jack ..................................... 525
Jack handle .............................. 525
Jam protection function Moon roof ............................. 155
Power windows..................... 151
I
J
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
