265 3-4. Using the storage features
3
Interior features
FT86_EE
CAUTION
■Caution while driving
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Before driving, place the cup holder in the rear position so that it does not
hinder shift lever operation.
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
●When placing the cup holder, make
sure it is facing the correct direction.
Failure to do so will cause the cup
holder to not be secure in the console
tray and hinder shift lever operation.
Cup holders/console tray
86_OM_EE_OM18058E.book 265 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

266
FT86_EE
3-5. Other interior features
Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
86_OM_EE_OM18058E.book 266 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

267
3-5. Other interior features
3
Interior features
FT86_EE

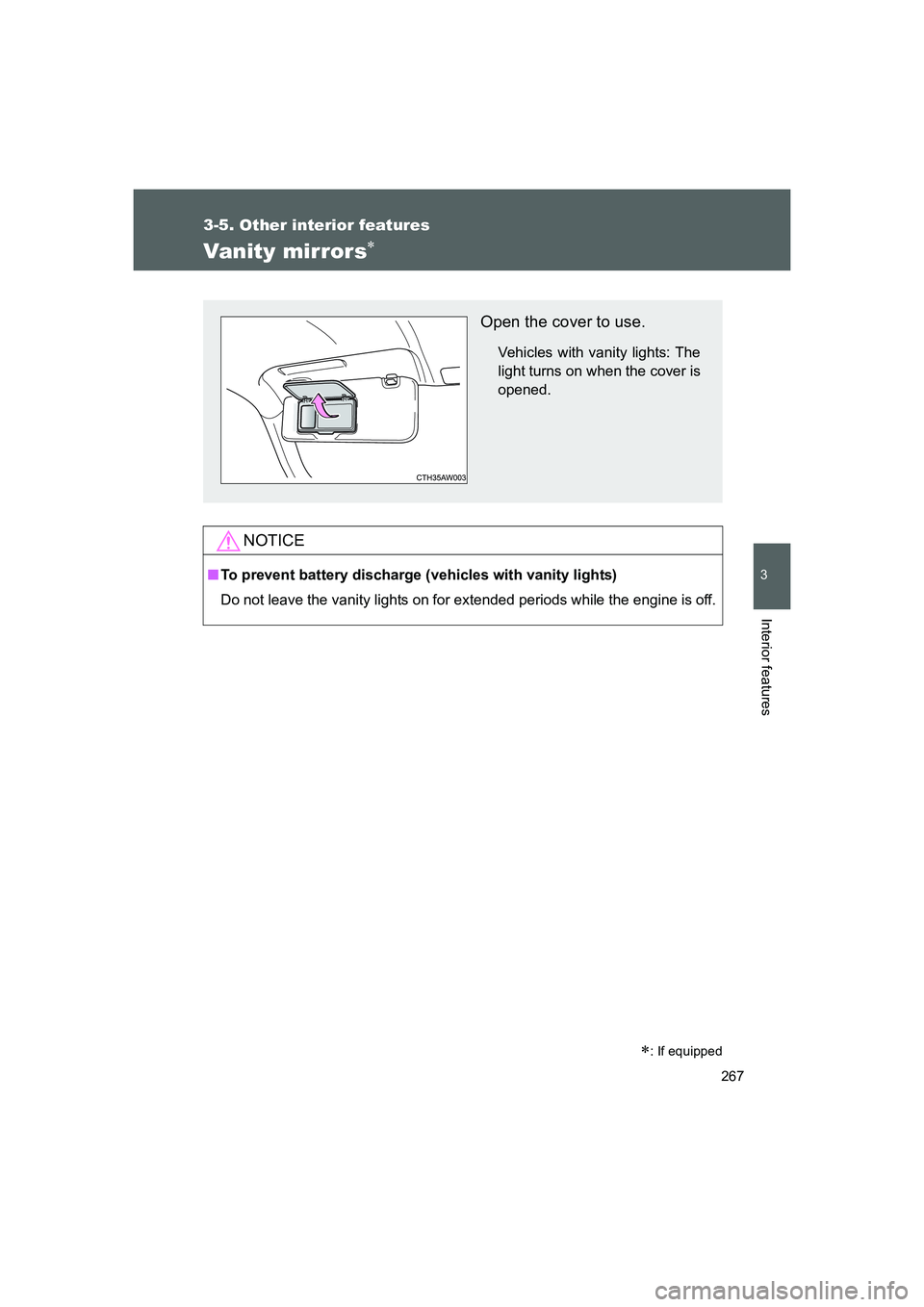

Vanity mirrors∗
NOTICE
■To prevent battery discharge (vehicles with vanity lights)
Do not leave the vanity lights on for extended periods while the engine is off.
Open the cover to use.
Vehicles with vanity lights: The
light turns on when the cover is
opened.
∗: If equipped
86_OM_EE_OM18058E.book 267 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

268
3-5. Other interior features
FT86_EE
Clock
■The clock is displayed when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset. The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest
hour
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:0000
86_OM_EE_OM18058E.book 268 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

269
3-5. Other interior features
3
Interior features
FT86_EE
Outside temperature display
■The outside temperature is displayed when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 20 km/h
[12 mph])
●When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■When “- -” is displayed more than 1 minute or the outside temperature
is not displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The temperature display shows temperatures within the range of
-40°C (-40°F) and 50°C (122°F).
The outside temperature dis-
play can be switched by
pressing the “DISP” switch.
(→P. 204)
86_OM_EE_OM18058E.book 269 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

270
3-5. Other interior features
FT86_EE
Ashtray∗
CAUTION
■When not in use
Keep the ashtray closed. In the event of sudden braking, an accident may
occur due to an occupant being struck by the open ashtray or ash flying out.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
The ashtray can be installed in
the cup holder. (→P. 264)
∗: If equipped
86_OM_EE_OM18058E.book 270 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

271
3-5. Other interior features
3
Interior features
FT86_EE
Power outlets
The power outlet can be used for 12 V accessories that run on 10 A
or less.
In the console tray
In the glove box (if equipped)
86_OM_EE_OM18058E.book 271 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

272 3-5. Other interior features
FT86_EE
■The power outlet can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
