2016 TOYOTA GT86 Owners Manual (in English)

209 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
86_OM_EE_OM18058E.book 209 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

210 2-3. Operating the lights and windshield wipers
FT86_EE
Manual headlight leveling dial (if equipped)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
Driver None 0
Driver and front
passengerNone 0
All seats occupied None 1
All seats occupied Full luggage loading 2
Driver Full luggage loading 2
86_OM_EE_OM18058E.book 210 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

211 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
■Daytime running light system
Vehicles with halogen headlights
Vehicles with an automatic transmission: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started, the shift lever is shifted out of
P and the parking brake is released with the headlight switch off or in the
“AUTO” position. Daytime running lights are not designed for use at night.
Vehicles with a manual transmission: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the “AUTO” position. Daytime running
lights are not designed for use at night.
Vehicles with discharge headlights
Vehicles with an automatic transmission: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started, the shift lever is shifted out of
P and the parking brake is released with the headlight switch off or in the
“AUTO” position. (The front position lights illuminate.) Daytime running lights
are not designed for use at night.
Vehicles with a manual transmission: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the “AUTO” position. (The front position
lights illuminate.) Daytime running lights are not designed for use at night.
■Headlight control sensor (if equipped)
Headlight control sensor is located on the
passenger's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
86_OM_EE_OM18058E.book 211 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

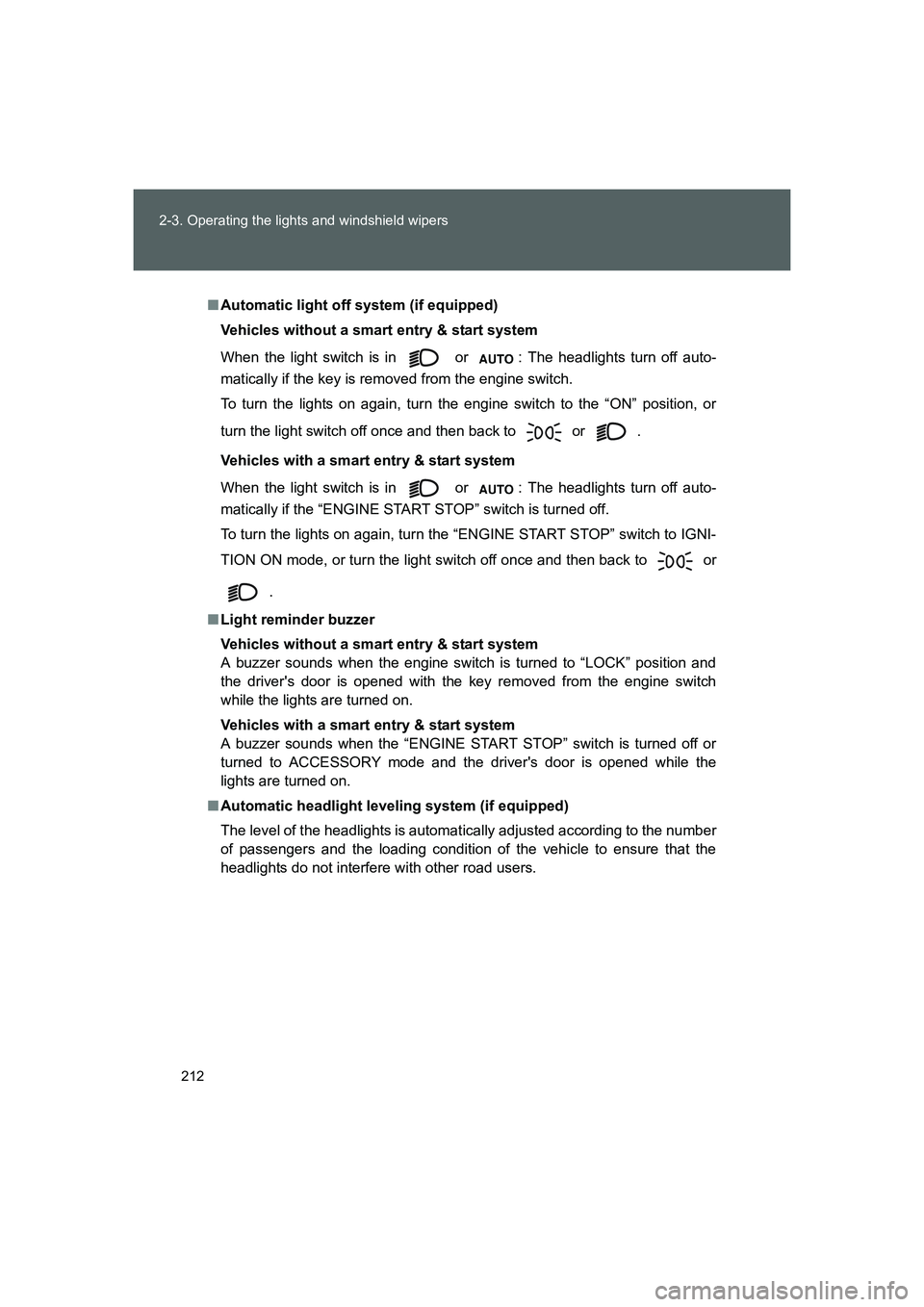

212 2-3. Operating the lights and windshield wipers
FT86_EE
■Automatic light off system (if equipped)
Vehicles without a smart entry & start system
When the light switch is in or
: The headlights turn off auto-
matically if the key is removed from the engine switch.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or .
Vehicles with a smart entry & start system
When the light switch is in or
: The headlights turn off auto-
matically if the “ENGINE START STOP” switch is turned off.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to
or
.
■Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned to “LOCK” position and
the driver's door is opened with the key removed from the engine switch
while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the “ENGINE START STOP” switch is turned off or
turned to ACCESSORY mode and the driver's door is opened while the
lights are turned on.
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
86_OM_EE_OM18058E.book 212 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

213 2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
■Battery-saving function (if equipped)
In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:
●The headlights and/or tail lights are on.
●The key is removed from the engine switch (vehicles without a smart
entry & start system) or the “ENGINE START STOP” switch is turned off
(vehicles with a smart entry & start system).
●The light switch is in or .
This function will be canceled in any of the following situations:
●When the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start sys-
tem)
●When the light switch is operated
●When the door is opened or closed
86_OM_EE_OM18058E.book 213 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

214 2-3. Operating the lights and windshield wipers
FT86_EE
■Turning on the low beam headlights when the vehicle is parked in dark
areas
■Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 449)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
Turn off the engine with the light switch
in or off, and pull the light switch
toward you and release it. The low
beam headlights will turn on for about
30 seconds to light up the area around
the vehicle.
The lights are turned off in the following
situations.
●Vehicles without a smart entry &
start system: The engine switch is
turned to the “ON” position.
●Vehicles with a smart entry & start
system: The “ENGINE START
STOP” switch is turned to IGNITION
ON mode.
●The light switch is turned on.
●The light switch is pulled toward you
and then released.
86_OM_EE_OM18058E.book 214 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

215
2-3. Operating the lights and windshield wipers
2
When driving
FT86_EE
Fog light switch∗
∗: If equipped
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Rear fog light switch
Turns the rear fog lights on.
Releasing the switch ring
returns it to .
Operating the switch ring again
turns the rear fog lights off.
86_OM_EE_OM18058E.book 215 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

216 2-3. Operating the lights and windshield wipers
FT86_EE
■Fog lights can be used when
Rear fog light switch
The headlights or front position lights are turned on.
Front and rear fog light switch
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Front and rear fog light switch
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring
returns it to .
Operating the switch ring again
turns only the rear fog lights
off.
86_OM_EE_OM18058E.book 216 ページ ２０１５年３月１７日　火曜日　午前１１時３１分
