2016 TOYOTA COROLLA Specifications

5529-1. Specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
*: Drive belt tension measured with Borroughs drive belt tension gauge No.BT-33-73F (used belt), lbf
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 1.8 L 4-cylinder (2ZR-FE and 2ZR-FAE) engines
Type4 cylinder in line, 4 cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu. in. (1798 cm3)
Drive belt tension
2ZR-FE*
143 ± 22 lbf (650 ± 100 N, 65 ± 10 kgf)
2ZR-FAE
Automatic adjustment
Valve clearance (engine
cold)
Intake
Exhaust Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13.2 gal. (50 L, 10.9 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill

reference*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)

5539-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity:
SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, \
or
under extreme load conditions.
How to read oil container label
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oi l you should use.
Outside temperature

5549-1. Specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)

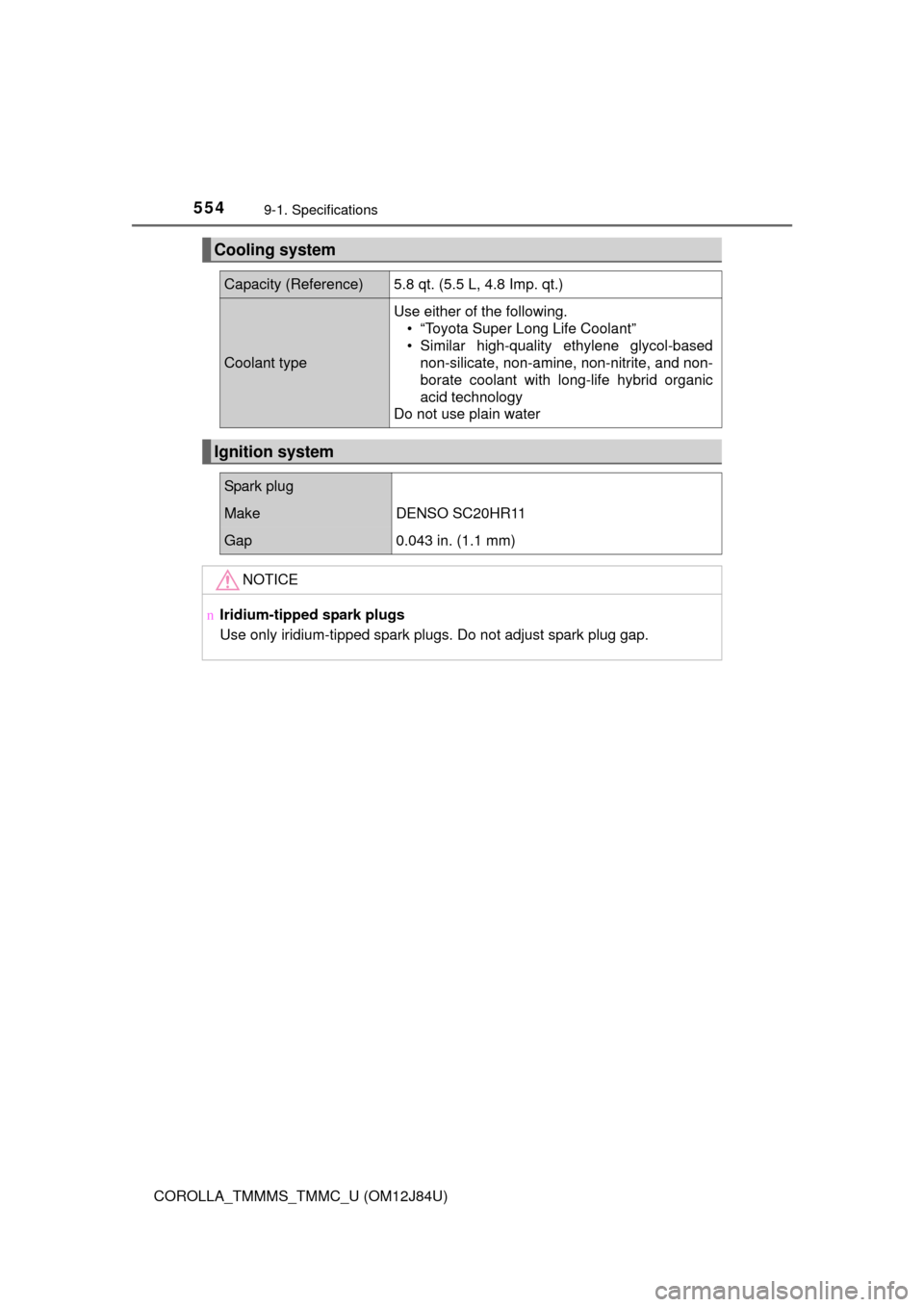

Cooling system
Capacity (Reference)5.8 qt. (5.5 L, 4.8 Imp. qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water
Ignition system
Spark plug
MakeDENSO SC20HR11
Gap0.043 in. (1.1 mm)
NOTICE
n Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

5559-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
Electrical system
Battery
Open voltage at
68F (20 C):
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates5 A max.
Manual transaxle
Gear oil capacity
(Reference)2.5 qt. (2.4 L, 2.1 Imp. qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual TransmissionGear Oil LV”
• Other gear oil that meets API GL-4 and SAE
75W specifications
NOTICE
nManual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.

5569-1. Specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Automatic transaxle
Fluid capacity (Reference) 6.9 qt. (6.5 L, 5.7 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
nAutomatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the transmission of your
vehicle.
Continuously variable transaxle
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine CVTF FE
NOTICE
nContinuously variable transaxle fluid type
Using continuously variable transaxle fluid other than “Toyota Genuine
CVTF FE” may cause deterioration in shift quality, locking up of the trans-
mission accompanied by vibration and, ultimately, damage to the vehicle’s
transmission.
Clutch
Pedal free play 0.2 0.6 in. (5 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

5579-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20kgf)

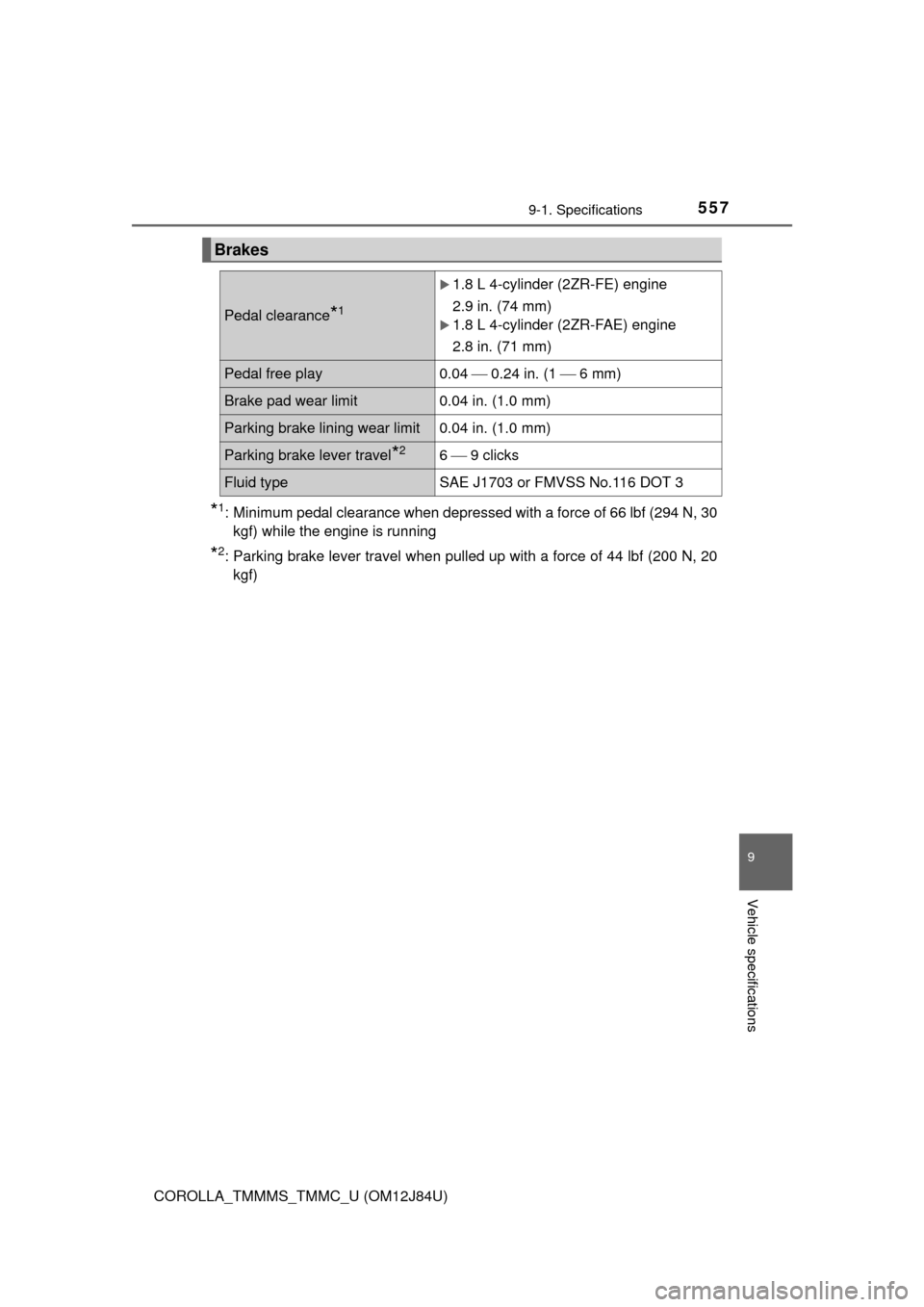

Brakes
Pedal clearance*1
1.8 L 4-cylinder (2ZR-FE) engine
2.9 in. (74 mm)
1.8 L 4-cylinder (2ZR-FAE) engine
2.8 in. (71 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*26  9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3

5589-1. Specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
Ty p e A
Ty p e B
Ty p e C
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size195/65R15 91S, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 15  6 J, 16  4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P205/55R16 89H, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 16  6 1/2 J, 16  4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P215/45R17 87W, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 17  7 J, 16  4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

5599-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam 9005 60 A
Front side marker
lights 
5B
Front turn signal/park-
ing lights 7444NA 28/8 C
Front fog lights
* 19 D
Side turn signal
lights
* 5C
Rear turn signal lights 21 C
Stop/tail and rear side
marker lights 7443 21/5 B
License plate lights 5B
Back-up lights 921 16 B
Interior Front personal/inte-
rior lights (vehicles
without a moon roof)

8B
Front personal/inte-
rior lights (vehicles
with a moon roof) 
5B
Rear interior light 8E
Trunk light 3.8 B
A: HB3 halogen bulbs
C: Wedge base bulbs (amber) E: Double end bulbs
*: If equipped B: Wedge base bulbs (clear)
D: H16 halogen bulbs
