2016 TOYOTA COROLLA Owners Manual

892. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Entune Audio system or naviga-
tion system
Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Past Record” screen is dis-
played, select “Trip Information”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps”
screen.
If the “Past Record” screen is dis-
played, select “Trip Information”.
Fuel consumption information
: If equipped
Fuel consumption information ca n be displayed on the Entune
Audio system and/or th e navigation system.
Trip information
1
2

902. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Average vehicle speed
Elapsed time
Range
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
“Past Record” screen appears
Vehicles without a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
1
2
3
4
5
6
7

912. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Past record
Entune Audio system with “CAR” button
Press the “CAR” button.
If the “Trip Information” screen is displayed, select “Past Record”.
Entune Audio system or navigation system with “APPS” button
Press the “APPS” button.
Touch “Eco” on the “Apps” screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Previous fuel economy
record
Current fuel economy
Best recorded fuel economy
Update the past record data
Reset the past record data
“Trip Information” screen
appears
Average recorded fuel economy
These images are examples only, and may vary slightly from actual
conditions.
n Resetting the data
Selecting “Clear” on the consumption screen will reset the consumption data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.
n Updating the past record data
Selecting “Update” on the “Past Record” screen will update t\
he past record
data.
n Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
1
2
1
2
3
4
5
6
7

922. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, and when the
vehicle is stopped, the light turns
off.
Eco Driving Indicator (except vehicles with
a manual transmission)
Eco Drive Indicator Light
Drive monitor display
Multi-information display

932. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
Drive monitor display
( P. 80)
Multi-information display
( P. 86)
nOperation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
lThe shift lever is in any position other than D.
l Paddle shift switch
* is operated.
l Sport mode
* is selected.
l The vehicle speed is approximately 80 mph (130 km/h) or higher.
*: If equipped
Eco Drive Indicator Zone Display
Drive monitor display
Multi-information display
1
2
Eco Driving Indicator Light customization

942. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)

95
3
Operation of
each component
COROLLA_TMMMS_TMMC_U (OM12J84U) 3-1. Key information
Keys .................................... 96
3-2. Opening, closing and locking the doors
Doors ................................ 101
Trunk ................................. 110
Smart key system ............. 115
3-3. Adjusting the seats Front seats ........................ 124
Rear seats......................... 126
Head restraints.................. 128
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 131
Inside rear view mirror ...... 133
Outside rear view mirrors ............................. 135
3-5. Opening and closing the windows
Power windows ................. 137
Moon roof .......................... 141

96
COROLLA_TMMMS_TMMC_U (OM12J84U)

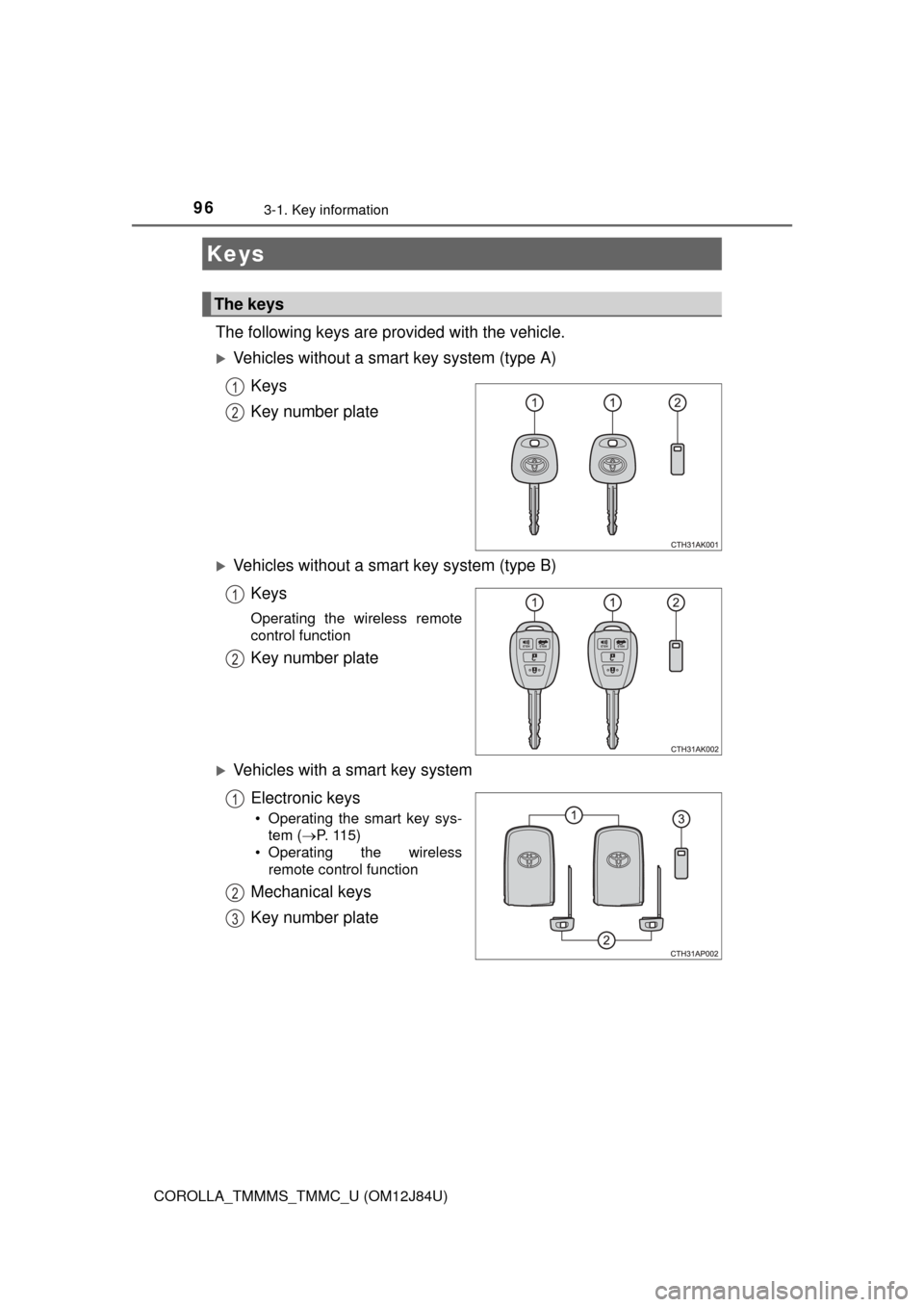

3-1. Key information
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)Keys
Key number plate
Vehicles without a smart key system (type B)Keys
Operating the wireless remote
control function
Key number plate
Vehicles with a smart key systemElectronic keys
• Operating the smart key sys-tem ( P. 115)
• Operating the wireless
remote control function
Mechanical keys
Key number plate
Keys
The keys
1
2
1
2
1
2
3
