2016 TOYOTA AVALON HYBRID turn signal bulb

17Pictorial index
AVALON_HV_U (01999-07002)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 268
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 438
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 443
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Checking/rotation/tire pressure warning system . . . . . . . . . P. 354
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 428
Headlights/side marker lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 183
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 377, Wattages: P. 444)
8
9
10
11
12
13

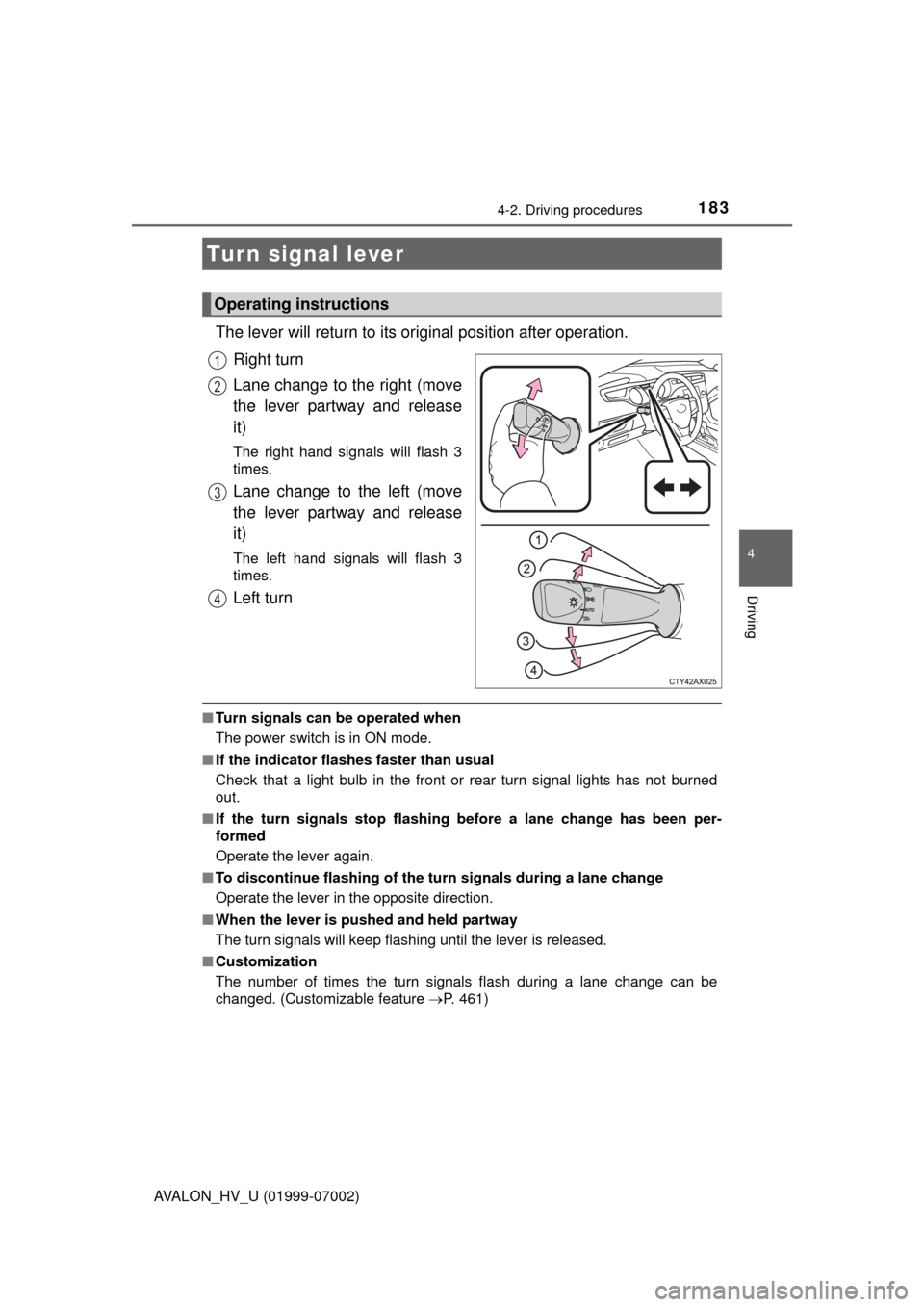

1834-2. Driving procedures
4
Driving
AVALON_HV_U (01999-07002)
The lever will return to its original position after operation.
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ When the lever is pushed and held partway
The turn signals will keep flashing until the lever is released.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 461)
Turn signal lever
Operating instructions
1
2
3
4

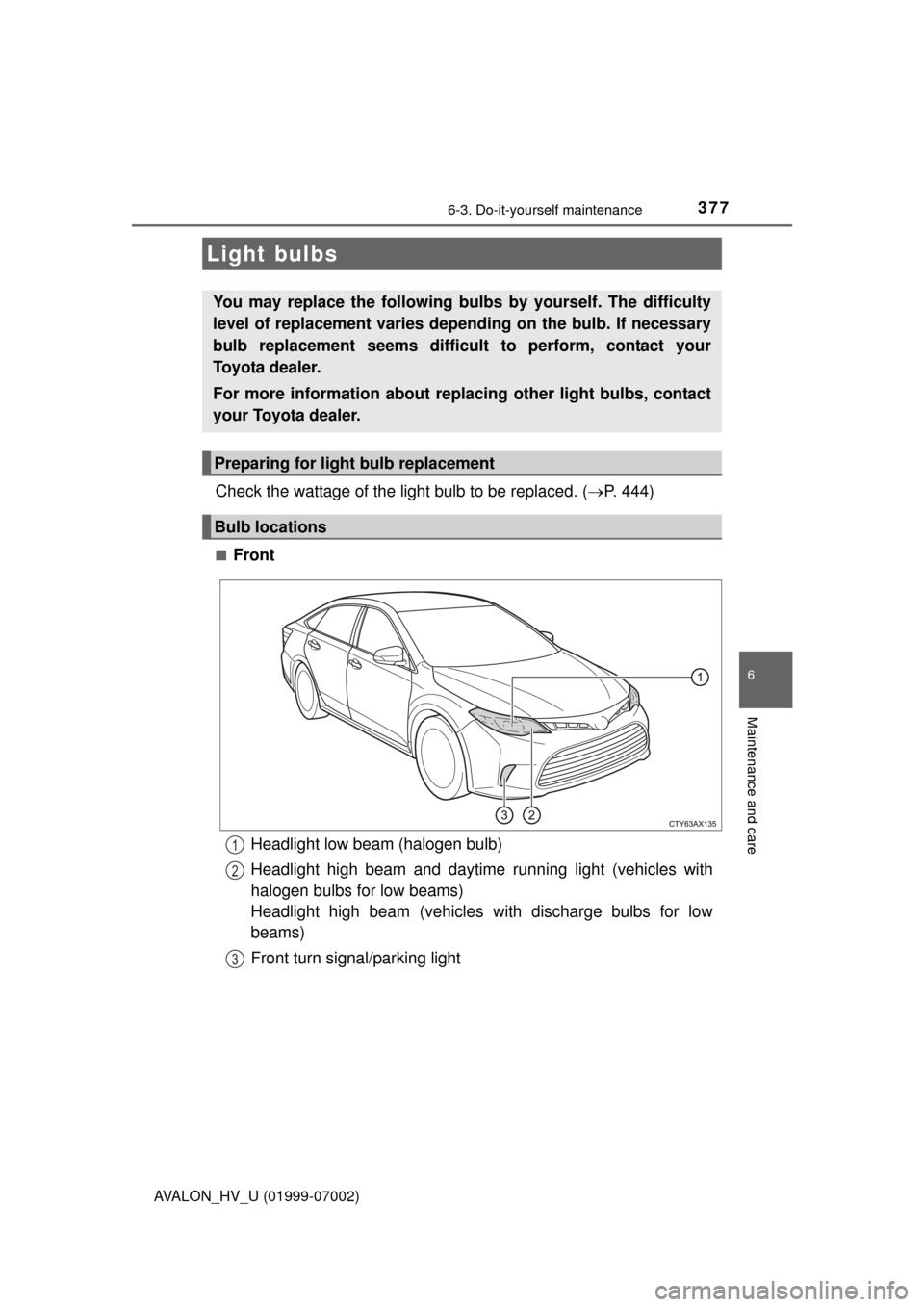

3776-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
Check the wattage of the light bulb to be replaced. (P. 444)
■Front
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight low beam (halogen bulb)
Headlight high beam and daytime running light (vehicles with
halogen bulbs for low beams)
Headlight high beam (vehicles with discharge bulbs for low
beams)
Front turn signal/parking light1
2
3

3816-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)■
Front turn signal/parking light
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the 3 fender liner
clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the fender liner bolt
and partly remove the fender
liner.
1
2

3866-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)■
Replacing the following bulbs
If any of the lights listed below
has burnt out, have it replaced by
your Toyota dealer.
● Headlight low/high beams (LED type)
● Headlight low beams (discharge bulb)
● Daytime running lights (vehicl es with discharge or LED head-
lights)
● Side marker lights
● Side turn signal lights
● Stop/tail lights
● High mounted stoplight
● Outer foot lights (if equipped)
● License plate light
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED light bulbs
The headlight low/high beams (LED type), parking lights/daytime running
lights (vehicles with discharge or LED headlights), side marker lights (vehi-
cles with LED headlights), stop/tail lights, high mounted stoplight, outer foot
lights and license plate light each consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the lens.

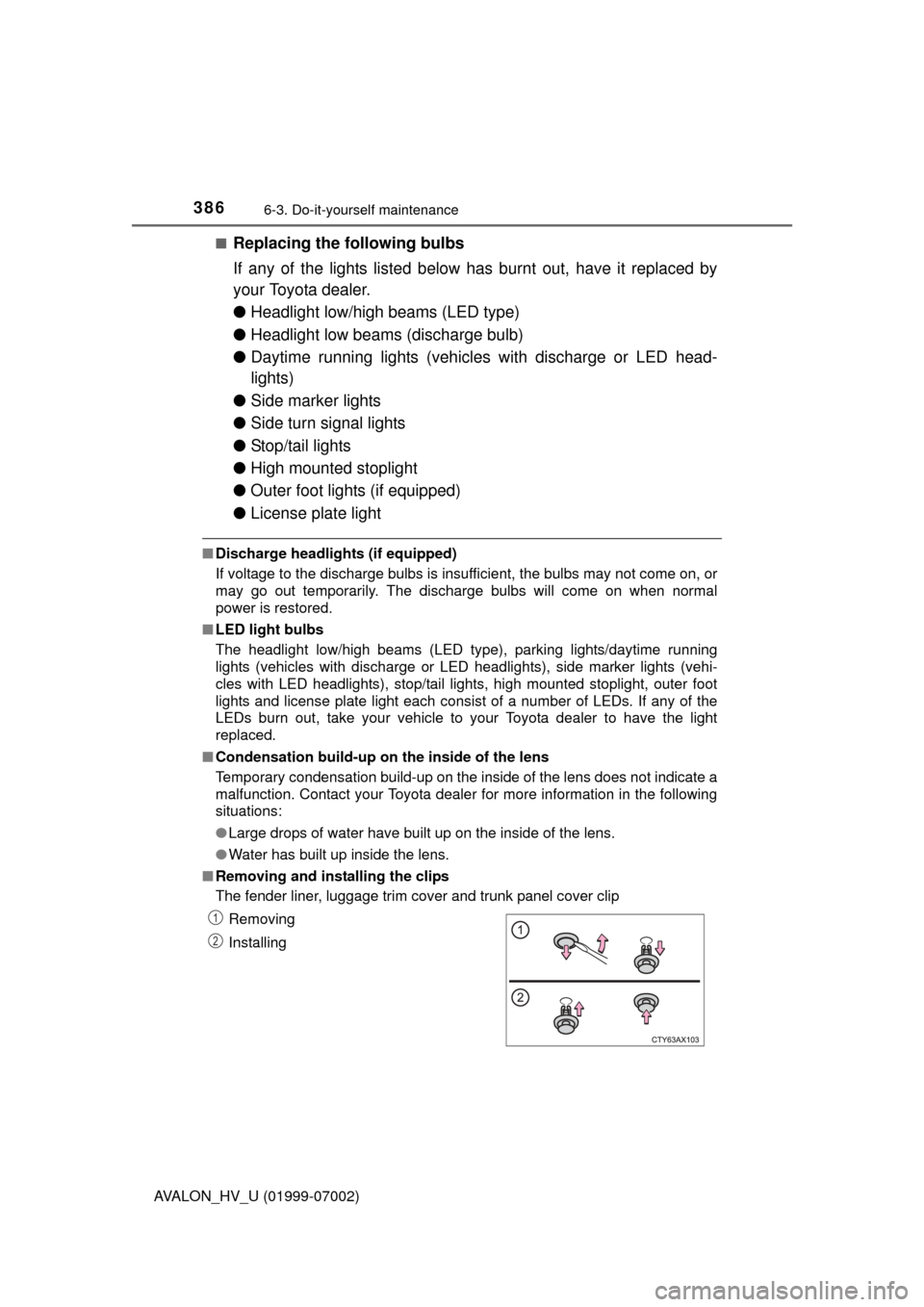

■ Removing and installing the clips
The fender liner, luggage trim cover and trunk panel cover clip
Removing
Installing
1
2

4448-1. Specifications
AVALON_HV_U (01999-07002)A: D4S discharge bulbs
B: HB3L+ halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)F: Double end bulbs
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
Exterior
Headlights Low beam (discharge bulbs)
*2
Low beam (halogen bulbs)*2
High beam

9005
900535
60
60A
B
C
Front turn signal/parking lights7444NA28/8D
Side marker lights (bulb type)*2W5W5E
Side turn signal lightsWY5W5D
Rear turn signal lights92116E
Back-up lights92116E
Interior Interior/front personal lights W6W 6
E
Interior/rear personal lights 8
E
Vanity lights70651.4F
Door courtesy lights1685E
Trunk light1943.8E

481Alphabetical index
AVALON_HV_U (01999-07002)
Flat tire...................................... 406
Floor mats .................................. 26
FluidBrake .................................... 443
Hybrid transmission .............. 442
Washer ................................. 349
Front passenger occupant classification system .............. 48
Front personal lights ............... 285
Front seats ............................... 131 Adjustment ............................ 131
Cleaning................................ 327
Correct driving posture ........... 28
Driving position memory ....... 133
Head restraints ..................... 138
Power easy access system ......... ....................... 133
Seat heaters ......................... 281
Seat position memory ........... 133
Seat ventilators ..................... 281
Front side marker lights.......... 185 Light switch ........................... 185
Replacing light bulbs............. 386
Front turn signal lights ........... 183 Replacing light bulbs............. 381
Turn signal lever ................... 183
Wattage ................................ 444
Fuel ........................................... 438 Capacity ................................ 438
Fuel gauge .............................. 90
Information ............................ 445
Refueling............................... 197
Type .............................. 197, 438
Warning light ......................... 399
Fuel consumption...................... 95
Fuel filler door.......................... 197 If the fuel filler door cannot be opened............... 199
Refueling............................... 197
Fuses ........................................ 374 Garage door opener ................ 305
Gauges ....................................... 90
Glove box ................................. 288
Grocery bag hooks.................. 295
Head restraints ........................ 138
Headlights ................................ 185
Automatic high beam ............ 188
Discharge headlights precautions......................... 388
Light switch ........................... 185
Replacing light bulbs ............ 386
Wattage ................................ 444
Heaters Air conditioning system......... 272
Outside rear view mirrors ..... 276
Seat heaters ......................... 281
High-voltage components ........ 74
Hill-start assist control ........... 260
Hood ......................................... 339
Hooks Coat hooks ........................... 304
Grocery bag hooks ............... 295
Retaining hooks (floor mat) .... 26
FG
H

483Alphabetical index
AVALON_HV_U (01999-07002)
JackPositioning a floor jack .......... 340
Vehicle-equipped jack........... 407
Jack handle .............................. 407
Jam protection function Moon roof.............................. 152
Power windows ..................... 149
Keyless entry Smart key system ......... 110, 116
Wireless remote
control......................... 110, 116
Keys .......................................... 106
Battery-Saving Function ....... 125
Electronic key ....................... 106
If the electronic key does not operate
properly .............................. 421
Key number plate.................. 106
Keyless entry ........................ 106
Mechanical key ..................... 106
Power switch......................... 172
Replacing the battery ............ 372
Warning buzzer..................... 122
Wireless remote control key ...................................... 106
Knee airbags .............................. 37 Lane Departure Alert with steer-
ing control (LDA)................... 221
LATCH anchors ......................... 60
LDA (Lane Departure Alert with steering control).................... 221
Lever Auxiliary catch lever.............. 339
Hood lock release lever ........ 339
Internal trunk release lever ... 118
Shift lever.............................. 180
Turn signal lever ................... 183
Wiper lever ........................... 192
License plate lights ................. 185 Light switch ........................... 185
Light bulbs Replacing.............................. 379
Wattage ................................ 444
Lights Automatic high beam ............ 188
Headlight switch ................... 185
Illuminated entry system ....... 286
Interior light ........................... 285
Interior lights list.................... 284
Personal lights ...................... 285
Replacing light bulbs ............ 379
Trunk light ............................. 118
Turn signal lever ................... 183
Vanity lights .......................... 297
Wattage ................................ 444
Load capacity .......................... 169
Lock steering column ............. 175
Luggage net ............................. 295
Luggage security system ....... 117
J
K
L
