942. Instrument cluster
AURIS Touring Sports_EE (12K53E)
*1: These lights, except those shown on the multi-information display, turn onwhen the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or IGNITION ON mode (vehicles with a smart
entry & start system) to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: The light flashes quickly to indicate that the steering lock has not beenreleased.
*4: This light illuminates on the center panel.
*3
(Green)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 213)
*4
Rear passengers’ seat
belt reminder lights
(→ P. 545)
(Yellow)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 545)*1
(if equipped)
Tire pressure warning
light ( →P. 546)
Low fuel level warning
light ( →P. 545)*1
(if equipped)
Master warning light
(→ P. 546)
Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 545)

952. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 231)
(if equipped)
LDA (Lane Departure
Alert) indicator
(→ P. 268)
(if equipped)
Tail light indicator
(→ P. 233)
(if equipped)
Toyota parking
assist-sensor indicator
(→ P. 305)
Headlight high beam
indicator ( →P. 233)
(if equipped)
Simple-IPA indicator
(→ P. 312)
*1
(if equipped)
Automatic High Beam
indicator ( →P. 273)*1
(if equipped)
“TRC OFF” indicator
(→ P. 329)
(if equipped)
Front fog light indicator
(→ P. 239)*1, 2Slip indicator
(→ P. 329)
Rear fog light indicator
( → P. 239)
*1VSC OFF indicator
(→ P. 329)
(Green)
(if equipped)
Cruise control indicator
(→ P. 296)*1
(if equipped)
PCS warning light
(→ P. 255)
(if equipped)
Cruise control “SET”
indicator ( →P. 296)*1
(if equipped)
Stop & Start indicator
(→ P. 283)
(Green)
(if equipped)
Speed limiter indicator
(→ P. 301)*1
(if equipped)
Stop & Start cancel indi-
cator ( →P. 283)

972. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.

1002. Instrument cluster
AURIS Touring Sports_EE (12K53E)
■The meters and display illuminate when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ − − ” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. ( →P. 600)
• 3-ring meter: The high engine coolant temperature warning light comes on
• 2-ring meter: The engine coolant temperature gauge enters the red zone

1062. Instrument cluster
AURIS Touring Sports_EE (12K53E)

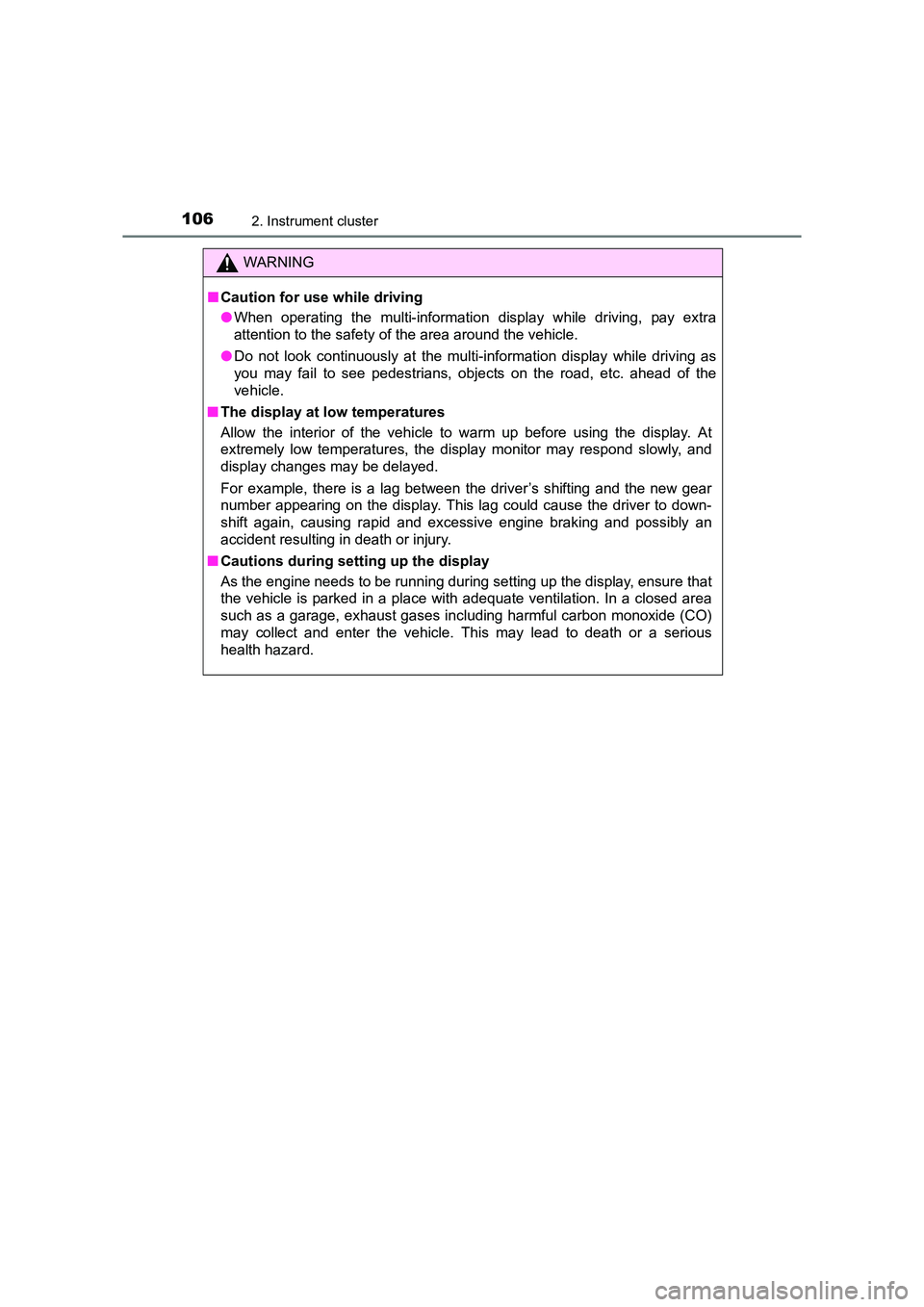

WARNING
■ Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

1072. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
●Outside temperature ( →P. 9 8 )
● Shift position and gear position
indicator (if equipped)
(→ P. 223)
● Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
On some models: Some pop-up displays can be set on/off. ( →P. 113)
● Trip information/Distance until next engine oil change ( →P. 109)
Displays the following items: •Odometer
•Trip meter
• Distance until next engine oil change (if equipped)
Multi-information display (2-ring meter)
Display content

1082. Instrument cluster
AURIS Touring Sports_EE (12K53E)
●Menu icons ( →P. 110)
Select a menu icon to display its content.
To display the menu icons, press the or switch on the
steering wheel.
Drive information ( →P. 111 )
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) ( →P. 268)
• RSA (Road Sign Assist) ( →P. 277)
Warning message display ( →P. 553)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Settings display ( →P. 1 1 3 )
Select to change the meter display settings and other settings.

1092. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
■
Distance until next engine oil change (if equipped)
Displays the distance the vehicle can be driven until an oil change
is necessary.
The distance until the next engine oil change will also be displayed in
the following situations: • When the engine switch is turned to the “ON” position (vehicles with- out a smart entry & start system) or IGNITION ON mode (vehicles
with a smart entry & start system).
• When a warning message indicating that oil maintenance should be
performed soon or is required is displayed.
• Resetting: →P. 474
Trip information/Distance until next engine oil change
