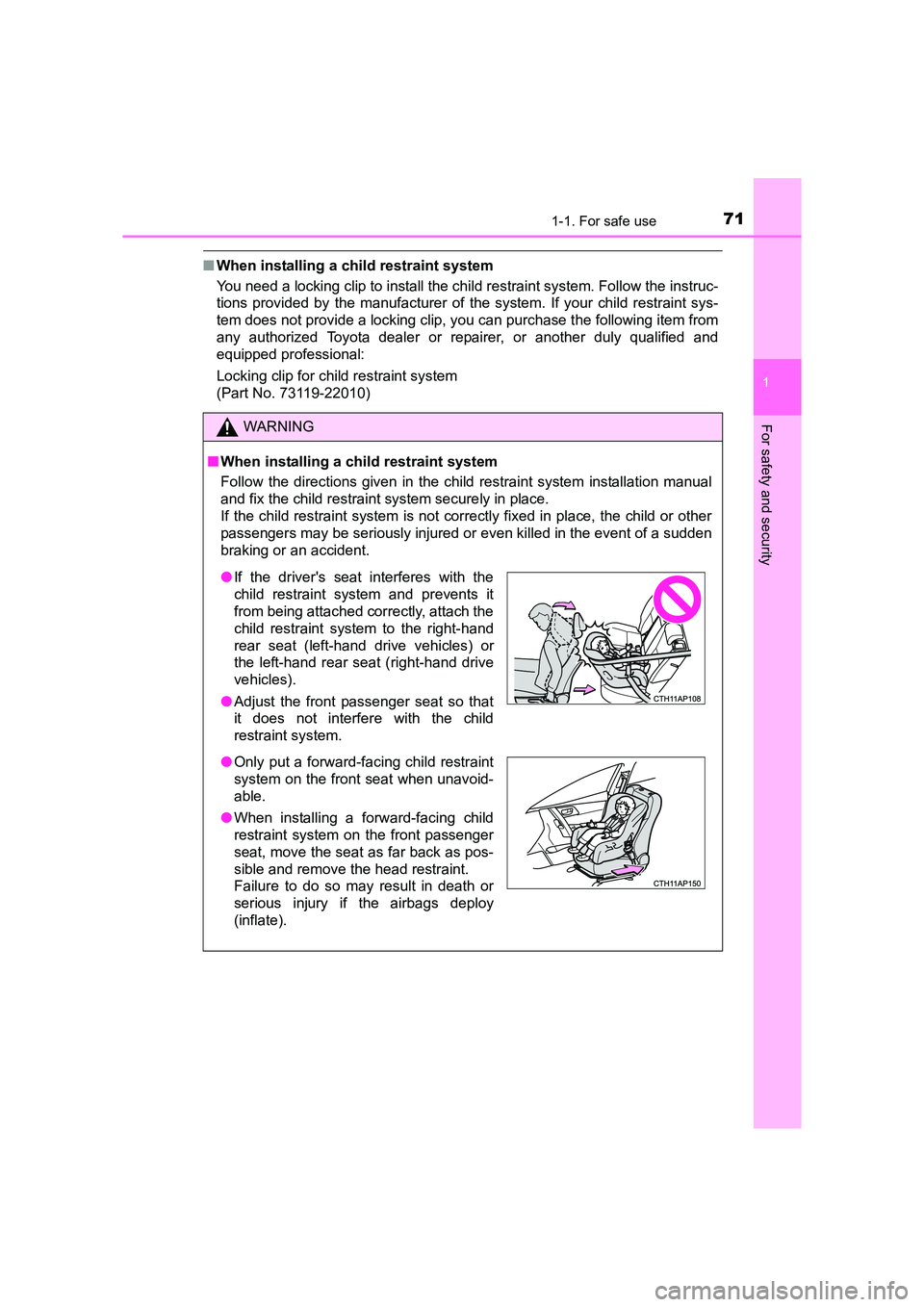

711-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
■When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instruc-
tions provided by the manufacturer of the system. If your child restraint sys-
tem does not provide a locking clip, you can purchase the following item from
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
●If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
● When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible and remove the head restraint.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

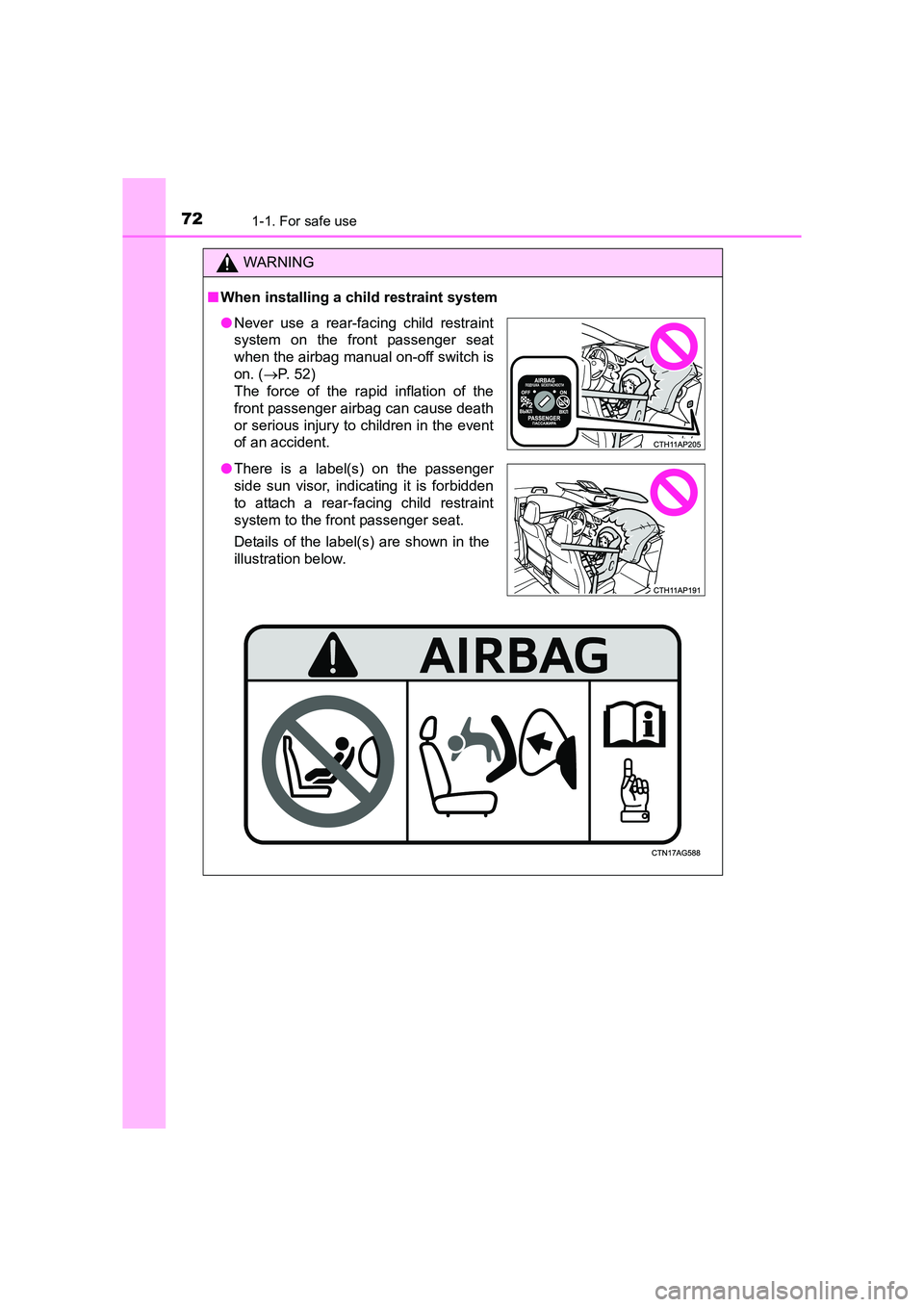

721-1. For safe use
AURIS Touring Sports_EE (12K53E)
WARNING
■ When installing a child restraint system
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

731-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
WARNING
■ When installing a child restraint system
●If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious inju ry to the child or other passengers in
the event of a sudden braking or an accident.
■ When the child restraint system is not in use
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers in
the event of a sudden stop or accident.

741-1. For safe use
AURIS Touring Sports_EE (12K53E)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
●Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an ar ea with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

901-2. Theft deterrent system
AURIS Touring Sports_EE (12K53E)
Vehicles employing this system
have labels on the window glass
of both front doors.Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (if equipped): Hold the outside door handle.
Using the wireless remote control: Press .
Double locking system (right-hand drive
vehicles only)
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
1
2

91

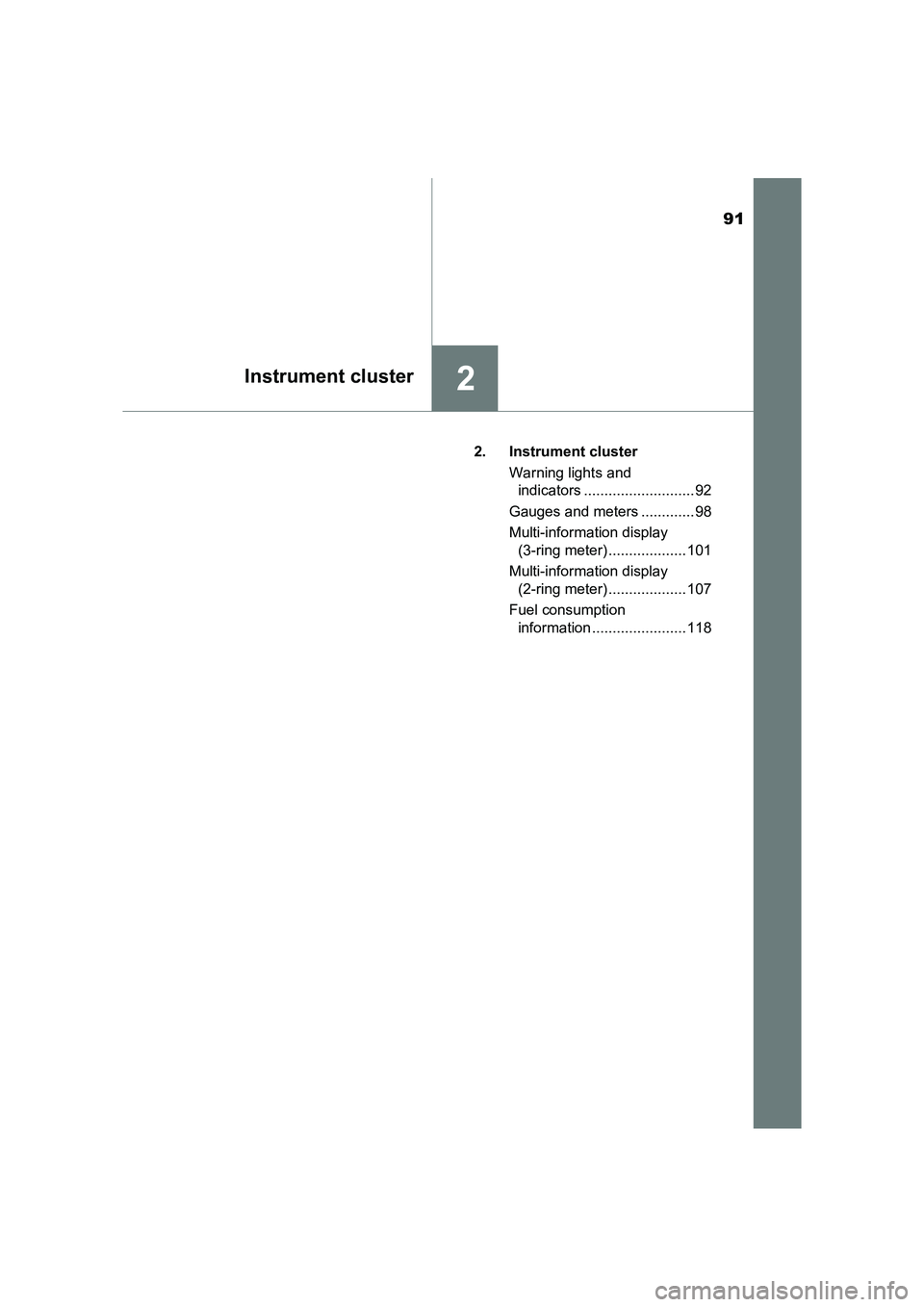

2Instrument cluster
AURIS Touring Sports_EE (12K53E)2. Instrument cluster
Warning lights and indicators ........................... 92
Gauges and meters ............. 98
Multi-information display (3-ring meter) ................... 101
Multi-information display (2-ring meter) ................... 107
Fuel consumption information ....................... 118

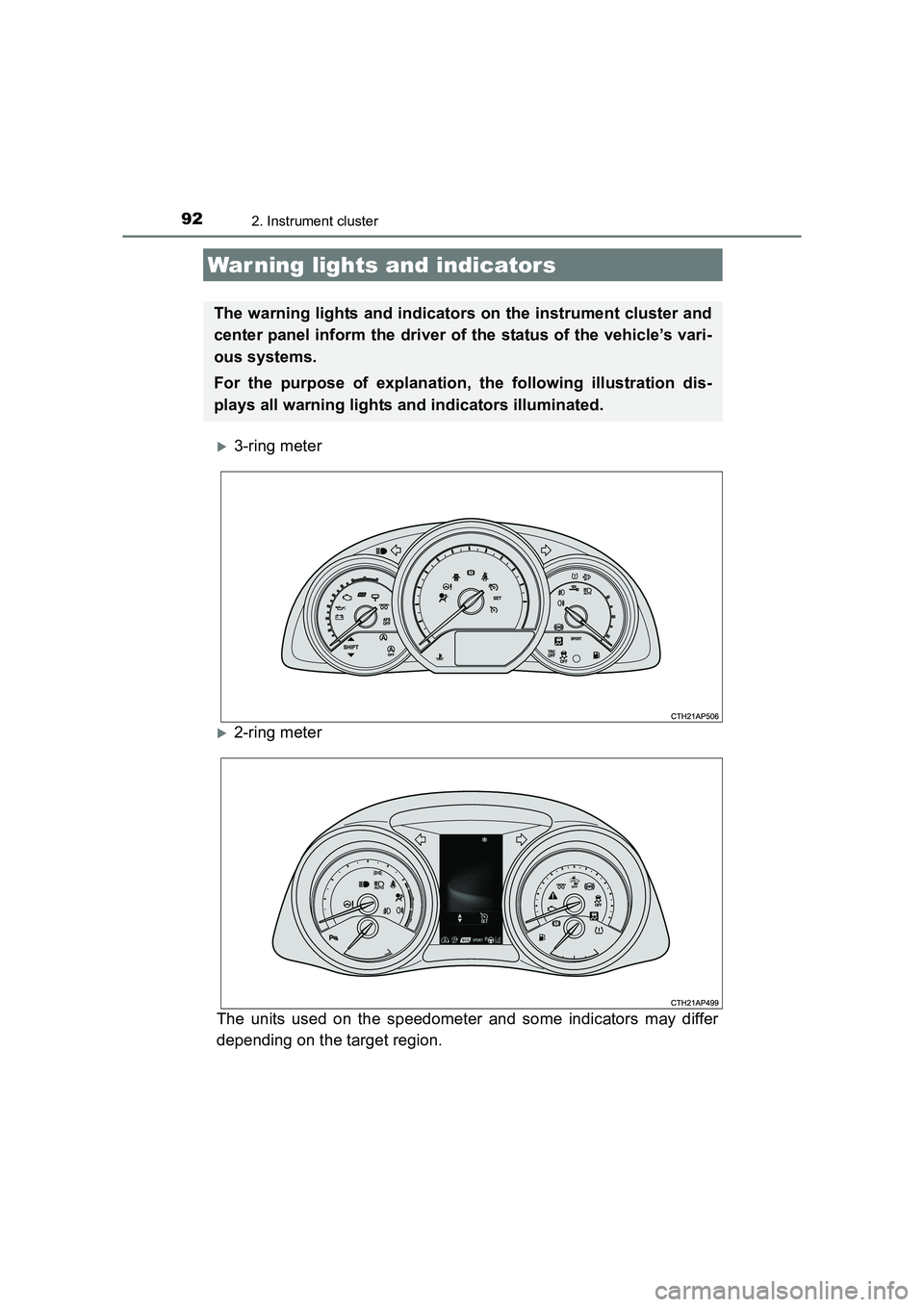

92
AURIS Touring Sports_EE (12K53E)
2. Instrument cluster
X3-ring meter
X2-ring meter
The units used on the speedometer and some indicators may differ
depending on the target region.
War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

932. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 541)
(Yellow)
(if equipped)
Speed limiter indicator
(→ P. 542)
*1
(if equipped)
Charging system warn-
ing light ( →P. 541)*1
Slip indicator ( →P. 543)
*1
(if equipped)
Low engine oil pressure
warning light ( →P. 541)*1, 2
(if equipped)
PCS warning light
(→ P. 543)
*1
(if equipped)
High engine coolant
temperature warning
light ( →P. 541)*1, 2
(if equipped)
Stop & Start cancel indi-
cator ( →P. 543)
*1
Malfunction indicator
lamp ( →P. 542)*1
(if equipped)
Fuel filter warning light
(→ P. 544)
*1
SRS warning light
(→ P. 542)*1
(if equipped)
Low engine oil level
warning light ( →P. 544)
*1
ABS warning light
(→ P. 542)*1
(if equipped)
Engine oil change
reminder light
(→ P. 544)
*1Electric power steering
system warning light
(→ P. 542)*1
(if equipped)
DPF system warning
light ( →P. 544)
(Yellow)
(if equipped)
Cruise control indicator
(→ P. 542)
(if equipped)
Open door warning light
(→ P. 545)
