17Pictorial index
AURIS Touring Sports_EE (12K53E)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 101, 107
If a warning message or indicator is displayed
*1 . . . . . . . . . . P. 553
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Warning buzzer/message
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*3/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 241
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Headlight cleaners
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Heater system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Air conditioning system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400, 405
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 402, 409
Audio system
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Navigation/multimedia system
*3, 4
Trip information/past record . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118
Tire pressure warning reset switch
*3 . . . . . . . . . . . . . . . . . P. 488
*1: Vehicles with a 2-ring meter
*2: Vehicles with a Multidrive
*3: If equipped
*4: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

24Pictorial index
AURIS Touring Sports_EE (12K53E)

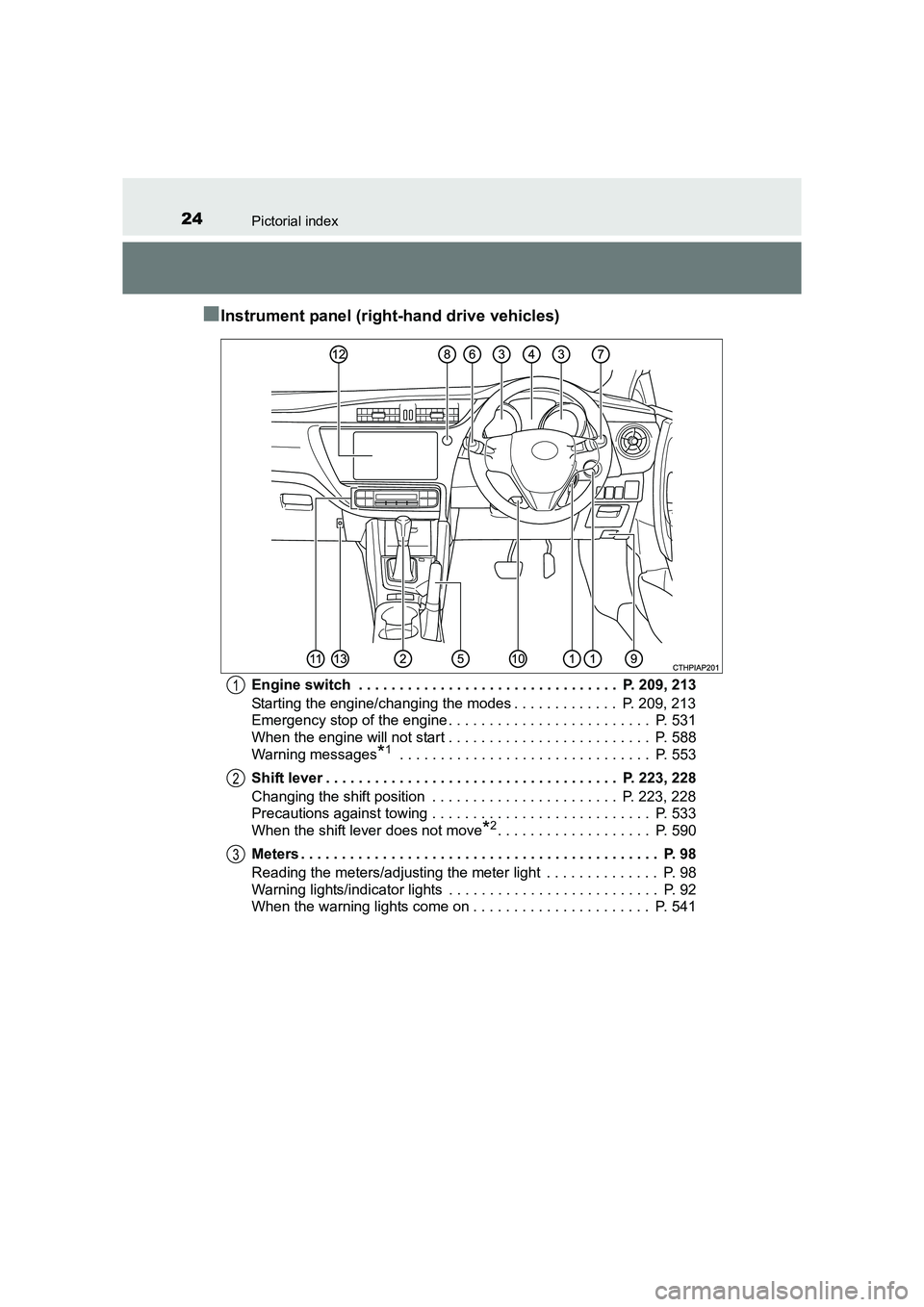

■Instrument panel (right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 213
Starting the engine/changing the modes . . . . . . . . . . . . . P. 209, 213
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 588
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 553
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223, 228
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . P. 223, 228
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 533
When the shift lever does not move
*2. . . . . . . . . . . . . . . . . . . P. 590
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
Reading the meters/adjusting the meter light . . . . . . . . . . . . . . P. 98
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 541
1
2
3

25Pictorial index
AURIS Touring Sports_EE (12K53E)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 101, 107
If a warning message or indicator is displayed
*1 . . . . . . . . . . P. 553
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Warning buzzer/message
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*3/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 241
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 530
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Heater system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Air conditioning system
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400, 405
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 402, 409
Audio system
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Navigation/multimedia system
*3, 4
Trip information/past record . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 118
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 488
*1: Vehicles with a 2-ring meter
*2: Vehicles with a Multidrive
*3: If equipped
*4: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

351-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)

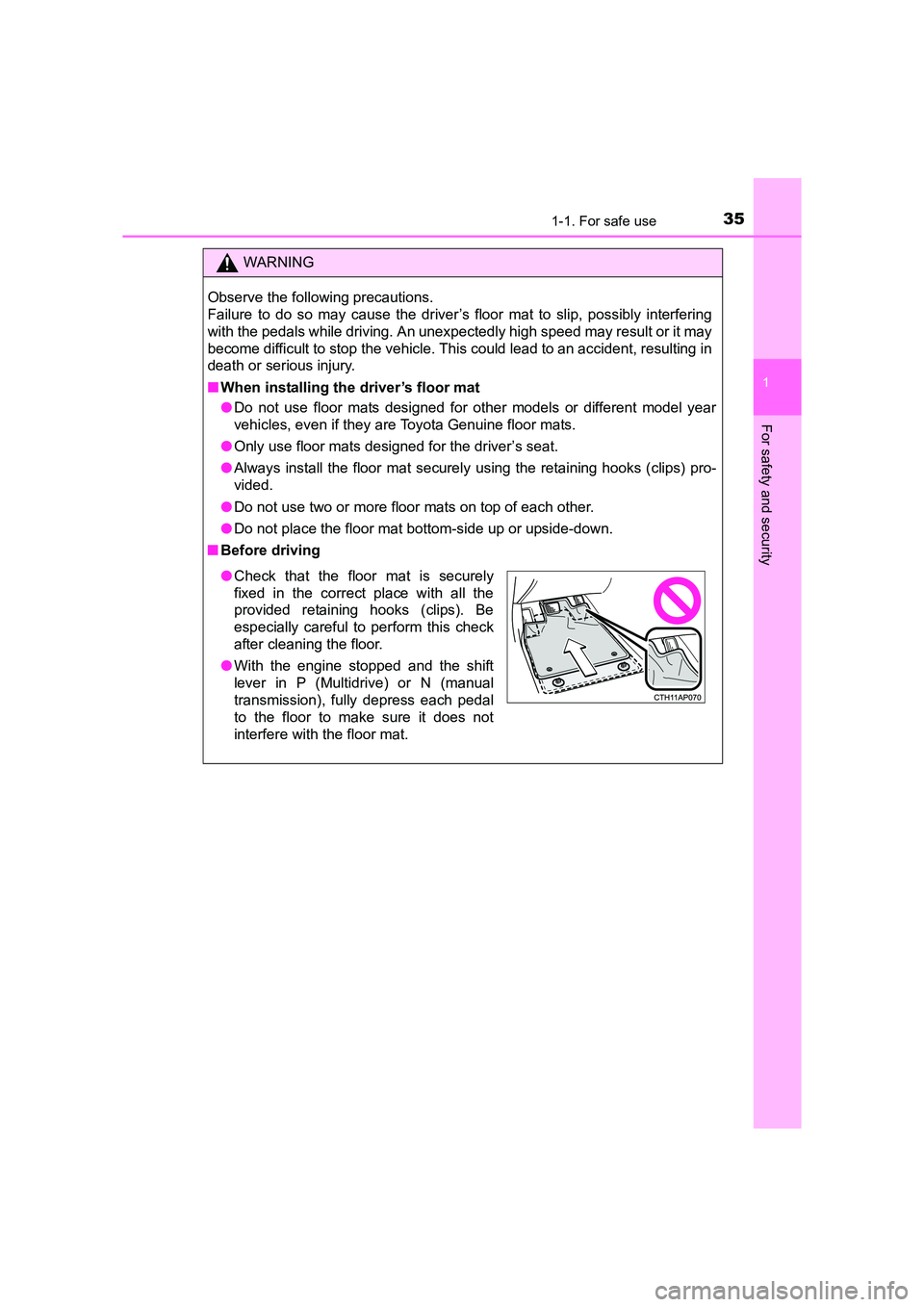

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

371-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (→P. 176, 178)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

401-1. For safe use
AURIS Touring Sports_EE (12K53E)■
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
●Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. ( →P. 38)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

411-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
WARNING
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( →P. 38)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners (front seats)
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
■ Adjustable shoulder anchor (front seats)
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( →P. 39)
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodicall y. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling may lead to incorrect operation.

431-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
SRS airbag system components
Side impact sensors (rear)
SRS warning light
Curtain shield airbags
Driver airbag
Front side airbags
Side impact sensors (front)
Seat belt pretensioners and
force limitersDriver’s knee airbag
Front impact sensors
Airbag sensor assembly
Airbag manual on-off switch
Front passenger airbag
“PASSENGER AIR BAG” indi-
cator1
2
3
4
5
6
7
8
9
10
11
12
13
