2016 TOYOTA AURIS TOURING SPORTS audio

3425-2. Using the audio system
AURIS Touring Sports_EE (12K53E)■

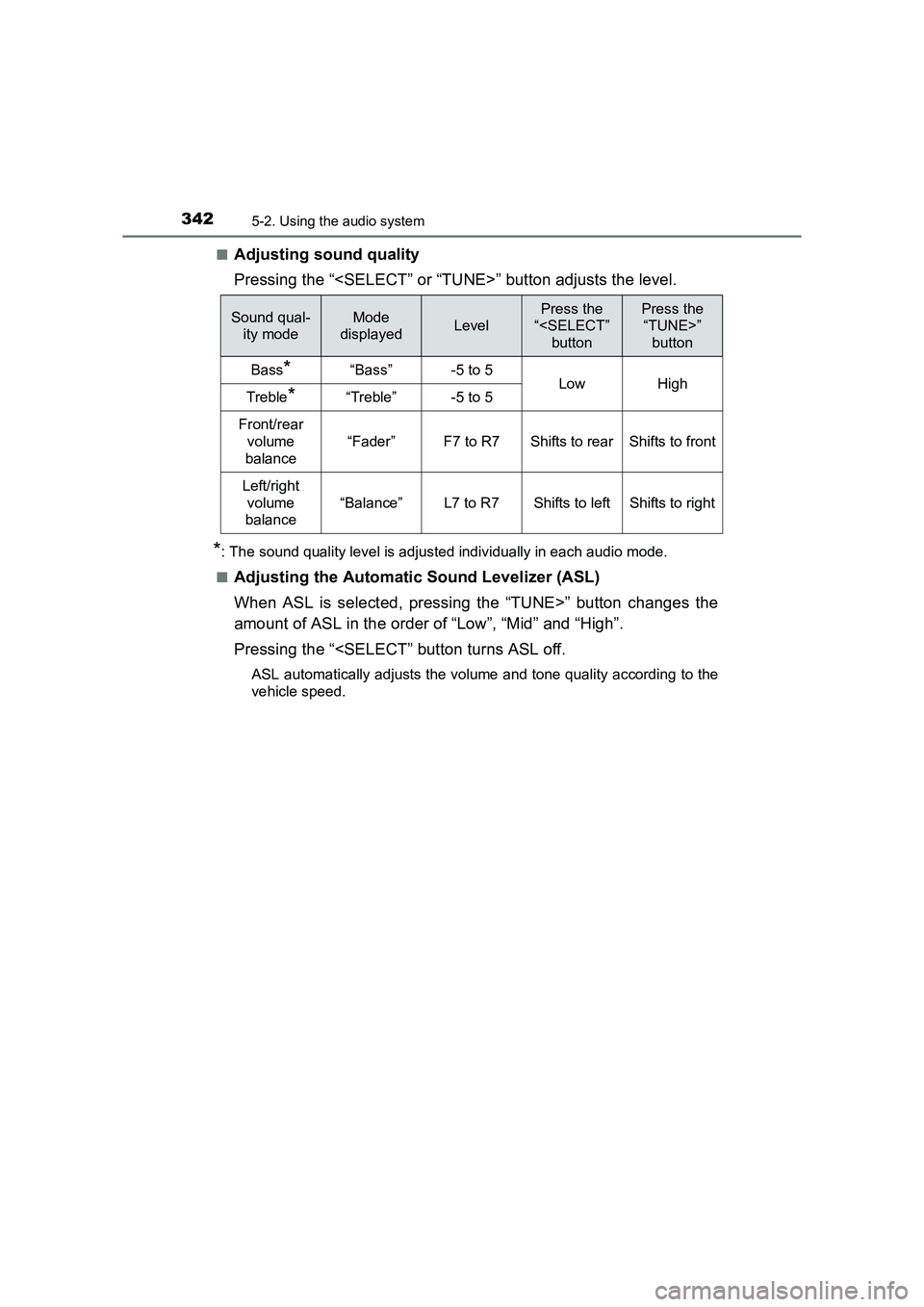

Adjusting sound quality
Pressing the “” button adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
■
Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, pressing the “TUNE>” button changes the
amount of ASL in the order of “Low”, “Mid” and “High”.
Pressing the “ ASL automatically adjusts the volume and tone quality according to the
vehicle speed.
Sound qual- ity modeMode
displayedLevel
Press the
“ buttonPress the “TUNE>”
button
Bass*“Bass”-5 to 5LowHighTreble*“Treble”-5 to 5
Front/rear volume
balance
“Fader”F7 to R7Shifts to rearShifts to front
Left/right volume
balance
“Balance”L7 to R7Shifts to leftShifts to right

343
AURIS Touring Sports_EE (12K53E)
5
Audio system
5-3. Using the radio
Search for a desired station by pressing the “ “TUNE>” button.
Press and hold a desired station selector button until you hear a
beep.

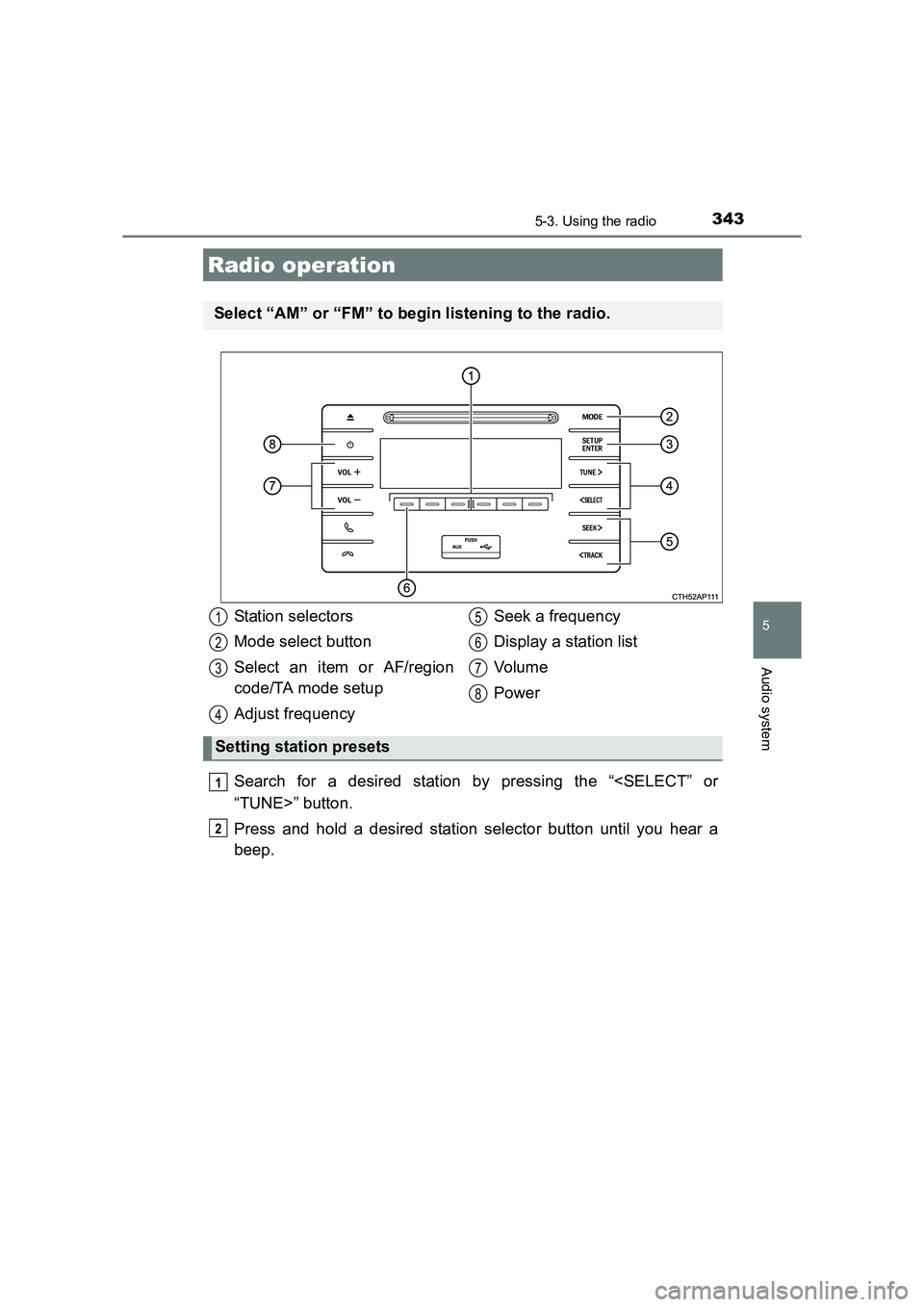

Radio operation
Select “AM” or “FM” to begin listening to the radio.
Station selectors
Mode select button
Select an item or AF/region
code/TA mode setup
Adjust frequencySeek a frequency
Display a station list
Vol um e
Power
Setting station presets
1
2
3
4
5
6
7
8
1
2

3455-3. Using the radio
AURIS Touring Sports_EE (12K53E)
5
Audio system

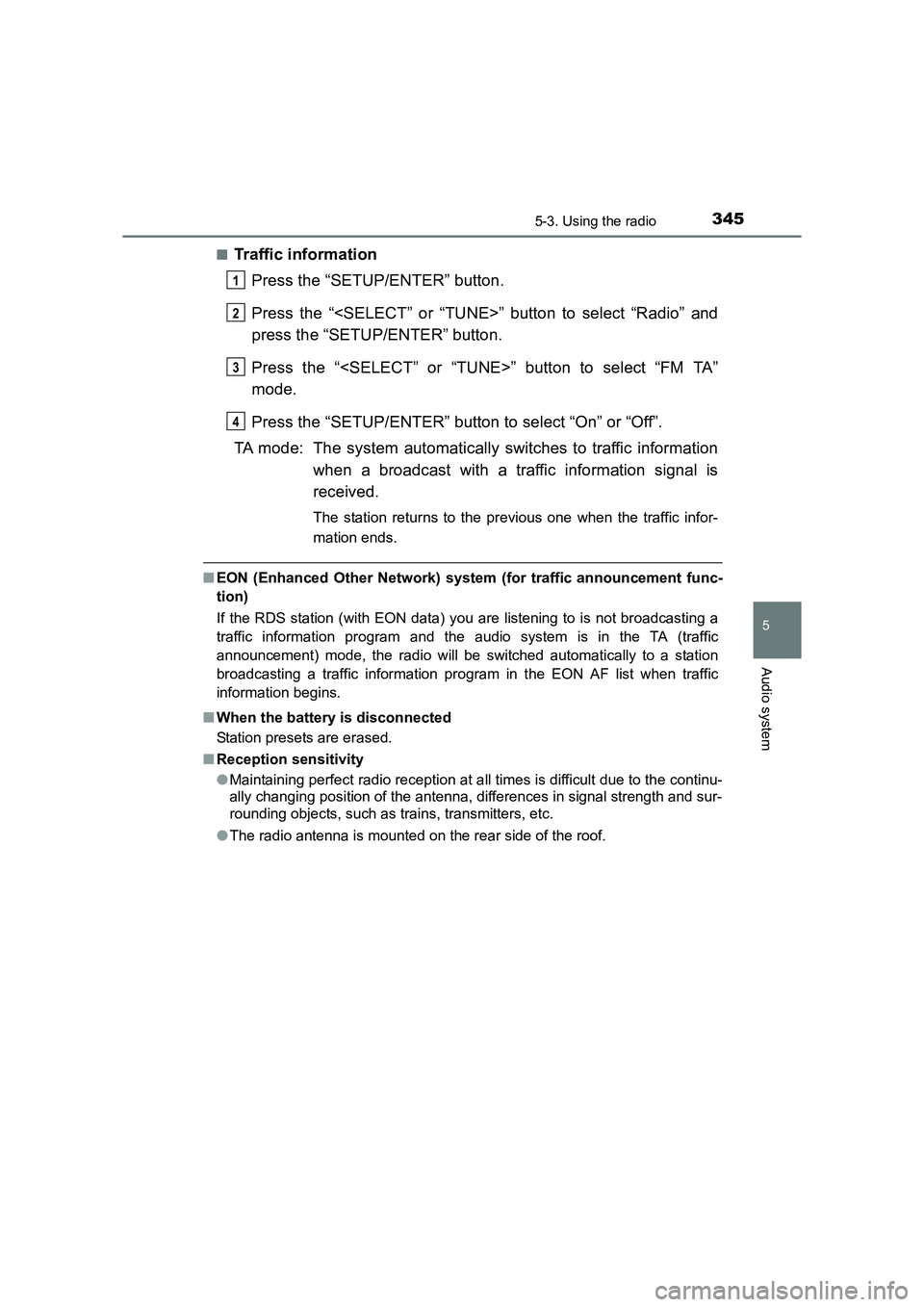

■Traffic informationPress the “SETUP/ENTER” button.
Press the “” button to select “Radio” and
press the “SETUP/ENTER” button.
Press the “” button to select “FM TA”
mode.
Press the “SETUP/ENTER” button to select “On” or “Off”.
TA mode: The system automatically switches to traffic information when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
■EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■ When the battery is disconnected
Station presets are erased.
■ Reception sensitivity
●Maintaining perfect radio reception at a ll times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear side of the roof.
1
2
3
4

346
AURIS Touring Sports_EE (12K53E)
5-4. Playing audio CDs and MP3/WMA discs
Insert a disc.
Press and remove the disc.
CD player operation
Display text message
Display folder list/track list
Select a folder (MP3/WMA
discs only)
Repeat play
Random playback
Mode select buttonOpen the selected track/file
Select a track/file
Select a track/file, fast-forward
or reverse
Vol um e
Power
Eject a disc
Loading a CD, MP3 or WMA disc
Ejecting a CD, MP3 or WMA disc
1
2
3
4
5
6
7
8
9
10
11
12

3475-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)
5
Audio system
■Selecting a track
Press the “TUNE>” or “SEEK>” button to move up or the
“ track number is displayed.
■Selecting a track from a track listPress “List”.
The track list will be displayed.
Press the “” button to select a track.
Press the “SETUP/ENTER” button to open the selected track.
To return to the previous display, press “Back”.
■
Fast-forwarding and reversing a track
To fast-forward or reverse, press and hold the “SEEK>” or
“ ■Repeat play
Press “RPT”.
The current track is played repeat edly until “RPT” is pressed
again.
■
Random playback
Press “RDM”.
Tracks are played in a random order until “RDM” is pressed
again.
■
Switching the display
Press “Text”.
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press “Text” or “Back”.
Using the CD player
1
2
3

3485-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)■

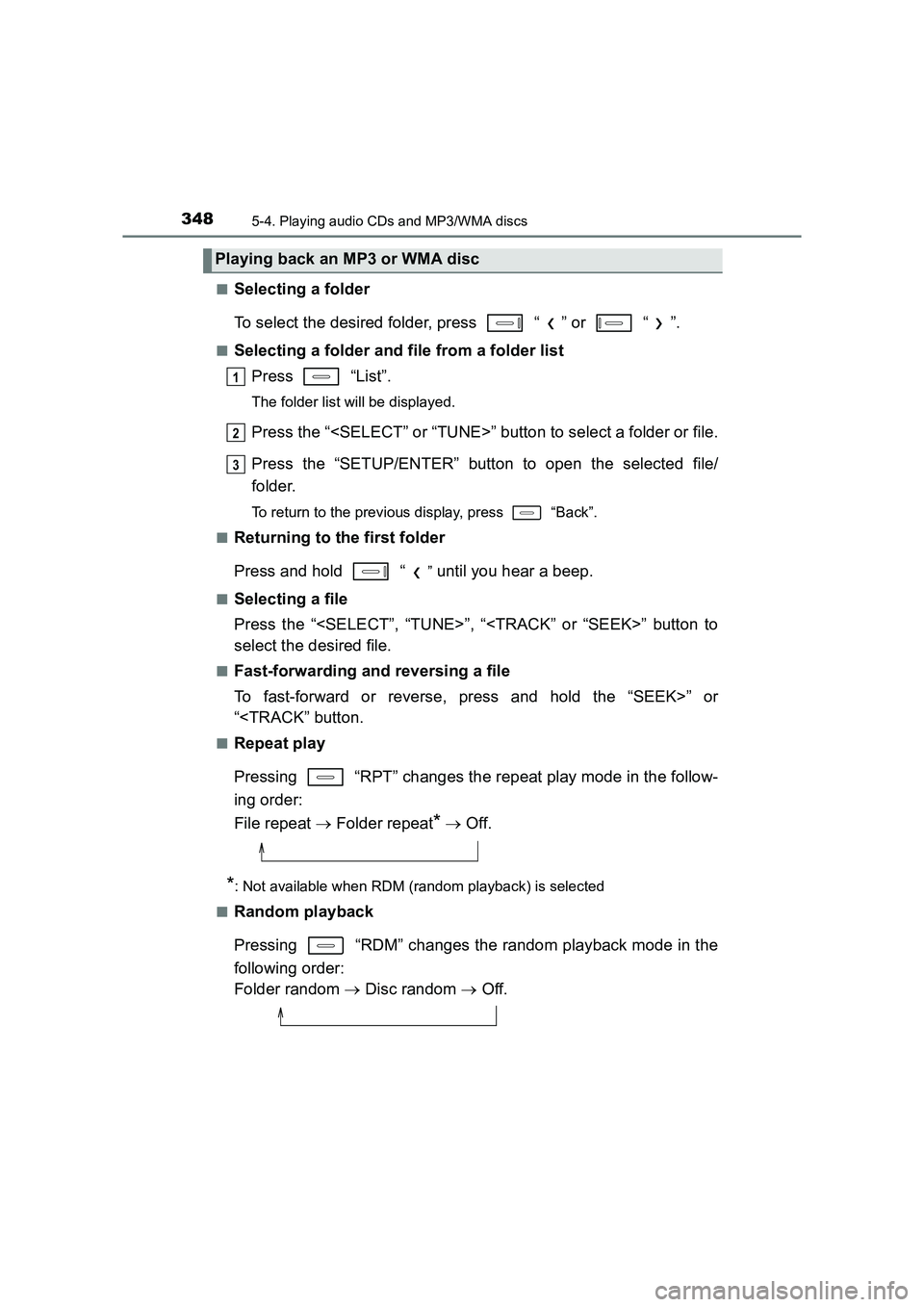

Selecting a folder
To select the desired folder, press “ ” or “ ”.
■Selecting a folder and file from a folder list
Press “List”.
The folder list will be displayed.
Press the “” button to select a folder or file.
Press the “SETUP/ENTER” button to open the selected file/
folder.
To return to the previous display, press “Back”.
■
Returning to the first folder
Press and hold “
” until you hear a beep.
■Selecting a file
Press the “”, “” button to
select the desired file.
■Fast-forwarding and reversing a file
To fast-forward or reverse, press and hold the “SEEK>” or
“ ■Repeat play
Pressing “RPT” changes the repeat play mode in the follow-
ing order:
File repeat → Folder repeat
* → Off.
*: Not available when RDM (random playback) is selected
■
Random playback
Pressing “RDM” changes the random playback mode in the
following order:
Folder random → Disc random → Off.
Playing back an MP3 or WMA disc
1
2
3

3495-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)
5
Audio system
■Switching the display
Press “Text”.
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press “Text” or “Back”.
■Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
MessageCauseCorrection procedures
“CD check”
• The disc is dirty or
damaged.
• The disc is inserted
upside down.• Clean the disc.
• Insert the disc cor- rectly.
“Error 3”There is a malfunction
within the system.Eject the disc.
“Error 4”An over current error
has occurred.Turn the engine switch
to the “LOCK” position.
“No support”MP3/WMA files are not
included on the CD.Eject the disc.

3505-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)■
If a disc is left inside the CD player or in the ejected position for
extended periods
The disc may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Mi crosoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
MP3 and WMA file and media/format compatibility is limited.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224,
256, 320 (kbps)
MPEG2 LSF LAYER3: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144,
160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon- aural
