2016 TOYOTA AURIS TOURING SPORTS steering wheel adjustment

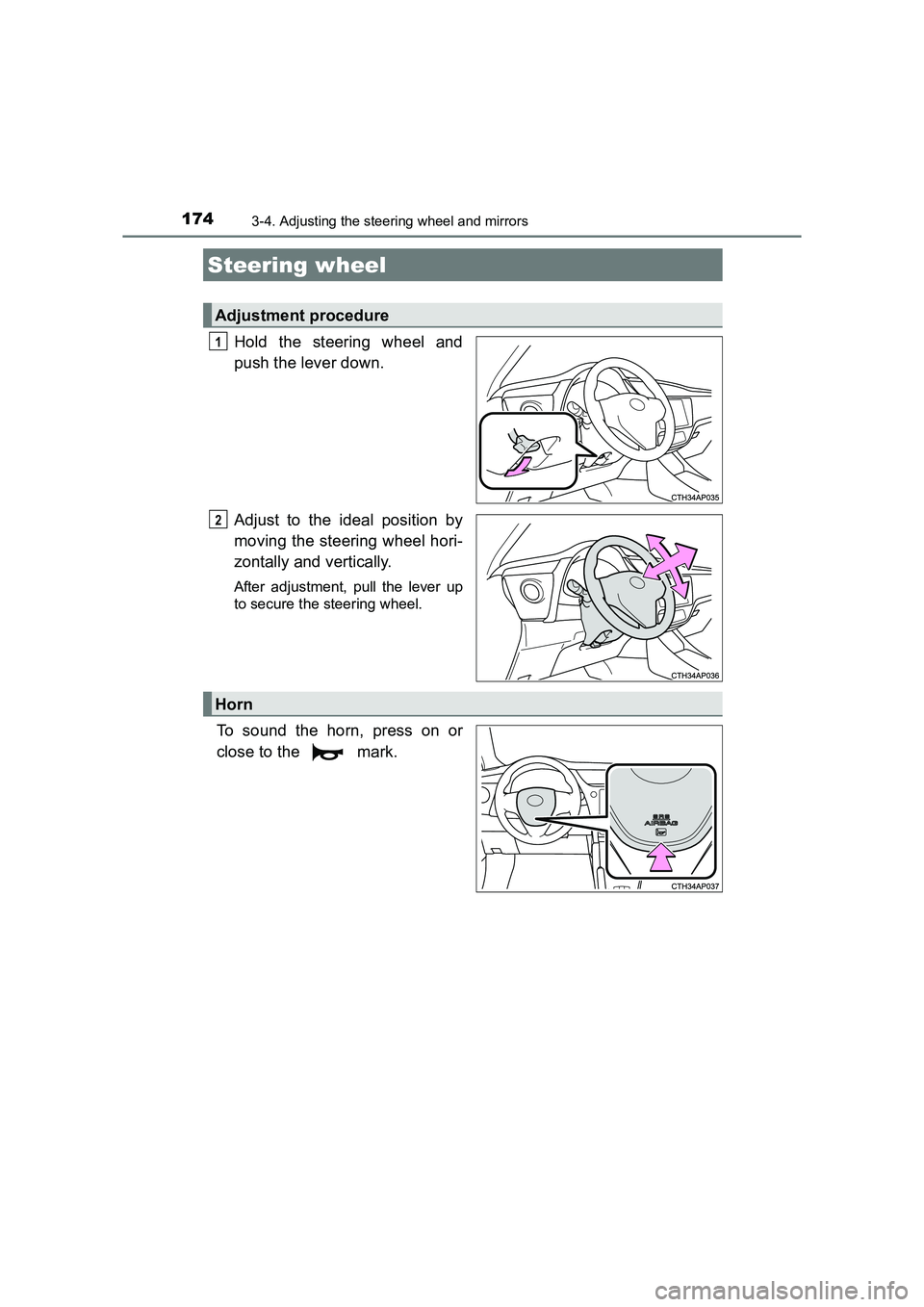

174
AURIS Touring Sports_EE (12K53E)
3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
1
2
Horn

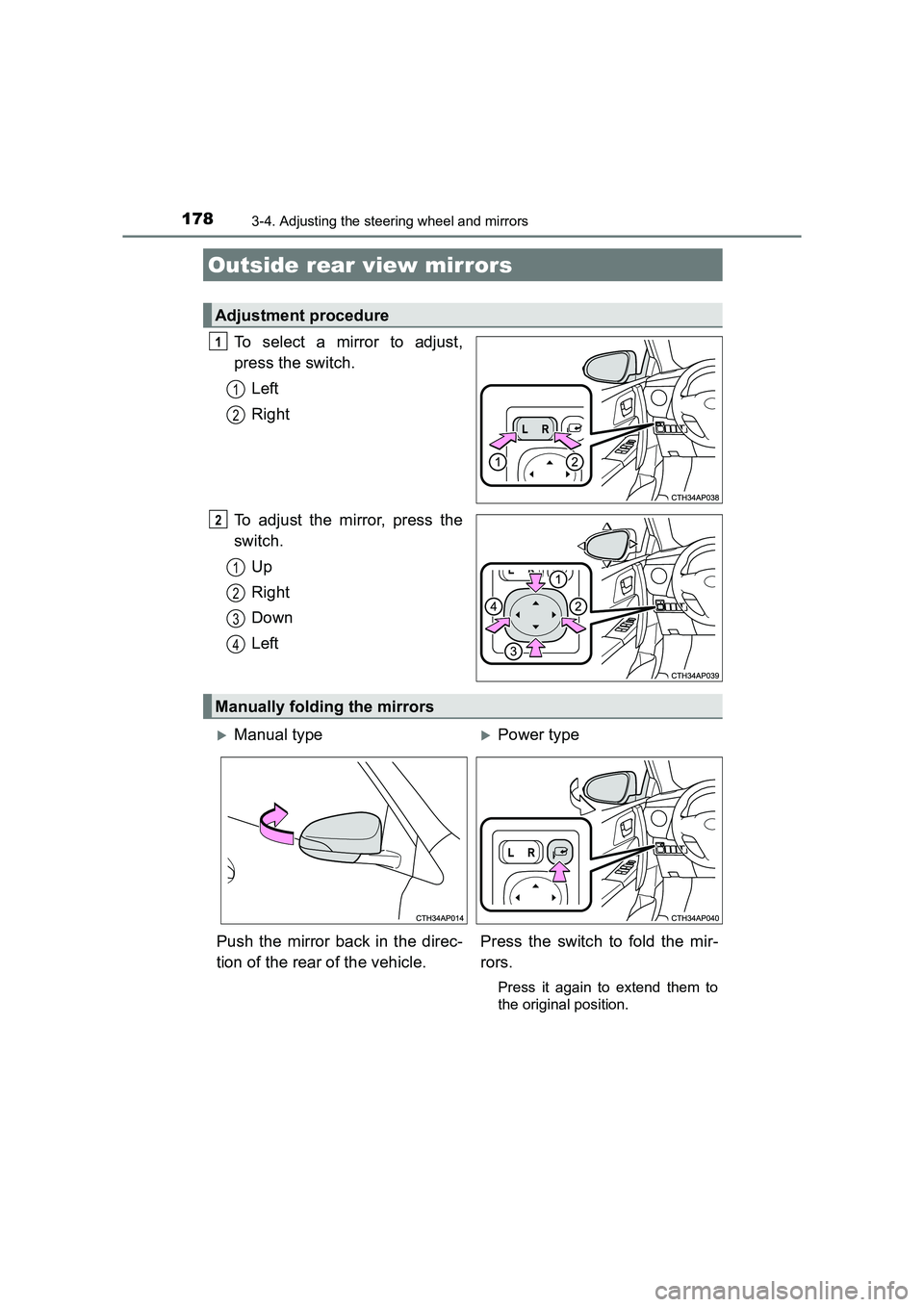

1783-4. Adjusting the steering wheel and mirrors
AURIS Touring Sports_EE (12K53E)
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
XManual typeXPower type
Push the mirror back in the direc-
tion of the rear of the vehicle. Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.

1793-4. Adjusting the steering wheel and mirrors
AURIS Touring Sports_EE (12K53E)
3
Operation of each component
The automatic folding/extending mirror function allows the folding or
extending of the mirrors to be linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.Turn the engine switch off.
Press and hold the mirror fold
switch and of the mirror
angle adjustment switch at the
same time for more than 2 sec-
onds.
Performing the above procedure
again will enable automatic opera-
tion.
■Mirror angle can be adjusted when
XVehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reconnecting battery terminals (vehicles with
an automatic folding/extending mirror function)
The automatic folding/extending mirror function will return to on as default. To
turn the function off, press the switch again to select off.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( →P. 402, 409)
■ Using the automatic folding/extending mirror function in cold weather (if
equipped)
When the automatic folding/extending mirr or function is used in cold weather,
the outside rear view mirrors could freeze up and automatic folding and
extension may not be possible. In this event, remove any ice and snow from
the outside rear view mirror, then operate the mirror manually by using the
mirror fold switch or moving the mirror by hand.
Automatically folding and extending the mirrors (if equipped)
1
2

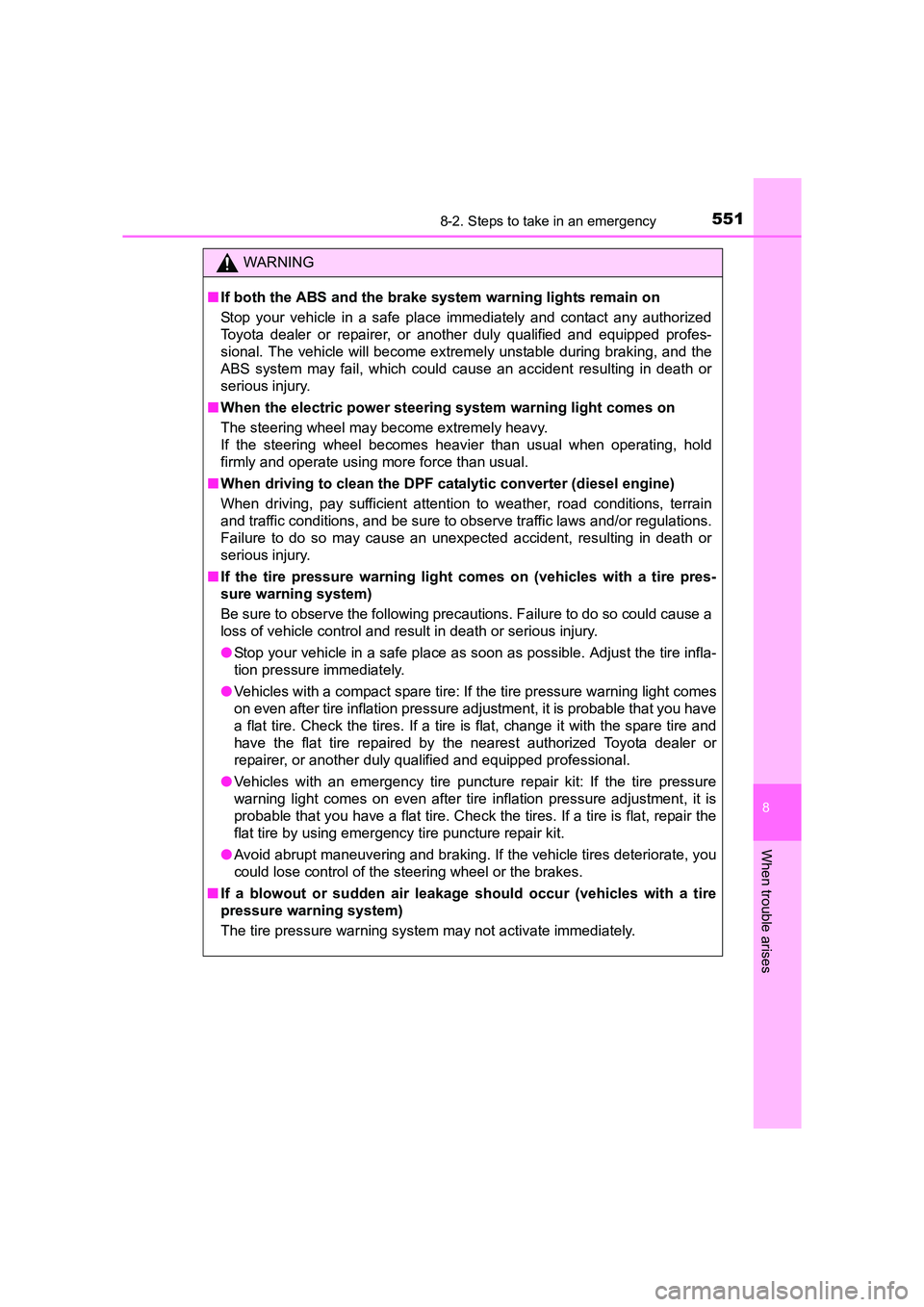

5518-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ When driving to clean the DPF cat alytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with a compact spare tire: If the tire pressure warning light comes
on even after tire inflation pressure adjustment, it is probable that you have
a flat tire. Check the tires. If a tire is flat, change it with the spare tire and
have the flat tire repaired by the nearest authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Vehicles with an emergency tire puncture repair kit: If the tire pressure
warning light comes on even after tire inflation pressure adjustment, it is
probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

655Alphabetical index
AURIS Touring Sports_EE (12K53E)
SensorAutomatic headlight system ................................ 237
Automatic High Beam system ................................ 251
Inside rear view mirror .......... 177
LDA (Lane Departure Alert) ................................... 268
PCS (Pre-Crash Safety system) ............................... 251
Rain-sensing windshield wipers ................................. 243
RSA (Road Sign Assist) ........ 277
Toyota parking assist-sensor ...................... 305
Shift lever ......................... 223, 228 If the shift lever cannot be shifted from P ................ 590
Manual transmission ............. 228
Multidrive............................... 223
Shift lock system ..................... 590
Side airbags ............................... 42
Side mirrors.............................. 178 Adjusting and folding............. 178
Side turn signal lights ............. 231 Replacing light bulbs ............. 515
Turn signal lever ................... 231
Wattage................................. 628 Simple-IPA................................ 312
Smart entry & start system ..... 145
Antenna location ................... 145
Entry functions .............. 134, 140
Starting the engine................ 213
Snow tires ................................ 336
Spare tire .................................. 559 Inflation pressure .................. 627
Storage location.................... 560
Spark plug ................................ 622
Specifications .......................... 608
Speech command system
*
Speed limiter ............................ 301
Speedometer .............................. 98
Sport mode............................... 224
Steering lock ............................ 219 Column lock release ..... 211, 220
Steering wheel ......................... 174
Adjustment ............................ 174
Audio switches
*.................... 339
Stop & Start cancel switch ..... 285
Stop & Start system ................ 283
Stop lights Replacing light bulbs............. 515
Wattage ................................ 628
Storage feature ........................ 421
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
