2016 SUBARU FORESTER Navigation Manual

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 9
PHONE
4
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1.Select.
2.Select.

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
3.Check that the message inbox screen is displayed.
XWith navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.

”The phone top screen can be displayed by pressing
the
switch on the steering wheel.
4.Check that the message inbox screen is displayed.

” : Select to change to phone mode.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
120
Function Page
Receiving a message 120
Checking messages 120
Replying to a message (quick reply) 121
Calling the message sender 123
Message settings 134
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No. Function
Select to check the message.
No. Function
Select to not open the message.
Select to call the message sender.
NOTE
ODepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.
OThe pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
‡“Incoming E-mail Display (Incoming E-mail Display)” is set to

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
121
PHONE
4

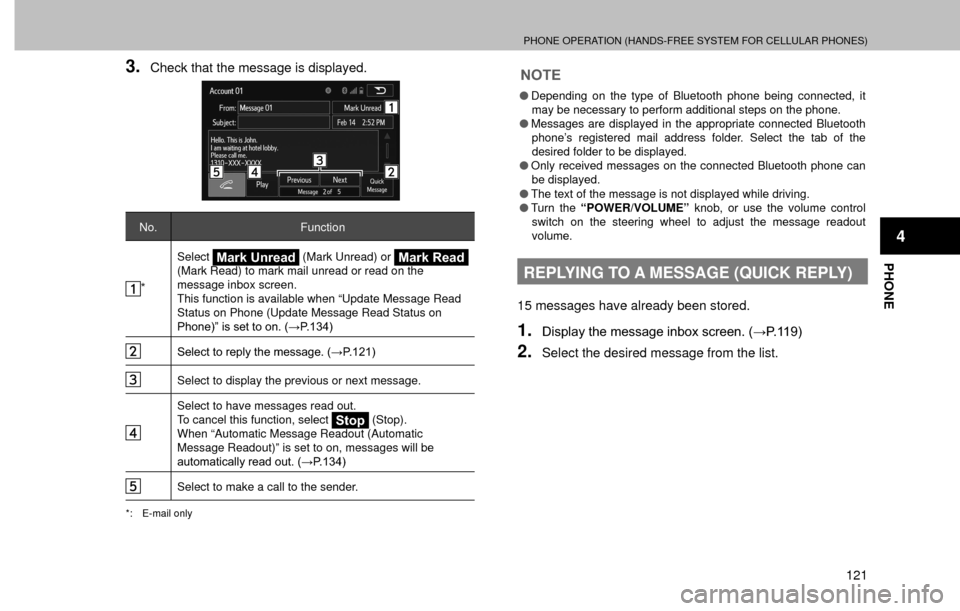

3.Check that the message is displayed.
No. Function
*Select
Mark Unread (Mark Unread) or Mark Read(Mark Read) to mark mail unread or read on the
message inbox screen.
This function is available when “Update Message Read
Status on Phone (Update Message Read Status on
3KRQH

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
122
3.SelectQuick Message (Quick Message).
4.Select the desired message.
5.SelectSend (Send).

”While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1.SelectQuick Message (Quick Message).
2.Select corresponding to the desired message to
edit.
3.SelectOK (OK) when editing is completed.
NOTE
OTo reset the editquick reply messages, select Default(Default).
O“Quick Message 1” (
I'm driving right now. I will call you back later.(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
<004800560057004c0050004400570048004700030057004c005000480003005200490003004400550055004c00590044004f00030052005100030057004b0048000300460052005100bf00550050000300500048005600560044004a004800030056004600
5500480048005100110003>

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
123
PHONE
4
NOTE
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1.'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2.Select the desired message.
3.Select.

”If there are 2 or more phone numbers, select the
desired number.
4.Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
&DOOV FDQ EH PDGH WR D QXPEHU LGHQWL

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
124
NOTE
OA series of numbers may be recognized as a phone number.
Additionally, some phone numbers may not be recognized, such
as those for other countries.
CALLING FROM THE INCOMING MESSAGE
SCREEN

:3

SETUP
125
PHONE
4

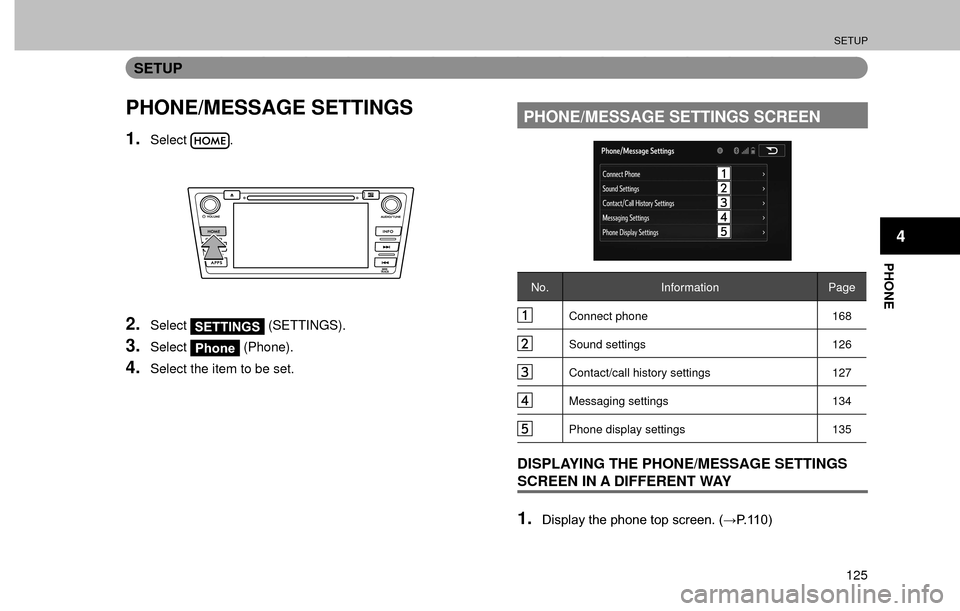

SETUP
PHONE/MESSAGE SETTINGS
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.Select the item to be set.
PHONE/MESSAGE SETTINGS SCREEN
No. Information Page
Connect phone 168
Sound settings 126
Contact/call history settings 127
Messaging settings 134
Phone display settings 135
DISPLAYING THE PHONE/MESSAGE SETTINGS
SCREEN IN A DIFFERENT WAY
1.'LVSOD\WKHSKRQHWRSVFUHHQ
:3

SETUP
126
2.Select.

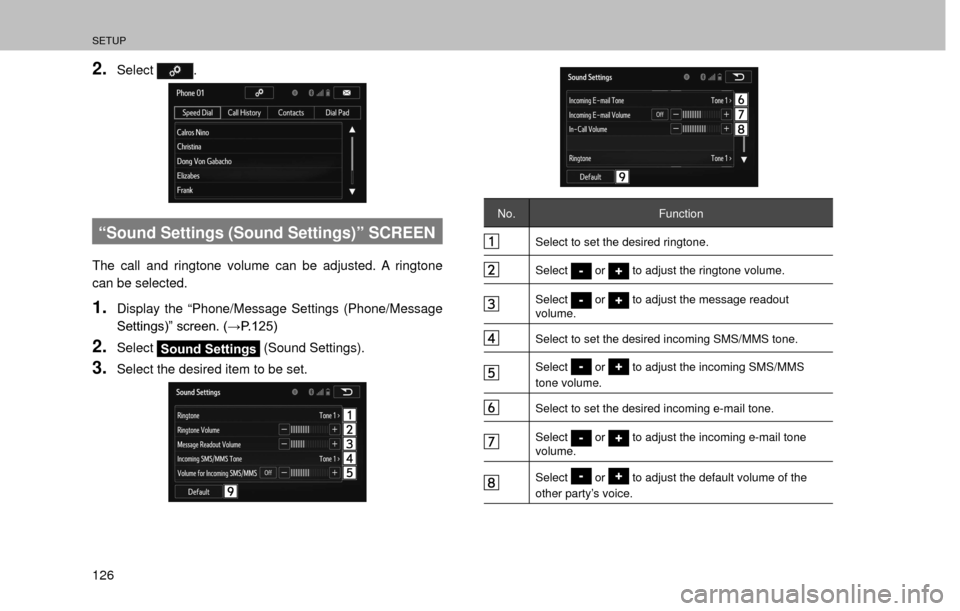

“Sound Settings (Sound Settings)” SCREEN
The call and ringtone volume can be adjusted. A ringtone
can be selected.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV
