2016 RENAULT MEGANE COUPE Owners Manual

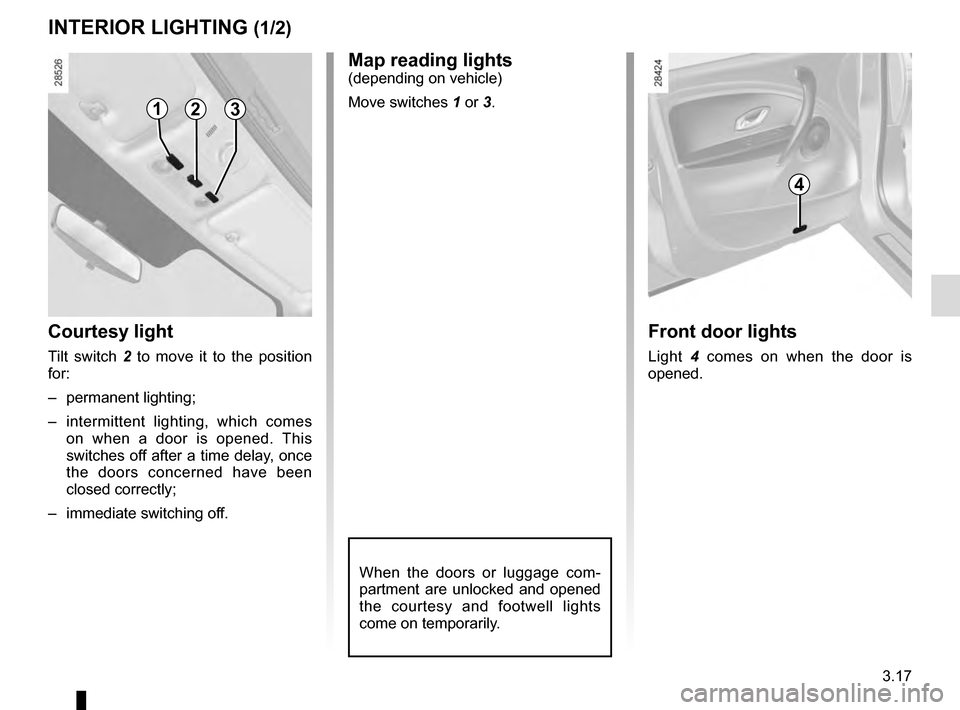

3.17
INTERIOR LIGHTING (1/2)
When the doors or luggage com-
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
123
Courtesy light
Tilt switch 2 to move it to the position
for:
– permanent lighting;
– intermittent lighting, which comes on when a door is opened. This
switches off after a time delay, once
the doors concerned have been
closed correctly;
– immediate switching off.
Front door lights
Light 4 comes on when the door is
opened.
4
Map reading lights(depending on vehicle)
Move switches 1 or 3.

3.18
Boot light 6
Depending on the vehicle, the light 6
comes on when the boot is opened.
INTERIOR LIGHTING (2/2)
6
5
Glovebox light 5
Light 5 comes on when the cover is
opened.

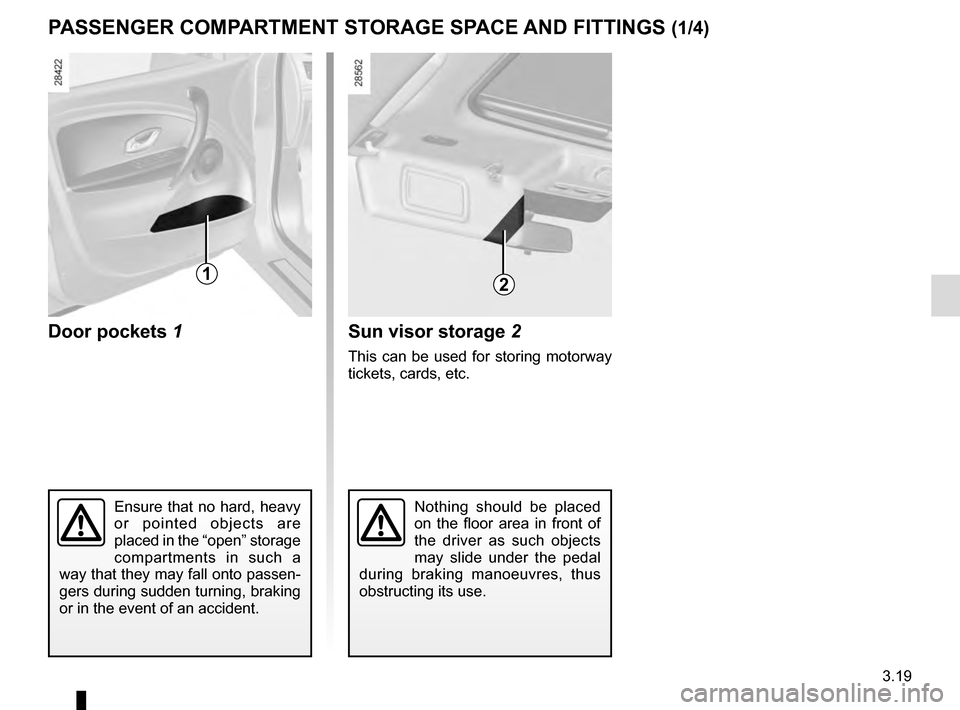

3.19
Door pockets 1
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/4)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Sun visor storage 2
This can be used for storing motorway
tickets, cards, etc.
2
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.

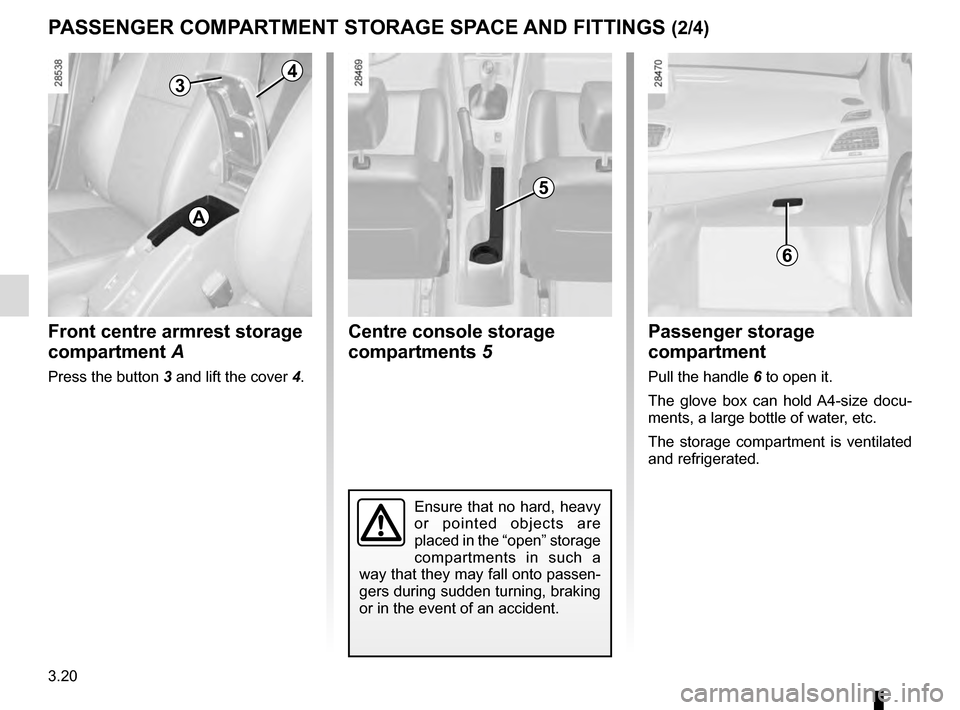

3.20
Centre console storage
compartments 5Front centre armrest storage
compartment A
Press the button 3 and lift the cover 4.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/4)
Passenger storage
compartment
Pull the handle 6 to open it.
The glove box can hold A4-size docu-
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
6
34
A
5
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.

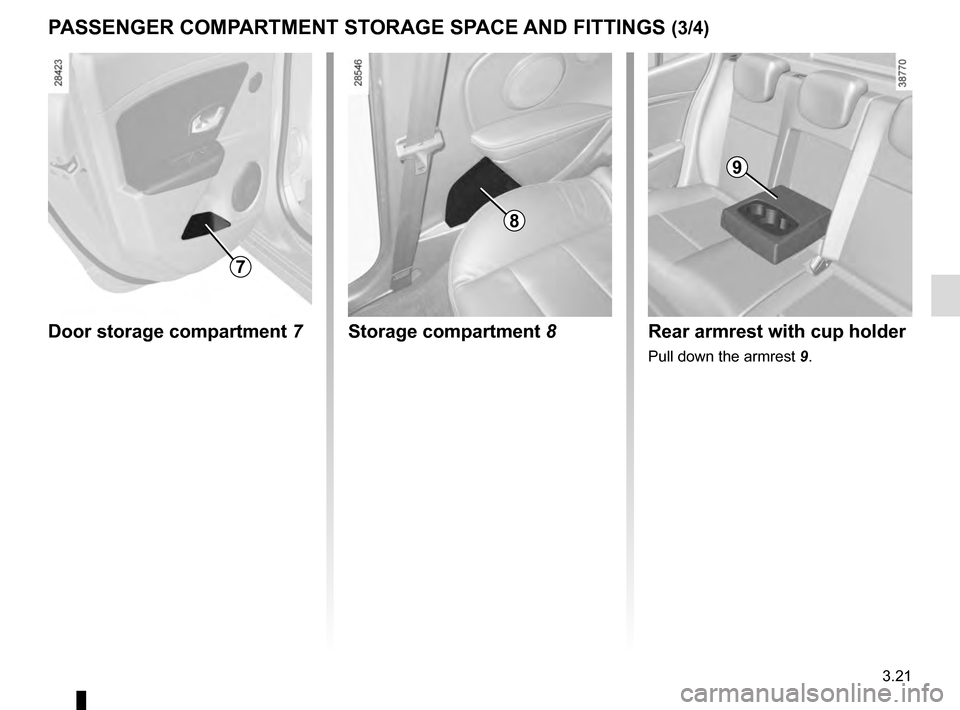

3.21
Door storage compartment 7Storage compartment 8
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Rear armrest with cup holder
Pull down the armrest 9.
7
8
9

3.22

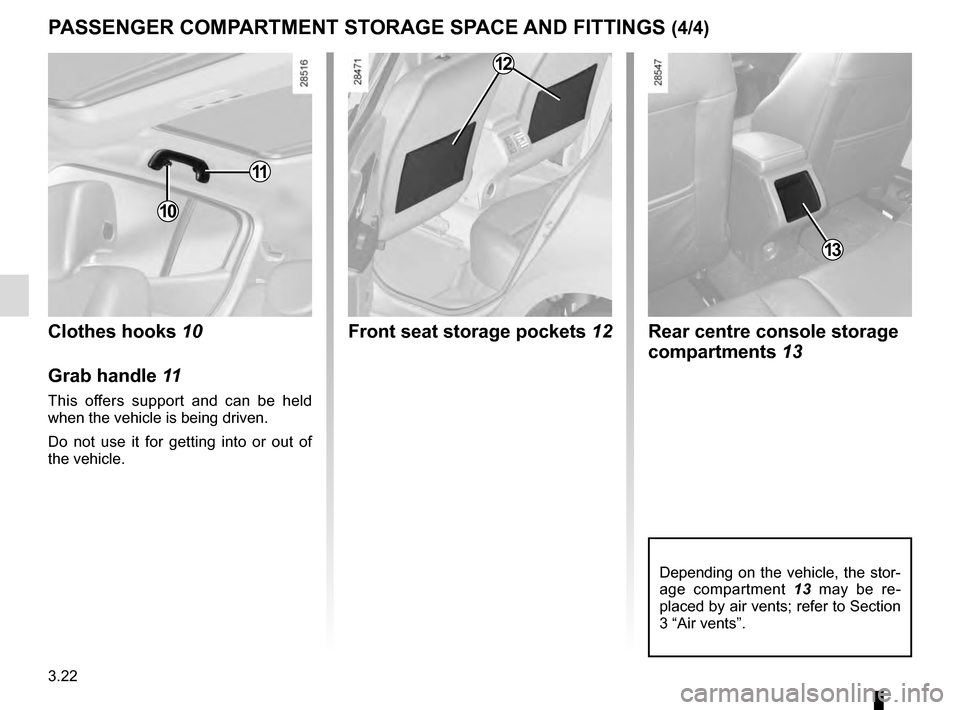

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Rear centre console storage
compartments 13
13
Depending on the vehicle, the stor-
age compartment 13 may be re-
placed by air vents; refer to Section
3 “Air vents”.
12
Front seat storage pockets 12
10
11
Clothes hooks 10
Grab handle 11
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.

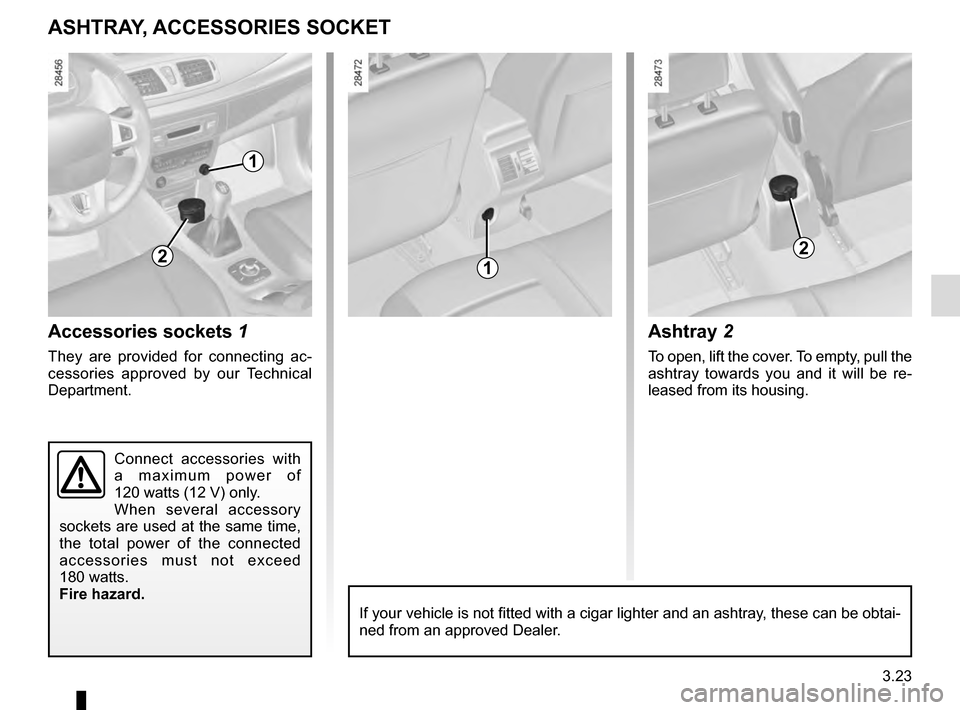

3.23
ASHTRAY, ACCESSORIES SOCKET
Accessories sockets 1
They are provided for connecting ac-
cessories approved by our Technical
Department.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be obtai-
ned from an approved Dealer.
1
22
1
Ashtray 2
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.

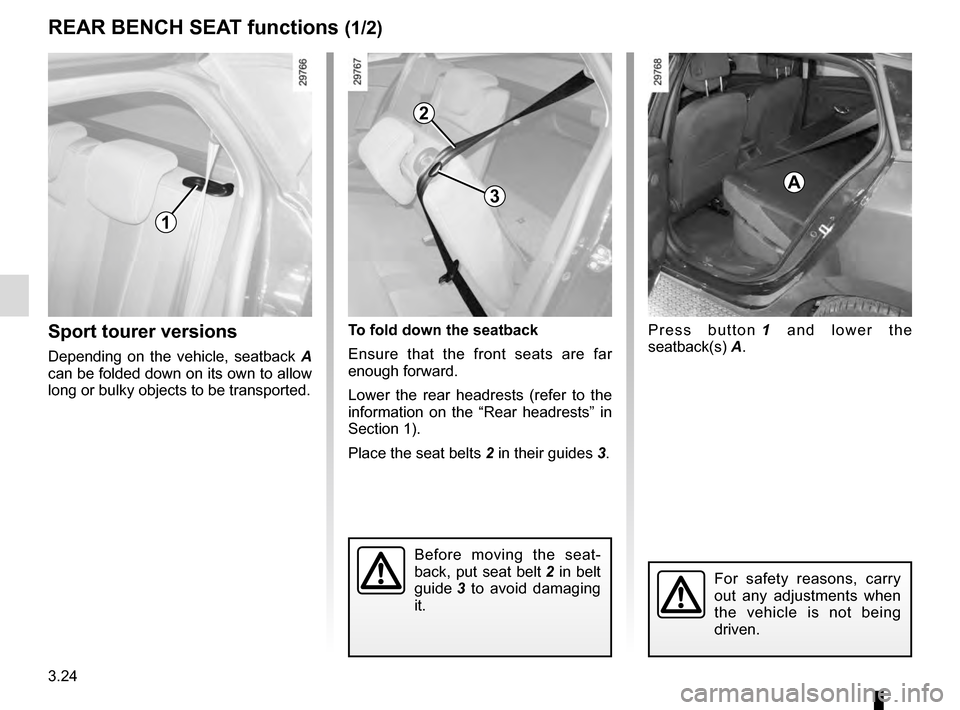

3.24
Press button 1 and lower the
seatback(s) A.
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the rear headrests (refer to the
information on the “Rear headrests” in
Section 1).
Place the seat belts 2 in their guides
3.Sport tourer versions
Depending on the vehicle, seatback A
can be folded down on its own to allow
long or bulky objects to be transported.
REAR BENCH SEAT functions (1/2)
1
A
2
3
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Before moving the seat-
back, put seat belt 2 in belt
guide 3 to avoid damaging
it.
