2016 RENAULT MEGANE COUPE Owners Manual

1.3

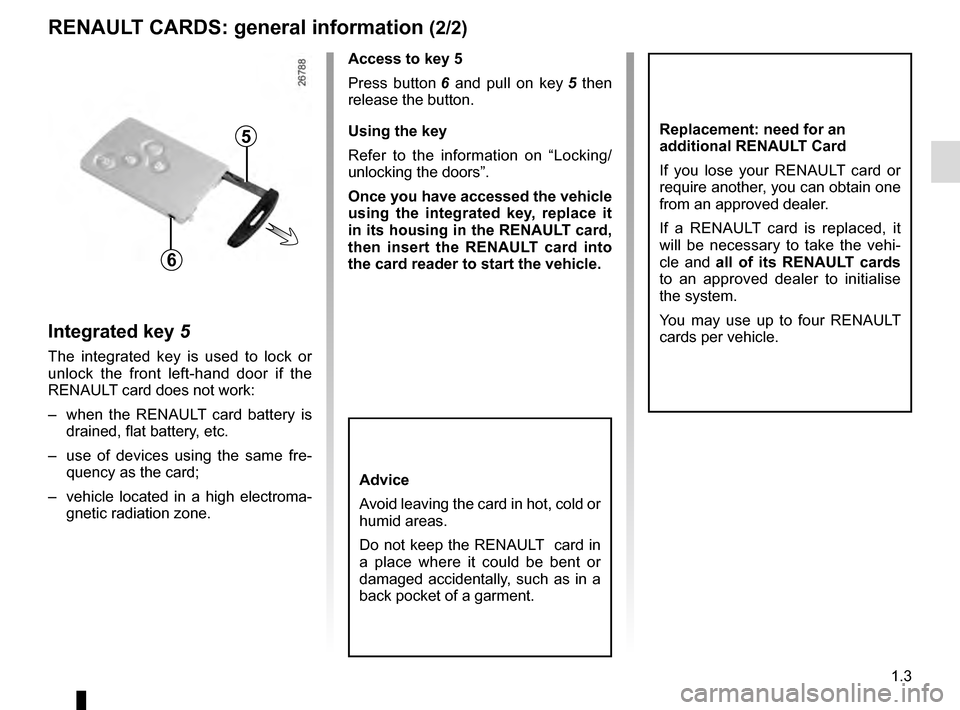

RENAULT CARDS: general information (2/2)
Integrated key 5
The integrated key is used to lock or
unlock the front left-hand door if the
RENAULT card does not work:
– when the RENAULT card battery is drained, flat battery, etc.
– use of devices using the same fre- quency as the card;
– vehicle located in a high electroma- gnetic radiation zone. Access to key 5
Press button
6 and pull on key 5 then
release the button.
Using the key
Refer to the information on “Locking/
unlocking the doors”.
Once you have accessed the vehicle
using the integrated key, replace it
in its housing in the RENAULT card,
then insert the RENAULT card into
the card reader to start the vehicle.
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not keep the RENAULT card in
a place where it could be bent or
damaged accidentally, such as in a
back pocket of a garment.
Replacement: need for an
additional RENAULT Card
If you lose your RENAULT card or
require another, you can obtain one
from an approved dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi-
cle and all of its RENAULT cards
to an approved dealer to initialise
the system.
You may use up to four RENAULT
cards per vehicle.5
6

1.4
REMOTE CONTROL RENAULT CARD: use
Unlocking the doors and
tailgate
Press button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
When unlocking is only active for the
driver’s door, (refer to the information
on the “vehicle settings customisation
menu” in Section 1):
– pressing button 1 unlocks only the
driver’s door and the fuel filler flap;
– pressing button 1 twice unlocks all
the doors and the tailgate.
1
2
Locking the doors and
luggage compartment
Press the locking button 2. The hazard
warning lights flash twice to indicate
that the doors have locked. If a door
or the luggage compartment is open
or not properly shut, or if a RENAULT
card is still in the reader, the doors and
luggage compartment lock then quickly
unlock and the hazard warning lights
do not flash .
4
Unlocking/locking the
luggage compartment only
Press button 4 to unlock/lock the lug-
gage compartment.
RENAULT card not detected
alarm
If you open a door while the engine
is running and the card is not in the
reader, the message “Keycard not de-
tected” and a beep will warn you. The
warning disappears when the card is in-
serted in the reader again.
Distance lighting functionThe dipped beam headlights, indicator
lights and interior lights come on for ap-
proximately 30 seconds when button 3
is pressed. This can be used, for exam-
ple, to identify the vehicle from a dis-
tance when parked in a car park.
Note: pressing button 3 again switches
off the lighting.
3
The card buttons are deactivated
when the engine is running.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is completely unlocked;
– two flashes indicate that the ve-
hicle is completely locked.
If the vehicle has been unlocked
but neither the doors or tailgate are
open, it locks again automatically
after two minutes.

1.5
RENAULT "HANDS-FREE" CARD: use (1/4)
1
Using the card in “hands-
free” mode
On equipped vehicles, in addition to
the functions of the above-mentioned
remote control RENAULT card, it can
be used to lock/unlock without using
the RENAULT card, when it is in access
zone 1.
Do not store the RENAULT card
anywhere it may come into con-
tact with other electronic equipment
(computer, PDA, phone, etc.) as this
could hinder its operation.
There are two ways to unlock/lock the
vehicle:
– the RENAULT card in “Hands-free”
mode;
– the RENAULT card in remote con-
trol mode.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

1.6
4
After unlocking the vehicle or the
boot only using the buttons of the
RENAULT card, remote locking and
unlocking in hands-free mode are
deactivated.
To reactivate the hands-free mode:
restart the vehicle.
3
2
“Hands-free” unlocking of
the vehicle.
RENAULT card in area 1, press the 3
button: the vehicle will unlock.
In some cases (leaving the vehicle
parked for several days, for example),
you may need to pull handle 2 twice to
unlock the vehicle and open the door.
Pressing the button 4 also unlocks all
the doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
Locking the vehicleThere are three ways to lock the ve-
hicle: remotely, using the button 3, or
using the RENAULT card.
Remote locking
With the RENAULT card on you, and
doors and tailgate closed, move away
from the vehicle: it will lock automati-
cally once you have left zone 1.
Note: the distance at which the vehicle
locks depends on the surroundings. The hazard warning lights
flash twice
and a beep sounds to indicate that the
doors have locked.
The beep may be switched off. Please
contact an authorised dealer.
If a door or the tailgate is open or not
properly shut, or a card is in the passen-
ger compartment (or the card reader)
the vehicle will not lock. In this situa-
tion, no beep sounds and the hazard
warning lights do not flash.
RENAULT "HANDS-FREE" CARD: use (2/4)

1.7
RENAULT "HANDS-FREE" CARD: use (3/4)
Locking using the button 3
With the doors and boot closed, press
the button 3 on a door handle of the ve-
hicle: the vehicle will lock. If a door or
the boot is open or not closed properly,
the vehicle will quickly lock/unlock.
Note: a RENAULT card must be within
the vehicle's access zone (zone 1) to
be able to lock the vehicle using the
button. Special note
If you wish to check that the doors are
locked after locking using the button
3,
you have approximately three seconds
to try the door handles without unlock-
ing them.
After this delay, the hands-free mode
is activated once again and any move-
ment of a handle will unlock the vehicle.
2
3
1
If the vehicle is fitted with remote window closing, two quick presses o\
n the
button 3 automatically causes all the windows to close and the doors to lock
(please see the information on “Electric windows, Electric sunroof”\
in Section 3).
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

1.8
With the engine running, if having
once opened and closed a door, the
card is no longer in the passenger com-
partment, the message “Keycard not
detected” (accompanied by a warning
beep once the speed passes a thresh-
old value) will tell you that the card is no
longer in the vehicle. This avoids you
driving away after having dropped off a
passenger who has the card, for exam-
ple.
The warning disappears when the card
is detected again.
RENAULT "HANDS-FREE" CARD: use (4/4)
Locking using the RENAULT card
With the doors and luggage compart-
ment closed, press button 5: the vehi-
cle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur-
roundings. Special features
The vehicle will not lock if:
– a door or the tailgate is open or not
properly closed;
– a card is still in zone 6 (or in the card
reader) and no other card is in the
external detection zone.
5
6
After locking/unlocking the vehicle or the luggage compartment only usin\
g the
buttons on the RENAULT card, remote locking and unlocking in hands-free mode
are deactivated.
To reactivate the “hands-free” mode, restart the vehicle.

1.9
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card.
The hazard warning lights flash once to
indicate that the doors have been un-
locked.
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
You can choose between two deadlock- -
ing activation modes:
– press button 2 twice in quick succes-
sion;
– or, press twice in quick succession on the button 3 of the handle on one
of the vehicle’s doors.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
RENAULT CARD: deadlocking
2
Activating deadlocking also re-
motely closes the windows and/or
the electric sunroof, on equipped
vehicles.
After activating the deadlocking
function using button
2, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
3
1

1.10
OPENING AND CLOSING THE DOORS (1/2)
Opening from the inside
Pull the handle 3.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a remin-
der buzzer will sound when a door is
opened.
Card reminder buzzer
On opening the driver’s door, if the
card is still in the reader, the message
“Please remove keycard” is displayed
on the instrument panel accompanied
by a warning beep.
Door/tailgate open buzzer
If an opening element (door or boot) is
open or not properly closed, as soon as
the vehicle reaches a speed of approxi-
mately 6 mph (10 km/h), the message
“Boot open” or “Door open” (depend-
ing on which is open) will appear on the
instrument panel accompanied by a
warning light.
Special note
After switching off the engine, the lights
and any accessories that are in opera-
tion (radio, etc.) will continue to ope-
rate.
They stop as soon as the driver’s door
is opened.
13
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
2
Opening the doors from the
outside
RENAULT card
With the doors unlocked, hold handle 1
and pull it towards you.
Hands-free RENAULT card
With the RENAULT card in the detec-
tion zone, press the button 2, then grip
the handle 1 and pull it towards you.
In some cases, it may be necessary to
pull the handle twice to open the door.
