MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........353
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .354
▫ Loose Fuel Filler Cap Message ............355
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .355
 REPLACEMENT PARTS ..................357
 DEALER SERVICE ..................... .357
 MAINTENANCE PROCEDURES ...........357
▫ Engine Oil ......................... .358
▫ Engine Oil Filter ..................... .361▫
Engine Air Cleaner Filter ................361
▫ Exhaust System ..................... .362
▫ Maintenance-Free Battery ...............364
▫ Air Conditioner Maintenance .............366
▫ Body Lubrication .....................368
▫ Windshield Wiper Blades ...............369
▫ Cooling System ..................... .370
▫ Brake System ....................... .376
▫ Automatic Transmission
(3.6L Gasoline Engine Only) ..............378
7

CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity — 3.6L Engine
MOPAR SAE 5W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or
equivalent is recommended for all operating tempera-
tures. This engine oil improves low temperature starting
and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.NOTE:
MOPAR SAE 5W-30 engine oil approved to FCA
Material Standard MS-6395 such as Pennzoil, Shell Helix
or equivalent may be used when SAE 5W-20 engine oil
meeting MS-6395 is not available.
Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Synthetic engine oils which do not have both the engine
oil certification mark and the correct SAE viscosity grade
number should not be used.
360 MAINTAINING YOUR VEHICLE

The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
CavityMaxi Fuse Mini Fuse Description
F01 40 Amp Orange –Electronic Stability Control (ESC) Pump
F02 20 Amp Yellow
(3.6 Gasoline Engine) –
Starter Relay 3.6L (3.6 Gasoline Engine)
F02 50 Amp Red
(3.0 Diesel Engine) –
Glow Plug Unit (3.0 Diesel Engine)
F04 50 Amp Red
(3.6 Gasoline Engine) –
Secondary Power Distribution Center
(PDC) (Trans Power Relay, Vacuum Pump,
KL30 for the Shifter Transmission Module
[STM]) (3.6 Gasoline Engine)
F04 40 Amp Orange (3.0 Diesel Engine) –
Fuel Filter Heater (3.0 Diesel Engine)
388 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 24 Gallons90 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System *
3.6L Engine (MOPAR Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 10.5 Quarts
10 Liters
7
MAINTAINING YOUR VEHICLE 405

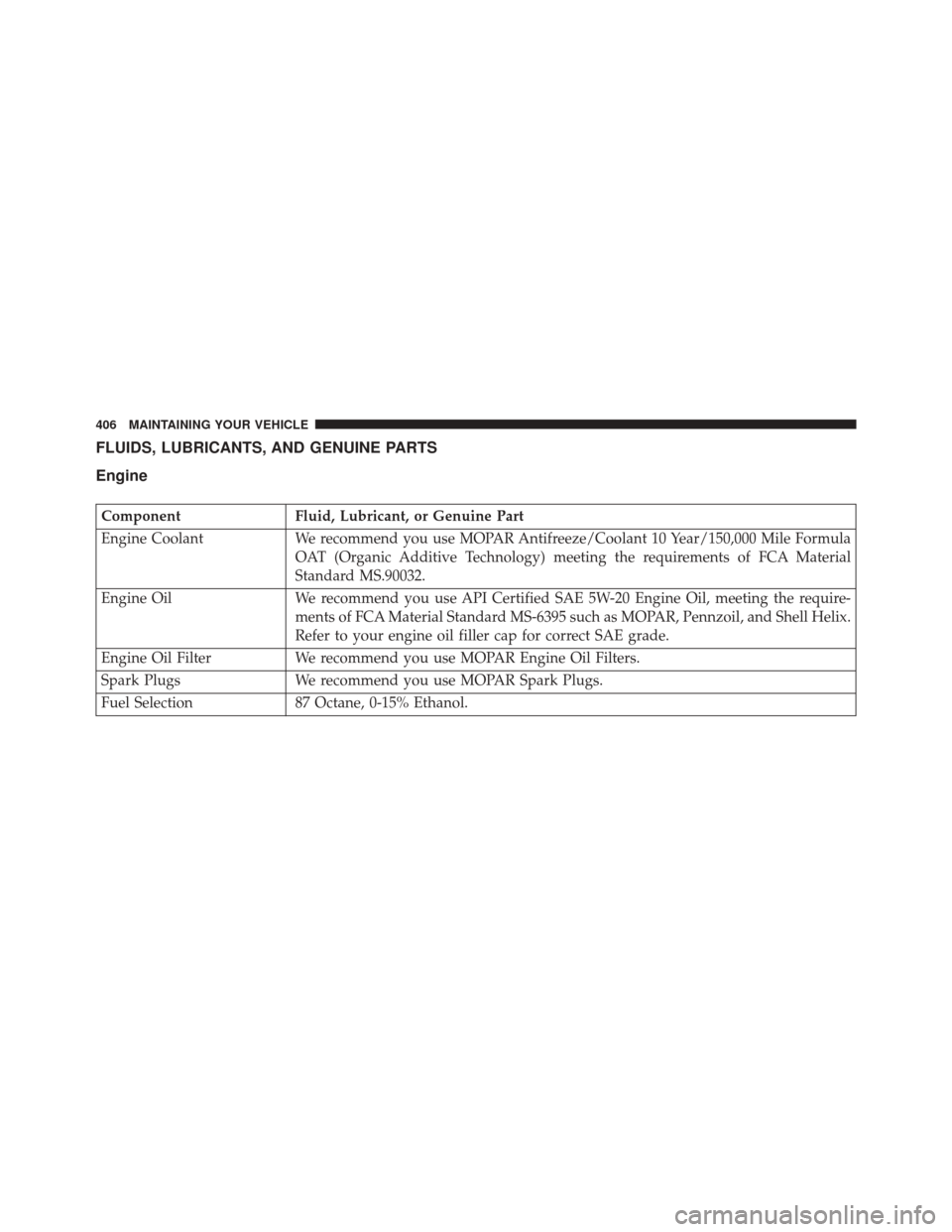

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula
OAT (Organic Additive Technology) meeting the requirements of FCA Material
Standard MS.90032.
Engine Oil We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the require-
ments of FCA Material Standard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filters.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
406 MAINTAINING YOUR VEHICLE

Adding Engine Coolant (Antifreeze)............372
Adding Fuel ............................ .287
Adding Washer Fluid ..................... .369
Additives, Fuel .......................... .284
AirBag.................................39 Advance Front Air Bag ....................41
Air Bag Operation .......................42
Air Bag Warning Light ....................50
Event Data Recorder (EDR) .................53
FrontAirBag...........................39
If A Deployment Occurs ...................47
Knee Impact Bolsters .....................43
Maintaining Your Air Bag System ............52
Transporting Pets ........................63
Air Bag Deployment ........................39
Air Bag Light ...................... .50, 66, 134
Air Bag Maintenance .......................52
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .361
Air Conditioner Maintenance .................366Air Conditioning
......................... .204
Air Conditioning Controls ...................204
Air Conditioning Filter .....................367
Air Conditioning Refrigerant .................366
Air Conditioning System .................204, 366
Air Pressure, Tires ........................ .263
Alarm (Security Alarm) ......................15
Alarm System (Security Alarm) ................15
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ...............371, 405
Disposal ............................. .374
Anti-Lock Brake System (ABS) ................241
Anti-Lock Warning Light ....................155
Appearance Care ........................ .380
Ashtray ............................... .121
Assist, Hill Start ......................... .249
Audio Systems (Radio) .....................199
Auto Down Power Windows ..................24
Automatic Door Locks ......................22
430 INDEX

Automatic Transaxle........................12
Automatic Transmission .................222, 379
Adding Fluid ......................... .379
Fluid And Filter Changes ..................379
Fluid Change ......................... .379
Fluid Level Check ...................... .379
Fluid Type ........................ .378, 408
Gear Ranges .......................... .225
Special Additives ...................... .378
Battery ............................ .135, 364
Charging System Light ...................135
Keyless Transmitter Replacement (RKE) ........19
Belts, Seat ...............................66
Body Builders Guide ........................6
Body Mechanism Lubrication .................368
B-Pillar Location ......................... .257
Brake Assist System ...................... .244
Brake Control System, Electronic ..............241Brake Fluid
............................ .408
Brake, Parking .......................... .239
Brake System ........................ .241, 376
Anti-Lock (ABS) ....................... .241
Fluid Check .......................... .376
Parking ............................. .239
Warning Light ........................ .142
Brake/Transmission Interlock .................224
Bulb Replacement ..................... .399, 401
Bulbs, Light .......................... .68, 399
Camera, Rear ............................112
Capacities, Fluid ......................... .405
Caps, Filler Fuel ................................ .287
Power Steering ........................ .238
Radiator (Coolant Pressure) ................374
Carbon Monoxide Warning ................65, 286
Cargo Light ..............................98
10
INDEX 431

Jump Starting......................... .338
Emission Control System Maintenance ..........355
Engine Air Cleaner .......................... .361
Block Heater ......................... .222
Break-In Recommendations .................63
Checking Oil Level ..................... .358
Compartment ......................... .353
Compartment Identification ................353
Coolant (Antifreeze) ..................371, 406
Cooling ............................. .370
Exhaust Gas Caution ..................65, 286
Fails To Start ......................... .221
Flooded, Starting ...................... .221
Fuel Requirements ...................282, 405
Jump Starting ......................... .338
Oil .......................... .358, 405, 406
Oil Filter ............................ .361
Oil Selection ...................... .359, 405Oil Synthetic
......................... .360
Overheating .......................... .309
Starting ............................. .220
Engine Oil Viscosity ...................... .360
Engine Oil Viscosity Chart ...................360
Entry System, Illuminated ....................17
Ethanol ............................... .283
Event Data Recorder ........................53
Exhaust Gas Caution ....................65, 286
Exhaust System ....................... .65, 362
Exterior Lighting ..........................93
Exterior Lights ............................68
Filters Air Cleaner .......................... .361
Air Conditioning ...................... .367
Engine Oil ........................ .361, 406
Engine Oil Disposal .....................361
