Stop/Start Active Indicator Light — If Equipped
Green TelltaleLight What It Means
Stop/Start Active Indicator Light
This telltale will illuminate when the Stop/Start function is in “Autostop” mode.
Electronic Speed Control Set Indicator Light — If Equipped
Green Telltale
Light What It Means
Electronic Speed Control Set Indicator Light
This light will turn on when the electronic speed control has been set.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 223

4WD AUTO Indicator Light — If Equipped
Green TelltaleLight What It Means
4WD AUTO Indicator Light
This light alerts the driver that the vehicle is in the four-wheel drive auto mode, and the
front axle is engaged, but the vehicle’s power is sent to the rear wheels. Four-wheel drive
will be automatically engaged when the vehicle senses a loss of traction.
For further information on four-wheel drive operation and proper use, refer to “Four-Wheel
Drive Operation — If Equipped” in “Starting And Operating.”
224 UNDERSTANDING YOUR INSTRUMENT PANEL

White Telltale Indicator Light
Electronic Speed Control ON Indicator Light
White TelltaleLight What It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON.
Electronic Speed Control SET Indicator Light — If Equipped
White Telltale
Light What It Means
Electronic Speed Control SET Indicator Light
This light will turn on when the electronic speed control is set. Refer to “Electronic Speed
Control” in “Understanding The Features Of Your Vehicle” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 225

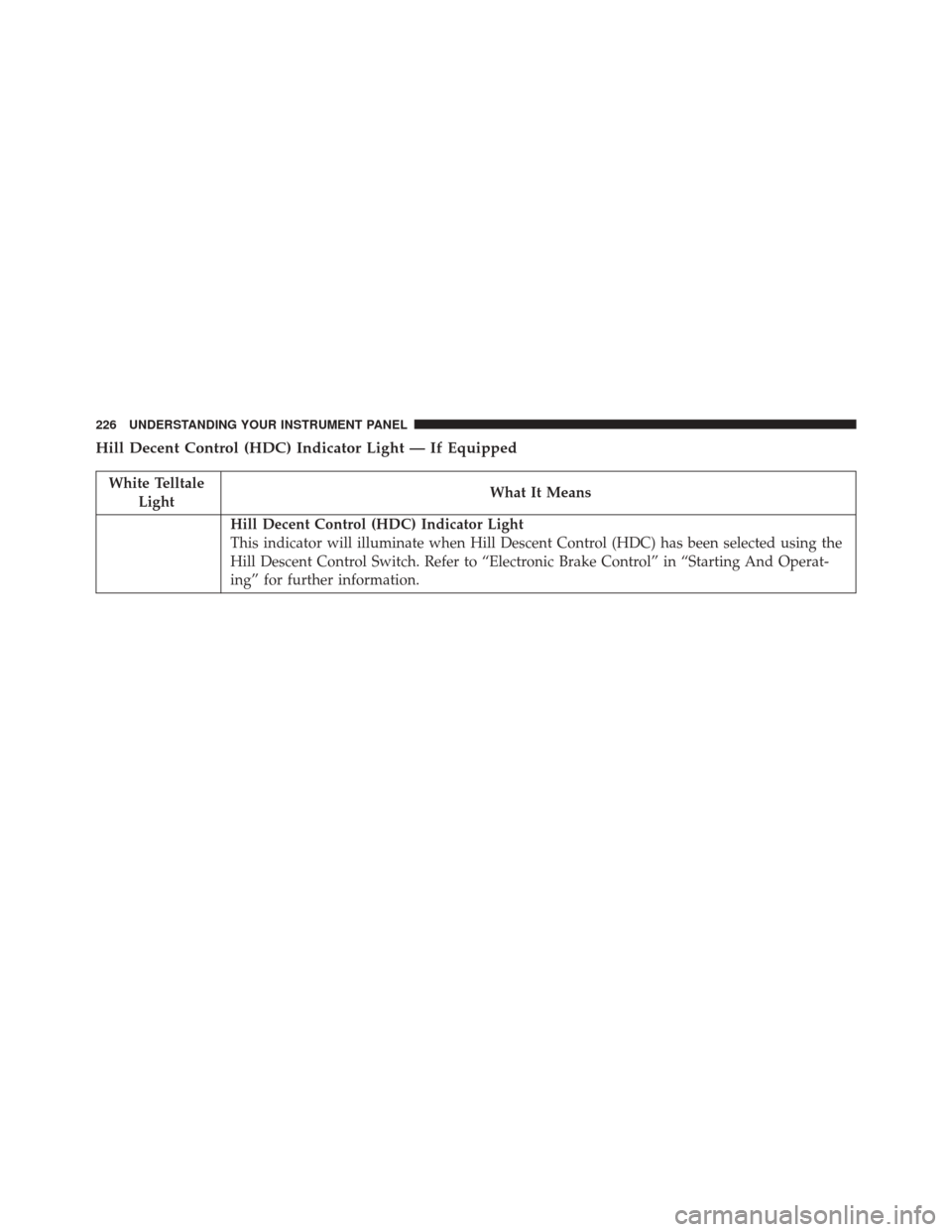

Hill Decent Control (HDC) Indicator Light — If Equipped
White TelltaleLight What It Means
Hill Decent Control (HDC) Indicator Light
This indicator will illuminate when Hill Descent Control (HDC) has been selected using the
Hill Descent Control Switch. Refer to “Electronic Brake Control” in “Starting And Operat-
ing” for further information.
226 UNDERSTANDING YOUR INSTRUMENT PANEL

Blue Telltale Indicator Light
High Beam Indicator Light
Blue TelltaleLight What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 227

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.This system conveniently allows the driver to select a
variety of useful information by pressing the switches
mounted on the steering wheel.
Refer to “Electronic Vehicle Information Center – If
Equipped” in the Owner’s Manual for further informa-
tion.
Instrument Cluster Messages
When the appropriate conditions exist, the Instrument
Cluster Displays the following messages:
•
System Setup Unavailable – Vehicle Not in Park
• System Setup Unavailable – Vehicle in Motion
• Service Air Filter
• Perform Service
• Exhaust Filter XX% Full Safely Drive at Highway
Speeds To Remedy — If Equipped
Electronic Vehicle Information Center (EVIC)
228 UNDERSTANDING YOUR INSTRUMENT PANEL

•Exhaust Filter Full – Power Reduced See Dealer — If
Equipped
• Exhaust Service Required – See Dealer Now — If
Equipped
• Exhaust System – Filter XX% Full Service Required See
Dealer — If Equipped
• Exhaust System – Regeneration In Process Exhaust
Filter XX% Full — If Equipped
• Exhaust System – Regeneration Completed — If
Equipped
• DEF Low Refill Soon
• Speed Limited to 5 MPH in XXX mi Refill DEF
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Refill DEF
• 5 MPH Max Speed Refill DEF •
Service DEF System See Dealer
• 5 MPH Max Speed in XXX mi Service DEF System See
Dealer
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Service DEF See Dealer
• 5 MPH Max Speed Service DEF System See Dealer
• Coolant Low
• Engine Power Reduced During Warmup
• Engine Power Reduced up to 30-sec During Warmup
• Engine Power Reduced up to 2-min During Warmup
• Active Airbox Service Required See Dealer
4
UNDERSTANDING YOUR INSTRUMENT PANEL 229

Vehicle Information (Customer Information
Features)
Push and release the UParrow or DOWNarrow
button until “Vehicle Info” displays in the Cluster. Push
the RIGHT
arrow or LEFTarrow button to scroll
through the available Vehicle Information sub menu(s) to
display anyone of the following choices.
Vehicle Information Sub Menus
•Battery Voltage
Displays the actual battery voltage.
Steering Wheels Buttons
