2016 PEUGEOT 5008 navigation system

04
288
5008_en_Chap12b_RT6-2-8_ed01-2015
Press N AV to display the
"Navigation - guidance " menu.
Map management
Selecting the points of interest displayed on the map
Select "Map management" and confirm. Select from the various categories the
ones that you want to display on the
screen.
Select "Map details" and confirm. Select "Default" to have only "Filling stations, garages
" and
"Risk areas " appear on the map (if installed in the system).
Select "OK" then confirm and
select
"OK" again then confirm to save
the modifications.
NAVIGATION - GUIDANCE

04
291
5008_en_Chap12b_RT6-2-8_ed01-2015
Male voice / Female voicePress SETUP to display the
configuration menu.
Select "Select male voice" or "Select
female voice" then confirm "Ye s " to
activate a male or female voice. The
system restarts. Select "Voice synthesis" and confirm.
NAVIGATION - GUIDANCE

05
293
5008_en_Chap12b_RT6-2-8_ed01-2015
Configure the filtering and display of TMC messages
TMC (Traffic Message Channel) messages with GPS Navigation provide traffic information in real time.Press the TRAFFIC button to display the
"Traffic information" menu.
Select the "Geographic filter" function
and confirm. The system offers a choice of:
-
"Retain all the messages",
or
-
"Retain the messages"
●

"
Around the vehicle", (confirm
the mileage to modify and select
the distance),
●

"
On the route".
Confirm "OK" to save the modifications.
We recommend:
-

a filter on the route and
-


a filter around the vehicle of:
-


12 miles (20 km) in urban areas,
-


30 miles (50 km) on motorways.
TRAFFIC INFORMATION

322
5008_en_Chap12b_RT6-2-8_ed01-2015

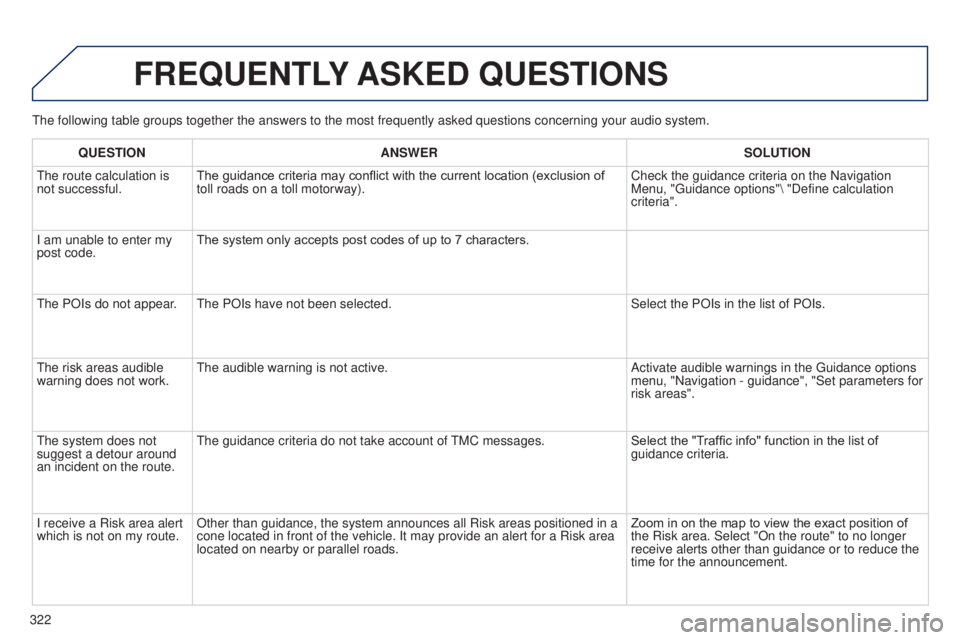

The following table groups together the answers to the most frequently a\
sked questions concerning your audio system.
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWER SOLUTION
The route calculation is
not successful. The guidance criteria may conflict with the current location (exclusion of
toll roads on a toll motorway). Check the guidance criteria on the Navigation
Menu, "Guidance options" "Define calculation
criteria".
I am unable to enter my
post code. The system only accepts post codes of up to 7 characters.
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The risk areas audible
warning does not work. The audible warning is not active.
Activate audible warnings in the Guidance options
menu, "Navigation - guidance", "Set parameters for
risk areas".
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages.
Select the "Traffic info" function in the list of
guidance criteria.
I receive a Risk area alert
which is not on my route. Other than guidance, the system announces all Risk areas positioned in a\

cone located in front of the vehicle. It may provide an alert for a Risk\
area
located on nearby or parallel roads. Zoom in on the map to view the exact position of
the Risk area. Select "On the route" to no longer
receive alerts other than guidance or to reduce the
time for the announcement.

05
336
5008_EN_CHAP12C_RD45_ED01_2015
PEUGEOT CONNECT USB
The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the first time, the classification suggested
is by folder. When you reconnect, the classification selected
previously is retained.Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The file formats supported are .mp3 (mpeg1
layer
3 only) and .wma (standard 9 only,
128 kbits/sec compression).
Certain playlist formats are supported (.m3u, ...)
On reconnection of the previous memory stick
used, play is resumed automatically with the last
track played.
This unit consists of a USB port and an auxiliary
Jack socket*. The audio files are transmitted
from a portable device - digital player or a USB
memory stick - to your PEUGEOT Connect
Sound (RD5) and heard via the vehicle's
speakers.
USB memory stick or Apple
® player of
generation 5 or later:
-

Use only USB memory sticks formatted
F

AT32 (File Allocation Table),
-

the Apple® player lead is essential,
-

navigation through the file database is also
possible by means of the steering mounted
controls.
Using the PEUGEOT CONNECT USB
Connecting a USB memory stick
Other Apple
® players of earlier generations and
players using the MTP protocol*:
-

play via Jack-Jack lead only (not supplied),
-


navigation through the file database is from
the portable device. * Depending on vehicle.

353
5008_en_Chap13_index-alpha_ed01-2015
Safety, children ......................1 15 -13 4, 142, 14 4
Satellite navigation system
................................................... 39, 279
Screen, colour and mapping


........................... 39, 40, 277, 318
S
Paint colour code .......................................... 26 8
Panoramic glass sunroof


........................................................ 10 6
Parking brake, electric


.............21, 151-157, 203
Parking sensors, audible and visual


.............185
Parking sensors, front


...................................185
Parking sensors, rear .................................... 185
Parking space sensor
..................................188
Particle filter


.......................................... 19 6, 201
P
E

UGEOT
C
onnect Assistance

...................270
P
E

UGEOT
C
onnect Navigation (RT6)

...39 , 273
P
E

UGEOT
C
onnect Packs

...........................270
P
E

UGEOT
C
onnect SOS
............................. 2

70
P
E

UGEOT
C
onnect Sound (RD5)
..........36,

329
Player, MP3 CD
............................. 311, 3 3 4, 335
Players, music media
.................................... 310
Port, USB

...................................... 10

1, 315 , 336
Pre-tensioning seat belts


.................................................... 142
Priming the fuel system
................................195
Protecting children


.................115 -13 4, 142, 14 4
Puncture


................................................ 214, 220
Radio


.................................................... 305, 333
Range


.............................................................. 42
Range, AdBlue


.............................................. 206
Reading lamps, rear


........................................ 96
Rear foglamp .................................. 84, 234, 235
Rear screen (demisting)


............................64, 79
Recharging the battery
................................. 24

6
Reduction of electrical load


..........................247
P
R
Mirrors, door.................................................... 79
Misfuel prevention ............................... ..........19 4
Modularity, seats


............................................. 78
Mountings for ISOFIX seats


.........................127
MP3 CD
................................................. 311, 335
Multimedia, rear


.................................... 101, 104
Navigation


..................................................... 279
Net


................................................................. 11 0
Number plate lamps
............................. 23

5, 236
Oil change


..................................................... 19 9
Oil consumption


............................................ 19 9
OIl, engine


............................................... 30, 199
Opening the bonnet
...................................... 19

6
Opening the boot
..............................

..............58
Opening the doors
...............................

...........55
Opening the panoramic sunroof blind


............................................... 10 6
Opening the retractable screen
...................... 41
O

peration indicator lamps

.........................16 -18
N
O
Regeneration of the particle filter .................2 02
Reinitialising the electric windows .................. 54
R
einitialising the remote control
..................... 49
R

eminder, key in ignition ...............................150
Remote control
.......................................... 46

-50
Removable screen (snow shield).................. 255
Removing a wheel
........................................ 226
Removing the mat


......................................... 102
Replacing bulbs


.................................... 231-236
Replacing fuses
..............................

.......2 37-24 3
Replacing the air filter


...................................202
Replacing the oil filter
................................... 2

02
Replacing the passenger compartment filter


...................................... 202
Replacing wiper blades ...........................95, 248
Resetting the service indicator


.......................29
Resetting the trip recorder


..............................31
Rev counter


..................................................... 14
Reversing camera


......................................... 187
Reversing lamp
............................................. 23

4
Rigid panel


...................................................... 75
Risk areas (update)
....................................... 284
Roof bars
....................................................... 25

4
Routine checks


..................................... 202, 203
Running out of fuel (Diesel)

..........................19

5
.
Alphabetical index

354
5008_en_Chap13_index-alpha_ed01-2015
Screen menu map ........................318, 342 , 344
Screen, monochrome A .............32, 34, 43, 342
Screen, monochrome C
................... 3

6, 44, 344
Screenwash fluid level


............................................................... 93
Screenwash, front


........................................... 93
Screenwash, rear


............................................ 92
Screen-wash reservoir


...................................................... 201
SCR (Selective Catalytic Reduction)
.................................................. 20

4
Seat adjustment
...............................

...68 , 69 , 73
Seat belts
.............................. 10

9, 13 9 , 141, 142
Seat configurations
......................................... 78
Se

ats, electric

................................................. 69
Seats, rear


........................................... 73, 75 , 76
Serial number, vehicle


......................................................... 268
Service indicator


............................................. 28
Servicing
...............................

..........................12
Settings, equipment


.......32, 34 , 36, 39, 40, 344
Short-cut menus


........................................... 278
Sidelamps


............................... 82, 231 , 232 , 234
Side repeater
..............................

..................233
Snow chains
.................................................. 23

0
Socket, 12 volt accessory


..................... 99, 102, 113, 108 , 109
Sockets, audio


.............................. 101, 315, 336
Spare wheel
...............................

...................229
Speed limiter


................................................. 163
Speedometer


.................................................. 14
Spotlamps, side


............................................................... 97
Starting the engine


....................................... 148
Starting using another battery
......................................................... 24

5Table of weights

...................25

9, 260 , 263, 266
Tables, aircraft


..............................................103
Tables of engines


..................................258, 261
Tables of fuses
..............................................237
Tank, AdBlue
®
additive
.............................................. 204, 209
Ta n k , f u e l


....................................................... 19 4
Technical data


....................................... 258-266
Telephone


............................................ 295, 339
Temperature control for heated seats


............................................ 71
Temperature, coolant


...................................... 27Under floor storage


.......................................
113
Under-inflation
(detection) ....................................26, 183, 229
Unlocking ..............................
..........................46
Unlocking from the inside

...............................56
U

nlocking the boot ..........................................46
Unlocking the doors


........................................46
Updating risk areas
....................................... 28

4
UREA


...................................................204, 205
USB


...............................................101, 315, 338
Three flashes function
(direction indicators)

...................................
13 5
Third brake lamp

..................................
235, 236
Time (setting)
..............................
.
33, 35, 38, 40
TMC (Traffic info)
..........................................
2
93
To o l s

......................................................
212, 223
Total distance
recorder

........................................................
31
To w b a r

...........................................................
252
Towed loads

.........................
259, 260 , 263, 266
Towing another vehicle
................................. 24
9
Traction control (ASR)

............................
22, 137
Traffic information (TA)

.................
294, 307 , 334
Traffic information (TMC)
..................... 2
93
, 294
Tr a i l e r

............................................................
252
Trip computer

............................................
42- 44
Trip distance recorder

.....................................
31
Tyre pressures

..............................................
268
Ty r e s

................................................................
12
Tyre under-inflation detection

........
26, 183 , 229
T
U
Steering mounted controls,
audio ................................................... 276, 331
Stop & Start


........................................ 18, 42 , 63 ,
67 , 180 , 192, 19 6 , 202 , 244
Storage


............................ 99, 101 , 103 , 108 , 109
Storage box
................................................... 10

0
Storage drawer


............................................. 103
Storage wells


........................................ 108, 109
Stowing rings


........................................ 108, 109
Sun visor


................................................. 99, 10 0
Switching off the engine


................................................... 148
Synchronising the remote control
........................................................... 49
S

ynthesiser,
voice ............................................................ 290
System, navigation ........................................ 279
Alphabetical index
