2016 PEUGEOT 5008 key

Welcome
Keysafety warning additional informationcontributes to the protection of
the


environment
Thank you for choosing a 5008.
This handbook describes all of the equipment available in the whole
range.
Your vehicle will be fitted with some of the equipment described in this
document, depending on its trim level, version and the specification for
the country in which it is sold.
The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It should be passed
on to the new user in the event of sale or transfer.
This handbook has been designed to help you make the most of
using your vehicle in all circumstances.

.
.
5008_en_Chap00a_sommaire_ed01-2015
Interior fittings 99
Centre console 1 01
Rear multimedia
1

04
Panoramic sunroof
1

06
Boot fittings 5 -seat version

1
08
Boot fittings 7-seat version

1
09
Fittings
Child seats 1 15
Deactivating the passenger's front airbag 1 17
ISOFIX mountings

1
27
Child lock

1
34
Child safety
Over view
Instrument panels 1
4
Indicator and warning lamps 1 6
Indicators
2

7
Distance recorders

3
1
Screen A without audio equipment

3
2
Screen A with audio equipment

3
4
Screen C (PEUGEOT Connect Sound (RD5))

3
6
16/9 retractable colour screen (PEUGEOT Connect Navigation (RT6))

3
9
Trip computer

4
2
Monitoring
Heating and Ventilation 6 0
Manual air conditioning 6 2
Rear screen demist - defrost

6
4
Dual-zone digital air conditioning
6

5
Front seats

6
8
Rear seats, 2
nd row 7 3
Access to the 3rd row 7 5
Rear seats, 3rd row 7 6
Seat modularity 7 8
Mirrors

7
9
Steering wheel adjustment
8

1
Comfort
Remote control key 4 6
Alarm 5 1
Electric windows

5
3
Doors
55
Boot
5

8
Access
Lighting controls 8 2
Daytime running lamps 8 6
Automatic illumination of headlamps

87
H

eadlamp beam adjustment
8
9
Directional lighting
9

0
Wiper controls

9
1
Automatic rain sensitive wipers

9
4
Courtesy lamps

9
6
Interior mood lighting

9
7
Visibility
Eco-driving
Contents

4
5008_en_Chap00b_vue-ensemble_ed01-2015
Exterior
Remote control key 46 -50, 148 -150
- u nlocking / locking
-

l
ocating the vehicle
-


battery
-
a

nti-theft protection
-


starting
Fuel tank

1
91-193
Misfuel prevention

1
94
Wiper
91

-95
Changing a wiper blade

9
5, 248
Demisting-defrosting the rear screen

6
4
Boot
5

8-59
-
ope

ning / closing
-
em

ergency release
Changing a wheel
2

26-231
Spare wheel

2
23 -229
Parking sensors
1

85-186
Reversing camera

1
87
Parking space sensors

1
88 -189
Towball (quickly detachable)

2
50 -251
Towing
24

8-249
Towbar


252-253Accessories
2

56-257
Roof bars, finishers

2
54
Panoramic sunroof

1
06 -107Door mirrors

7
9
Exterior welcome lighting
8

8
Door mirror spotlamps

9
7
Exterior (lighting, automatic, directional)

87
, 90
Headlamp beam height adjustment

8
9
Changing bulbs
2

31-233
-

f
ront lamps
-


foglamps
-
d

irection indicator repeaters
Very cold climate screen

2
55
Doors

5
5 -57
-
ope

ning / closing
-

c
entral locking
-
em

ergency control
Alarm


51-52
Electric windows

5
3 -54
ESC, ABS, EBFD, EBA,
AS R , DSC
13

6 -13 8
ITC (traction on snow)

1
36
Tyre under-inflation detection
18

3 -18 4
Tyre pressures

1
83, 219, 268
Snow chains

2
30
Changing rear bulbs
2

34-236
-
r

ear lamps
-

3
rd brake lamp
-

n
umber plate lamps
-


foglamps
Over view

42
5008_en_Chap01_controle-marche_ed01-2015

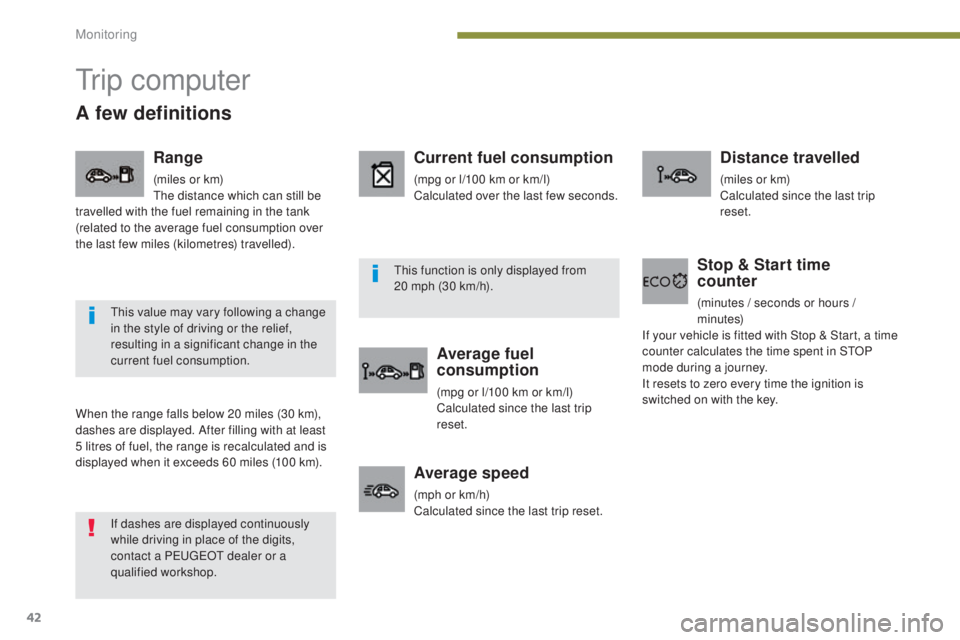

Tr i p c o m p u t e r
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
A few definitions
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
reset.
Distance travelled
(miles or km)
Calculated since the last trip
reset.
Average speed
(mph or km/h)
Calculated since the last trip reset.
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop. This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption. This function is only displayed from
20 mph (30 km/h).
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in the tank
(related to the average fuel consumption over
the last few miles (kilometres) travelled).
Monitoring

46
5008_en_Chap02_ouvertures_ed01-2015

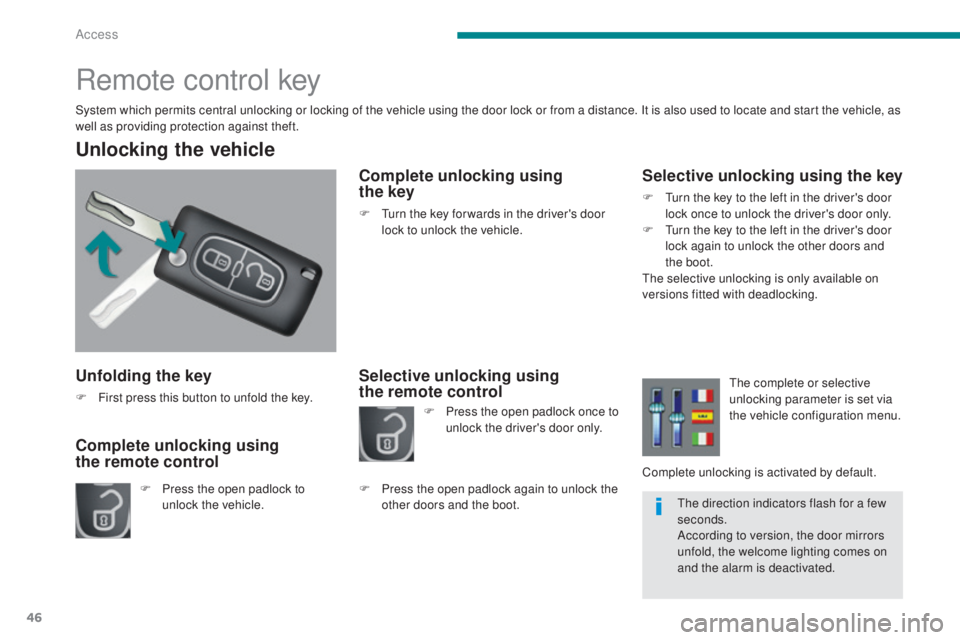

Unfolding the key
F First press this button to unfold the key.
Unlocking the vehicle
F Press the open padlock to unlock the vehicle.
Complete unlocking using
the remote control
Remote control key
System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle, as
well as providing protection against theft.
Complete unlocking using
the key
F Turn the key for wards in the driver's door
lock to unlock the vehicle.
Selective unlocking using
the remote control Selective unlocking using the key
F Turn the key to the left in the driver's door
lock once to unlock the driver's door only.
F

T
urn the key to the left in the driver's door
lock again to unlock the other doors and
the boot.
The selective unlocking is only available on
versions fitted with deadlocking.
F

P

ress the open padlock once to
unlock the driver's door only.
F

P

ress the open padlock again to unlock the
other doors and the boot. The complete or selective
unlocking parameter is set via
the vehicle configuration menu.
Complete unlocking is activated by default. The direction indicators flash for a few
seconds.
According to version, the door mirrors
unfold, the welcome lighting comes on
and the alarm is deactivated.
Access

47
5008_en_Chap02_ouvertures_ed01-2015

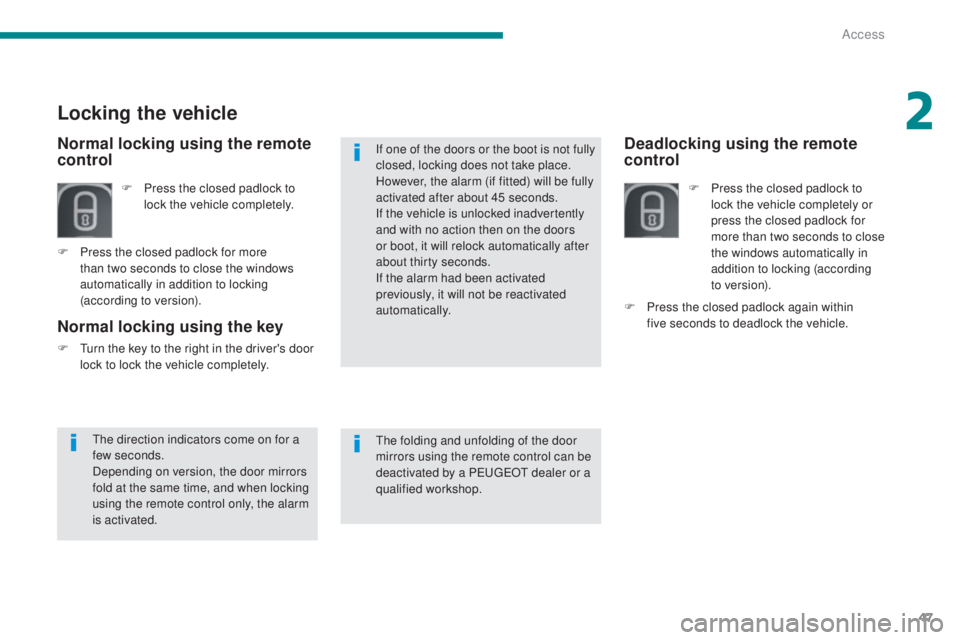

Deadlocking using the remote
control
F Press the closed padlock to lock the vehicle completely or
press the closed padlock for
more than two seconds to close
the windows automatically in
addition to locking (according
to ve r s i o n).
Normal locking using the key
F Turn the key to the right in the driver's door lock to lock the vehicle completely.
Locking the vehicle
F Press the closed padlock to lock the vehicle completely.
F

P

ress the closed padlock for more
than two seconds to close the windows
automatically in addition to locking
(according to version).
Normal locking using the remote
control
F Press the closed padlock again within five seconds to deadlock the vehicle.
The direction indicators come on for a
few seconds.
Depending on version, the door mirrors
fold at the same time, and when locking
using the remote control only, the alarm
is activated. The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop. If one of the doors or the boot is not fully
closed, locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.
If the vehicle is unlocked inadvertently
and with no action then on the doors
or boot, it will relock automatically after
about thirty seconds.
If the alarm had been activated
previously, it will not be reactivated
automatically.
2
Access

48
5008_en_Chap02_ouvertures_ed01-2015

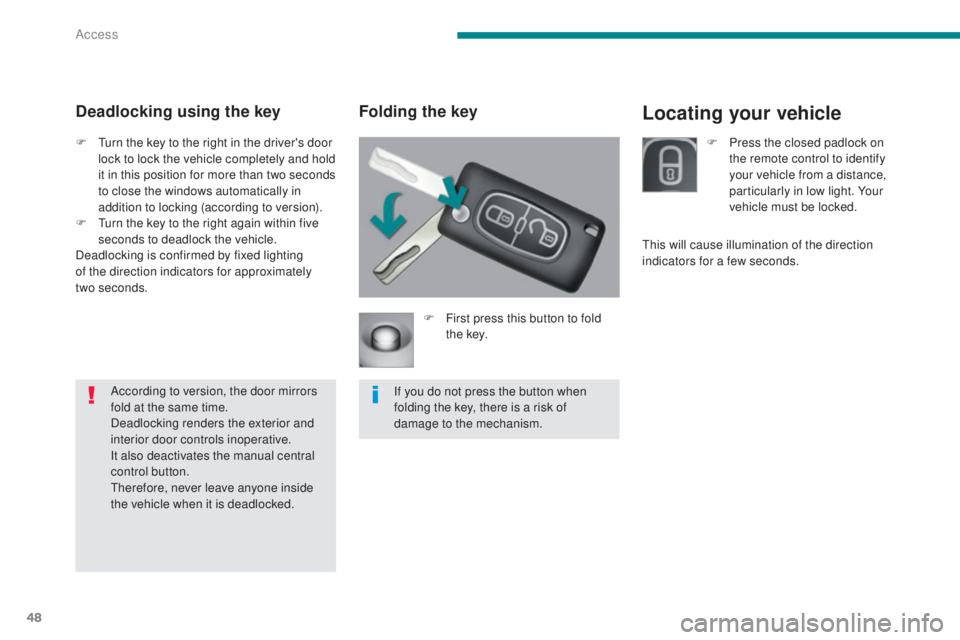

Locating your vehicleFolding the key
F First press this button to fold t h e key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Deadlocking using the key
F Turn the key to the right in the driver's door lock to lock the vehicle completely and hold
it in this position for more than two seconds
to close the windows automatically in
addition to locking (according to version).
F

T
urn the key to the right again within five
seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting
of the direction indicators for approximately
two


seconds.According to version, the door mirrors
fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked. F
P ress the closed padlock on
the remote control to identify
your vehicle from a distance,
particularly in low light. Your
vehicle must be locked.
This will cause illumination of the direction
indicators for a few seconds.
Access

49
5008_en_Chap02_ouvertures_ed01-2015

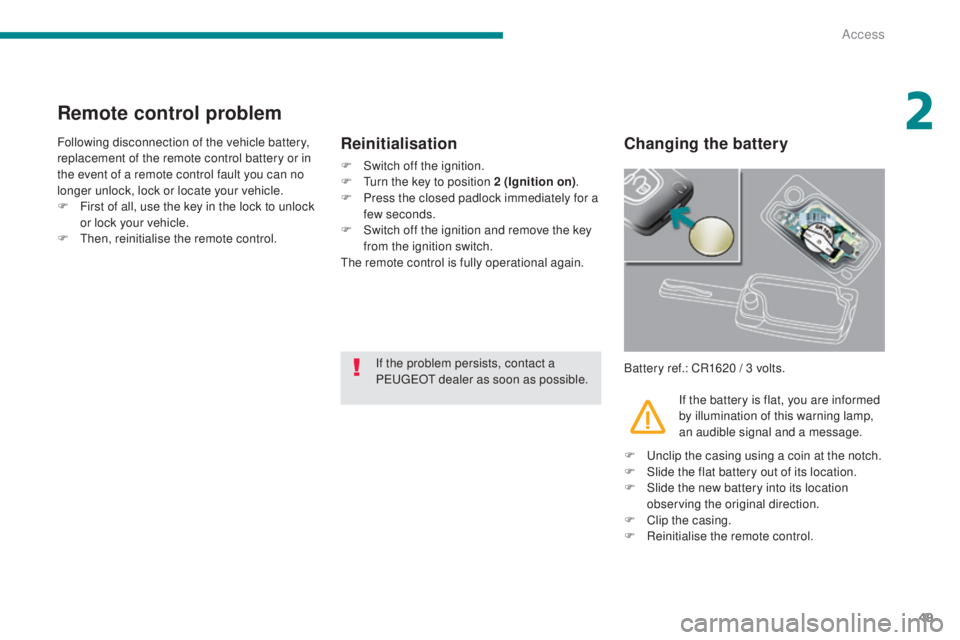

Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or in
the event of a remote control fault you can no
longer unlock, lock or locate your vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T
hen, reinitialise the remote control.Changing the battery
Reinitialisation
F Switch off the ignition.
F
T urn the key to position 2 (Ignition on) .
F

P
ress the closed padlock immediately for a
few seconds.
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
If the battery is flat, you are informed
by illumination of this warning lamp,
an audible signal and a message.
Battery ref.: CR1620 / 3 volts.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
F

U
nclip the casing using a coin at the notch.
F

S
lide the flat battery out of its location.
F

S
lide the new battery into its location
observing the original direction.
F

C
lip the casing.
F

R
einitialise the remote control.
2
Access
