2016 Peugeot 308 boot

240
308_en_Chap07_info-pratiques_ed02-2015

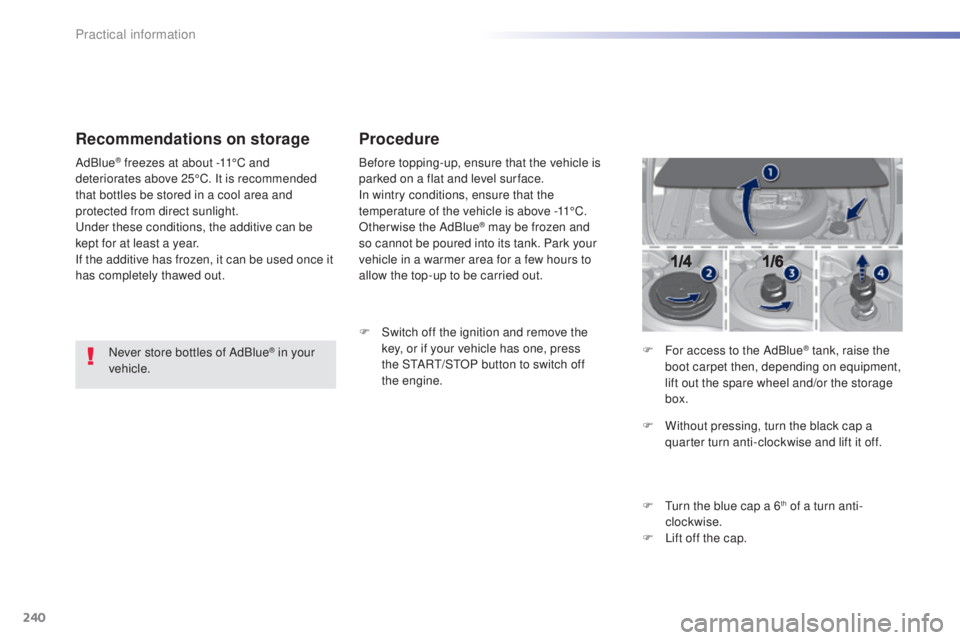

Recommendations on storage
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
under

these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
F
Sw

itch off the ignition and remove the
key, or if your vehicle has one, press
the S
tARt/StOP b

utton to switch off
the
eng

ine. F
Fo

r access to the AdBlue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F
Wi

thout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F


t
ur

n the blue cap a 6
th of a turn anti-
clockwise.
F
Li

ft off the cap.
Practical information

241
308_en_Chap07_info-pratiques_ed02-2015
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
F
Af

ter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth. If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
Re

fit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F Re fit the black cap and turn it a quarter of
a turn clockwise without pressing.
ens

ure
that the indicator on the cap lines up with
the indicator on the support.
F
De

pending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F
Re

fit the boot carpet and close the tailgate. Important: when topping
-up after
running out of additive , signalled
by the message "
top u
p emissions
additive: Starting prevented", you
must wait for about 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, introducing the key
into the ignition switch, or placing
the key of the "Keyless Entr y and
Star ting" system inside the vehicle .
Switch on the ignition, then wait for
10
se

conds before starting the engine.
F
Ob

tain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Freezing of the AdBlue
® additive
the

AdBlue
® additive freezes at
temperatures below around -11°C.
the S

CR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
7
Practical information

242
308_en_Chap07_info-pratiques_ed02-2015

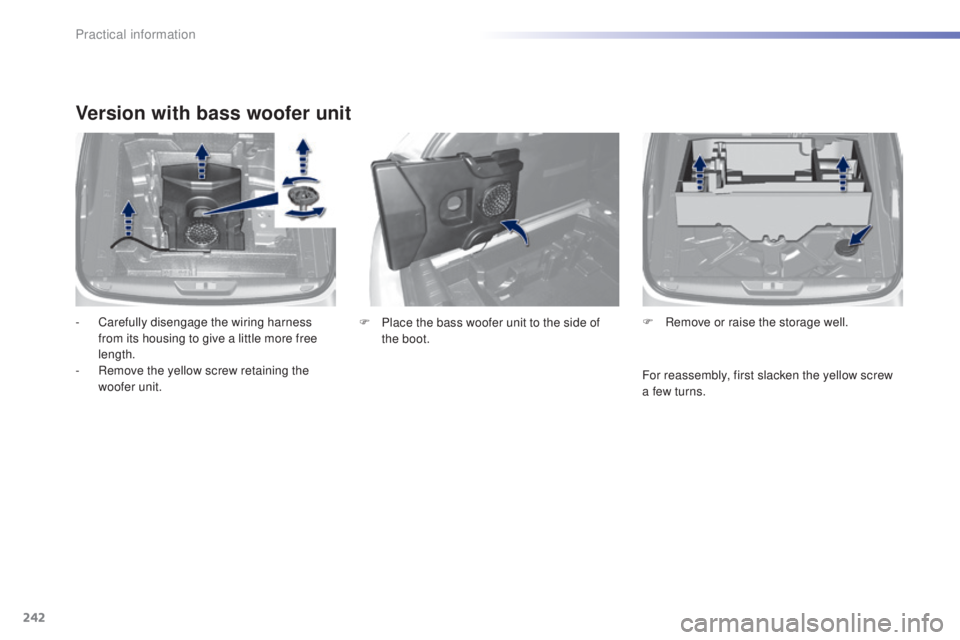

Version with bass woofer unit
- Carefully disengage the wiring harness
from its housing to give a little more free
length.
-
Re

move the yellow screw retaining the
woofer unit. F Re
move or raise the storage well.
F Pl
ace the bass woofer unit to the side of
the boot.
For reassembly, first slacken the yellow screw
a few turns.
Practical information

243
308_en_Chap08_en-cas-de-panne_ed02-2015

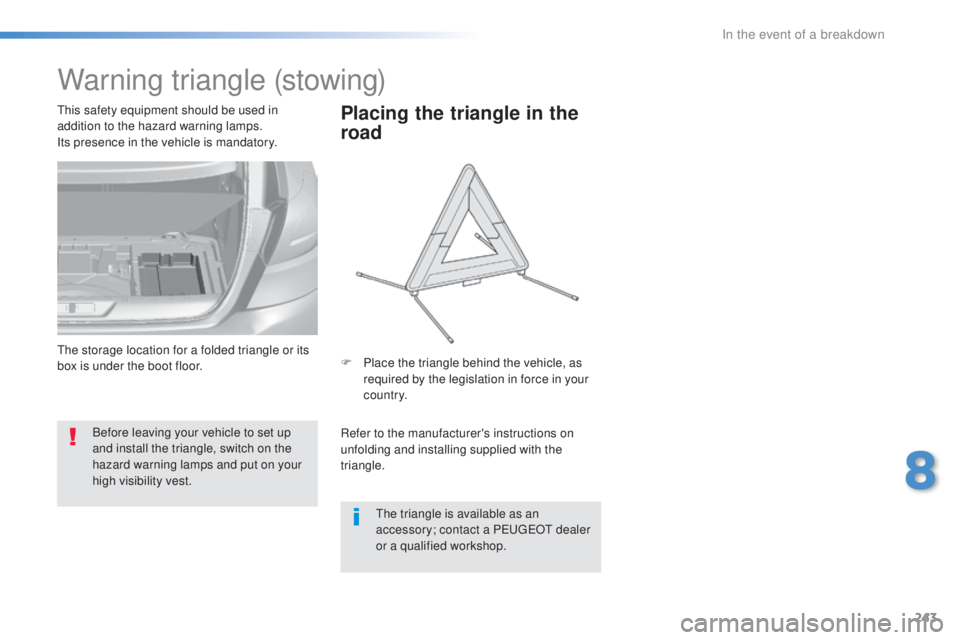

Warning triangle (stowing)
Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.
thi

s safety equipment should be used in
addition to the hazard warning lamps.
Its presence in the vehicle is mandatory.
Placing the triangle in the
road
Refer to the manufacturer's instructions on
unfolding and installing supplied with the
triangle. F
Pl
ace the triangle behind the vehicle, as
required by the legislation in force in your
c o unt r y.
the t

riangle is available as an
accessory; contact a P
eu

ge
Ot d
ealer
or a qualified workshop.
the s

torage location for a folded triangle or its
box is under the boot floor.
8
In the event of a breakdown

250
308_en_Chap08_en-cas-de-panne_ed02-2015

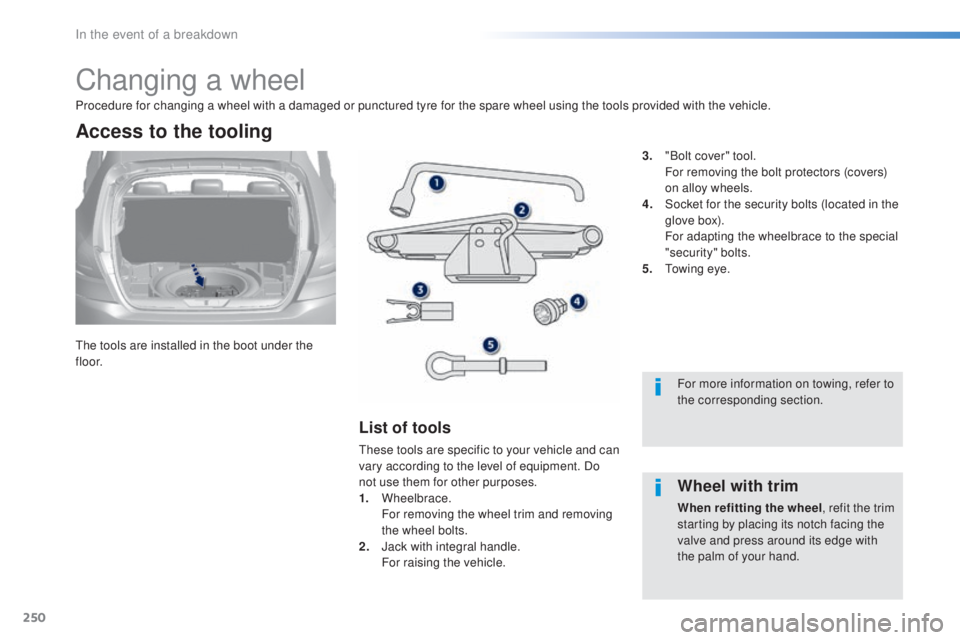

Changing a wheel
the tools are installed in the boot under the
f l o o r.
Access to the tooling
List of tools
these tools are specific to your vehicle and can
v ary according to the level of equipment. Do
not use them for other purposes.
1.
W

heelbrace.
Fo

r removing the wheel trim and removing
the wheel bolts.
2.
Ja

ck with integral handle.
Fo

r raising the vehicle. 3.
"B

olt cover" tool.
Fo

r removing the bolt protectors (covers)
on alloy wheels.
4.
So
cket for the security bolts (located in the
glove box).
Fo
r adapting the wheelbrace to the special
"security" bolts.
5.
tow
ing eye.
Procedure for changing a wheel with a damaged or punctured tyre for the spare wheel using the tools provided with the vehicle.
For more information on towing, refer to
the corresponding section.
Wheel with trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
In the event of a breakdown

251
308_en_Chap08_en-cas-de-panne_ed02-2015

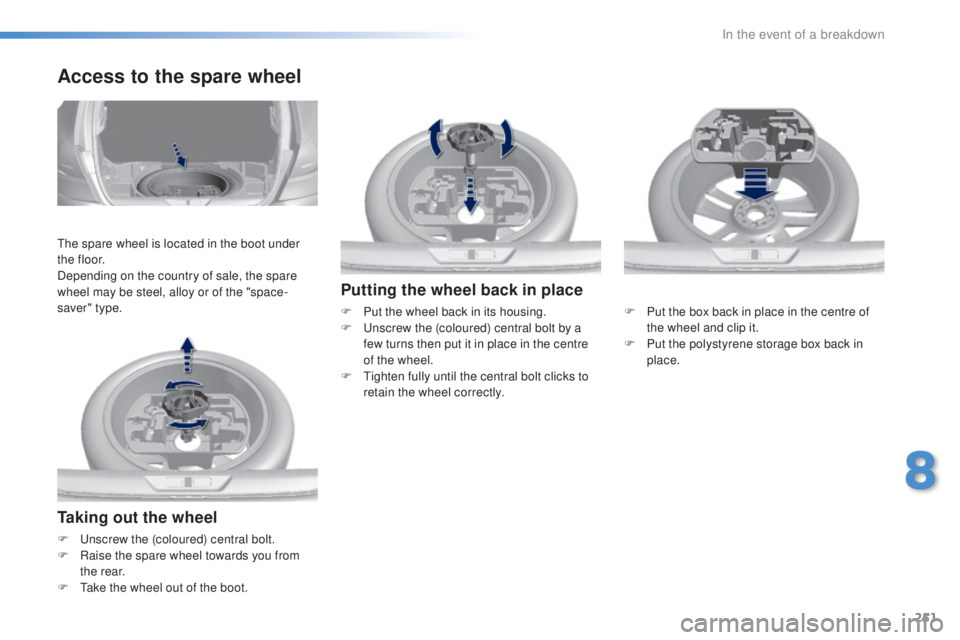

Taking out the wheel
F unscrew the (coloured) central bolt.
F Ra ise the spare wheel towards you from
the rear.
F


t
ak
e the wheel out of the boot.
Access to the spare wheel
the spare wheel is located in the boot under
t h e f l o o r.
Depending on the country of sale, the spare
wheel may be steel, alloy or of the "space-
saver" type.
Putting the wheel back in place
F Put the wheel back in its housing.
F uns crew the (coloured) central bolt by a
few turns then put it in place in the centre
of the wheel.
F


t
ig
hten fully until the central bolt clicks to
retain the wheel correctly. F Pu
t the box back in place in the centre of
the wheel and clip it.
F
Pu

t the polystyrene storage box back in
place.
8
In the event of a breakdown

255
308_en_Chap08_en-cas-de-panne_ed02-2015

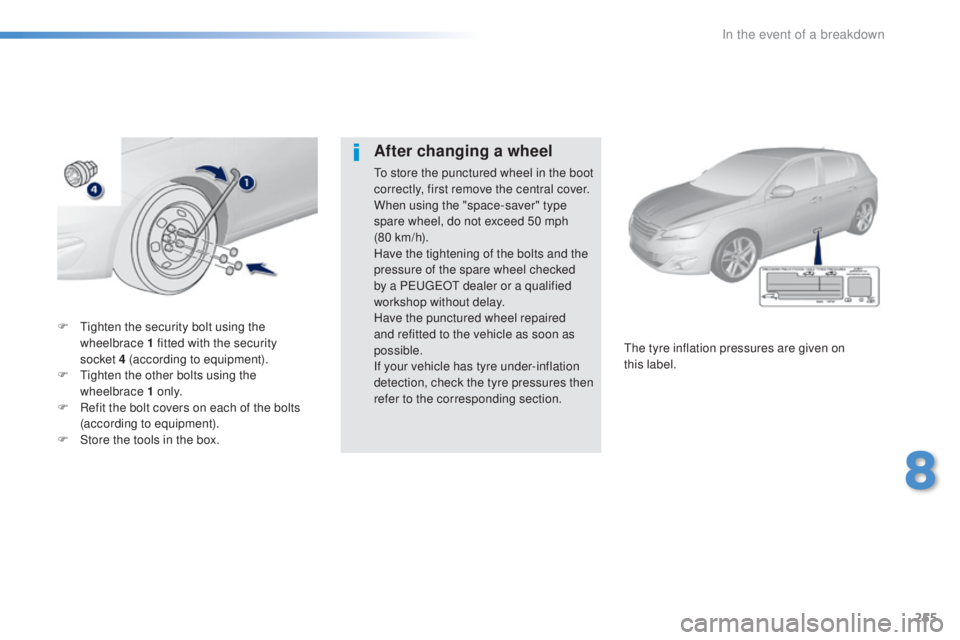

F tighten the security bolt using the
w heelbrace 1 fitted with the security
socket
4

(according to equipment).
F


t
ig
hten the other bolts using the
wheelbrace 1 o n l y.
F
Re

fit the bolt covers on each of the bolts
(according to equipment).
F
St

ore the tools in the box.
the t
yre inflation pressures are given on
this
lab

el.
After changing a wheel
to store the punctured wheel in the boot
c orrectly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80
k

m/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
eu

ge
Ot d
ealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures then
refer to the corresponding section.
8
In the event of a breakdown

262
308_en_Chap08_en-cas-de-panne_ed02-2015

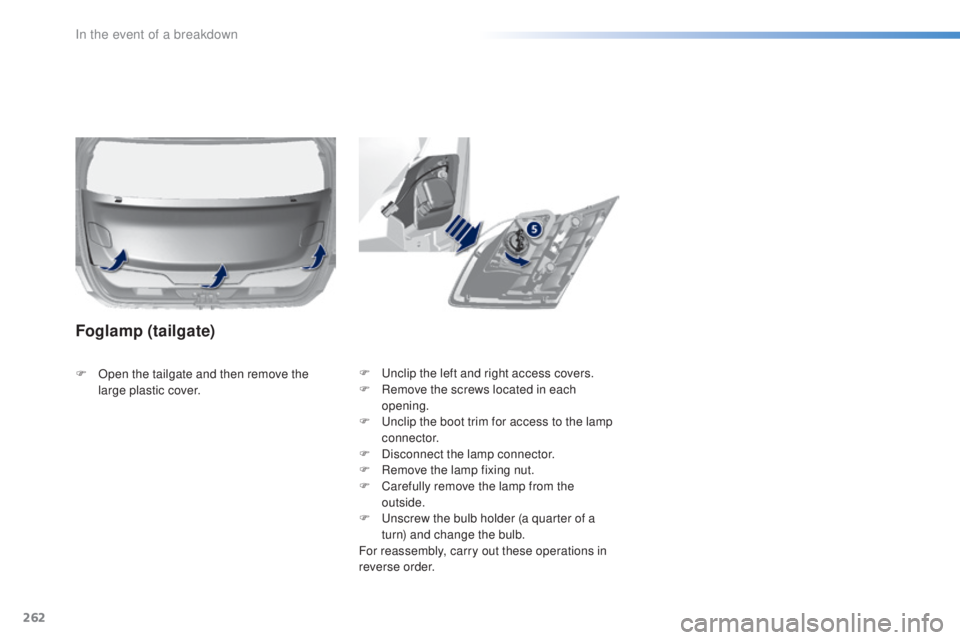

F unclip the left and right access covers.
F Re move the screws located in each
opening.
F


u
nc
lip the boot trim for access to the lamp
connector.
F
Di

sconnect the lamp connector.
F
Re

move the lamp fixing nut.
F
Ca

refully remove the lamp from the
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp (tailgate)
F Open the tailgate and then remove the
l arge plastic cover.
In the event of a breakdown
