263
308_en_Chap08_en-cas-de-panne_ed02-2015

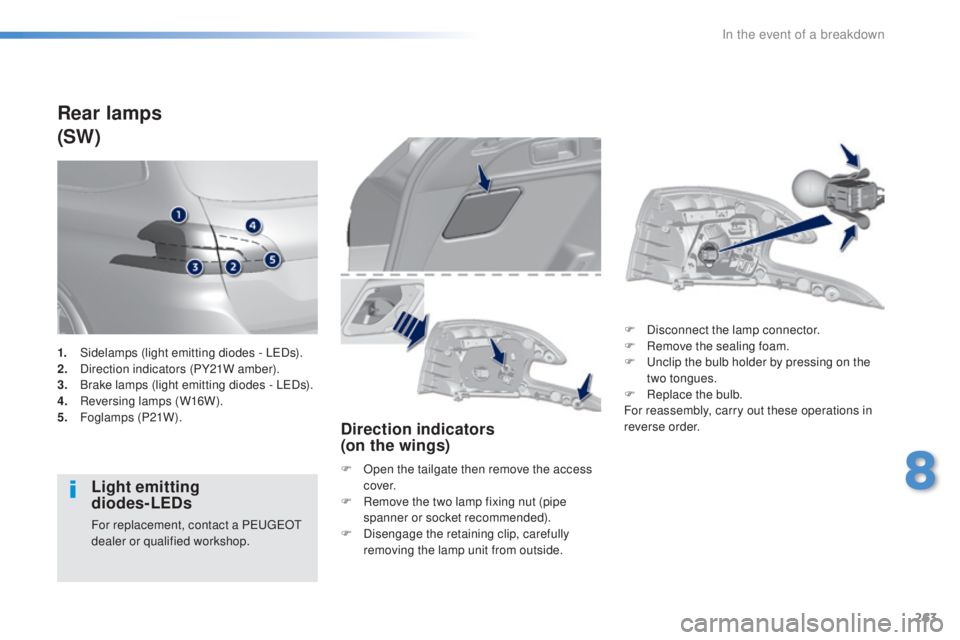

Rear lamps
(SW)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access
c ove r.
F
Re
move the two lamp fixing nut (pipe
spanner or socket recommended).
F
Disenga
ge the retaining clip, carefully
removing the lamp unit from outside. F
Di
sconnect the lamp connector.
F
Rem
ove the sealing foam.
F
u
nc
lip the bulb holder by pressing on the
two tongues.
F
Re
place the bulb.
For reassembly, carry out these operations in
reverse order.
1.
Si
delamps (light emitting diodes - L
eDs
).
2.
Di
rection indicators (PY21W amber).
3.
Br
ake lamps (light emitting diodes - L
eDs
).
4.
Re
versing lamps (W16W).
5.
Fo
glamps (P21W).
8
In the event of a breakdown
264
308_en_Chap08_en-cas-de-panne_ed02-2015

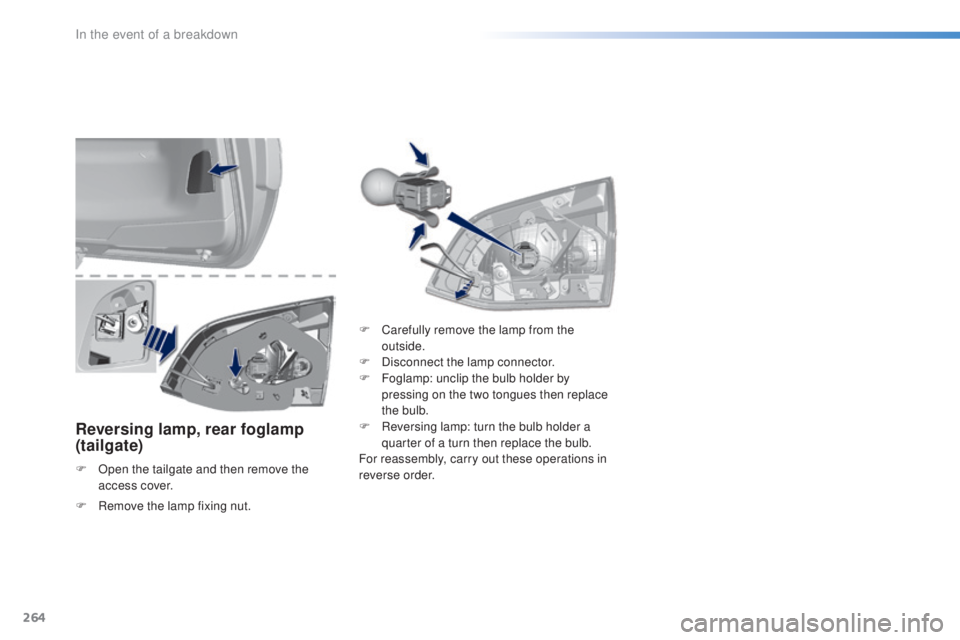

Reversing lamp, rear foglamp
(tailgate)
F Open the tailgate and then remove the
a
ccess cover. F
Ca
refully remove the lamp from the
outside.
F
Di
sconnect the lamp connector.
F
Fo
glamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F
Re
versing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F
Re
move the lamp fixing nut.
In the event of a breakdown
